lUse engine oil conforming to the follow-
ing classification: • ACEA classification: “For service C1, C2, C3 or C4”
• JASO classification: “For service DL-1”

If those classifications are not available,
contact a MITSUBISHI MOTORS Au-
thorized Service Point.NOTEl Use of additives is not recommended since
they may reduce the effectiveness of addi-
tives already included in the engine oil. It may result in failure of the mechanical as-
sembly.Engine coolant
E01000503437
To check the coolant level
A transparent coolant reserve tank (A) is lo-cated in the engine compartment.
The coolant level in this tank should be kept
between the “LOW” and “FULL” marks when measured while the engine is cold.To add coolant
The cooling system is a closed system andnormally the loss of coolant should be very
slight. A noticeable drop in the coolant level
could indicate leakage. If this occurs, we rec- ommend you to have the system checked as
soon as possible.
If the level should drop below the “LOW” level on the reserve tank, open the lid and
add coolant.
Also, if the reserve tank is completely empty, remove the radiator cap (B) and add coolant until the level reaches the filler neck.
WARNINGl Do not open the radiator cap (B) while the
engine is hot. The coolant system is under
pressure and any hot coolant escaping
could cause severe burns.
Anti-freeze
The engine coolant contains an ethylene gly-
col anti-corrosion agent. Some parts of the engine are cast aluminium alloy, and periodic
changing of the engine coolant is necessary to prevent corrosion of these parts.
Engine coolant
10-07OGAE17E2Maintenance10 Except for diesel-powered vehicles 1600 models
FULLLOW Diesel-powered vehicles 1600 modelsFULLLOW

NOTElThe washer fluid container serves the wind-
screen, rear window and headlamps (if soequipped).
During cold weather
To ensure proper operation of the washers at
low temperatures, use a fluid containing ananti-freezing agent.
Brake fluid/Clutch fluid*
E01000800631
The brake fluid and the clutch fluid share thereservoir tank.
To check the fluid level
The fluid level must be between the “MAX” and “MIN” marks on the reservoir.
The fluid level is monitored by a float. When
the fluid level falls below the “MIN” mark, the brake fluid warning lamp lights up.The fluid level falls slightly with wear of the brake pads, but this does not indicate any ab-
normality.

The fluid in the master cylinder should be checked when doing other work under thebonnet. The brake system should also be checked for leakage at the same time.
If the fluid level falls markedly in a short length of time, it indicates leaks from the
brake system.
If this occurs, we recommend you to have the
vehicle checked.
Fluid type
Use brake fluid conforming to DOT3 or DOT4 from a sealed container. The brake
fluid is hygroscopic. Too much moisture in the brake fluid will adversely affect the brake
system, reducing the performance.
CAUTIONl Take care in handling brake fluid as it is
harmful to the eyes, may irritate your skin
and also damage painted surfaces.CAUTIONl Use only the specified brake fluid.
Do not mix or add different brands of brake fluid to prevent chemical reactions.
Do not let any petroleum-based fluid touch, mix with, or get into the brake fluid.
This will damage the seals.
l Keep the reservoir tank cap closed to pre-
vent the brake fluid from deteriorating ex- cept maintenance.
l Clean the filler cap before removing and
close the cap securely after maintenance.Battery
E01001203646
The condition of the battery is very important
for quick starting and to keep the vehicle’s electrical system working properly. Regularinspection and care are especially importantin cold weather.
NOTEl After replacing the battery, the electronic
control system data for the automatic trans- mission, etc., will be erased. As a result,
shift shocks may occur.
Shift shocks will become smoother after sev-
eral changes in speed.
Brake fluid/Clutch fluid*
10-09OGAE17E2Maintenance10

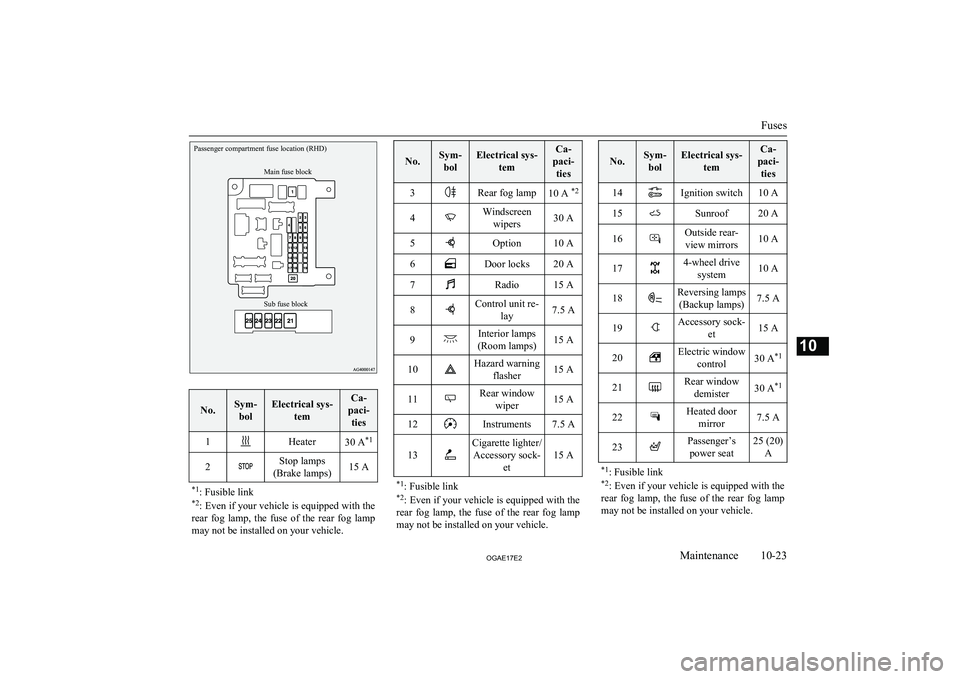

Passenger compartment fuse location (RHD)Sub fuse blockMain fuse block
No.Sym-bolElectrical sys- temCa-
paci- ties1Heater30 A *12Stop lamps
(Brake lamps)15 A*1 : Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
No.Sym- bolElectrical sys- temCa-
paci- ties3Rear fog lamp10 A *24Windscreen
wipers30 A5Option10 A6Door locks20 A7Radio15 A8Control unit re- lay7.5 A9Interior lamps
(Room lamps)15 A10Hazard warning flasher15 A11Rear windowwiper15 A12Instruments7.5 A13
Cigarette lighter/Accessory sock- et
15 A
*1: Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
No.Sym- bolElectrical sys- temCa-
paci- ties14Ignition switch10 A15Sunroof20 A16Outside rear-view mirrors10 A174-wheel drive system10 A18Reversing lamps(Backup lamps)7.5 A19Accessory sock- et15 A20Electric windowcontrol30 A *121Rear window
demister30 A *122Heated door
mirror7.5 A23Passenger’spower seat25 (20) A*1: Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
Fuses
10-23OGAE17E2Maintenance10

4
4-wheel drive operation.....................................6-41A
Accessory (Installation).....................................2-04
Accessory socket............................................... 7-74
Active stability control (ASC)...........................6-51
Additional equipment...................................... 10-20
Air conditioning................................................ 7-03 Important operation tips for the airconditioning................................................. 7-11
Air purifier.........................................................7-11
Airbag................................................................ 4-24
Anti-lock brake system (ABS).......................... 6-48 Display.......................................................... 6-49
Warning lamp................................................6-49
Ashtray.............................................................. 7-72
Assist grips........................................................ 7-83
Audio CD player...................................................... 7-11
LW/MW/FM radio........................................ 7-11
Troubleshooting............................................ 7-45
Auto Stop & Go (AS&G) system......................6-19
Automatic transmission Fluid............................................................ 11-15
Selector lever operation........................ 6-26,6-32
Selector lever position.......................... 6-28,6-34
Sports mode.......................................... 6-29,6-36
B
Battery............................................................. 10-09
Charge warning lamp.................................... 5-46
Discharged battery (Emergency starting)..... 8-02
Disposal information for used batteries........ 2-06
Specification............................................... 11-11
Bluetooth® 2.0 interface................................... 7-47
Bonnet............................................................. 10-03
Bottle holder...................................................... 7-81
Brake assist system............................................6-47
Brake Anti-lock brake............................................. 6-48
Braking.......................................................... 6-44
Fluid.................................................. 10-09,11-15
Parking brake................................................ 6-06
Bulb capacity................................................... 10-27
C
Capacities........................................................ 11-15
Card holder................................................7-72,7-79
Cargo loads........................................................6-71
Catalytic converter.......................................... 10-03
Cautions on handling of 4-wheel drive vehicles................................................... 6-43
CD player.......................................................... 7-11
Central door locks............................................. 3-26
Charge warning lamp........................................ 5-46
Chassis number............................................... 11-02
Check engine warning lamp.............................. 5-45
Child restraint.................................................... 4-15
Caution for installing the child re- straint on vehicles with a front
passenger airbag.................................. 4-15,4-27
Child-protection rear doors............................... 3-29
Cigarette lighter................................................. 7-73
Cleaning
Exterior of your vehicle................................ 9-03
Interior of your vehicle................................. 9-02
Clutch
Fluid............................................................ 10-09
Coat hook.......................................................... 7-83
Combination headlamps and dipper switch...... 5-48
Coolant (engine)....................................10-07,11-15
Cruise control.................................................... 6-54
Cup holder......................................................... 7-81
D
Daytime running lamps (type 1)........................5-51Bulb capacity.............................................. 10-27
Replacement................................................ 10-34
Daytime running lamps (type 2)........................5-51
Demister (rear window).................................... 5-62 Diesel particulate filter (DPF)........................... 6-17Dimensions...................................................... 11-04
Dipper (High/Low beam change)......................5-51
Doors Central door locks......................................... 3-26Child-protection............................................ 3-29 Dead Lock System........................................ 3-27
Lock and unlock............................................ 3-24
Driving, alcohol and drugs................................ 6-03
