2017 MERCEDES-BENZ C-Class COUPE ESP

The detection of obstacles can be impaired in
the case of:
Rthere is dirt on the sensors or anything else
coveringthe sensors
Rpoor visibility, e.g. due to rain, snow or spray
Vehicles in the monitoring range are then not
indicated.
Active Blind Spot Assist may not detect narrow
vehicles, such as motorcycles or bicycles, or
may only detect them too late.
If the lanes are narrow, vehicles driving in the
lane beyond the lane next to your vehicle may be
indicated, especially if the vehicles are not driv- ing in the middle of their lane. This may be the
case if there are vehicles at the inner edge of
your lane.
Due to the nature of the system:
Rwarnings may be issued in error when driving
close to crash barriers or similar solid lane
borders.
Rwarnings may be interrupted when driving
alongside particularly long vehicles, e.g.
trucks, for aprolonged time.
Warning display
:Warning display
Active Blind Spot Assist is not operational at
speeds below approximately 20 mph (30 km/h).
Vehicles in the monitoring range are then not
indicated.
If av ehicle is detected within the blind spot
monitoring range at speeds above 20 mph
(3 0k m/ h),w arnin glamp :on the correspond-
ing side lights up red. This warnin gisalways
emitted when avehicle enters the blind spot
monitoring range from behind or from the side.
When you overtake avehicle, the warnin gonly
occurs if the differenc einspeed is less than
7m ph (12 km/h). If you select the reverse gear, Active Blind Spot
Assis
tisnot operational.
The brightness of the warnin glamps is auto-
matically adapted to the brightness of the sur-
roundings.
When Active Blind Spot Assis tisactivated, gray
radar waves propagatin gbackwards appear
nex ttot he vehicle in the assistance display in
the multifunction display. Abov easpeed of
20 mph (30 km/h), the color of the radar waves
in the assistance display changes to green ;.
Active Blind Spot Assis tisthen ready for use.
Visua land acoustic collision warning
If you switc honthe turn signals to change lanes
and avehicle is detected in the side monitoring
range, you receiv eavisual and acoustic collision
warning. You will then hear adouble warning
ton eand red warnin glamp :flashes. If the turn
signal remainso n, detected vehicles are indica-
ted by the flashingofr ed warninglamp :.
There are no further warnin gtones.
Course-correcting brake application
If Active Blind Spot Assis tdetects arisk of alat-
eral collision in the monitoring range, acourse-
correcting brake application is carried out. This
is meant to assist you in avoiding acollision.
GWARNING
Ac ourse-correctin gbrake application cannot
always preventac ollision.There is arisk of an
accident.
Always steer ,brake or accelerate yourself,
especially if Active Blind Spot Assis twarns
you or makes acourse-correctin gbrake appli-
cation. Always maintain asafe distance at the
sides.
196Driving systems
Driving and parking

Ifac ourse-correcting brake application occurs,
red warning lamp :flashe sinthe exterior mir-
ror and adualw arning tone sounds. In addition,
display ;underlining the danger of aside col-
lision appears in the multifunction display.
In very rare cases, the system may make an
inappropriate brake application. Acourse-cor-
recting brake application may be interrupted at
any time if you steer slightly in the opposite
direction or accelerate.
The course-correcting brake application is avail-
abl eint he speed range between 20 mph
(30 km/h) and 120 mph (200 km/h).
Either no braking application, or acourse-cor-
recting brake application adapted to the driving
situation occurs if:
Rthere are vehiclesoro bstacles,e.g. crash
barriers, located on both sides of you rvehicle.
Rav ehicle approaches you too closely at the
side.
Ryou have adopted asporty driving style with
high cornering speeds.
Ryou clearl ybrake or accelerate.
Rad riving safety system intervenes, e.g. ESP®
or PRE-SAFE®Brake.
RESP®is switched off.
Raloss of tire pressure or adefective tire is
detected.
Switching on Activ eBlind Spot Assist
XMake sure that Active Blind Spot Assist is
activated in the on-board computer
(
Ypage 213).
XTurn the SmartKey to position 2in the ignition
lock.
Warning lamps :in the exterior mirrors light
up red for approximately 1.5 seconds .Gray
rada rwave spropagating backwards appear
next to the vehicle in the assistance display in
the multifunction display.
Active Lane Keeping Assist
General notes
Active Lane Keeping Assist monitors the area in
front of you rvehicle by means of multifunction
camera :at the top of the windshield. Various
different area stothe front, rear and side of your
vehicle are also monitored with the aid of the
rada rsensor system. Active Lane Keeping
Assist detects lane markings on the road and
can warn you before you leave you rlane unin-
tentionally .Ifyou do not react to the warning, a
lane-correcting application of the brakes can
bring the vehicle back into the originall ane.
Important safety notes
If you fail to adapt yourdriving style, Active Lane
Keeping Assist can neither reduce the risk of
accident nor override the law sofphysics. Active
Lane Keeping Assist cannot take account of
road and weather conditions. It may not recog-
nize traffic situations. Active Lane Keeping
Assist is only an aid .You are responsible for the
distance to the vehicle in front, for vehicle
speed,f or braking in good time and for staying in
you rlane.
Active Lane Keeping Assist cannot continuously
keep you rvehicle in its lane.
GWARNING
Active Lane Keeping Assist cannot always
clearl ydetect lane markings.
In such cases, Active Lane Keeping Assist
can:
Rgive an unnecessary warning and then
make acourse-correcting brake application
to the vehicle
Rnot give awarning or intervene
There is arisk of an accident.
Driving systems197
Driving and parking
Z

Alwayspayparticula rattentio ntothe traffic
situatio nand kee pwithint he lane, especially
if Active Lane Keeping Assist alerts you. Ter-
minate the interventio ninanon-critica ldriv-
ing situation.
The system maybei mpaired or maynot function
if:
Rther eisp oorvisibility ,e.g.d ue to insufficient
illuminatio nofthe road, or du etosnow,rain,
fog or spray
Rther eisg lare,e.g.f rom oncoming traffic, the
sunorr eflections (e.g. when the roa dsurface
is wet)
Rthe windshield is dirty,f ogged up,damag ed or
covered ,for instance by asticker, in the vicin-
ity of the camera
Rthe rada rsensors in the front or rea rbum pers
or the radiato rtrim ar edirty,e .g.o bscured by
snow
Rther eareno, severa lorunclea rlan em arkings
for alan e, e.g .inareas with roa dconstruction
work
Rthe lane marking sareworn away ,darkorc ov-
ere dup,e.g .byd irtors now
Rthe distance to the vehicl einfront is too small
and the lane marking sthusc annotbed etec-
ted
Rthe lane marking schange quickly, e.g .lan es
branch off, cros sone another or merge
Rthe roa disnarrow and winding
Rtherearestrong shadows cas tonthe road
If no vehicl eisdetectedint he adjacent lane and
broken lane marking saredete
cted, no lane-cor-
recting brake applicatio nism ade.
Warning vibration in the steering wheel
Aw arning maybeg iven if afront whee lpasses
ove ralanem arking .Itw illw arny ou by means of
intermittent vibratio ninthe steering whee lfor
up to 1.5 seconds.
Lane -correcting brake application
If you leave you rlane, unde rcertai ncircumstan-
ces the vehicle will brake briefly on one side.
Thisism eant to assist you in bringing the vehicle
back to the original lane.
GWARNING
Al ane-correcting brake application cannot
always bring the vehicle back into the original lane. Thereisar isk of an accident.
Always steer, brake or accelerate yourself,
especially if Active Lane Keeping Assis twarns
you or makes alane-correcting brake appli-
cation.
If al ane-correcting brake application occurs,
display :appear sinthe multifunction display.
The brake application also slightly reduces vehi-
cle speed.
Thisf unctio nisavailable in the range between
40 mph and 120 mph (60 km/h and 200 km/h).
Al ane-correcting brake application can be made
after driving over alanem arking detected as
being solid or broken. Before this, awarning
must be give nbym eans of intermittent vibration
in the steering wheel. In addition, alanew ith
lane markings on both sides must be recog-
nized.
In the case of abroken lane marking being
detected,al ane-correcting brake application
can only be mad eifavehicle has beend etected
in the adjacent lane. Oncoming vehicles ,over-
taking vehicles and vehicles in adjacent lanes
can be detected.
iAf urthe rlane-correcting brake application
can only occur after you rvehicle has returned
to the original lane.
No lane-correcting brake application occurs if:
Ryou clearly and actively steer, brake or accel- erate.
Ryou cut the corner on asharp bend.
Ryou have switched on the turn signal.
Rad riving safety system intervenes, e.g. ESP®,
PRE-SAFE®Brake or Active Blind Spot Assist.
198Driving systems
Drivin gand parking

Ryou haveadopte dasportydrivin gstyle wit h
high cornering speeds or high rates of accel-
eration .
RESP®is switched off .
Rthet ransmission is no tinposition D.
Raloss of tire pressur eoradefective tire has
been detecte dand displayed.
Ran obstacle in th elan einw hichyou are drivin g
has been detected.
Active Lan eKeepin gAssistm ay no tdetec tother
roa duser sort raffic situations. An inappropriat e
brak eapplication may be interrupted at any time
if you:
Rsteer slightly in th eopposit edirection .
Rswitch on th eturns ignal.
Rclearly brak eoraccelerate .
Al ane-correcting brak eapplication is interrup-
te da utomatically if:
Radrivin gsafet ysystem intervenes, e.g. ES P®,
PRE-SAF E®Brake or Active Blind Spot Assist.
Rlanem arking scan no longer be recognized.
Activating/deactivating Active Lan e
Keeping Assis t
XTo activate:press button;.
Indicato rlamp :lights up. The LaneKeep‐
ingAssistOnmessage appears in th emul-
tifunction display. If all condition shaveb een
satisfied, awarnin gors teerin ginterventio n
may be made .
If you drive at speeds abov e40m ph
(60 km/h) and lan emarking sare detected,
th el ines in th eassistanc egraphic sdisplay
(
Ypage 211) are shown in green .Activ eLane
Keepin gAssistisr eadyfor use.
XTo deactivate: press button;.
Indicato rlamp :goe sout.T he Active Lan e
Keepin gAssistisd eactivated. The Lane
Keepin gAssist Offmessage appears in
th em ultifunction display.
Selecting Standar dorAdaptive setting
XIn theDriveAssistmen uonthe on-boar d
computer, select th eActive Lan eKeep‐
ing Assistfunction (Ypage 213).
XSelectStandardor Adaptive.
Whe nStandardis selected, no warnin gvibra-
tion occur sif:
Ryou switch on th eturns ignals. In this event ,
th ew arnings are suppressed for acertai n
period of time.
Rad rivin gsafet ysystem intervenes, suc has
ABS, BA SorESP®.
Whe nAdaptive
is selected, no warnin gvibra-
tion occur sif:
Ryou switch on th eturns ignals. In this event ,
th ew arnings are suppressed for acertai n
period of time.
Rad rivin gsafet ysystem intervenes, e.g.
ABS, BA SorESP®.
Ryou accelerate hard, e.g. kickdown .
Ryou brakehard.
Ryou steer actively, e.g. swerve to avoid an
obstacle or chang elanes quickly.
Ryou cut th ecorner onashar pbend.
In order that you are warned only when neces-
sar yand in goo dtimeify ou cross th elan em ark-
ing, th esystem recognizes certain condition s
and warn syou accordingly.
The warnin gvibration occur searlier if:
Ryou approac hthe outer lan emarking on a
bend.
Rth er oadh as ver ywide lanes, e.g. ahighway.
Rthes ystem recognizes soli dlanem arkings.
The warnin gvibration occur slater if:
Rther oadh as narrow lanes.
Ryou cut th ecorner onabend.
Driving systems199
Driving and parking
Z

Important safety notes
GWARNING
If you operate information systems and com-
munication equipmen tintegrate dinthevehi-
cle while driving ,you will be distracte dfrom
traffic conditions. You could also lose control
of th evehicle. Ther eisariskofana ccident.
Only operate th eequipmen twhen th etraffic
situation permits. If you are no tsuret hatthis
is possible ,park th evehicl epayin gattention
to traffic condition sand operate th eequip-
men twhen th evehicl eiss tationary.
You must observ ethe legal requirements for th e
country in whic hyou are currentl ydriving when
operating th eon-bo ard computer.
GWARNIN G
If th einstrumen tcluste rhas faile dormal-
functioned, you may no trecognize function
restriction sinsystems relevan ttosafety. The
operating safet yofyour vehicl emay be
impaired .Ther eisar iskofana ccident.
Drive on carefully. Hav ethe vehicl echecked
at aq ualified specialist workshop immedi-
ately.
If th eoperating safet yofyour vehicl eis
impaired ,pull ove rassoonasitiss afetodos o.
Contac taqualified specialist workshop.
The on-board computer only shows message sor
warning sfromc ertai nsystems in th emultifunc-
tion display. You should therefor emakes ure
your vehicl eisoperating safely at all times .
Fo rano verview, see th einstrumen tpanel illus-
tration (
Ypage 34).
Display sand operation
Instrumen tcluster lighting
The lighting in th einstrumen tcluster, in th edis-
plays and th econtrols in thevehicl einterior can
be adjusted usin gbrightness control knob :.
XTurn brightness control knob :up or down .
If you tur nthe ligh tswitch (Ypage 110) to th e
T, ÃorL position ,the brightness
will depend upon th ebrightness of th eambi -
en tlight.
iThe ligh tsensor in th einstrumen tcluste r
automatically control sthe brightness of th e
multifunction display.
In daylight, th edisplays in th einstrumen t
cluste rare illuminated. Adimming function is
no tp ossible in daylight.
Speedometer with segments
The speedometer is divided int osegments on
Mercedes-AM Gvehicles or vehicles wit h
DISTRONI CPLUS.
The segments in th espeedometer indicat e
whic hspee drange is available.
RCruis econtro lactivated (Ypage 160):
The segments ligh tupfromt hestore dspee d
to th etype-tested maximum speed.
RDISTRONI CPLUSa ctivated (Ypage 162):
On eort wo segments in th eset spee drange
ligh tup.
RDISTRONI CPLUSd etects avehicl einf ront
that is driving at aslower spee dthant he
store dspeed:
The segments between th espee doft hevehi-
cle in fron tand th estoreds pee dligh tup.
200Display sand operation
On-boardc omputer and displays

RDisc(CD /DVD) (DV DonlyinC OMAND mul-
timedi asystem)
RSD card
RMedi aRegis ter (only in COMAND multime-
di as ystem)
RUSB storag edevice
RBluetooth®capable audi odevice
Please observe furthe rinformatio nonmedia
support and media operatio ninthe multimedia
system (see separate operating instructions).
Operatin ganaudiop layer or audio
media
:Medi asource, e.g .nam eofU SB memory
stick
;Current title
=Name of artist
?Name of album
AFolde rname
Audio data fromv arious audi odevices or media
can be played ,depen ding on the equipment
installe dinthe vehicle.
XSwitch on the multimedia system (see sepa-
rate operating instructions).
XPress the òbutton on the steerin gwheel
to open the menu list.
XPress :or9 on the steerin gwheel to
select the Mediamenu.
XConfirmbypressing aon the steering
wheel.
XTo select an audiop layer or media:press
a briefly. The list containing the media
sources appears.
XPress :or9 to select the correspond-
ing audi oplayer or media.
XPress ato confirm.
XTo ope nthe trackl ist: press :or9
briefly.
XTo select to next or previous trackint he
trackl ist: press :or9 briefly.
XTo select atrackint he trackl istu sing
rapid scroll: press and hold :or9
unti lyou reach the desired track.
If yo upress and hol dthe button, the spee dof
rapi dscroll increases after ashort time .Not
al la udio drives or data carriers support this
function.
If the corresponding track informatio niss tored
on the audi odrive or audi omedia ,the multi-
functio ndisplay maydisplay the following:
Rtrack number
Rtrack name
Rartist
Ralbum
The track informatio ndoesn ot appear in audio
AUX mod e(Au xiliary audiomode: external
audi osource connected).
Vide oDVD operation
XSwitch on the multimedia system (see sepa-
rate operating instructions).
XPress the òbutton on the steerin gwheel
to open the menu list.
XPress :or9 on the steerin gwheel to
select the Mediamenu.
XConfirmbypressing aon the steering
wheel.
XTo select aDVD single driv eordisc:press
a briefly. The list containing the media
sources appears.
XPress :or9 to select the correspond-
ing DVD singl edrive or disc.
XPress ato confirm.
Menus and submenus209
On-board computer and displays
Z

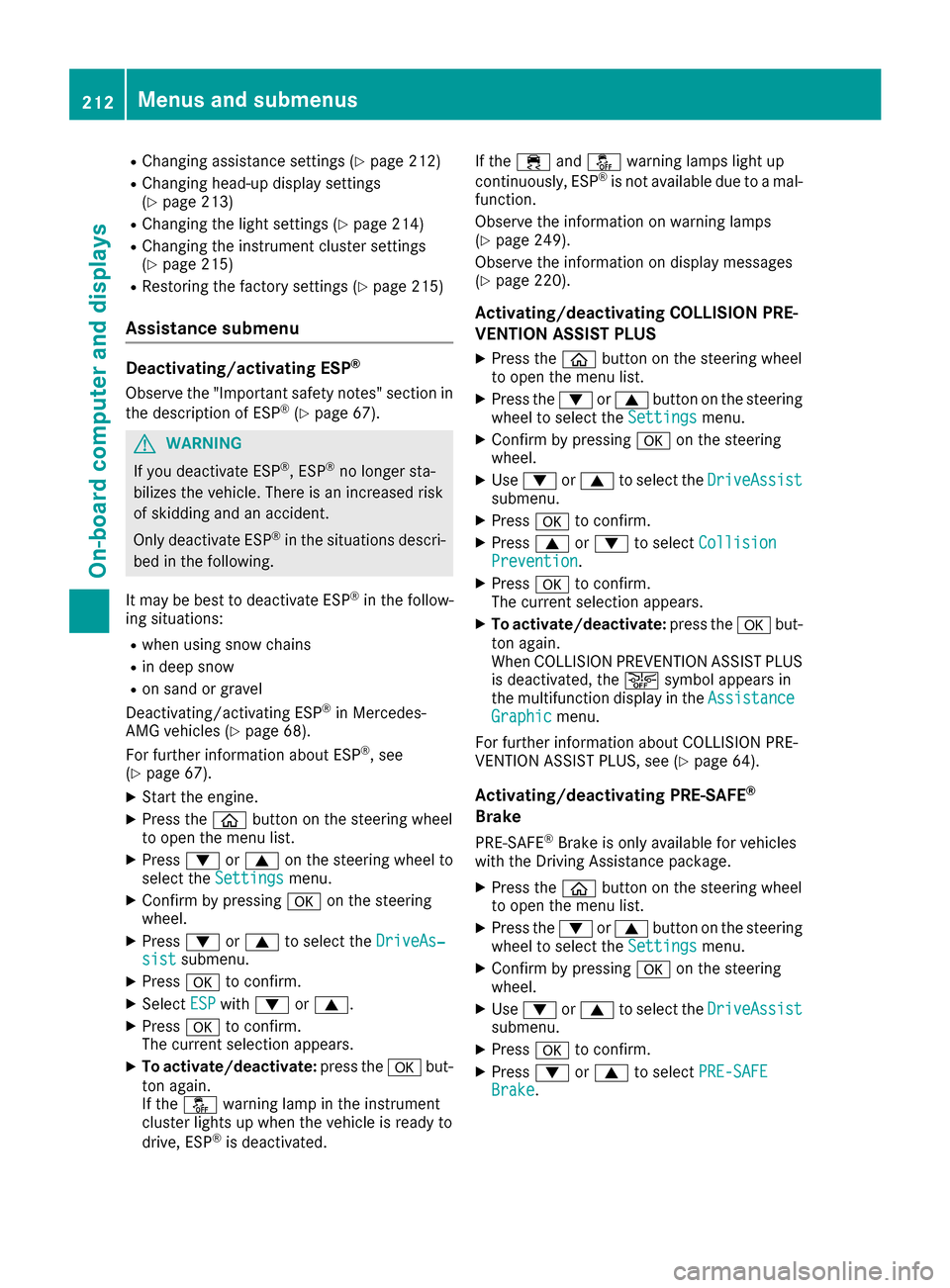

RChangingassistance settings (Ypage 212)
RChangingh ead-updisplay settings
(Ypage 213)
RChangingt helight settings (Ypage 214)
RChangingt heinstrumen tcluste rsettings
(Ypage 215)
RRestorin gthe factory settings (Ypage 215)
Assistance submenu
Deactivating/activatin gESP®
Observ ethe "Imp ortant safety notes" sectio nin
th ed escript ion of ESP®(Ypage 67).
GWARNING
If you deactivate ESP
®,E SP®no longer sta-
biliz es th evehicle .Thereisani ncreased risk
of skiddin gand an acc ident.
Only deactivate ESP
®inthes ituations descri-
bed inthef ollowing.
It may bebest to deactivate ESP
®inthef ollow-
ing situations:
Rwhen usings nowc hains
Rindeep snow
Ron sandorg ravel
Deactivating/activatin gESP®inMercedes-
AM Gvehicle s(Ypage 68).
For further informatio nabout ESP®,see
(Ypage 67).
XSt art th eengine.
XPress the òbuttonont hesteering wheel
to open th emenulist.
XPress :or9 on thesteering wheel to
select the Settingsmenu.
XConfirmbyp ressing aon thesteering
wheel.
XPress :or9 to select the DriveAs‐sistsubmenu.
XPressato confirm.
XSelect ESPwith: or9.
XPress ato confirm.
The curren tselection appears.
XTo activate/deactivate: press theabut-
to na gain.
If the å warning lamp inthei nstrument
cluste rlightsupw hen thevehicle is readyto
driv e, ESP
®isdeactivate d. If
the ÷ andå warning lamps light up
continuously, ESP
®is no tavailab ledue to amal-
function.
Observ ethe informatio nonwarning lamps
(
Ypage 249).
Observ ethe informatio nondisplay messages
(
Ypage 220).
Activating/deactivatin gCOLLISION PRE-
VENTIO NASSIST PLUS
XPress the òbuttonont hesteering wheel
to open th emenulist.
XPress the :or9 buttononthesteering
wheel to select the Settingsmenu.
XConfirmbyp ressing aon thesteering
wheel.
XUse : or9 to select the DriveAssistsubmenu.
XPressato confirm.
XPress 9or: to select CollisionPrevention.
XPressato confirm.
The curren tselection appears.
XTo activate/deactivate: press theabut-
to na gain.
When COLLISION PREVENTION AS SIST PLUS
is deactivate d,the æ symbol appearsi n
th em ultifunction display in the Assistance
Graphicmenu.
For further informatio nabout COLLISION PRE-
VENTION AS SIST PLUS, see (
Ypage 64).
Activating/deactivatin gPRE-SAFE®
Brake
PRE‑ SAFE®Brake isonly availab lefor vehicles
wit hthe Drivin gAssistanc epackage.
XPress the òbuttonont hesteering wheel
to open th emenulist.
XPress the :or9 buttononthesteering
wheel to select the Settingsmenu.
XConfirmbyp ressing aon thesteering
wheel.
XUse : or9 to select the DriveAssistsubmenu.
XPressato confirm.
XPress :or9 to select PRE-SAFEBrake.
212Menusand submenus
On-boardc omputer and displays

AMG menu(Mercedes-AM Gvehicles)
WAR MUP
:Digital speedometer
;Gear indicator
=Charge-air pressur e
?Engineoil temperature
ATransmission fluid temperature
XPress th eò buttonont hesteering whee l
to open th emenulist .
XPress :or9 on thesteering whee lto
select th eAMGmenu.
XConfir mbyp ressing aon thesteering
wheel.
Engin eand transmission oil tempera-
tures :when th eenginea nd transmission are
at normal operating temperature, oil temper-
atures ?and Aare displayed in whit einthe
multifunction display.
If th emultifunction display shows oil temper-
atur e? orA in blue, th eengineort he
transmission are no tyet at normal operating
temperature. Avoid drivin gatfull engin eout-
put during this time.
G- Meter
The G-Meter shows you th eforce stha tare exer-
te dont hedriver during th ejou rney, bot hlater-
ally and in th edirection of travel .
The maximum value sare indicated in red in th e
guidelin esystem.
XPress òon thesteering whee ltoo pen th e
men ulist .
XPress :or9 on thesteering whee lto
select th eAMGmenu.
XConfir mbyp ressing aon thesteering
wheel.
XPress th e9 buttonrepeatedly until th eG-
Meter appears.
The maximum value softheG-Meter are
saved.
XTo reset th eG-Meter: press aagain.
XUsing :or9 select Yeson thesteer -
ing wheel.
XPress ato confirm .
The maximum value softheG-Meter are
deleted.
If th eignition remain sswitched off for longer
than four hours, th eG-Meter will be automati-
call yreset .
SETUP
:Drive Comfor t/Sport/Sport +/Rac e
;Chassis Comfort/Sport/Sport +
=Transmission D/M
?Exhaust system Comfort/Sport +
AESP®On/Offor SPORT handlin gmode
Sport
SETUP displays th efollowin ginformation and
functions:
Rth eg ear indicator
Rthed igital speedometer
Rthed rive system setting
216Menusa nd submenus
On-boardc omputer andd isplays
