2017 MERCEDES-BENZ AMG GT S Owner's Manual

XTo switch on the power supply:press
Start/Stop button :once.
The power supply is switched on. You can now activate the windshield wipers, for example.
The power supply is switched off again if:
Rthe driver's door is opened and
Ryou press Start/Stop button :twice when in
this position
XTo switch on the ignition: press Start/Stop
button :twice.
The ignition is switched on.
If you press Start/Stop button :once when
in this position, the ignition is switched off
again.
;Start/Stop button USA
=Start/Stop button Canada
SmartKey
You can also start the vehicle with the SmartKey
in the ignition lock.
The ignition lock is located in the rear stowage
space of the center console.
gTo remove the SmartKey
1Power supply for some consumers, such as
the windshield wipers
2Ignition (power supply for all consumers)
and drive position
3To start the engine
iThe SmartKey can be turned in the ignition
lock even if it is not the correct SmartKey for
the vehicle. The ignition is not switched on.
The engine cannot be started.
Starting the engine
Important safety notes
GWARNING
If children are left unsupervised in the vehicle,
they could:
Ropen the doors, thus endangering other
people or road users.
Rget out and disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake.
Rshifting the automatic transmission out of
park position P
RStart the engine.
There is a risk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
GWARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Inhaling
these exhaust gases leads to poisoning. There
is a risk of fatal injury. Therefore never leave
the engine running in enclosed spaces with-
out sufficient ventilation.
GWARNING
Flammable materials introduced through
environmental influence or by animals can
ignite if in contact with the exhaust system or
Driving103
Driving an d parking
Z

parts of the engine that heat up. There is a riskof fire.
Carry out regular checks to make sure that
there are no flammable foreign materials in
the engine compartment or in the exhaust
system.
General notes
The catalytic converter is preheated for up to
30 seconds after a cold start. The sound of the
engine may change during this time.

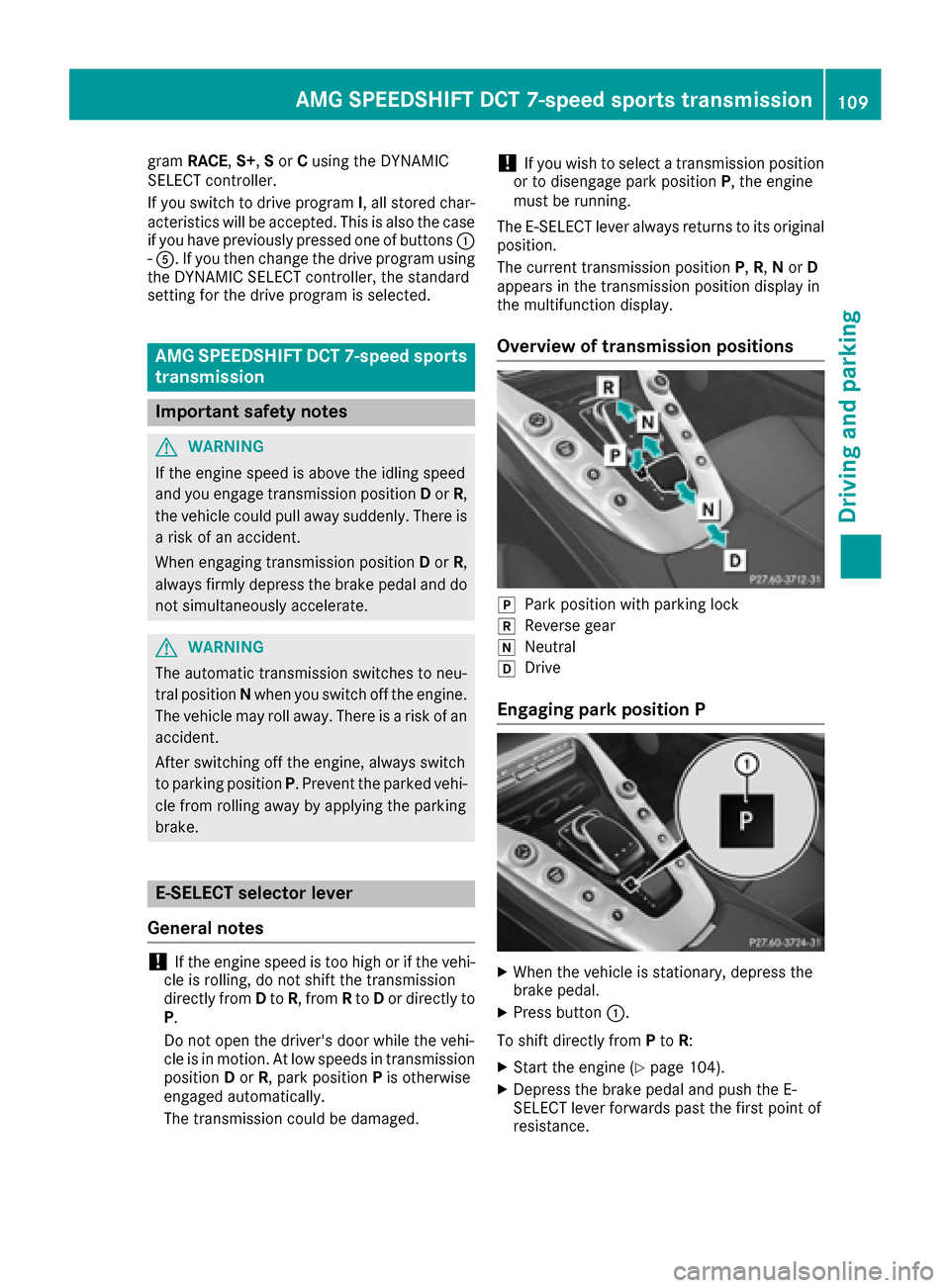

AMG SPEEDSHIFT DCT 7-speed sports
transmission
XShift the transmission to position P
(Ypage 109).
The transmission position display in the mul-
tifunction display shows P(
Ypage 110).
You can start the engine in transmission posi-
tion Pand N.
Starting procedure with the Start/Stop
button
The Start/Stop button can be used to start the
vehicle manually without inserting the SmartKey
into the ignition lock. You merely need to carry
the SmartKey on your person. This mode for
starting the engine operates independently of
the ECO start/stop automatic engine start func-
tion.
You can start the engine if a valid SmartKey is in the vehicle. Switch off the engine and always
take the SmartKey with you when leaving the
vehicle, even if you only leave it for a short time.
Pay attention to the important safety notes.
XDepress the brake pedal and keep it
depressed.
XPress the Start/Stop button once
(Ypage 102).
The engine starts.
Starting procedure with the SmartKey
XTurn the SmartKey to position 3in the ignition
lock (Ypage 103) and release it as soon as the
engine is running. If the engine will not start:
XRemove the SmartKey from the ignition lock.
XReinsert the SmartKey into the ignition lock
after a short waiting period.
XTurn the SmartKey to position
2in the ignition
lock (Ypage 103).
The indicator lamps in the instrument cluster
light up (
Ypage 189).
XTurn the SmartKey to position 3in the ignition
lock (Ypage 103) and release it as soon as the
engine is running.
Pulling away
General notes
GWARNING
If the engine speed is above the idling speed
and you engage transmission position Dor R,
the vehicle could pull away suddenly. There is
a risk of an accident.
When engaging transmission position Dor R,
always firmly depress the brake pedal and do not simultaneously accelerate.
Depress the accelerator carefully when pulling
away.
The vehicle locks centrally once you have pulled
away. The locking knobs in the doors drop down.
You can open the doors from the inside at any
time.
You can also deactivate the automatic locking
feature (
Ypage 67).
It is only possible to shift the transmission from
position Pto the desired position, if:
Rthe engine is running and
Ryou depress the brake pedal
If you do not depress the brake pedal, the E-
SELECT lever can still be moved but the parking lock remains engaged.
Information on the automatic release of the
electric parking brake (
Ypage 122).
Hill start assist
Hill start assist helps you when pulling away for-
wards or in reverse on an uphill gradient. It holds
the vehicle for a short time after you have
removed your foot from the brake pedal. This
104Driving
Driving and parking

gives you enough time to move your foot from
the brake pedal to the accelerator pedal and to
depress it before the vehicle begins to roll.
GWARNING
After a short time, hill start assist will no lon-
ger brake your vehicle and it could roll away.
There is a risk of an accident and injury.
Therefore, quickly move your foot from the
brake pedal to the accelerator pedal. Never
leave the vehicle when it is held by hill start
assist.
Hill start assist is not active if:
Ryou are pulling away on a level road or on a
downhill gradient.
Rthe transmission is in position N.
Rthe electric parking brake is applied.
RESP®is malfunctioning.
ECO start/stop function
Introduction
The ECO start/stop function switches the
engine off automatically if the vehicle is stopped
under certain conditions.
The engine starts automatically when the driver
wants to pull away again. The ECO start/stop
function thereby helps you to reduce the fuel
consumption and emissions of your vehicle.
Important safety notes
GWARNING
If the engine is switched off automatically and
you exit the vehicle, the engine is restarted
automatically. The vehicle may begin moving.
There is a risk of accident and injury.
If you wish to exit the vehicle, always turn off
the ignition and secure the vehicle against
rolling away.
General notes
:ECO start/stop display
If the engine has been switched off automati-
cally by the ECO start/stop function, the è
ECO symbol is shown in the multifunction dis-
play.
The ECO start/stop function is only available in
drive program C.
The ECO start/stop function is activated when- ever you switch on the engine using the Smart-
Key or the Start/Stop button. This is the case if:
Rthe ignition was switched off for more than
four hours or
Rthe ECO start/stop function had been activa-ted before the engine was switched off
Automatic engine switch-off
The ECO start/stop function switches the
engine off automatically if:
Rthe ECO start/stop function is activated
(Ypage 106) and
Ryou brake the vehicle to a standstill in trans-
mission position D
The ECO start/stop function is operational
when:
Rthe indicator lamp in the ECO button is lit
green.
Rthe outside temperature is within the range
that is suitable for the system.
Rthe engine and the transmission are at a suf-
ficient temperature for the ECO start/stop
function.
Rthe set temperature for the vehicle interior
has been reached.
Rthe battery is sufficiently charged.
Rthe system detects that the windshield is not
fogged up when the air-conditioning system is switched on.
Rthe hood is closed.
Rthe driver's door is closed and the driver's
seat belt is fastened.
Driving105
Driving and parking
Z

All of the vehicle's systems remain active when
the engine is stopped automatically.
The HOLD function can also be activated if the
engine has been switched off automatically. It is
then not necessary to continue applying the
brakes during the automatic stop phase. When
you depress the accelerator pedal, the engine
starts automatically and the braking effect of
the HOLD function is deactivated.
Automatic engine start
The engine starts automatically if:
Ryou switch off the ECO start/stop function by
pressing the ECO button
Rswitch to drive programRACE,S+ orS
(Ypage 108)
Ryou switch to manual mode M(Ypage 112)
Rin transmission position D, the brake pedal is
released and the HOLD function is not active
Ryou depress the accelerator pedal
Ryou engage reverse gear R
Ryou move the transmission out of position P
Ryou unfasten your seat belt or open the driv-
er's door
Rthe vehicle starts to roll
Rthe brake system requires this
Rthe temperature in the vehicle interior devi-
ates from the set range
Rthe system detects moisture on the wind-
shield when the air-conditioning system is
switched on
Rthe battery's condition of charge is too low
Shifting the transmission to position Pdoes not
start the engine.
Deactivating or activating the ECO
start/stop function
XTo deactivate: press ECO button :.
Indicator lamp ;goes out.
XTo activate: press ECO button :.
Indicator lamp ;lights up.
If indicator lamp ;is off, the ECO start/stop
function has been deactivated manually or as
the result of a malfunction. The engine will then
not be switched off automatically when the vehi- cle stops.
The ECO start/stop function is deactivated, if:
Rswitch to drive program RACE,S+ orS
(Ypage 108)
Ryou switch to manual mode M(Ypage 112)
AMG sports exhaust system
You can choose between different AMG sports
exhaust system volumes using the position of
the exhaust flap.
Each time you start the engine with the Smart-
Key or the Start/Stop button, the quietest set-
ting is activated.
Setting the volume:
XPress button :.
If you select the loudest setting, indicator
lamp ;lights up.
You can also adjust the position of the exhaust
flap using the:
RDYNAMIC SELECT controller (Ypage 108)
RMultimedia system
106Driving
Driving an d parking

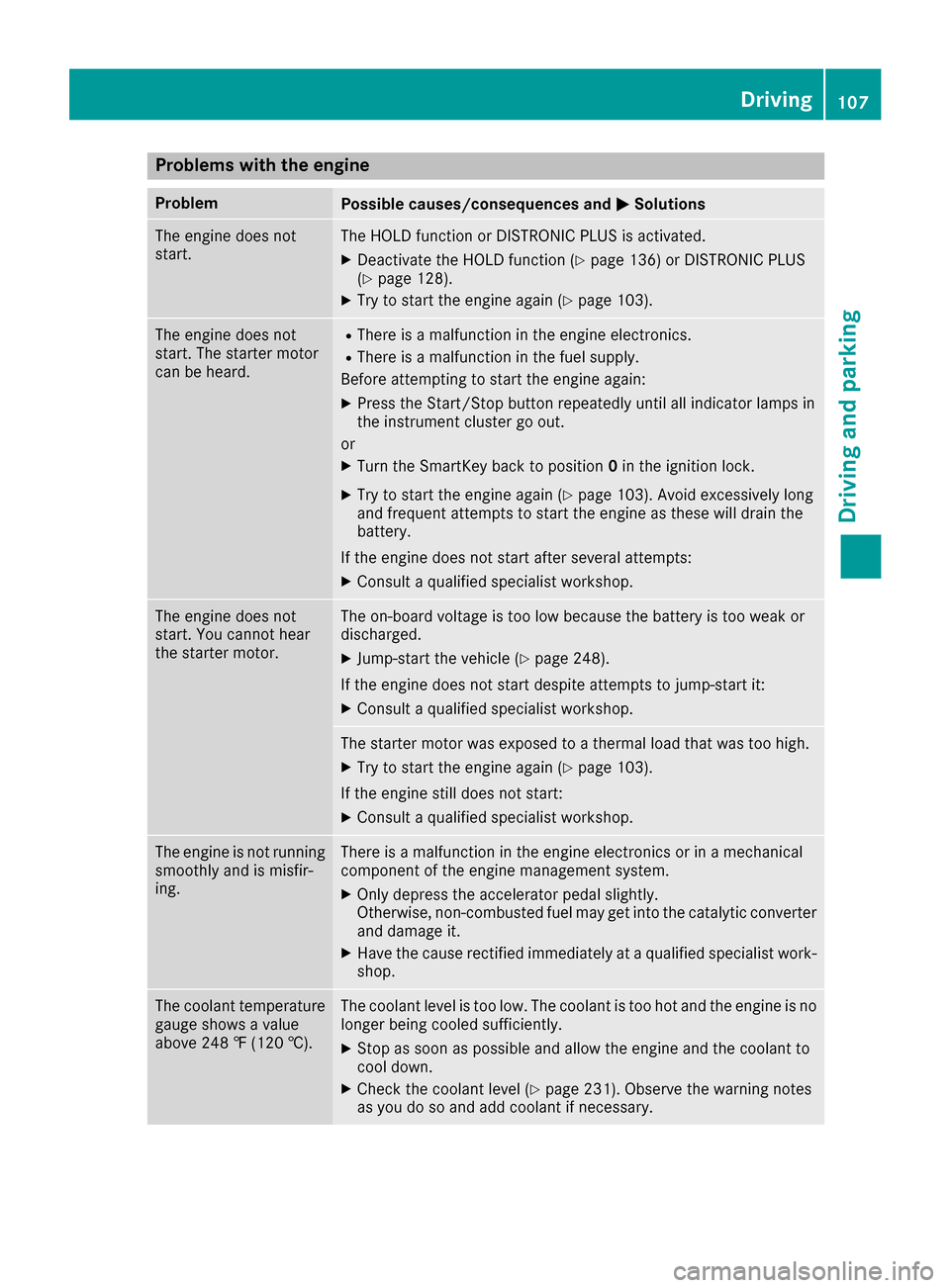

Problems with the engine
ProblemPossible causes/consequences andMSolutions
The engine does not
start.The HOLD function or DISTRONIC PLUS is activated.
XDeactivate the HOLD function (Ypage 136) or DISTRONIC PLUS
(Ypage 128).
XTry to start the engine again (Ypage 103).
The engine does not
start. The starter motor
can be heard.RThere is a malfunction in the engine electronics.
RThere is a malfunction in the fuel supply.
Before attempting to start the engine again:
XPress the Start/Stop button repeatedly until all indicator lamps in
the instrument cluster go out.
or
XTurn the SmartKey back to position 0in the ignition lock.
XTry to start the engine again (Ypage 103). Avoid excessively long
and frequent attempts to start the engine as these will drain the
battery.
If the engine does not start after several attempts:
XConsult a qualified specialist workshop.
The engine does not
start. You cannot hear
the starter motor.The on-board voltage is too low because the battery is too weak or
discharged.
XJump-start the vehicle (Ypage 248).
If the engine does not start despite attempts to jump-start it:
XConsult a qualified specialist workshop.
The starter motor was exposed to a thermal load that was too high.
XTry to start the engine again (Ypage 103).
If the engine still does not start:
XConsult a qualified specialist workshop.
The engine is not running
smoothly and is misfir-
ing.There is a malfunction in the engine electronics or in a mechanical
component of the engine management system.
XOnly depress the accelerator pedal slightly.
Otherwise, non-combusted fuel may get into the catalytic converter
and damage it.
XHave the cause rectified immediately at a qualified specialist work-
shop.
The coolant temperature
gauge shows a value
above 248 ‡ (120 †).The coolant level is too low. The coolant is too hot and the engine is no
longer being cooled sufficiently.
XStop as soon as possible and allow the engine and the coolant to
cool down.
XCheck the coolant level (Ypage 231). Observe the warning notes
as you do so and add coolant if necessary.
Driving107
Driving and parking
Z

DYNAMIC SELECT controller
General information
Selectth edrive program usin gth eDYNAMI C
SELECT controller .
Available drive programs:
C ComfortComfort-oriented, optimum -
econom yengin eand trans -
missio nsetting s
SSpor tSporty engin eand transmis -
sio nsetting s
S+SportPlusEspecially sport yengin eand
transmissio nsetting s
RaceMaximum sportiness and
engineand transmissio n
setting ssuitable fo rth e
racetrac k
IIndividualIndividual setting s
Dependingon th edrive program selecte dth e
followin gvehicle characteristics will change:
Rth edrive (engin emanagement)
Rth etransmissio nmanagemen t
RESP®(Ypage 55)
Rthesuspensio n (Ypage 138)
Rtheposition of th eexhaus tfla p
(Ypage 106)
Rth eavailabilit yof th eEC Ostart/sto pfunction
(Ypage 105)
Rth eavailabilit yof glidin gmode
(Ypage 112)
Further information fo rautomatic drive program
characteristics (
Ypage 113).
Additionally, in drive program Iyou can config-
ure th erespective vehicle characteristics usin g
th emultimedia system. You can fin dinforma-
tion about this in th eDigital Operator's Manual.
Each time you start th eengin ewit hth eSmart -
Key or th eStart/Sto pbutton, drive program Cis
activated. Fo rfurther information about startin g
th eengine, see (
Ypage 103).
Selecting th edrive program
XTur nDYNAMI CSELECT controller :until th e
desire ddrive program is selected.
The selecte ddrive program appears in th e
multifunction display. Afte rfiv eseconds th e
display goe sout and th estatus icon of th e
selecte ddrive program appears .
The drive program indicator on DYNAMI C
SELECT controller :lights up in red .
In addition ,th ecurren tdrive program setting s
are displaye din th emultimedia system dis -
play.
Additiona lsettings
:Manual mode (Ypage 115)
;ECOstart/sto pfunction (Ypage 105)
=Position of th eexhaus tflap (Ypage 106)
?Suspensio n (Ypage 138)
AESP®(Ypage 55 )
Whe nyou press buttons :-A thecorre-
spondin gsetting is selected. The DYNAMI C
SELECT controller setting is overwritten.
These setting swill also be maintained fo rman -
ual mode and ES P
®if you switch to drive pro -
108DYNAMIC SELECT controller
Driving and parking

gramRACE, S+,Sor Cusing the DYNAMIC
SELECT controller.
If you switch to drive program I, all stored char-
acteristics will be accepted. This is also the case
if you have previously pressed one of buttons :
- A. If you then change the drive program using
the DYNAMIC SELECT controller, the standard
setting for the drive program is selected.
AMG SPEEDSHIFT DCT 7-speed sports
transmission
Important safety notes
GWARNING
If the engine speed is above the idling speed
and you engage transmission position Dor R,
the vehicle could pull away suddenly. There is
a risk of an accident.
When engaging transmission position Dor R,
always firmly depress the brake pedal and do not simultaneously accelerate.
GWARNING
The automatic transmission switches to neu-
tral position Nwhen you switch off the engine.
The vehicle may roll away. There is a risk of an
accident.
After switching off the engine, always switch
to parking position P. Prevent the parked vehi-
cle from rolling away by applying the parking
brake.
E-SELECT selector lever
General notes
!If the engine speed is too high or if the vehi-
cle is rolling, do not shift the transmission
directly from Dto R, from Rto Dor directly to
P.
Do not open the driver's door while the vehi-
cle is in motion. At low speeds in transmission
position Dor R, park position Pis otherwise
engaged automatically.
The transmission could be damaged.
!If you wish to select a transmission position
or to disengage park position P, the engine
must be running.
The E-SELECT lever always returns to its original
position.
The current transmission position P,R, Nor D
appears in the transmission position display in
the multifunction display.
Overview of transmission positions
jPark position with parking lock
kReverse gear
iNeutral
hDrive
Engaging park position P
XWhen the vehicle is stationary, depress the
brake pedal.
XPress button :.
To shift directly from Pto R:
XStart the engine (Ypage 104).
XDepress the brake pedal and push the E-
SELECT lever forwards past the first point of
resistance.
AMG SPEEDSHIFT DCT 7-speed sports transmission109
Driving and parking
Z

To shift directly fromPto D:
XStart the engine (Ypage 104).
XDepress the brake pedal and push the E-
SELECT lever backwards past the first point of
resistance.
Park position Pis disengaged if you:
Rdepress the brake pedal and
Rpush the E-SELECT lever forwards or back to
the first point of resistance
The transmission shifts to neutral N.
Engaging park position P automatically
Park position Pis engaged automatically in the
following circumstances:
Rif you switch off the engine using the Start/
Stop button and open the driver's or front-
passenger door.
Rif you remove the SmartKey from the ignition
lock.
Rif you open the door while traveling at low
speed in transmission position Dor R.
Under certain conditions, the automatic trans-
mission shifts automatically to transmission
position Pif the HOLD function or DISTRONIC
PLUS is activated. Observe the information on
the HOLD function (
Ypage 137) and on
DISTRONIC PLUS (Ypage 132).
Engaging reverse gear R
XStart the engine (Ypage 104).
XWhen the vehicle is stationary, depress the
brake pedal.
XPush the E-SELECT lever forwards past the
first point of resistance.
Shifting to neutral N
XStart the engine (Ypage 104).
XWhen the vehicle is stationary, depress the
brake pedal.
XPush the E-SELECT lever forwards or back to
the first point of resistance.
If you move the E-SELECT lever to Nbefore
switching off the engine, the transmission
remains in Nfor approximately 30 minutes. If
you open the driver's or front-passenger door
during this period, the transmission automati-
cally shifts to P. The transmission remains in
Nif:
Rthe SmartKey is in the ignition lock and
Ryou use the E ‑SELECT lever to shift the trans-
mission to Nbefore switching the engine off
This still applies if you open the driver's or front-
passenger door.
You can find further information under "Car
wash" (
Ypage 234).
Shifting to transmission position D
XStart the engine (Ypage 104).
XWhen the vehicle is stationary, depress the
brake pedal.
XPush the E-SELECT lever back past the first
point of resistance.
Transmission position and drive pro-
gram display
The current transmission position and drive pro-
gram appear in the multifunction display.
:Drive program
;Transmission position
Additionally, displays next to the E ‑SELECT lever
show the current transmission position.
The displays light up if you:
Rswitch on the power supply with the Start/
Stop button (Ypage 102) or
Rinsert the SmartKey into the ignition lock
(Ypage 103).
The displays go out if you:
Rswitch off the power supply with the Start/
Stop button (Ypage 102) or
Rremove the SmartKey from the ignition lock
(Ypage 103).
If the transmission position display in the mul-
tifunction display is not working, check on the
display next to the E-SELECT lever whether the
desired transmission position is engaged.
110AMG SPEEDSHIFT DCT 7-speed sports transmission
Driving and parking
