2017 MAZDA MX5 MIATA engine

4 –35 When Driving
Transmission Shift Position Indication
The selector position is indicated when the
ignition is switched ON.
Gear position indication
In manual shift mode, the “M” of the shift
position indication illuminates and the
numeral for the selected gear is displayed.
Warning LightThe warning light turns on when the
system has a malfunction.
Refer to Warning Indication/Warning
Lights on page 4-26 .
Transmission Ranges 
The shift position indicator light in the
instrument cluster illuminates. Refer to
Warning/Indicator Lights on page
4-26 . 
The selector lever must be in P or N to
operate the starter.
P (Park)
P locks the transmission and prevents the
rear wheels from rotating.
WARNING Always set the selector lever to P and set
the parking brake:
Only setting the selector lever to the
P position without using the parking
brake to hold the vehicle is dangerous.
If P fails to hold, the vehicle could move
and cause an accident. CAUTION 
Shifting into P, N or R while the vehicle is
moving can damage your transmission. 
Shifting into a driving gear or reverse
when the engine is running faster than
idle can damage the transmission.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete
stop before shifting to or from R, except
under rare circumstances as explained in
Rocking the Vehicle (page 3-53 ).
N (Neutral)
In N, the wheels and transmission are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
WARNING If the engine is running faster than idle,
do not shift from N or P into a driving
gear:
It's dangerous to shift from N or P
into a driving gear when the engine
is running faster than idle. If this is
done, the vehicle could move suddenly,
causing an accident or serious injury.
Do not shift into N when driving the
vehicle:
Shifting into N while driving is
dangerous. Engine braking cannot
be applied when decelerating which
could lead to an accident or serious
injury.
MX-5_8FR4-EA-16J_Edition1.indb 35 2016/08/11 20:28:50

4 –36 When Driving
Transmission
CAUTION Do not shift into N when driving
the vehicle. Doing so can cause
transmission damage.
NOTE
Apply the parking brake or depress the
brake pedal before moving the selector
lever from N to prevent the vehicle from
moving unexpectedly.
D (Drive)
D is the normal driving position. From a
stop, the transmission will automatically
shift through a 6-gear sequence.
M (Manual)
M is the manual shift mode position. Gears
can be shifted up or down by operating the
selector lever. Refer to Manual Shift Mode
on page 4-37 .
Active Adaptive Shift (AAS)Active Adaptive Shift (AAS)
automatically controls the transmission
shift points to best suit the road conditions
and driver input. This improves driving
feel. The transmission may switch to AAS
mode when driving up and down slopes,
cornering, driving at high elevations,
or depressing the accelerator pedal
quickly while the selector lever is in the
D position. Depending on the road and
driving conditions/vehicle operations, gear
shifting could be delayed or not occur,
however, this does not indicate a problem
because the AAS mode will maintain the
optimum gear position. Shift-Lock System The shift-lock system prevents shifting out
of P unless the brake pedal is depressed.
To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Press and hold the lock-release button.
4. Move the selector lever.
NOTE 
When the ignition is switched to ACC or
the ignition is switched off, the selector
lever cannot be shifted from P. 
The ignition cannot be switched to OFF
if the selector lever is not in P.
Shift-Lock Override If the selector lever will not move from P
using the proper shift procedure, continue
to hold down the brake pedal.
1. Remove the shift-lock override cover
using a cloth-wrapped flat head
screwdriver.
2. Insert a screwdriver and push it down.

C ove r
3. Press and hold the lock-release button.
4. Move the selector lever.
MX-5_8FR4-EA-16J_Edition1.indb 36 2016/08/11 20:28:51

4 –37 When Driving
TransmissionTake the vehicle to an Authorized Mazda
Dealer to have the system checked.
Manual Shift ModeThe manual shift mode gives you the feel
of driving a manual transmission vehicle
by allowing you to operate the selector
lever manually. This allows you to control
engine rpm and torque to the drive wheels
much like a manual transmission when
more control is desired.
To change to manual shift mode, shift the
lever from D to M.
NOTE
Changing to manual shift mode while
driving will not damage the transmission.
To return to automatic shift mode, shift the
lever from M to D.
NOTE 
If you change to manual shift mode
when the vehicle is stopped, the gear
will shift to M1. 
If you change to manual shift mode
without depressing the accelerator
pedal when driving in D range, 5th
gear/6th gear, the gear will shift to M4/
M5. Indicators
Manual shift mode indication
In manual shift mode, the “M” of the shift
position indication in the instrument panel
illuminates.
Gear position indication
The numeral for the selected gear
illuminates. Manual shift mode indication
Gear position indication
NOTE
If the gears cannot be shifted down when
driving at higher speeds, the gear position
indication will flash twice to signal that
the gears cannot be shifted down (to
protect the transmission).
MX-5_8FR4-EA-16J_Edition1.indb 37 2016/08/11 20:28:51

4 –38 When Driving
Transmission
*Some models.Manually shifting up
You can shift gears up by operating
the selector lever or the steering shift
switches *
.
M1 → M2 → M3 → M4 → M5 → M6
Using selector lever
To shift up to a higher gear, tap the
selector lever back
once.
Using steering shift switch *
To shift up to a higher gear with the
steering shift switches, pull the UP switch
(
) toward you once with your
fingers. UP switch (+/OFF) WARNING Keep your hands on the steering wheel
rim when using fingers on the steering
shift switches:
Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous.
If the driver's air bag were to deploy
in a collision, your hands could be
impacted causing injury.
NOTE 
When driving slowly, the gears may not
shift up. 
Do not drive the vehicle with the
tachometer needle in the RED ZONE
while in manual shift mode. In
addition, manual shift mode switches
to automatic shift mode while the
accelerator pedal is completely
depressed.
This function is canceled while the DSC
is turned off. However, if the vehicle
is continuously driven at a high rpm,
the gears may automatically shift up to
protect the engine. 
The steering shift switch can be used
temporarily even if the selector lever is
in the D position while driving. In
addition, it returns to automatic shift
mode when the UP switch (
) is
pulled rearward for a sufficient amount
of time.
MX-5_8FR4-EA-16J_Edition1.indb 38 2016/08/11 20:28:51

4 –39 When Driving
Transmission
*Some models.Manually shifting down
You can shift gears down by operating
the selector lever or the steering shift
switches *
.
M6 → M5 → M4 → M3 → M2→ M1
Using selector lever
To shift down to a lower gear, tap the
selector lever forward
once.
Using steering shift switch *
To shift down to a lower gear with the
steering shift switches, pull the DOWN
switch
toward you once with your
fingers. DOWN switch (-) WARNING Do not use engine braking on slippery
road surfaces or at high speeds:
Shifting down while driving on wet,
snowy, or frozen roads, or while driving
at high speeds causes sudden engine
braking, which is dangerous. The
sudden change in tire speed could
cause the tires to skid. This could
lead to loss of vehicle control and an
accident.
Keep your hands on the steering wheel
rim when using fingers on the steering
shift switches:
Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous.
If the driver's air bag were to deploy
in a collision, your hands could be
impacted causing injury.
NOTE 
When driving at high speeds, the gear
may not shift down. 
During deceleration, the gear may
automatically shift down depending on
vehicle speed. 
When depressing the accelerator fully,
the transmission will shift to a lower
gear, depending on vehicle speed.
However, the gears do not kickdown
while the DSC is turned off.
MX-5_8FR4-EA-16J_Edition1.indb 39 2016/08/11 20:28:51

4 –42 When Driving
Transmission Recommendations for shifting
Upshifting
For normal acceleration and cruising, Mazda recommends these sh ift points:Gear Vehicle speed *1
M1 to M2 24 km/h (15 mph)
M2 to M3 40 km/h (25 mph)
M3 to M4 65 km/h (40 mph)
M4 to M5 73 km/h (45 mph)
M5 to M6 81 km/h (50 mph)
*1 Always observe local speed limit regulations.
Downshifting
When you must slow down in heavy traffic or on a steep upgrade, downshift before the
engine starts to overwork. This gives better acceleration when you need more speed.
On a steep downgrade, downshifting helps maintain safe speed and prolongs brake life.
MX-5_8FR4-EA-16J_Edition1.indb 42 2016/08/11 20:28:52

4 –43 When Driving
Transmission
*Some models. Direct Mode *
Direct mode can be used for temporarily
switching gears by operating the steering
shift switch while the vehicle is being
driven with the selector lever in the D
range.
While in direct mode, the D and M
indication illuminate and the gear position
in use is illuminated.
Direct mode is canceled (released) under
the following conditions. 
The UP switch ( ) is pulled
rearward for a certain amount of time or
longer. 
The vehicle is driven for a certain
amount of time or longer (time differs
depending on the driving conditions
while operating). 
The vehicle is stopped or moving at a
slow speed.
Gear position indicationDirect mode indication NOTE
Shifting up and down while in direct mode
may not be possible depending on the
vehicle speed. In addition, because direct
mode is canceled (released) depending
on the rate of acceleration or if the
accelerator is fully depressed, use of the
manual shift mode is recommended if you
need to drive the vehicle in a particular
gear for long periods.
Driving Tips
WARNING Do not let the vehicle move in a
direction opposite to the direction
selected by the selector lever:
Do not let the vehicle move backward
with the selector lever in a forward
position, or do not let the vehicle
move forward with the selector lever
in the reverse position. Otherwise, the
engine may stop, causing the loss of
the power brake and power steering
functions, and make it difficult to
control the vehicle which could result
in an accident.
Passing
For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transmission will
shift to a lower gear, depending on vehicle
speed.
MX-5_8FR4-EA-16J_Edition1.indb 43 2016/08/11 20:28:52

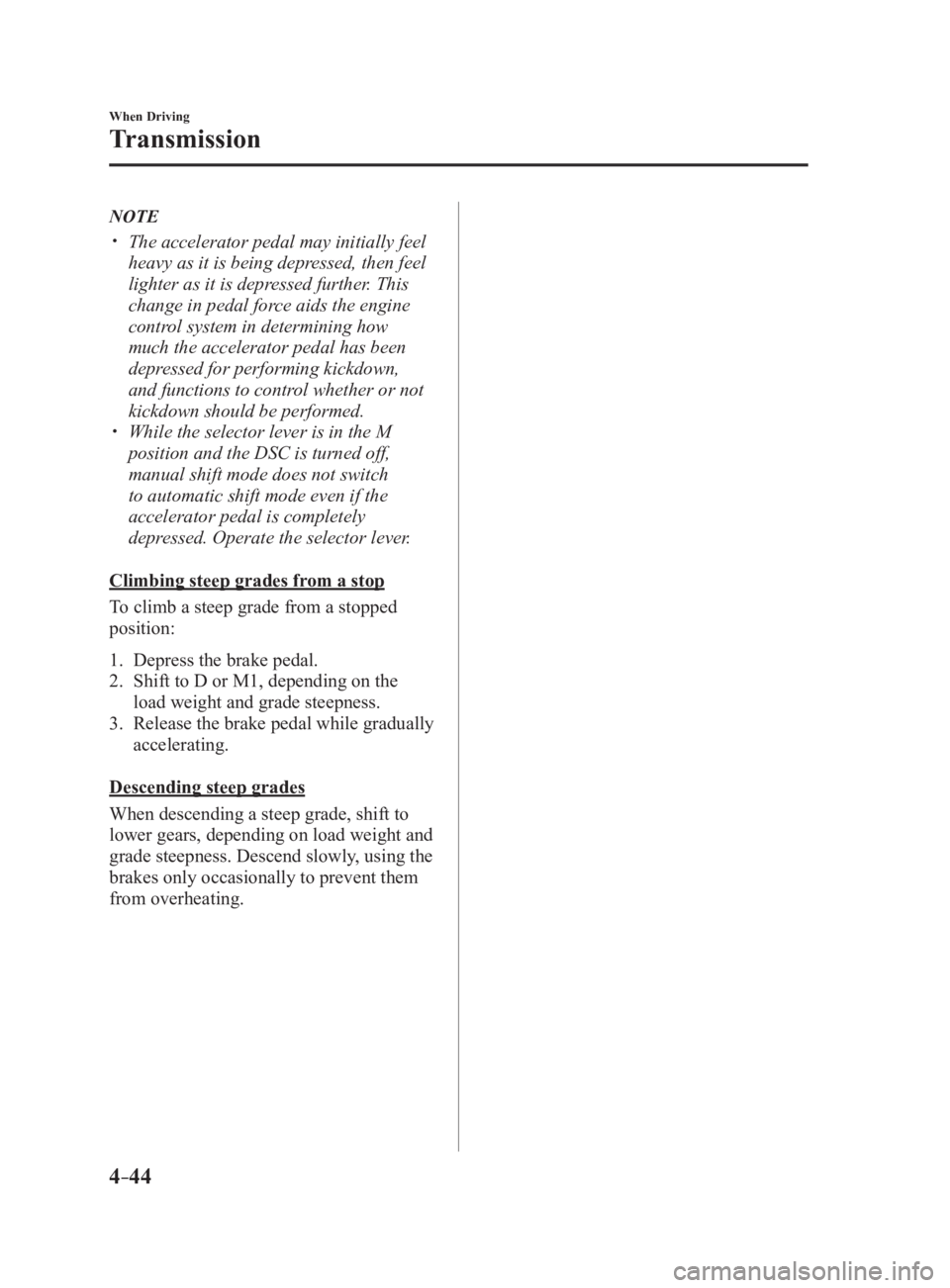

4 –44 When Driving
Transmission NOTE 
The accelerator pedal may initially feel
heavy as it is being depressed, then feel
lighter as it is depressed further. This
change in pedal force aids the engine
control system in determining how
much the accelerator pedal has been
depressed for performing kickdown,
and functions to control whether or not
kickdown should be performed. 
While the selector lever is in the M
position and the DSC is turned off,
manual shift mode does not switch
to automatic shift mode even if the
accelerator pedal is completely
depressed. Operate the selector lever.
Climbing steep grades from a stop
To climb a steep grade from a stopped
position:
1. Depress the brake pedal.
2. Shift to D or M1, depending on the
load weight and grade steepness.
3. Release the brake pedal while gradually
accelerating.
Descending steep grades
When descending a steep grade, shift to
lower gears, depending on load weight and
grade steepness. Descend slowly, using the
brakes only occasionally to prevent them
from overheating.
MX-5_8FR4-EA-16J_Edition1.indb 44 2016/08/11 20:28:52
