5 –58 Interior Features
Audio System
CAUTION Depending on the portable audio
device, noise may occur when the
device is connected to the vehicle
accessory socket. (If noise occurs, do
not use the accessory socket.)
NOTE 
This mode may not be usable depending
on the portable audio device to be
connected. 
Before using the auxiliary jack/USB
port, refer to the instruction manual for
the portable audio device. 
Use a commercially-available, non-
impedance (3.5 ) stereo mini plug for
connecting the portable audio unit to
the auxiliary jack. Before using the
auxiliary jack, read the manufacturer's
instructions for connecting a portable
audio unit to the auxiliary jack. 
To prevent discharging of the battery,
do not use the auxiliary input for long
periods with the engine off or idling. 
When connecting a device to the
auxiliary jack or USB port, noise may
occur depending on the connected
device. If the device is connected to the
vehicle's accessory socket, the noise can
be reduced by unplugging it from the
accessory socket. How to connect USB port/
Auxiliary jack Type A USB port Auxiliary jack
Type B USB port Auxiliary jack
Connecting a device
1. If there is a cover on the AUX jack or
USB port, remove the cover.
2. Connect the connector on the device to
the USB port.
Connecting with a connector cable
1. If there is a cover on the AUX jack or
USB port, remove the cover.
2. Connect the device plug/connector
cable to the auxiliary jack/USB port.
MX-5_8FR4-EA-16J_Edition1.indb 58 2016/08/11 20:29:18

5 –129 Interior Features
Bluetooth ®
TroubleshootingMazda Bluetooth ®
Hands-Free Customer Service
If you have any problems with Bluetooth ®
, contact our toll-free customer service center.
U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.mazdausa.com/mazdaconnect 
Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca 
Mexico
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA (Toll-free)
Web: www.mazdamexico.com.mx
Bluetooth ®
Device pairing, connection problems Symptom Cause Solution method
Unable to perform pairing — First make sure the device is
compatible with the Bluetooth ®

unit, and then check whether the
Bluetooth ®
function and the Find
Mode/Visible setting *1
on the device
are turned on. If pairing is still
not possible after this, contact an
Authorized Mazda Dealer or Mazda
Bluetooth ®
Hands-Free Customer
Service.
Pairing cannot be performed again The pairing information paired to
the Bluetooth ®
unit or device is not
recognized correctly. Perform pairing using the following
procedure. 
Clear “Mazda” stored in the device. 
Perform pairing again.
Unable to perform pairing
The Bluetooth ®
function and the
Find Mode/Visible setting *1
on the
device may turn off automatically
after a period of time has elapsed
depending on the device. Check whether the Bluetooth ®

function and the Find Mode/Visible
setting *1
on the device are turned on
and pairing or reconnect.Does not connect automatically
when starting the engine
Automatically connects, but then
disconnects suddenly
Disconnects intermittently The device is in a location in which
radio wave interference can occur
easily, such as in a bag or in a rear
pocket of a pair of pants. Move the device to a location in
which radio wave interference is less
likely to occur.
Does not connect automatically
when starting the engine The pairing information is updated
when the device OS is updated. Perform pairing again.
*1 Setting which detects the existence of a device external to the Bluetooth ®
unit
MX-5_8FR4-EA-16J_Edition1.indb 129 2016/08/11 20:29:34

5 –131 Interior Features
Bluetooth ®
Symptom Cause Solution method
Names in the phonebook are not
easily recognized The Bluetooth ®
system is under a
condition in which recognition is
difficult. By carrying out the following
measures, the rate of recognition
will improve. 
Clear memory from the phonebook
which is not used very often. 
Avoid shortened names, use full
names. (Recognition improves the
longer the name is. By not using
names such as “Mom”, “Dad”,
recognition will improve.)
When operating the audio, a song
name is not recognized Song names cannot be recognized
by voice. —
You want to skip guidance — Guidance can be skipped by quickly
pressing and releasing the Talk
button.
Regarding problems with calls Symptom Cause Solution method
When starting a call, vehicle noise
from the other party can be heard For about three seconds after
starting a call, the Bluetooth ®

unit's Noise Suppression function
requires time to adapt to the call
environment. This does not indicate a problem
with the device.
The other party cannot be heard or
the speaker's voice is quiet The volume is set at zero or low. Increase the volume.
Other problems Symptom Cause Solution method
The indication for the remaining
battery is different between the
vehicle and the device The indication method is different
between the vehicle and the device. —
When a call is made from the
vehicle, the telephone number is
updated in the incoming/outgoing
call record but the name does not
appear The number has not been registered
into the phonebook. If the number has been registered
into the phonebook, the incoming/
outgoing call record is updated by
the name in the phonebook when the
engine is restarted.
The cell phone does not synchronize
with the vehicle regarding the
incoming/outgoing call record Some types of cell phones do not
synchronize automatically. Operate the cell phone for
synchronization.
It takes a long time to complete the
function for changing the language A maximum of 60 seconds is
required. —
MX-5_8FR4-EA-16J_Edition1.indb 131 2016/08/11 20:29:34

5 –132 Interior Features
Interior Equipment
SunvisorsWhen you need a sunvisor, lower it for use
in front.
Vanity MirrorsTo use the vanity mirror, lower the
sunvisor. Interior Lights NOTE
Do not leave the lights on for long periods
while the engine is turned off. Otherwise
the battery power could be depleted.
Overhead Light Switch
Position Overhead Light
Light off 
Light is on when any door is open 
Light is on or off when the
illuminated entry system is on
Light on
MX-5_8FR4-EA-16J_Edition1.indb 132 2016/08/11 20:29:34

5 –133 Interior Features
Interior EquipmentTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running. Illuminated Entry System When the illuminated entry system
operates, the overhead lights turn on in the
following conditions: 
The driver's door is unlocked after the
ignition is switched OFF. 
The ignition is switched OFF with all
doors closed.
NOTE 
The illuminated entry system operates
when the overhead light switch is in the
DOOR position. 
The illumination time differs depending
on the operation. 
Battery saver
If an interior light is left on with the
ignition switched OFF, the light is
turned off automatically after about 30
minutes to prevent battery depletion. 
The operation of the illuminated entry
system can be changed.
Refer to Personalization Features on
page 9-9 .
MX-5_8FR4-EA-16J_Edition1.indb 133 2016/08/11 20:29:34

5 –134 Interior Features
Interior Equipment
Accessory SocketsThe accessory socket is located deep in the
back of the footwell on the passenger side.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
The ignition must be switched to ACC or
ON.
CAUTION 
To prevent accessory socket damage or
electrical failure, pay attention to the
following: 
Do not use accessories that require
more than 120 W (DC 12 V, 10 A). 
Do not use accessories that are not
genuine Mazda accessories or the
equivalent. 
Close the cover when the accessory
socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket. 
Correctly insert the plug into the
accessory socket. 
Do not insert the cigarette lighter into
the accessory socket. 
Noise may occur on the audio playback
depending on the device connected to
the accessory socket. 
Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be affected,
which could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem
is resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off. If the
problem is not resolved, consult an
Authorized Mazda Dealer.
NOTE
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.
MX-5_8FR4-EA-16J_Edition1.indb 134 2016/08/11 20:29:35

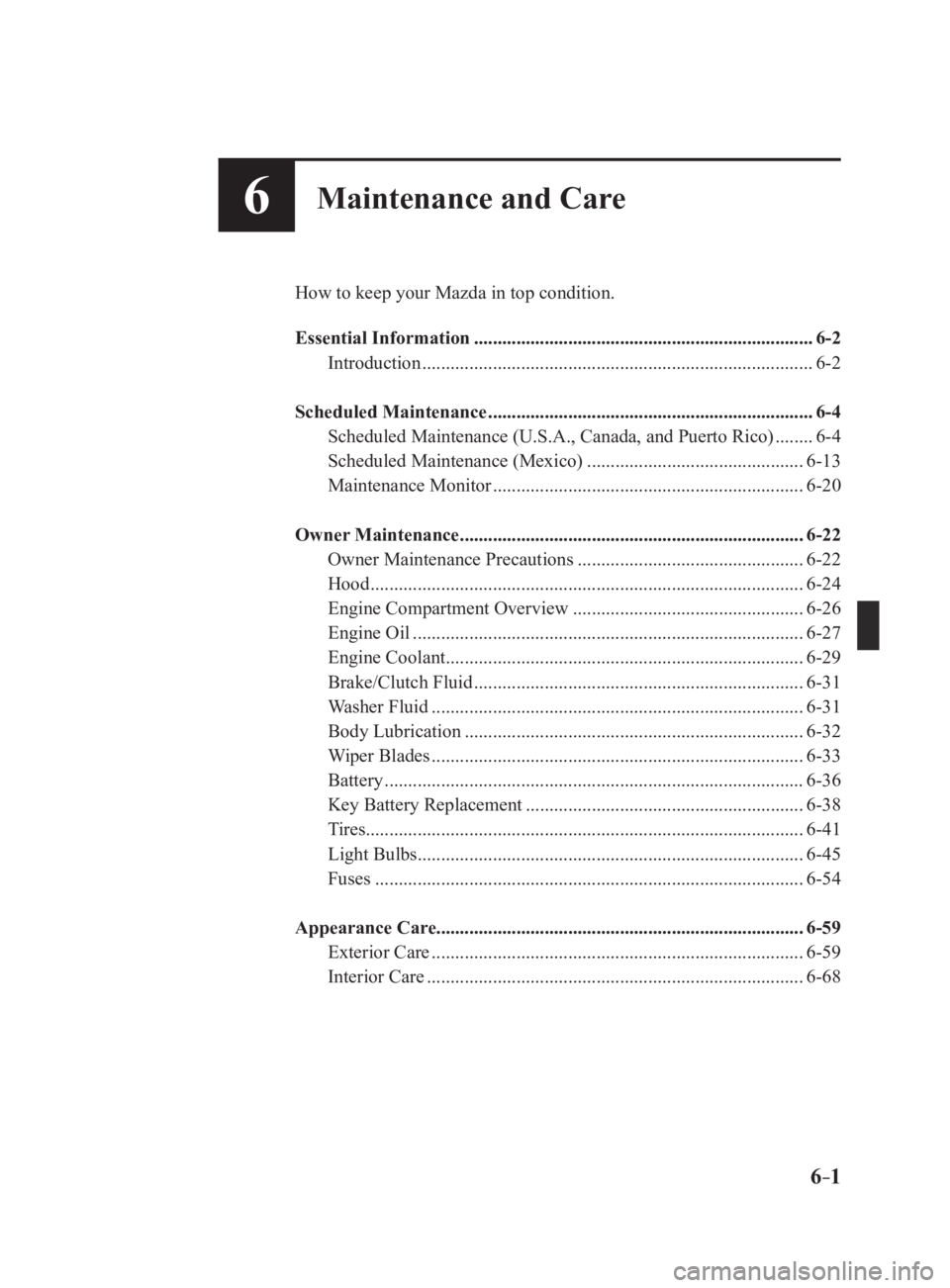

6 –16 Maintenance and Care How to keep your Mazda in top condition.
Essential Information ........................................................................ 6-2
Introduction
................................................................................... 6-2
Scheduled Maintenance ..................................................................... 6-4
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico)
........ 6-4
Scheduled Maintenance (Mexico)
.............................................. 6-13
Maintenance Monitor
.................................................................. 6-20
Owner Maintenance ......................................................................... 6-22
Owner Maintenance Precautions
................................................ 6-22
Hood
............................................................................................ 6-24
Engine Compartment Overview
................................................. 6-26
Engine Oil
................................................................................... 6-27
Engine Coolant
............................................................................ 6-29
Brake/Clutch Fluid
...................................................................... 6-31
Washer Fluid
............................................................................... 6-31
Body Lubrication
........................................................................ 6-32
Wiper Blades
............................................................................... 6-33
Battery
......................................................................................... 6-36
Key Battery Replacement
........................................................... 6-38
Tires ............................................................................................. 6-41
Light Bulbs
.................................................................................. 6-45
Fuses
........................................................................................... 6-54
Appearance Care .............................................................................. 6-59
Exterior Care ............................................................................... 6-59
Interior Care
................................................................................ 6-68
MX-5_8FR4-EA-16J_Edition1.indb 1 2016/08/11 20:29:37

6 –4 Maintenance and Care
Scheduled Maintenance
Scheduled Maintenance (U.S.A., Canada, and Puerto
Rico) Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions) apply. 
Repeated short-distance driving 
Driving in dusty conditions 
Driving with extended use of brakes 
Driving in areas where salt or other corrosive materials are used 
Driving on rough or muddy roads 
Extended periods of idling or low-speed operation 
Driving for long periods in cold temperatures or extremely humid climates 
Driving in extremely hot conditions 
Driving in mountainous conditions continually
If any do apply, follow Schedule 2. (Canada residents follow Schedule 2.)
Vehicles using Engine Oil Flexible Maintenance
Engine Oil Flexible Maintenance is available for U.S.A. and Pue rto Rico residents whose
vehicle is operated mainly where none of the following conditions apply: 
Extended periods of idling or low-speed operation such as polic e car, taxi or driving
school car 
Driving in dusty conditions
If any do apply, follow Schedule 2 with engine oil fixed maintenance.
Once engine oil flexible maintenance is selected, the vehicle ca lculates the remaining oil life
based on engine operating conditions. The vehicle lets you know when an oil change is due
by illuminating the wrench indicator light in the instrument cluster. Change the oil as soon
as possible within the next 500 km (300 mile) or 15 days. Refer page 6-20 for the details.
Mazda Genuine 0W-20 Oil and Castrol ®
0W-20 Oil are required to achieve optimum
performance.
NOTE 
Please ensure that the Flexible Oil Maintenance Setting is reset after each Oil and Filter
replacement. 
For maintenance guidelines beyond the miles/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.
MX-5_8FR4-EA-16J_Edition1.indb 4 2016/08/11 20:29:37
