2017 MAZDA MX5 MIATA Owners Manual

5 –139 Interior Features

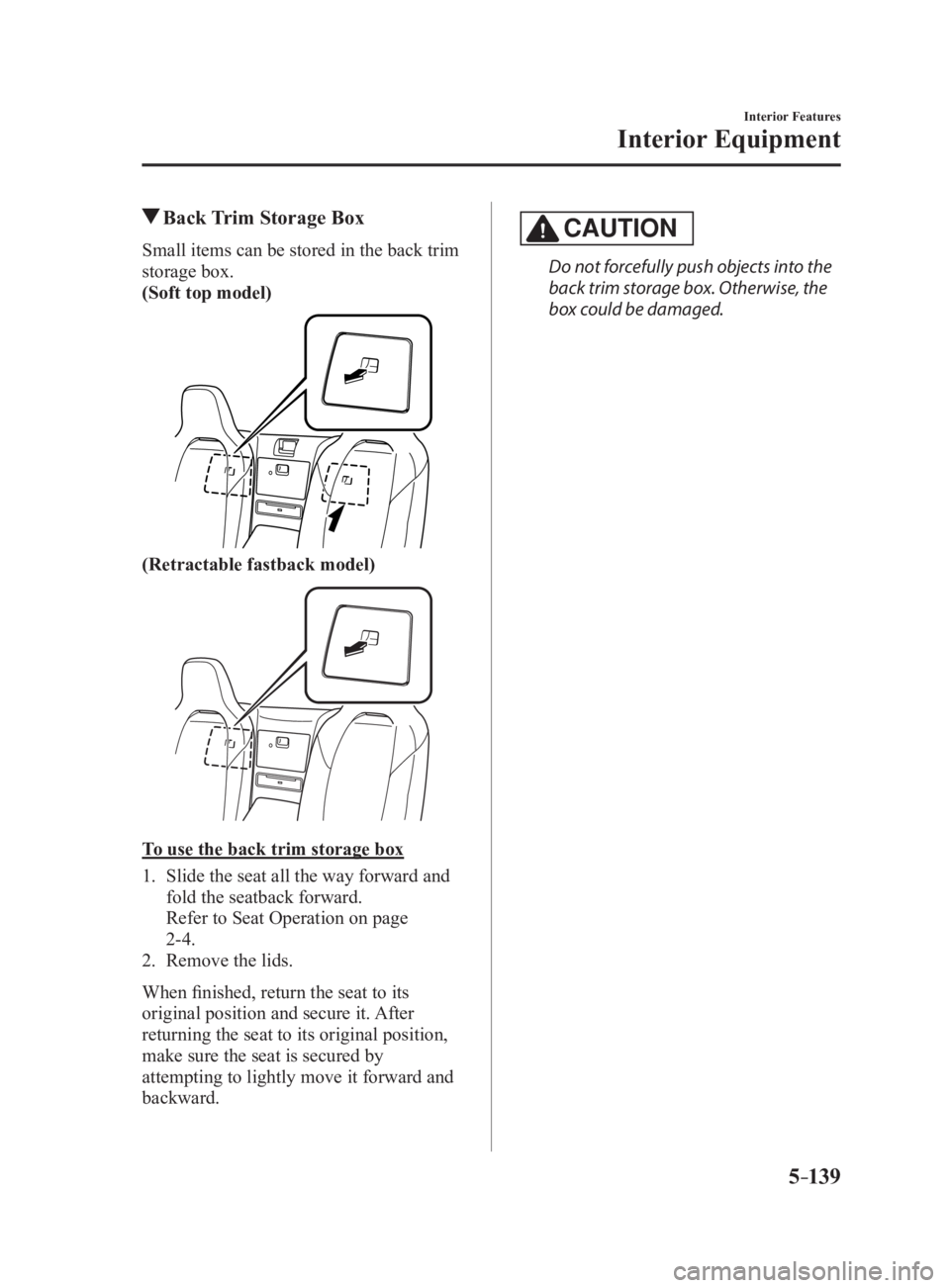

Interior Equipment Back Trim Storage BoxSmall items can be stored in the back trim
storage box.
(Soft top model)
(Retractable fastback model)
To use the back trim storage box
1. Slide the seat all the way forward and
fold the seatback forward.
Refer to Seat Operation on page
2-4 .
2. Remove the lids.
When finished, return the seat to its
original position and secure it. After
returning the seat to its original position,
make sure the seat is secured by
attempting to lightly move it forward and
backward. CAUTION Do not forcefully push objects into the
back trim storage box. Otherwise, the
box could be damaged.
MX-5_8FR4-EA-16J_Edition1.indb 139 2016/08/11 20:29:36

5 –14 0 Interior Features
Interior Equipment
WindblockerThis windblocker reduces rear wind blast
into the cabin when driving with the
convertible top down.
(Soft top model) Windblocker
(Retractable fastback model) Windblocker
MX-5_8FR4-EA-16J_Edition1.indb 140 2016/08/11 20:29:36

6 –16 Maintenance and Care How to keep your Mazda in top condition.
Essential Information ........................................................................ 6-2
Introduction
................................................................................... 6-2
Scheduled Maintenance ..................................................................... 6-4
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico)
........ 6-4
Scheduled Maintenance (Mexico)
.............................................. 6-13
Maintenance Monitor
.................................................................. 6-20
Owner Maintenance ......................................................................... 6-22
Owner Maintenance Precautions
................................................ 6-22
Hood
............................................................................................ 6-24
Engine Compartment Overview
................................................. 6-26
Engine Oil
................................................................................... 6-27
Engine Coolant
............................................................................ 6-29
Brake/Clutch Fluid
...................................................................... 6-31
Washer Fluid
............................................................................... 6-31
Body Lubrication
........................................................................ 6-32
Wiper Blades
............................................................................... 6-33
Battery
......................................................................................... 6-36
Key Battery Replacement
........................................................... 6-38
Tires ............................................................................................. 6-41
Light Bulbs
.................................................................................. 6-45
Fuses
........................................................................................... 6-54
Appearance Care .............................................................................. 6-59
Exterior Care ............................................................................... 6-59
Interior Care
................................................................................ 6-68
MX-5_8FR4-EA-16J_Edition1.indb 1 2016/08/11 20:29:37

6 –2 Maintenance and Care
Essential Information
IntroductionBe careful not to hurt yourself when inspecting your vehicle, r eplacing a tire, or doing some
kind of maintenance such as car washing.
In particular, wear thick work gloves such as cotton gloves when touching areas that
are difficult to see while inspecting or working on your vehicle . Doing inspections or
procedures with your bare hands could cause injury.
If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are b est for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may re sult in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in this
manual. As part of this you must keep your maintenance records, receipts, repair orders and
any other documents as evidence this maintenance was performed. You must present these
documents, should any warranty coverage disagreement occur. Failure to do so can result in
your warranty being voided either in whole or in part.
This evidence may consist of the following: 
The Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.
Original copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualifi ed automotive service
technician. 
For self maintenance, a statement that you completed the mainte nance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany this
statement.
NOTE
If you elect to perform maintenance yourself or have your vehicle serviced at a location
other than an Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials
must meet Mazda standards for durability and performance as described in this manual.
MX-5_8FR4-EA-16J_Edition1.indb 2 2016/08/11 20:29:37

6 –3 Maintenance and Care
Essential InformationClaims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda's ori ginal equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Selecting “Maintenance Monitor” enables the system to notify you of your vehicle's
approaching inspection/servicing period (page 6-20 ).
The malfunction diagnosis connector is designed exclusively for connecting the specially
designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed malfunction diagnosis devices
for servicing. If any device other than the malfunction diagnosis device is connected, it may
affect the vehicle's electrical devices or lead to damage such as battery depletion.
Malfunction
diagnosis
connector
MX-5_8FR4-EA-16J_Edition1.indb 3 2016/08/11 20:29:37

6 –4 Maintenance and Care
Scheduled Maintenance
Scheduled Maintenance (U.S.A., Canada, and Puerto
Rico) Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions) apply. 
Repeated short-distance driving 
Driving in dusty conditions 
Driving with extended use of brakes 
Driving in areas where salt or other corrosive materials are used 
Driving on rough or muddy roads 
Extended periods of idling or low-speed operation 
Driving for long periods in cold temperatures or extremely humid climates 
Driving in extremely hot conditions 
Driving in mountainous conditions continually
If any do apply, follow Schedule 2. (Canada residents follow Schedule 2.)
Vehicles using Engine Oil Flexible Maintenance
Engine Oil Flexible Maintenance is available for U.S.A. and Pue rto Rico residents whose
vehicle is operated mainly where none of the following conditions apply: 
Extended periods of idling or low-speed operation such as polic e car, taxi or driving
school car 
Driving in dusty conditions
If any do apply, follow Schedule 2 with engine oil fixed maintenance.
Once engine oil flexible maintenance is selected, the vehicle ca lculates the remaining oil life
based on engine operating conditions. The vehicle lets you know when an oil change is due
by illuminating the wrench indicator light in the instrument cluster. Change the oil as soon
as possible within the next 500 km (300 mile) or 15 days. Refer page 6-20 for the details.
Mazda Genuine 0W-20 Oil and Castrol ®
0W-20 Oil are required to achieve optimum
performance.
NOTE 
Please ensure that the Flexible Oil Maintenance Setting is reset after each Oil and Filter
replacement. 
For maintenance guidelines beyond the miles/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.
MX-5_8FR4-EA-16J_Edition1.indb 4 2016/08/11 20:29:37

6 –5 Maintenance and Care
Scheduled Maintenance Schedule 1U.S.A. and Puerto Rico residents - Engine oil flexible maintenance interval
Use when the maintenance monitor for “Oil Change” is set to “Flexible”. For details,
see maintenance monitor. (page 6-20 )Maintenance Interval Number of months or kilometers (miles), whichever comes first.
Months 12 24 36 48 60 72 84 96
×1000 km 16 32 48 64 80 96 11 2 128
×1000 miles 10 20 30 40 50 60 70 80
ENGINE
Drive belts I I
Engine oil & filter *1
Replace when wrench indicator light is ON. (Max interval: 12
months/16,000 km (10,000 miles))
COOLING SYSTEM
Engine coolant *2
Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
FUEL SYSTEM
Air filter Replace when any equivalent timing of replacing engine oil.
(Max interval: 36 months/60,000 km (37,500 miles))
Fuel lines and hoses *3
I I I I
Hoses and tubes for emission *3
I I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles).
CHASSIS and BODY
Brake lines, hoses and connections I I I I
Disc brakes I I I I I I I I
Manual transmission oil Replace every 96,000 km (60,000 miles) or 4 years.
Tire (Rotation) *4
Rotate when any equivalent timing of replacing engine oil.
(Max interval: 8,000 km (5,000 miles))
Steering operation and linkages I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I I
Rear differential oil *5
Driveshaft dust boots I I I I
Bolts and nuts on chassis and body T T T T
Exhaust system and heat shields I I
Emergency flat tire repair kit (if installed) *6
Inspect annually.
MX-5_8FR4-EA-16J_Edition1.indb 5 2016/08/11 20:29:37

6 –6 Maintenance and Care
Scheduled Maintenance Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
T: Tighten
Remarks:
*1 The engine oil and filter must be changed at least once a year o r within 16,000 km (10,000 miles) since last
engine oil and filter change. The system must be reset whenever replacing the engine oil regardless of the
message/wrench indicator light display.
*2 Use of FL-22 is recommended when replacing engine coolant. Usin g engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair fluid expiration date every year when perf orming the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date .
MX-5_8FR4-EA-16J_Edition1.indb 6 2016/08/11 20:29:37
