2–21
Essential Safety Equipment
Child Restraint
WARNING
Use the correct size child-restraint system:
For eff ective protection in vehicle accidents and sudden stops, a child must be properly
restrained using a seat belt or child-restraint system depending on age and size. If not, the
child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system
buckled down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could
move causing serious injury or death to the child or other occupants. Make sure any
child-restraint system is properly secured in place according to the child-restraint system
manufacturer's instructions. When not in use, remove it from the vehicle or fasten it
with a seat belt, or latch it down to BOTH LATCH lower anchors for LATCH child-restraint
systems and the corresponding tether anchor.
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a sudden
stop or collision and it could result in serious injury or death to the child or other
occupants. Even in a moderate accident, the child may be exposed to air bag forces that
could result in serious injury or death to the child, or the child may be slammed into an
adult, causing injury to both child and adult.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D

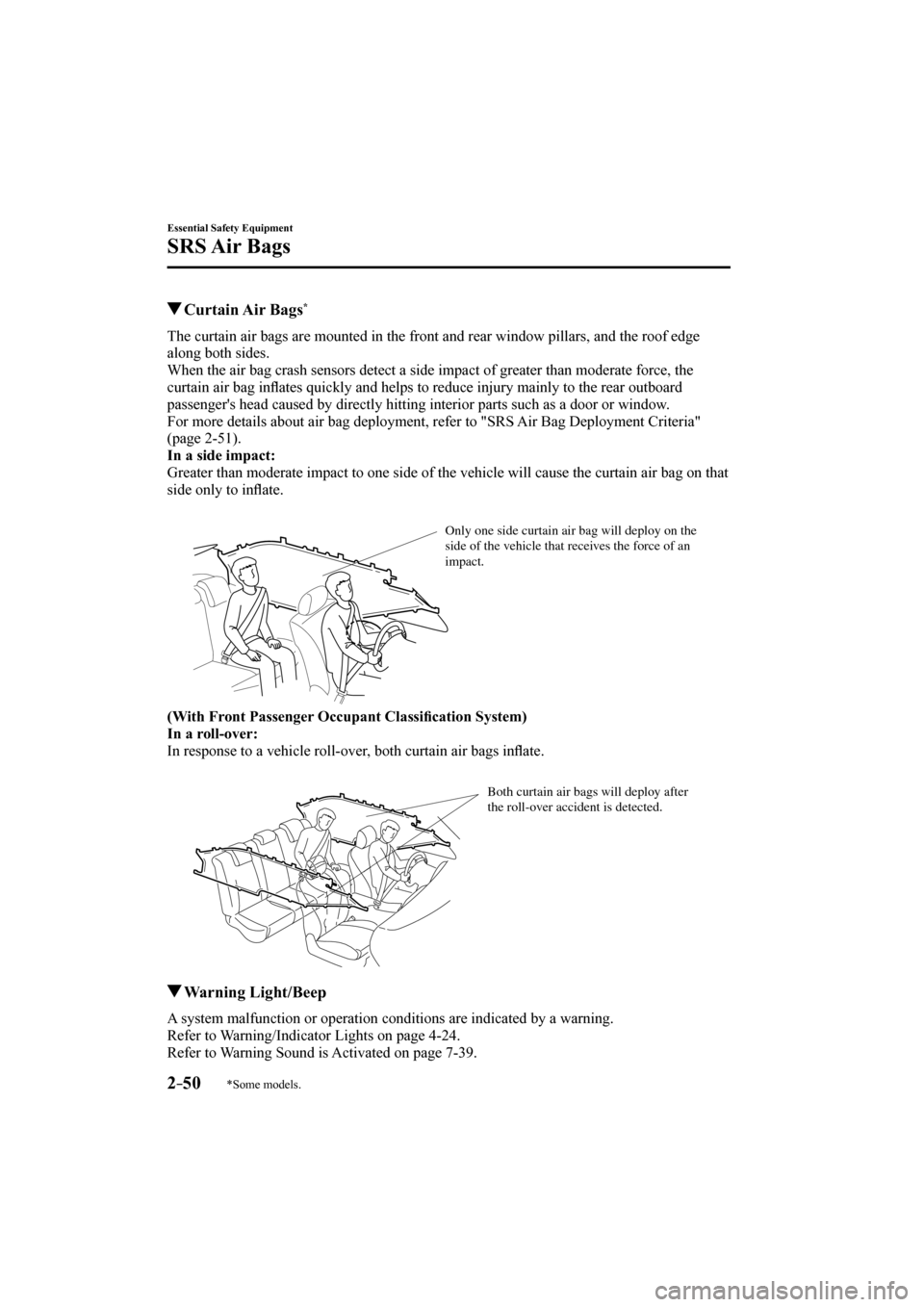

Page 62 of 582
2–50
Essential Safety Equipment
SRS Air Bags
*Some models.
Curtain Air Bags *
The curtain air bags are mounted in the front and rear window pillars, and the roof edge
along both sides.
When the air bag crash sensors detect a side impact of greater than moderate force, the
curtain air bag in À ates quickly and helps to reduce injury mainly to the rear outboard
passenger's head caused by directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-51 ).
In a side impact:
Greater than moderate impact to one side of the vehicle will cause the curtain air bag on that
side only to in À ate.
Only one side curtain air bag will deploy on the
side of the vehicle that receives the force of an
impact.
(With Front Passenger Occupant Classi ¿ cation System)
In a roll-over:
In response to a vehicle roll-over, both curtain air bags in À ate.
Both curtain air bags will deploy after
the roll-over accident is detected.
Warning Light/Beep
A system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-24 .
Refer to Warning Sound is Activated on page 7-39 .
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 75 of 582
3–3
Before Driving
Keys
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key (auxiliary key).
Also write down the code number and
keep it in a separate safe and convenient
place, but not in the vehicle.
If your key (auxiliary key) is lost, consult
your Authorized Mazda Dealer and have
your code number ready.
N O T E
The driver must carry the key to ensure the
system functions properly.
Auxiliary key Transmitter
Key code number plate
To use the auxiliary key, pull out the
auxiliary key from the transmitter while
pressing the knob.
Knob
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate.
The system can start the engine without
having to take the key out of your purse or
pocket.
It can also help you signal for attention or
help.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
y KEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-24 .
y Ignition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-40 .
y Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-41 .
If you have a problem with the key,
consult an Authorized Mazda Dealer.
If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifi cations not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 83 of 582
3–11
Before Driving
Doors and Locks
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended in
a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle
can become high enough to cause
brain damage or even death.
Do not leave the key in your vehicle with
children and keep them in a place where
your children will not fi nd or play with
them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident.
Always close all the windows and
moonroof, lock the doors and the
liftgate and take the key with you when
leaving your vehicle unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle left
unlocked becomes an easy target for
thieves and intruders.
After closing the doors and the liftgate,
always verify that they are securely
closed:
Doors and the liftgate not securely
closed are dangerous, if the vehicle
is driven with a door and the liftgate
not securely closed, the door and the
liftgate could open unexpectedly
resulting in an accident.
Always confi rm the safety around the
vehicle before opening a door and the
liftgate:
Suddenly opening a door and the
liftgate is dangerous. A passing vehicle
or a pedestrian could be hit and cause
an accident.
CAUTION
Always confi rm the conditions around
the vehicle before opening/closing
the doors and the liftgate and use
caution during strong winds or when
parked on an incline. Not being aware
of the conditions around the vehicle
is dangerous because fi ngers could
get caught in the door and the liftgate
or a passing pedestrian could be hit,
resulting in an unexpected accident or
injury.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 93 of 582
3–21
Before Driving
Doors and Locks
Opening and Closing the Liftgate
Opening the liftgate with Electric
liftgate opener
Unlock the doors and liftgate, then press
the electric liftgate opener on the liftgate
and raise the liftgate when the latch
releases.
Electric liftgate
opener
N O T E
(With the advanced keyless function)
y A locked liftgate can also be opened
while the key is being carried.
y When opening the liftgate with the
doors and the liftgate locked, it may
require a few seconds for the liftgate
latch to release after the electric liftgate
opener is pressed.
y The liftgate can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the liftgate can be
opened by pressing the electric liftgate
opener. If the liftgate cannot be opened
despite doing this procedure, ¿ rst push
the liftgate completely closed, then press
the electric liftgate opener to fully open
the liftgate .
y When the liftgate latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the liftgate
is not operated for a certain period of
time, the liftgate cannot be raised.
To open
Press the electric liftgate opener again.
To close
To close the liftgate from its slightly
raised position, open it ¿ rst by pressing
the electric liftgate opener, then close it
after waiting at least 1 second.
y If the liftgate is not fully closed, the
driver is noti ¿ ed by a warning indicated
in the instrument cluster.
y If the vehicle battery is dead or there is
a malfunction in the electrical system
and the liftgate cannot be unlocked, the
liftgate can be opened by performing
the emergency procedure.
Refer to When Liftgate Cannot be
Opened on page 7-44 .
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 104 of 582
3–32
Before Driving
Windows
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing a power window is dangerous.
A person's hands, head, or even neck
could be caught by the window and
result in serious injury or even death.
This warning applies especially to
children.
Never allow children to play with power
window switches:
Power window switches that are not
locked with the power window lock
switch would allow children to operate
power windows unintentionally, which
could result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
N O T E
A power window may no longer open/close
if you continue to press the switch after
fully opening/closing the power window.
If the power window does not open/close,
wait a moment and then operate the switch
again.
Operating the Driver's Side Power
Window
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Driver's window
Open Close Master control switches
Auto-opening/closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 107 of 582
3–35
Before Driving
Windows
*Some models.
Moonroof *
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Tilt/Slide switch
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in
it as it closes, causing serious injury or
even death.
N O T E
Before washing your Mazda, make sure
the moonroof is completely closed so that
water does not get inside the cabin area.
After washing your Mazda or after it rains,
wipe the water off the moonroof before
operating it to avoid water penetration
which could cause rust and water damage
to your headliner.
Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the tilt/slide switch.
To stop tilting partway, press the tilt/slide
switch.
To close to the desired position, press the
tilt/slide switch in the forward direction.
Close (Tilt down)
Tilt up
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 109 of 582
3–37
Before Driving
Security System
M o d i ¿ cation and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modi ¿ ed or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
and the theft-deterrent systems or the
vehicle.
Immobilizer System
The immobilizer system allows the
engine to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
¾ Radio equipment like this is governed by
laws in the United States.
Changes or modifi cations not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
¾ To avoid damage to the key, do not:
¾ Drop the key.
¾ Get the key wet.
¾ Expose the key to any kind of
magnetic fi eld.
¾ Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
¾ If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or fl ashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
