Page 533 of 582
8–23
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
WARNING
Keep your vehicle's tires properly infl ated and not overloaded:
Driving with improperly infl ated or overloaded tires is dangerous. Excessive speed,
underinfl ation, or excessive loading, either separately or in combination, can cause heat
buildup and possible tire failure. The temperature grade for this tire is established for a
tire that is properly infl ated and not overloaded.
These grades will be added to the sidewalls of passenger vehicle tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.
The grade of tires available as standard or optional equipment on Mazda vehicles may vary
with respect to grade.
ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND TO
ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.
UNIFORM TIRE QUALITY GRADING
Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
TREADWEAR 200 TRACTION AA TEMPERATURE A
UTQGS MARK (example)
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D

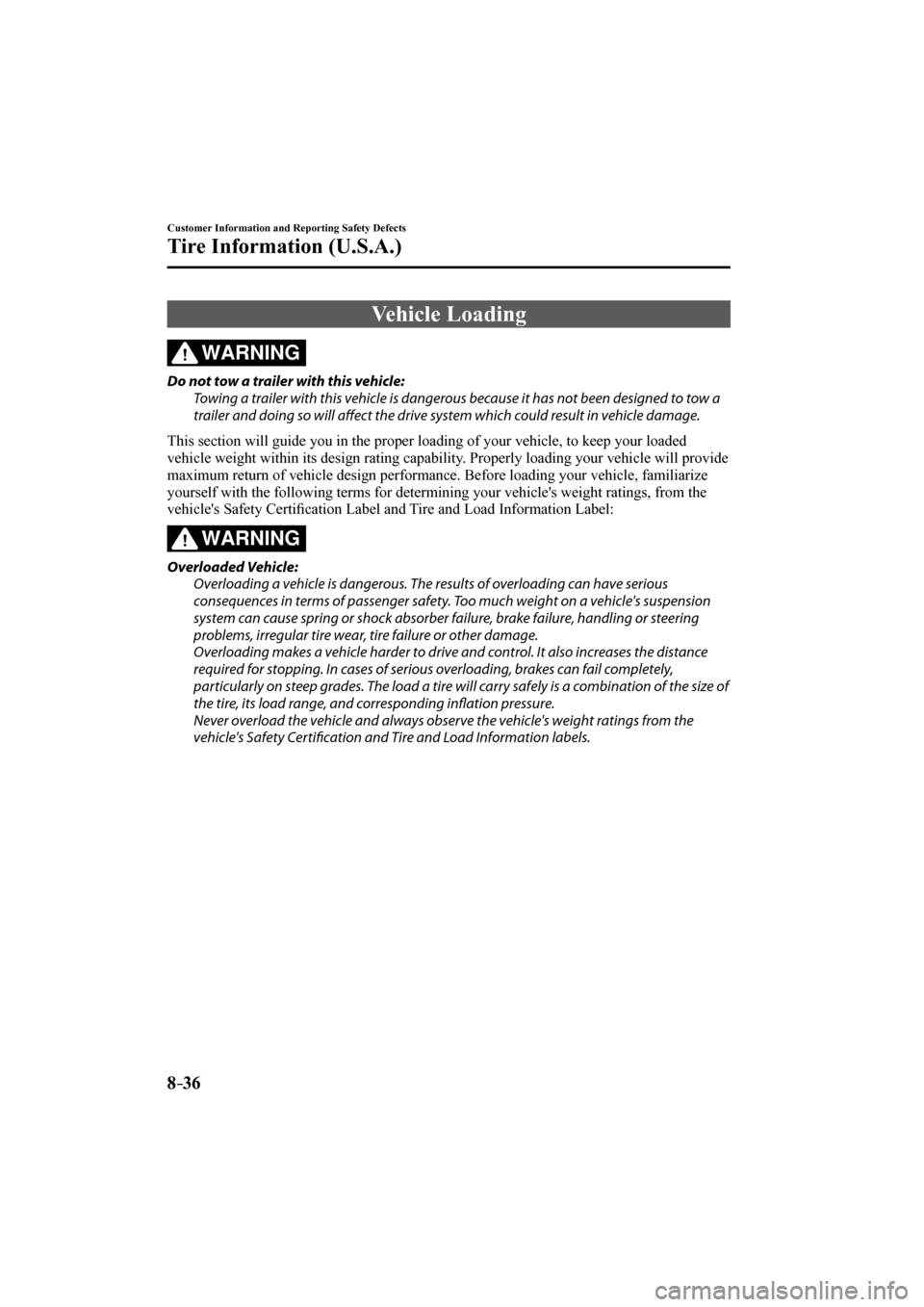

Page 546 of 582
8–36
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Vehicle Loading
WARNING
Do not tow a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to tow a
trailer and doing so will aff ect the drive system which could result in vehicle damage.
This section will guide you in the proper loading of your vehicle, to keep your loaded
vehicle weight within its design rating capability. Properly loading your vehicle will provide
maximum return of vehicle design performance. Before loading your vehicle, familiarize
yourself with the following terms for determining your vehicle's weight ratings, from the
vehicle's Safety Certi ¿ cation Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's suspension
system can cause spring or shock absorber failure, brake failure, handling or steering
problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely,
particularly on steep grades. The load a tire will carry safely is a combination of the size of
the tire, its load range, and corresponding infl ation pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certifi cation and Tire and Load Information labels.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 555 of 582
8–45
Customer Information and Reporting Safety Defects
Declaration of Conformity
Bluetooth ® Hands-Free
T y p e A
U.S.A. and Canada
FCC ID: CB2MBLUEC09 IC:279B-MBLUEC09
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
WARNING
Changes or modifi cations not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The term “IC: ” before the radio certi ¿ cation number only signi ¿ es that Industry Canada
technical speci ¿ cations were met.
The antenna used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter. End-users and installers must be provided with
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
Mazda Bluetooth
® Hands-Free Customer Service
y U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.MazdaUSA.com/bluetooth
y Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 564 of 582
9–4
Speci ¿ cations
Speci ¿ cations
S p e c i ¿ cations
Engine
Item Speci ¿ cation
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,997.6 ml (1,997.6 cc)
Compression ratio 13.0
Electrical System
Item Classi ¿ cation
Battery 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1 PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer for
details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fi ne particulate coating on
the iridium alloy and platinum tips could be damaged.
Lubricant Quality
Lubricant Classi ¿ cation
Engine oil Refer to Recommended Oil on page 6-27 .
Coolant FL-22 type
Automatic transaxle
À uid Mazda Genuine ATF FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake À uid SAE J1703 or FMVSS116 DOT-3
N O T E
Refer to Introduction on (page 6-2 ) for owner's responsibility in protecting your
investment.
