3–47
Before Driving
Security System
Operation
Siren/Horn triggering conditions
The siren/horn sounds intermittently and
the hazard warning lights À ash for about
30 seconds when the system is triggered
by any one of the following:



 Unlocking a door with the auxiliary key
or an inside door-lock knob.



 Forcing open a door, the bonnet or the
liftgate.



 Opening the bonnet by operating the
bonnet release handle.



 Switching the ignition ON without using
the push button start.



 (With the intrusion sensor)
 The intrusion sensor detects a movement
in the vehicle.

The system will be triggered again (up to
10 times) if one of the above conditions
remains.



 (With the intrusion sensor)
 Disconnecting the battery terminal (the
hazard warning lights do not À ash).

The system will be triggered about 10 times.
NOTE

 The liftgate does not open while the
theft-deterrent system is operating.
  If the battery goes dead while the
theft-deterrent system is armed,
the siren/horn will activate and the
hazard warning lights will À ash when
the battery is charged or replaced.
How to Arm the System
1. Close the windows securely.
NOTE
(With the intrusion sensor)
Even with a window open, the system
can be armed, however, leaving the
windows even partially open can invite
theft, and wind blowing into the vehicle
could trigger the alarm.
The intrusion sensor function can also
be cancelled.
Refer to Cancelling the Intrusion Sensor
(With Intrusion Sensor) on page 3-48 .
2. Switch the ignition OFF.
3. Make sure the bonnet, the doors, and
the liftgate are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will À ash
once.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster À ashes twice per
second for 20 seconds.



5. After 20 seconds, the system is fully
armed.

3–48
Before Driving
Security System
*Some models.
NOTE
  The theft-deterrent system can also
be armed by activating the auto
relock function with all the doors, the
liftgate and the bonnet closed.
 Refer to Transmitter on page 3-5 .   The system will disarm if one of
the following operations takes place
within 20 seconds after pressing the
lock button:



 Unlocking any door.



 Opening any door.



 Opening the bonnet.



 Switching the ignition ON.
 To rearm the system, do the arming
procedure again.
  When the doors are locked by
pressing the lock button on the
transmitter or using the auxiliary key
while the theft-deterrent system is
armed, the hazard warning lights will
À ash once to indicate that the system
is armed.
Cancelling the Intrusion Sensor
(With Intrusion Sensor)
If the theft deterrent system has been
armed while any of the following
conditions are present, cancel the intrusion
sensor to prevent the alarm from triggering
unnecessarily.



 Leaving the vehicle with a movable
object, passengers or pets remaining
inside.



 Leaving an object inside the vehicle
that can roll around, such as when the
vehicle is placed on a tilting, unstable
surface when being shipped.



 Hanging small objects/accessories in
the vehicle, hanging clothing on a coat
hook, or placing other items which can
move easily inside the vehicle.



 Parking in an area where there is strong
vibration or loud noise.



 When using a high pressure or automatic
car wash.



 Continuous shock and vibration
from hail or thunder and lightning is
transmitted to the vehicle.



 Doors are locked with a window or the
sunroof * left open.


 An accessory heater or device that
produces moving air and vibration
operates while the theft deterrent system
is armed.

NOTE
If any door or the liftgate remains closed
for 30 seconds, all the doors and the
liftgate automatically re-lock and the
theft deterrent system arms even if a
window and the sunroof
* is left open.

3–49
Before Driving
Security System
To cancel the intrusion sensor, press
the intrusion sensor cancel button on
the transmitter within 20 seconds after
pressing the lock button.
The hazard warning lights will À ash three
times.
NOTE
  To reactivate the intrusion sensor,
turn off the armed theft-deterrent
system and then rearm it.
  The intrusion sensor is operational
when the theft-deterrent system
is armed. To cancel the intrusion
sensor, press the intrusion sensor
cancel button each time the theft-
deterrent system is armed.
To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:



 Pressing the unlock button on the
transmitter.



 Starting the engine with the push button
start.



 (With the advanced keyless function)



 Pressing a request switch on the doors.

The hazard warning lights will À ash twice.
NOTE
When the doors are unlocked by
pressing the unlock button on the
transmitter while the theft-deterrent
system is turned off, the hazard warning
lights will À ash twice to indicate that the
system is turned off.
To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:



 Pressing the unlock button on the
transmitter.



 Starting the engine with the push button
start.



 (With the advanced keyless function)



 Pressing a request switch on the doors.



 Pressing the electric liftgate opener
while the key is being carried.


The hazard warning lights will À ash twice.

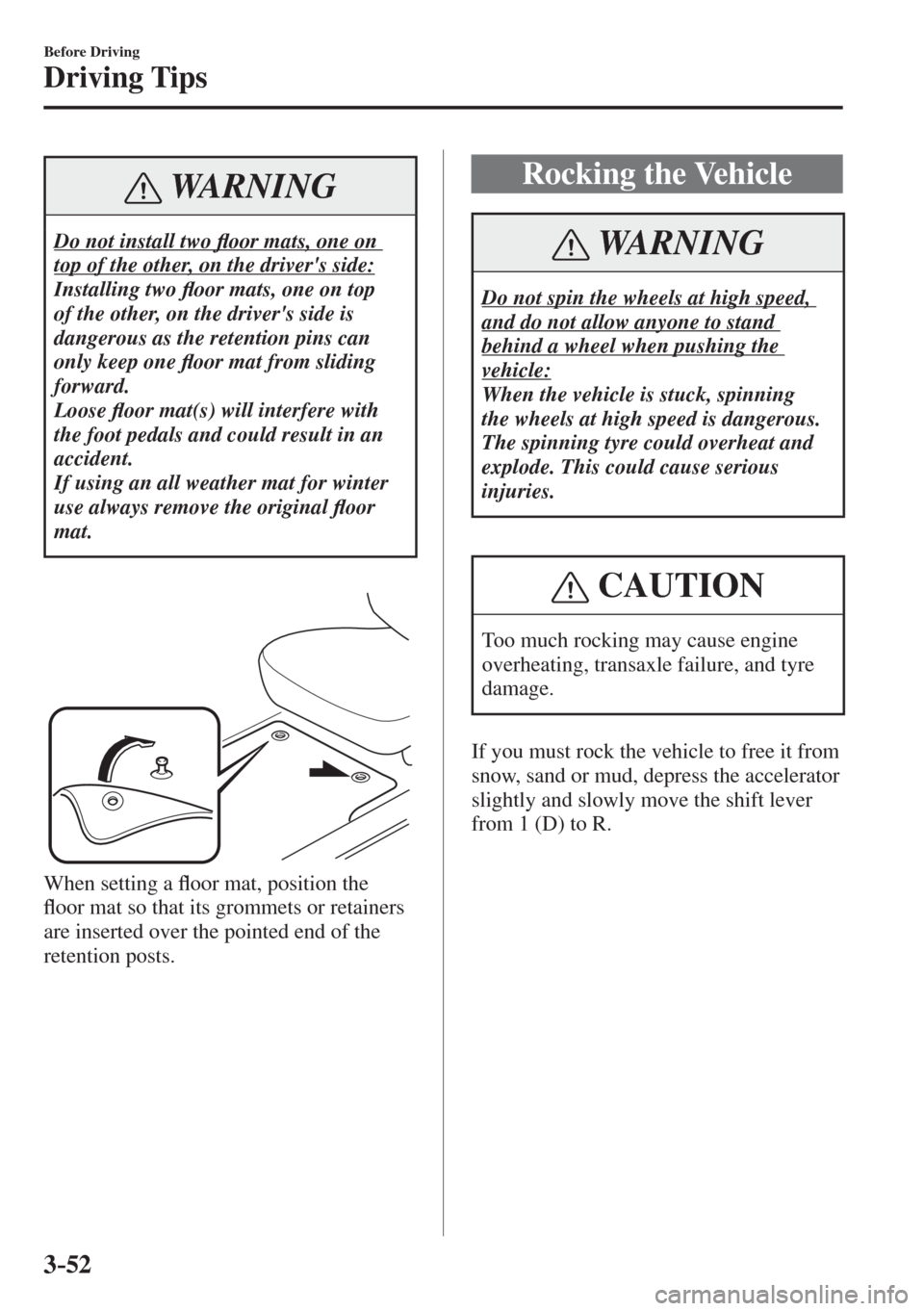

3–52
Before Driving
Driving Tips
WARNING
Do not install two À oor mats, one on
top of the other, on the driver's side:
Installing two À oor mats, one on top
of the other, on the driver's side is
dangerous as the retention pins can
only keep one À oor mat from sliding
forward.
Loose À oor mat(s) will interfere with
the foot pedals and could result in an
accident.
If using an all weather mat for winter
use always remove the original À oor
mat.


When setting a À oor mat, position the
À oor mat so that its grommets or retainers
are inserted over the pointed end of the
retention posts.
Rocking the Vehicle
WARNING
Do not spin the wheels at high speed,
and do not allow anyone to stand
behind a wheel when pushing the
vehicle:
When the vehicle is stuck, spinning
the wheels at high speed is dangerous.
The spinning tyre could overheat and
explode. This could cause serious
injuries.
CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and tyre
damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever
from 1 (D) to R.

3–56
Before Driving
Driving Tips
Driving In Flooded Area
WARNING
Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
CAUTION
Do not drive the vehicle on À ooded
roads as it could cause short circuiting
of electrical/electronic parts, or
engine damage or stalling from water
absorption. If the vehicle has been
immersed in water, consult an expert
repairer, we recommend an Authorised
Mazda Repairer.

3–63
Before Driving
Towing
Safety Chains
Safety chains must be used as a precautionary measure should the trailer become
unintentionally unhitched. They should cross under the trailer tongue and attach to the hitch.
Leave enough slack to allow full turns. Consult literature published by your trailer or hitch
manufacturer for more details.
WARNING
Make sure the safety chain is securely attached to both the trailer and the vehicle prior
to departure:
Towing a trailer without using a safety chain securely attached to both the trailer and
the vehicle is dangerous. If damage occurs to the coupling unit or hitch ball, the trailer
could wander into another lane and cause a collision.
Trailer Lights
CAUTION
Do not connect a trailer lighting system directly to the lighting system of your Mazda.
This may damage your vehicle's electrical system and lighting systems. To connect the
lighting system, consult an Authorised Mazda Dealer.
Trailer Brakes
Check the Maximum trailer towing-load table in Weight Limits (page 3-58 ), and if your
trailer weight exceeds the value in the TOTAL TRAILER WEIGHT (Trailer without brake),
trailer brakes are required.
If your trailer has brakes, make sure they meet regulations.
WARNING
Do not connect a hydraulic trailer-brake system to your vehicle's brake system:
Connecting a hydraulic trailer-brake system directly to the vehicle brake system is
dangerous and will result in inadequate braking and possible injury.

4–1*Some models.4–1
4When Driving
Information concerning safe driving and stopping.

Start/Stop Engine ................................ 4-4
Ignition Switch ............................... 4-4
Starting the Engine ......................... 4-5
Turning the Engine Off ................ 4-11
i-stop
* ........................................... 4-13

Instrument Cluster and Display ...... 4-24
Meters and Gauges ....................... 4-24
Active Driving Display
* ............... 4-33
Warning/Indicator Lights ............. 4-36

Manual Transaxle Operation ........... 4-44
Manual Transaxle Shift Pattern .... 4-44

Automatic Transaxle ......................... 4-47
Automatic Transaxle Controls ..... 4-47
Shift-Lock System ....................... 4-48
Transaxle Ranges ......................... 4-49
Manual Shift Mode ...................... 4-51
Direct Mode ................................. 4-57
Driving Tips ................................. 4-58
Switches and Controls ...................... 4-59
Lighting Control ........................... 4-59
Front Fog Lights
* ......................... 4-67
Rear Fog Light * ............................ 4-68
Turn and Lane-Change Signals .... 4-69
Windscreen Wipers and
Washer .......................................... 4-70
Rear Window Wiper and
Wa s h e r
* ......................................... 4-74
Headlight Washer * ........................ 4-75
Rear Window Defogger ............... 4-75
Horn ............................................. 4-77
Hazard Warning Flasher ............... 4-77

Brake .................................................. 4-79
Brake System ............................... 4-79
Emergency Stop Signal System ... 4-82
Hill Launch Assist (HLA)
* ........... 4-82

ABS/TCS/DSC ................................... 4-84
Antilock Brake System (ABS) ..... 4-84
Traction Control System (TCS) ... 4-85
Dynamic Stability Control
(DSC) ........................................... 4-87

i-ELOOP ............................................ 4-88
i-ELOOP
* ..................................... 4-88

Fuel Economy Monitor ..................... 4-91
Fuel Economy Monitor
* ............... 4-91

4–2*Some models.
Drive Selection ................................... 4-96
Drive Selection * ........................... 4-96

i-ACTIV AWD ................................... 4-98
i-ACTIV AWD Operation
* ........... 4-98

Power Steering................................. 4-100
Power Steering ........................... 4-100
i-ACTIVSENSE............................... 4-101
i-ACTIVSENSE
* ........................ 4-101
Adaptive Front Lighting System
(AFS)
* ........................................ 4-104
High Beam Control System
(HBC)
* ........................................ 4-105
Adaptive LED Headlights
(ALH)
* ........................................ 4-108
Lane Departure Warning System
(LDWS)
* .................................... 4-111
Blind Spot Monitoring (BSM)
System
* ....................................... 4-117
T r a f¿ c Sign Recognition System
(TSR)
* ........................................ 4-124
Distance Recognition Support System
(DRSS)
* ...................................... 4-131
Driver Attention Alert (DAA) * ... 4-134
Rear Cross Traf¿ c Alert
(RCTA)
* ..................................... 4-137
Mazda Radar Cruise Control
(MRCC)
* .................................... 4-142
Adjustable Speed Limiter * ......... 4-155
Advanced Smart City Brake Support
(Advanced SCBS) (Except Indonesia,
Malaysia, and Thailand)
* ............ 4-162
Smart City Brake Support [Forward]
(SCBS F) (Indonesia, Malaysia, and
Thailand)
* ................................... 4-166
Smart City Brake Support [Reverse]
(SCBS R)
* .................................. 4-170
Smart Brake Support (SBS) * ...... 4-176
Forward Sensing Camera
(FSC)
* ......................................... 4-179
Radar Sensor (Front) * ................. 4-186
Radar Sensors (Rear) * ................ 4-189
Ultrasonic Sensor (Rear) * ........... 4-191
