3–9
Before Driving
Advanced Keyless Entry System
*Some models.
Advanced Keyless Entry
System
*
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your physician
if radio waves from the key will affect
the device.
The advanced keyless function allows you
to lock/unlock the door and the liftgate, or
open the liftgate while carrying the key.

System malfunctions or warnings are
indicated by the following warning lights
or beeps.







 Request switch Inoperable Warning
Beep
  Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-66 .



 Key Left-in-luggage Compartment
Warning Beep
  Refer to Key Left-in-luggage
Compartment Warning Beep (With the
advanced keyless function) on page
7-66 .



 Key Left-in-vehicle Warning Beep
 Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-66 .

NOTE
The advanced keyless entry system
functions can be deactivated to prevent
any possible adverse effect on a user
wearing a pacemaker or other medical
device. If the system is deactivated,
you will be unable to start the engine
by carrying the key. Consult an expert
repairer, we recommend an Authorised
Mazda Repairer for details. If the
advanced keyless entry system has been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-9 .

3–14
Before Driving
Doors and Locks
NOTE
  You can also activate the system
by pressing the lock button on the
transmitter twice within 3 seconds.
  (With the advanced keyless
function)
 You can also activate the system by
pressing the request switch twice
within 3 seconds.
5. The indicator light illuminates for
about 3 seconds to indicate that the
system has been activated.



NOTE
The system cannot be activated when
any door or the liftgate is open.
How to Deactivate the System
Unlock the driver's door or switch the
ignition ON.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the system can only be deactivated by
unlocking a door with the auxiliary key.
Locking, Unlocking with Request
Switch (With the advanced keyless
function)
All doors and the liftgate can be locked/
unlocked by pressing the request switch
on the front doors while the key is being
carried.

The request switch on the liftgate can only
be used to lock all doors and the liftgate.
Front doors

Request switch

Liftgate (Lock only)

Request switch

To lock
To lock the doors and the liftgate, press
the request switch and the hazard warning
lights will À ash once.
(Except European models)
A beep sound will be heard once.

3–15
Before Driving
Doors and Locks
To unlock
To unlock the doors and the liftgate, press
the request switch on a front door and the
hazard warning lights will À ash twice.
(Except European models)
A beep sound will be heard twice.
NOTE
  Con¿ rm that all doors and the liftgate
are securely locked.
 For the liftgate, move it without
pressing the electric liftgate opener
to verify that the liftgate has not been
left ajar.
  (European models)  All doors and the liftgate cannot be
locked when any door is open.
 (Except European models)  All doors and the liftgate cannot be
locked when any door or the liftgate
is open.
  It may require a few seconds for
the doors to unlock after the request
switch is pressed.
  (European models)  The setting can be changed so that a
beep sound is heard for con¿ rmation
when the doors and the liftgate are
locked/unlocked using a request
switch.
 (Except European models)  A beep sound is heard for
con¿ rmation when the doors and the
liftgate are locked/unlocked using
the request switch. If you prefer, the
beep sound can be turned off.
 The volume of the beep sound
can also be changed. Refer to
Personalisation Features on page
9-13 .
NOTE
 Use the following procedure to
change the setting.

1. Switch the ignition off and close
all of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
All of the doors and the liftgate
lock and the beep sound activates
at the currently set volume.
The setting changes each time
the LOCK button on the key
is pressed and the beep sound
activates at the set volume. (If the
beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed
by doing any one of the following:



 Switching the ignition to ACC
or ON.



 Closing the driver's door.



 Opening the liftgate.



 Not operating the key for 10
seconds.



 Pressing any button except the
LOCK button on the key.



 Pressing a request switch.



 (With theft-deterrent system)  The hazard warning lights À ash when
the theft-deterrent system is armed or
turned off.
 Refer to Theft-Deterrent System on
page 3-46 .
  (With double locking system)  The double locking system can
be activated/deactivated using the
request switch.
 Refer to Double Locking System on
page 3-13 .

3–16
Before Driving
Doors and Locks
NOTE
  The setting can be changed so that
the doors and the liftgate are locked
automatically without pressing the
request switch.
 Refer to Personalisation Features on
page 9-13 .
 (Auto-lock function)  A beep sound is heard when all
doors and the liftgate are closed
while the advanced key is being
carried. All doors and the liftgate
are locked automatically after about
three seconds when the advanced
key is out of the operational range.
Also, the hazard warning lights À ash
once. (Even if the driver is in the
operational range, all doors and the
liftgate are locked automatically after
about 30 seconds.) If you are out
of the operational range before the
doors and the liftgate are completely
closed or another key is left in the
vehicle, the auto-lock function will
not work. Always make sure that all
doors and the liftgate are closed and
locked before leaving the vehicle.
The auto-lock function does not close
the power windows.
NOTE
  Auto re-lock function  After unlocking with the request
switch, all doors and the liftgate
will automatically lock if any of
the following operations are not
performed within about 30 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights
will À ash for con¿ rmation.
 The time required for the doors to
lock automatically can be changed.
 Refer to Personalisation Features on
page 9-13 .



 Opening a door or the liftgate.



 Switching the ignition to any
position other than off.
Locking, Unlocking with
Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-3 ).

3–37
Before Driving
Mirrors
Rearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror, which
might cause you to hit another car
when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to centre on the scene through the rear
window.


Reducing glare from headlights
Adjust the mirror with the antidazzle lever
in the day position.
Push the antidazzle lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.

Antidazzle lever
Day Night

3–46
Before Driving
Security System
*Some models.
Theft-Deterrent System *
If the theft-deterrent system detects an
inappropriate entry into the vehicle or
the intrusion sensor detects movement
in the vehicle which could result in the
vehicle (with the intrusion sensor) or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the siren/horn and À ashing the
hazard warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Intrusion sensor
*
The intrusion sensor uses ultrasonic waves
to detect movement inside the vehicle and
to raise an alert of an intrusion into the
vehicle.

The intrusion sensor detects certain kinds
of movement inside the vehicle, however,
it may also respond to phenomenon
outside the vehicle such as vibrations, loud
noise, wind, and air currents.
CAUTION
In order for the intrusion sensor to
operate appropriately, be aware of the
following:

 Do not hang clothing or objects from
a head restraint or a coat hook.
  Return the extension sunvisors to
their original positions.
  Do not blind the intrusion sensor by
covering it or placing objects over it.
  Do not allow the intrusion sensor to
get soiled or wipe it with a liquid.
  Do not shock or cause an impact to
the intrusion sensor or the intrusion
sensor bezel.
  Do not install seats that are not
Mazda genuine products.
  To prevent obstruction of intrusion
sensor, do not place objects or cargo
near the intrusion sensor that are
higher than the head restraints.

Intrusion sensor and
intrusion sensor bezel

3–47
Before Driving
Security System
Operation
Siren/Horn triggering conditions
The siren/horn sounds intermittently and
the hazard warning lights À ash for about
30 seconds when the system is triggered
by any one of the following:



 Unlocking a door with the auxiliary key
or an inside door-lock knob.



 Forcing open a door, the bonnet or the
liftgate.



 Opening the bonnet by operating the
bonnet release handle.



 Switching the ignition ON without using
the push button start.



 (With the intrusion sensor)
 The intrusion sensor detects a movement
in the vehicle.

The system will be triggered again (up to
10 times) if one of the above conditions
remains.



 (With the intrusion sensor)
 Disconnecting the battery terminal (the
hazard warning lights do not À ash).

The system will be triggered about 10 times.
NOTE

 The liftgate does not open while the
theft-deterrent system is operating.
  If the battery goes dead while the
theft-deterrent system is armed,
the siren/horn will activate and the
hazard warning lights will À ash when
the battery is charged or replaced.
How to Arm the System
1. Close the windows securely.
NOTE
(With the intrusion sensor)
Even with a window open, the system
can be armed, however, leaving the
windows even partially open can invite
theft, and wind blowing into the vehicle
could trigger the alarm.
The intrusion sensor function can also
be cancelled.
Refer to Cancelling the Intrusion Sensor

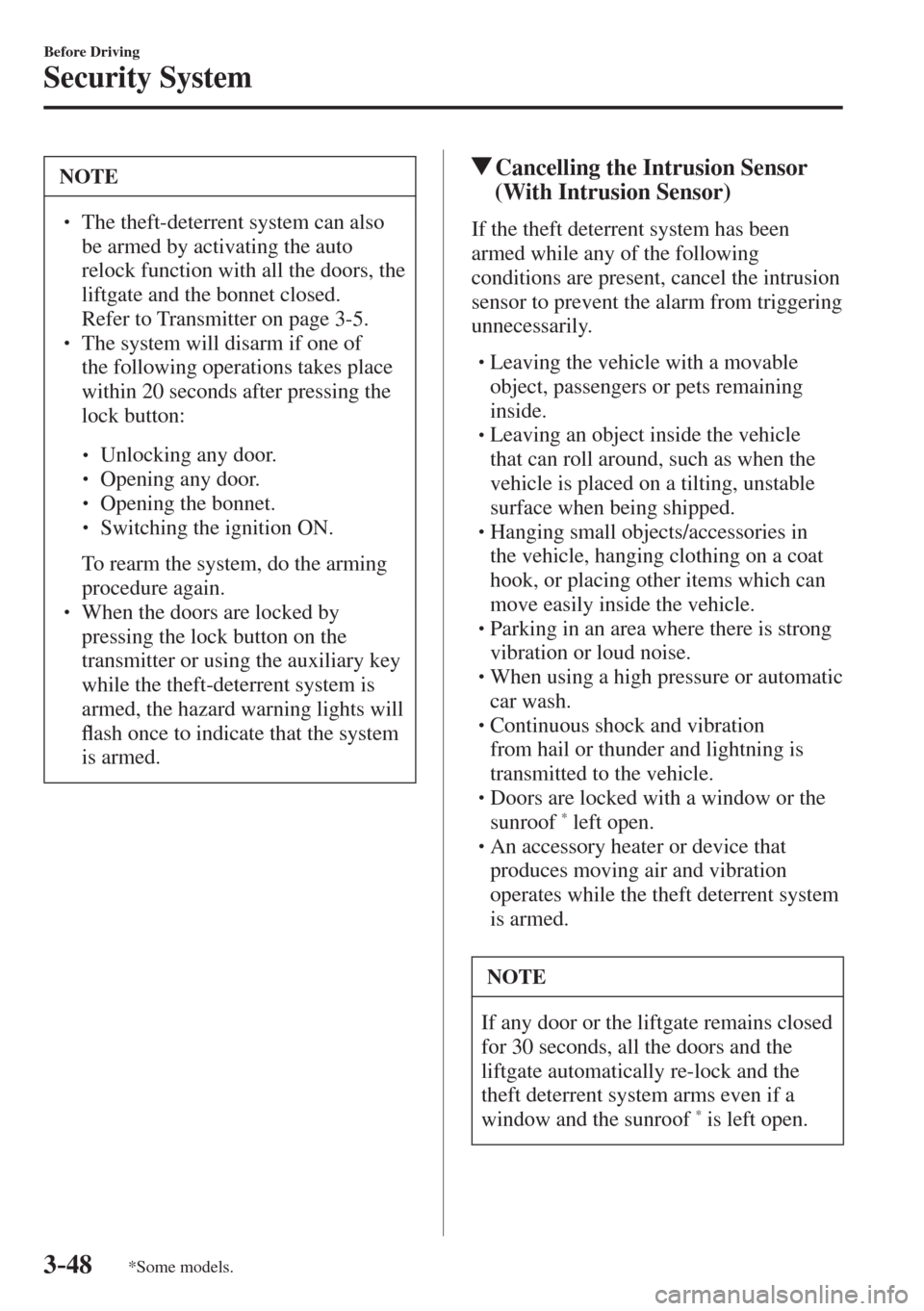

(With Intrusion Sensor) on page 3-48 .
2. Switch the ignition OFF.
3. Make sure the bonnet, the doors, and
the liftgate are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will À ash
once.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster À ashes twice per
second for 20 seconds.



5. After 20 seconds, the system is fully
armed.

3–48
Before Driving
Security System
*Some models.
NOTE
  The theft-deterrent system can also
be armed by activating the auto
relock function with all the doors, the
liftgate and the bonnet closed.
 Refer to Transmitter on page 3-5 .   The system will disarm if one of
the following operations takes place
within 20 seconds after pressing the
lock button:



 Unlocking any door.



 Opening any door.



 Opening the bonnet.



 Switching the ignition ON.
 To rearm the system, do the arming
procedure again.
  When the doors are locked by
pressing the lock button on the
transmitter or using the auxiliary key
while the theft-deterrent system is
armed, the hazard warning lights will
À ash once to indicate that the system
is armed.
Cancelling the Intrusion Sensor
(With Intrusion Sensor)
If the theft deterrent system has been
armed while any of the following
conditions are present, cancel the intrusion
sensor to prevent the alarm from triggering
unnecessarily.



 Leaving the vehicle with a movable
object, passengers or pets remaining
inside.



 Leaving an object inside the vehicle
that can roll around, such as when the
vehicle is placed on a tilting, unstable
surface when being shipped.



 Hanging small objects/accessories in
the vehicle, hanging clothing on a coat
hook, or placing other items which can
move easily inside the vehicle.



 Parking in an area where there is strong
vibration or loud noise.



 When using a high pressure or automatic
car wash.



 Continuous shock and vibration
from hail or thunder and lightning is
transmitted to the vehicle.



 Doors are locked with a window or the
sunroof * left open.


 An accessory heater or device that
produces moving air and vibration
operates while the theft deterrent system
is armed.

NOTE
If any door or the liftgate remains closed
for 30 seconds, all the doors and the
liftgate automatically re-lock and the
theft deterrent system arms even if a
window and the sunroof
* is left open.
