2017 MAZDA MODEL 6 engine

6–17
Maintenance and Care
Scheduled Maintenance
Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 394245485154576063666972
×1000 km 65707580859095100 105 11 011 5120
AIR CONDITIONER SYSTEM
Cabin air filter RRR
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine \
coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perfor\
m maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*3 The Tire Pressure Monitoring System (TPMS) initialization must be performed\
so that the system operates
normally (if equipped).
*4 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Mazda6_8FH2-EA-16F_Edition2.indb 172016/07/07 13:46:07

6–19
Maintenance and Care
Scheduled Maintenance
Ta bItem Explanation
Oil Change Setting Interval
Oil replacement period can be selected from the flexible setting or
fixed setting, or it can be set to non-display.
The flexible setting is available only in the United States and Puerto
Rico. Once engine oil flexible maintenance is selected, the vehicle
calculates the remaining oil life based on the engine operating
conditions. The vehicle lets you know when an oil change is due by
illuminating the wrench indicator light in the instrument cluster.
Distance (mile or km)
(Displays only in fixed
setting) Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
The wrench indication/indicator light in the instrument cluster will be \
illuminated when the remaining distance is less than 1,000 km or
600 mile.
Oil life (%)
(Displays only in
flexible setting) Displays the engine oil life until the oil replacement is due.
The wrench indication/indicator light in the instrument cluster will be \
illuminated when the remaining oil life distance is less than 1,000 km
(600 mile), or remaining days are less than 15 (whichever comes first).
Reset
In flexible setting
Resets the remaining distance until oil replacement is due to the initial
value.
In fixed setting
Resets the remaining distance until oil replacement is due to the initial
value.
Mazda6_8FH2-EA-16F_Edition2.indb 192016/07/07 13:46:07

6–20
Maintenance and Care
Owner Maintenance
Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
When Refueling
 Brake and clutch fluid level (page 6-31) Engine coolant level (page 6-29) Engine oil level (page 6-29) Washer fluid level (page 6-31)
At Least Monthly
 Tire inflation pressures (page 6-41)
Mazda6_8FH2-EA-16F_Edition2.indb 202016/07/07 13:46:07

6–21
Maintenance and Care
Owner Maintenance
At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have some mec\
hanical ability
and a few basic tools and if you closely follow the directions in this m\
anual.
 Engine coolant (page 6-29) Engine oil (page 6-26)
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 6-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
Refer to Introduction (page 6-2) for owner's responsibility in protecting your investment.
For details, read the separate Mazda Warranty statement provided with the vehicle. If you
are unsure about any servicing or maintenance procedure, have it done by\
an Authorized
Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Mazda6_8FH2-EA-16F_Edition2.indb 212016/07/07 13:46:07

6–22
Maintenance and Care
Owner Maintenance
WARNING
Do not perform maintenance work if you lack sufficient knowledge and experience
or the proper tools and equipment to do the work. Have maintenance work done by a
qualified technician:Performing maintenance work on a vehicle is dangerous if not done properly. You can be
seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you
remove all jewelry (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly: Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Pull over to a safe location, then switch the ignition off and make sure the fan is not
running before attempting to work near the cooling fan: Working near the cooling fan when it is running is dangerous. The fan could continue
running indefinitely even if the engine has stopped and the engine compartment
temperature is high. You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment: After you have finished checking or doing servicing in the engine compartment, do not
forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a fire
leading to an unexpected accident.
Mazda6_8FH2-EA-16F_Edition2.indb 222016/07/07 13:46:07

6–25
Maintenance and Care
Owner Maintenance
Engine Compartment Overview
Windshield washer fluid reserv oirBrake/Clutch fluid reserv oir
Engine oil dipstick Battery
Fuse block
Cooling system cap Engine coolant reservoir
Engine oil-f iller cap
Mazda6_8FH2-EA-16F_Edition2.indb 252016/07/07 13:46:08

6–26
Maintenance and Care
Owner Maintenance

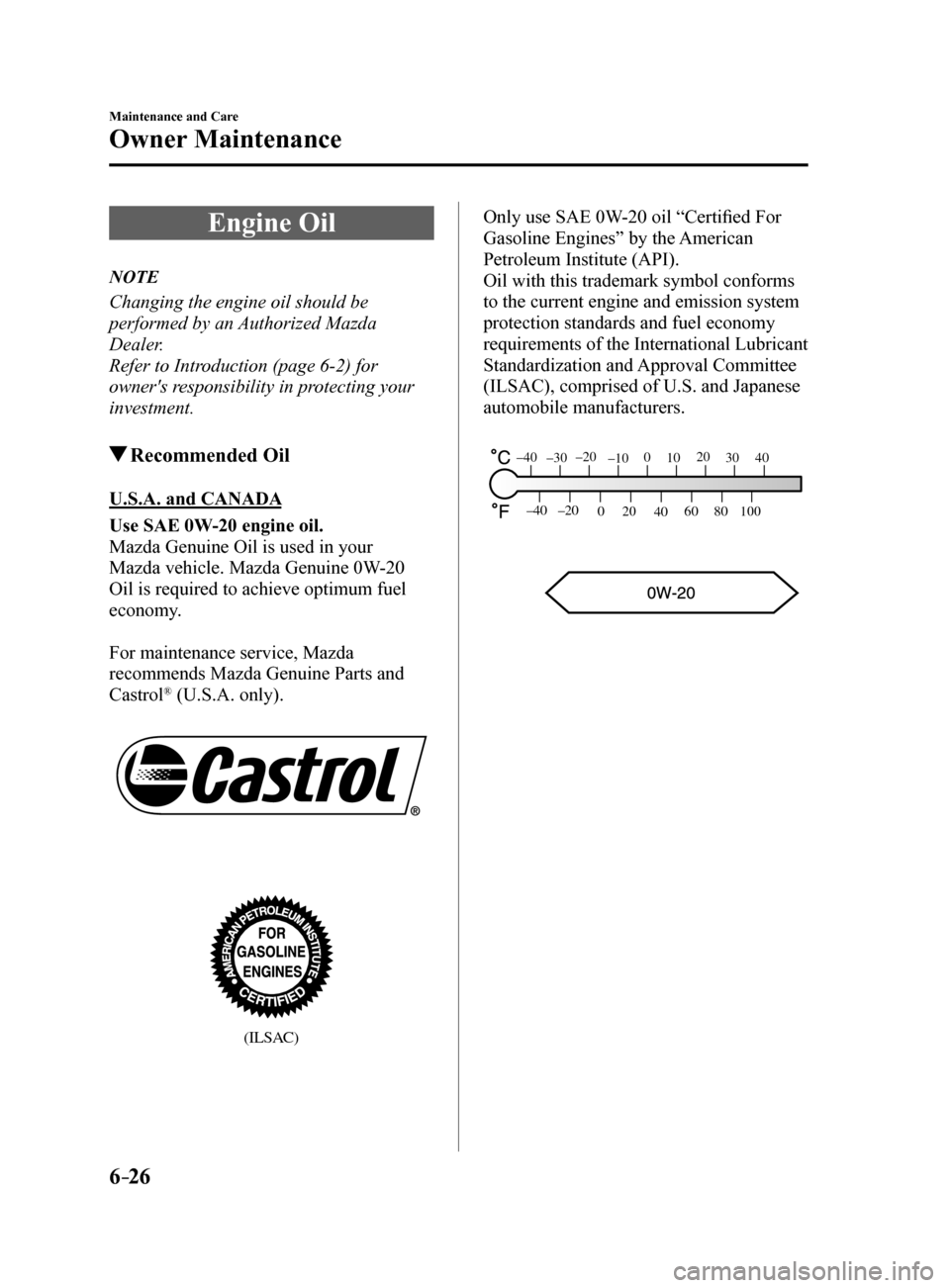

Engine Oil
NOTE
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction (page 6-2) for
owner's responsibility in protecting your
investment.
Recommended Oil
U.S.A. and CANADA
Use SAE 0W-20 engine oil.
Mazda Genuine Oil is used in your
Mazda vehicle. Mazda Genuine 0W-20
Oil is required to achieve optimum fuel
economy.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
® (U.S.A. only).
(ILSAC)
Only use SAE 0W-20 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International Lubricant
Standardization and Approval Committee
(ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
80
60
40
20
0
–40
–20
30
100
40
20
10
0
–10
–20
–30
–40
Mazda6_8FH2-EA-16F_Edition2.indb 262016/07/07 13:46:09

6–27
Maintenance and Care
Owner Maintenance
Except U.S.A. and CANADA
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine friction.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
® (Mexico only).
(ILSAC)
(Mexico)
Use SAE 5W-30 engine oil. If SAE 5W-30
engine oil is not available, use SAE 5W-20
engine oil.
The quality designation SM, or ILSAC
must be on the label.
80
60
40
20
0
–40
–20
30
100
40
20
10
0
–10
–20
–30
–40
Mazda6_8FH2-EA-16F_Edition2.indb 272016/07/07 13:46:09
