2017 LEXUS RX200T key

6387-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E
●Flathead screwdriver
●Lithium battery CR2032
Take out the mechanical key.
Remove the cover.
To prevent damage to the key, cover the tip of the flathead screwdriver with atape.
Remove the battery cover.

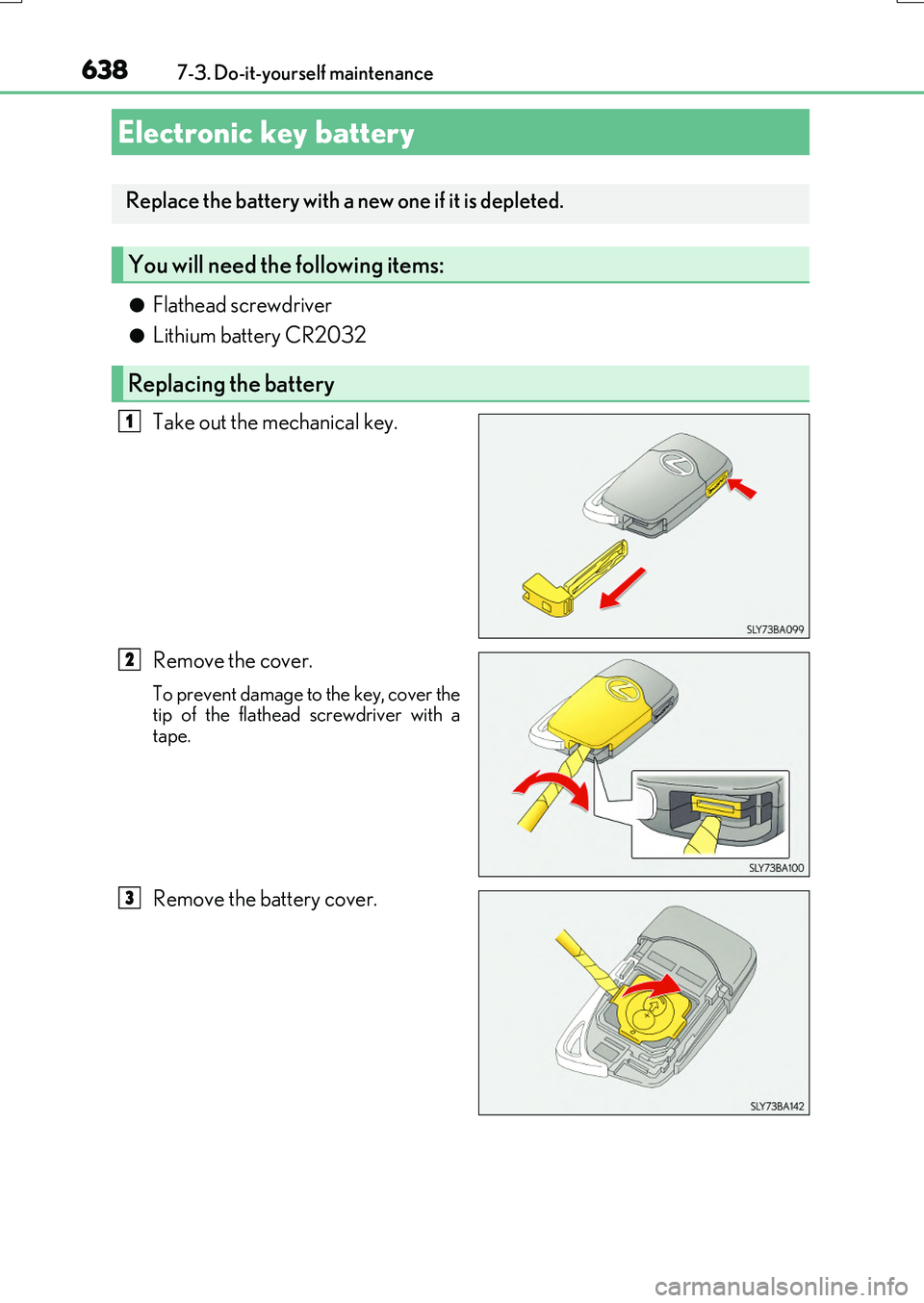

Electronic key battery
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
3

6397-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX200t_EE_OM48F32E
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
■Use a CR2032 lithium battery
●Batteries can be purchased at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional, local electrical appliance shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at your Lexus dealer. Your Lexus dealer can replace the battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart entry & start system and wireless remote control will not function properly.
●The operational range will be reduced.
4
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away from children. Failure to do so could result in death or serious injury.
■Certification for the smart entry & start system
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands. Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

655
8When trouble arises
RX350/RX200t_EE_OM48F32E
8-1. Essential information
Emergency flashers ..................656
If your vehicle has
to be stopped
in an emergency ...................... 657
8-2. Steps to take
in an emergency
If your vehicle needs
to be towed................................658
If you think something
is wrong....................................... 664
Fuel pump shut off system ...... 665
If a warning light turns
on or a warning buzzer
sounds.......................................... 666
If a warning message
is displayed ................................ 673
If you have a flat tire
(vehicles with
a spare tire)................................ 679
If you have a flat tire
(vehicles without
a spare tire)................................ 693
If the engine will not start ........708
If the electronic key does
not operate properly ...............710
If the vehicle battery
is discharged............................... 714
If your vehicle overheats .......... 718
If the vehicle becomes
stuck ............................................. 722

6768-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displayed, also refer to this Owner’s Manual.
■If “Shift to P Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without turning the
engine switch off with the shift lever in any position other than P.
Shift the shift lever to P.
■If “Power Turned Off to Save Battery” is displayed
This message is displayed when the po wer was cut off due to the automatic
power off function.
The next time the engine is started, increase the engine speed slightly and
maintain it at that speed for approximately 5 minutes to recharge the battery.
■If “AWD System Overheated Switch ing to 2WD Mode” or “AWD System
Overheated 2WD Mode Engaged” is displayed (AWD models)
This message may be displayed when dr iving under extremely high load con-
ditions.
Drive the vehicle at low speeds or stop the vehicle in a safe place with the
engine running until the message is cleared.
If the message is not cleared, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■If “A New Key has been Registered Cont act Your Dealer for Details” is dis-
played
This message will be displayed each time the driver’s door is opened when the
doors are unlocked from the outside for approximately one week after a new
electronic key has been registered.
If this message is displayed but you have not had a new electronic key regis-
tered, ask any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional. to check if an unknown electronic key (other than
those in your possession) has been registered.
Other messages displayed on the multi-information display

7088-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine again following correct starting procedures.
( P. 246)
●There may be a malfunction in the engine immobilizer system. (P. 77)
One of the following may be the cause of the problem:
●The battery terminal connections may be loose or corroded.
●The battery may be discharged. ( P. 714)
The engine starting system may be malfunctioning due to an electrical problem
such as electronic key battery depletion or a blown fuse. However, an interim
measure is available to start the engine. ( P. 709)
If the engine will not start
If the engine will not start even though correct starting procedures are being
followed ( P. 246), consider each of the following points:
The engine will not start even though the starter motor operates nor-
mally
The starter motor turns over slowly, the interior lights and headlights
are dim, or the horn does not so und or sounds at a low volume.
The starter motor does not turn over

7108-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
■Unlocking the door
Use the mechanical key ( P. 135) in order to perform the following opera-
tions:
Insert the mechanical key while
pulling on the driver’s door han-
dle.
Unlocking the door.
Remove the key, return the handle, and then pull the handle again.
If the electronic key does not operate properly
If communication between the electronic key and vehicle is interrupted
( P. 170) or the electronic key cannot be used because the battery is
depleted, the smart entry & start system and wireless remote control cannot
be used. In such cases, the doors can be opened and the engine can be
started by following the procedure below.
Locking and unlocking the doors
1
2
3

7118-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
■Locking the door
With the door open, push down
the inside lock button.
For the front doors
Close the door while pulling the door handle.
For the rear doors
Close the door.
■Key linked functions
*: If equipped
1
Closes the windows and the moon roof* or panoramic moon roof* (turn and hold)
Opens the windows and the moon roof* or panoramic moon roof* (turn and hold)
These settings must be customized at any
authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
2
2
1
2

7128-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
When the electronic key is detected, a buzzer sounds and the engine switchwill turn to IGNITION ON mode.
When the smart entry & start system is deactivated in customization setting, theengine switch will turn to ACCESSORY
mode.
Firmly depress the brake pedal and check that is shown on the multi-
information display.
Press the engine switch.
In the event that the engine still cannot be operated, contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
Starting the engine
1
2
3
4
