2017 LEXUS RX200T navigation system

5386-2. Using the air conditioning system and defogger
RX350/RX200t_EE_OM48F32E
■Change the airflow mode
To change the air outlets, press .
■S-FLOW mode
In S-FLOW mode, priority for the airflow is given to the front seats, reducing
the airflow and air conditioning effect on the rear seats.
If a passenger is not detected in the front passenger seat, priority for the air-
flow will be given to the driver's seat only.
In this case, the temperature indicator for the front passenger side will turn off.
S-FLOW mode will be activated automatically according to the set tempera-
ture, outside temperature, etc. ( P. 545)
The indicator comes on when S-FLOW mode is on.
■Other functions
●Switching between outside air and recirculated air modes ( P. 542)
●Defogging the windshield (P. 542)
●Defogging the rear window and outside rear view mirrors (P. 542)
Vehicles with a Lexus Display
Audio system
Vehicles with a navigation system
The air outlets used are switched each time the button is pressed.
Air flows to the upper body.
Air flows to the upper body and feet.
Air flows to the feet.
Air flows to the feet and the windshield defogger operates
1
2
3
4

5396-2. Using the air conditioning system and defogger
6
Interior features
RX350/RX200t_EE_OM48F32E
Lexus Display Audio screen
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select to set auto mode on/off
Select to change the fan speed set-
ting during the automatic mode
operation. ( P. 543)
Select to set cooling and dehumidifi-
cation function on/off
Adjust the temperature for driver and passenger seats separately (“DUAL”
mode) ( P. 541)
Display the option control screen ( P. 540)
Select the air flow mode
Adjust the right-hand side temperature setting
Navigation system screen
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select the air flow mode
Adjust the right-hand side tempera-
ture setting
Display the option control screen
( P. 540)
Select to set automatic mode on/off
Select to set cooling and dehumidification function on/off
Adjust the temperature for driver and passenger seats separately (“DUAL”
mode) ( P. 541)
Select to change the fan speed setting during the automatic mode operation.
( P. 543)
Control screen
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9

5406-2. Using the air conditioning system and defogger
RX350/RX200t_EE_OM48F32E
■Option control screen
Select on the air conditioning control screen to display the option
control screen. The functions can be switched on and off.
■Side display operation screen (Vehicles with a navigation system)
Select the air flow mode
Adjust the left-hand side tem-
perature setting
Adjust the fan speed setting
Adjust the right-hand side tem-
perature setting
Select to set auto mode on/off
Select to set cooling and dehu-
midification function on/off
Adjust the temperature for driver an d passenger seats separately (“DUAL”
mode) ( P. 541)
Lexus Display Audio screenNavigation system screen
Prevent ice from building up on the windshield and wiper blades
(if equipped) ( P. 543)
Select to set nanoe * on/off (if equipped) (P. 547)
*:nanoe and the nanoe mark are trademarks of Panasonic Corporation.
1
2
1
2
3
4
5
6
7

5686-5. Using the other interior features
RX350/RX200t_EE_OM48F32E
Vehicles with a navigation system
The GPS clock's time is automatically
adjusted by utilizing GPS time informa-
tion.
For details, refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
Vehicles with a Lexus Display Audio system
The clock can be adjusted by pressing
the buttons.
Pressing and holding will move the
clock hands backward.
Pressing and holding will move the
clock hands forward.
A portable device, such as a smartphone or mobile battery, can be charged by
just placing it on the charging area, provided the device is compatible with the Qi
wireless charging standard created by the Wireless Power Consortium.
The wireless charger cannot be used with a portable device that is larger than
the charging area. Additionally, dependin g on the portable device, the wireless
charger may not operate properly. Refer to the operation manual of the portable
device.
■The “Qi” symbol
The “Qi” symbol is a trademark of the Wireless Power Consortium.
Clock
1
2
Wireless charger (if equipped)

5786-5. Using the other interior features
RX350/RX200t_EE_OM48F32E
“SOS” button
Indicator lights
Microphone
ERA-GLONASS
: If equipped
ERA-GLONASS is a telematics service that uses Global Navigation Satellite
System (GLONASS) data and embedded cellular technology to enable the
following emergency calls to be made: Automatic emergency calls (Auto-
matic Collision Notification) and manual emergency calls (by pressing the
“SOS” button). This service is require d by Eurasian Customs Union Regula-
tions.
System components
1
2
3

6918-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
WARNING
■When using the compact spare tire (vehicles with a compact spare tire)
●Remember that the compact spare tire provided is specifically designed for use with your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steerin g, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached (vehicles with a compact spare tire)
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
Also, not only can the following system not be utilized fully, but it may even negatively affect the drive-train components:
• AWD system (AWD models)
■Speed limit when using the compact spare tire (vehicles with a compact spare tire)
Do not drive at speeds in excess of 80 km /h (50 mph) when a compact spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe this precaution may lead to an accid ent causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage location to reduce the possibility of personal injury during a collision or sudden brak- ing.
• ABS & Brake assist
•VSC •TRC• Trailer Sway Control
•EPS • VDIM (if equipped)• Adaptive Variable Suspension System
(if equipped) • Cruise control (if equipped)• Dynamic radar cruise control with full-
speed range (if equipped) • PCS (Pre-Crash Safety system) (ifequipped)
• LKA (Lane-Keeping Assist) (if
equipped) • RSA (Road Sign Assist) (if equipped)• Automatic High Beam (if equipped)
• AHS (Adaptive High-beam System) (if equipped)• Tire pressure warning system
• Lexus parking assist-sensor (if equipped)• Intelligent Clearance Sonar (ICS) (if
equipped) • Lexus parking assist monitor (ifequipped)
• Panoramic view monitor (if equipped) • BSM (Blind Spot Monitor) (ifequipped)
• Navigation system (if equipped)

740

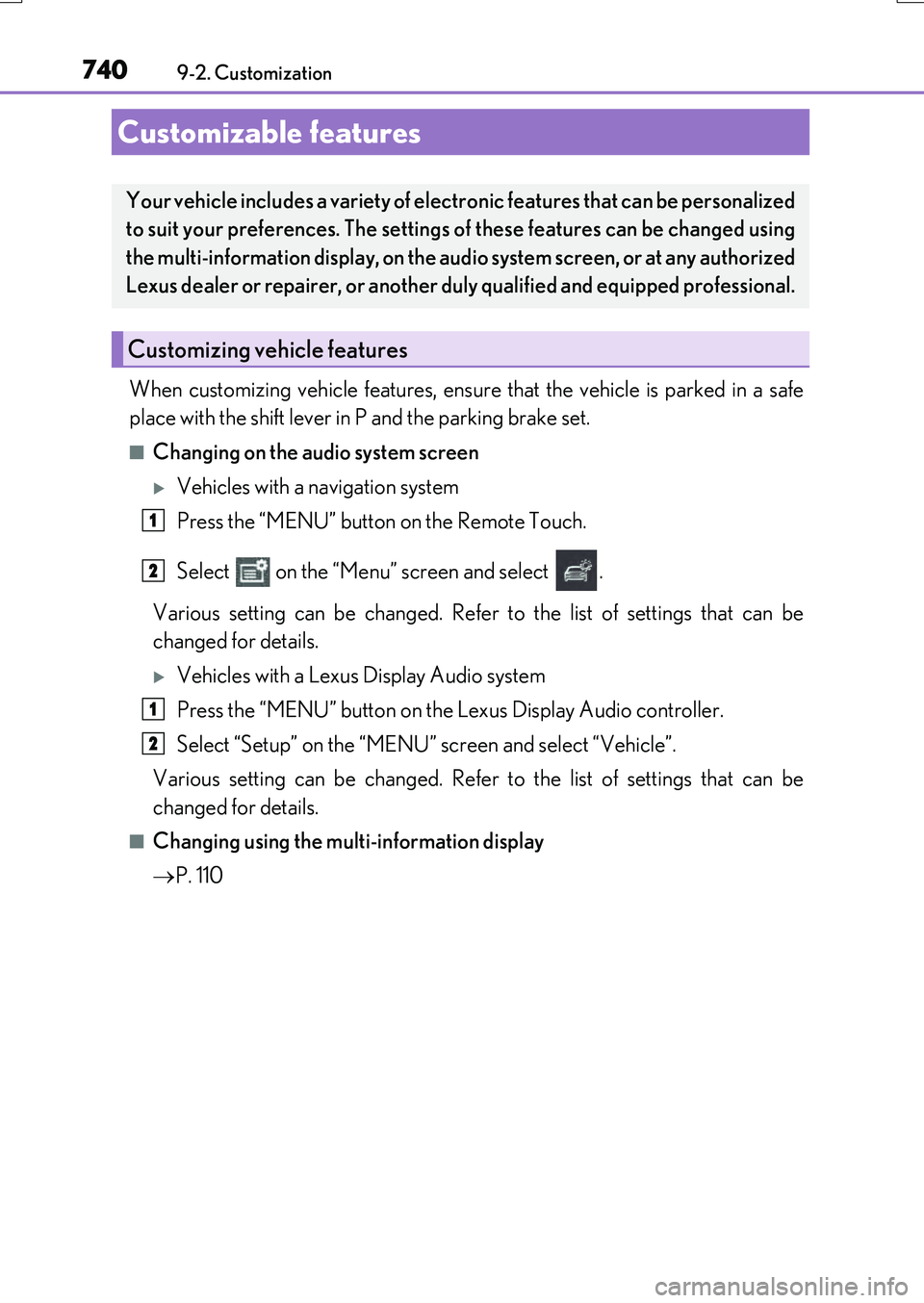

RX350/RX200t_EE_OM48F32E 9-2. Customization
When customizing vehicle features, ensure that the vehicle is parked in a safe
place with the shift lever in P and the parking brake set.
■Changing on the audio system screen
Vehicles with a navigation system
Press the “MENU” button on the Remote Touch.
Select on the “Menu” screen and select .
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Vehicles with a Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing using the multi-information display
 P. 110
Customizable features
Your vehicle includes a variety of electr onic features that can be personalized
to suit your preferences. The settings of these features can be changed using
the multi-information display, on the au dio system screen, or at any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
Customizing vehicle features
1
2
1
2

753
Index
RX350/RX200t_EE_OM48F32E
What to do if...
(Troubleshooting)............................... 754
Alphabetical index................................. 758
For vehicles with a navigation system, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” for information regarding the
equipment listed below.
• Navigation system
• Audio/visual system
• Lexus parking assist monitor
•Panoramic view monitor
