1152. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)
◆Using the odometer/trip meter display area
Items in this area are operated using the odometer/trip meter and trip meter
reset button.
Press: Change displayed item
Each time the button is pressed, the
displayed item will be changed.
Press and hold: Reset
Display the desired trip meter and
press and hold the button to reset the
trip meter.
Select a menu icon to display its content.
Drive information ( P. 116)
Select to display various drive data.
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information. • Route guidance
• Compass display (heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter using the meter
control switches.
Driving assist system information (if equipped)
Select to display the operational status of the following systems:
• Cruise control ( P. 305)
• Dynamic radar cruise control ( P. 293) • LDA (Lane Departure Alert with steering control) ( P. 279)
• RSA (Road Sign Assist) ( P. 288)
Warning message display (P. 581)
Select to display warning messages and measures to be taken if a malfunction is
detected.
Settings display ( P. 119)
Select to change the meter display settings and other settings.
Menu icons

1162. Instrument cluster
IS300h_EE(OM53D89E)
F SPORT models: Some drive information items can only be displayed when the
main meter is in the center position or when it is moved to the right.
■Drive information 1/Drive information 2/Drive information 3
Displays drive information such as the following.
F SPORT models (when the main meter is in the center position): Each item is dis-
played separately.
●Drive information 1
• Current fuel consumption
• Average fuel economy (after reset)
●Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
●Drive information 3
• Average fuel economy (after refuel)
• Elapsed time (after start)
Displayed items (listed below) can be changed on . ( P. 119)
Drive information ( )
ItemContent
Current fuel consumption Displays in stantaneous current fuel consumption
Average fuel
economy
After resetDisplays average fuel consumption since display
reset*1, 2
After startDisplays average fuel consumption since hybrid
system start*2
After refuelDisplays average fuel consumption since refuel*2, 3
Average
vehicle speed
After resetDisplays average vehicle speed since display
reset*1
After startDisplays average vehicle speed since hybrid sys-
tem start
Elapsed timeAfter resetDisplays elapsed time since display reset*1
After startDisplays elapsed time since hybrid system start
DistanceDriving rangeDisplays driving range with remaining fuel*3, 4
After startDisplays drive distance since vehicle start
OtherBlankNo item

1172. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)
*1:Resetting: P. 114
*2: Use the displayed fuel consumption as a reference.
*3: When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning the
power switch off, the display may not be updated.
*4: This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.
■Energy monitor
 P. 127
■G-force (if equipped)*1
Displays lateral G-forces on the vehicle.
Acceleration G-force on the
vehicle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces
This display is intended fo r use as a guideline. Depending on factors such as the road surface condition, temperature and vehicle speed, the display may not show
the actual condition of the vehicle.
●Resetting the record of maximum G-forces
Press and hold to reset the record.
●Peak hold function
If lateral G-forces of 0.5 G or greater are generated, the G-force value
display will turn amber and be held for 2 seconds.
*1: For F SPORT models, this item is not ava ilable when the main meter is in the center
position.
1
2
3

1182. Instrument cluster
IS300h_EE(OM53D89E)
■Sway warning (if equipped)*1
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s at tention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert with steering control) sys-
tem. The display is enabled when the op erating conditions of the vehicle sway warning are met. ( P. 279)
*1: For F SPORT models, this item is not available when the main meter is in the center
position.
■Units (if equipped)*2
The units of measure used can be changed while driving.
Unlike the units setting performed on , the units setting performed on can
be changed while driving.
*2: For F SPORT models, this item is not available when the main meter is in the right-side
position.
■Blank (No items)
Displays no drive information contents.

1192. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)

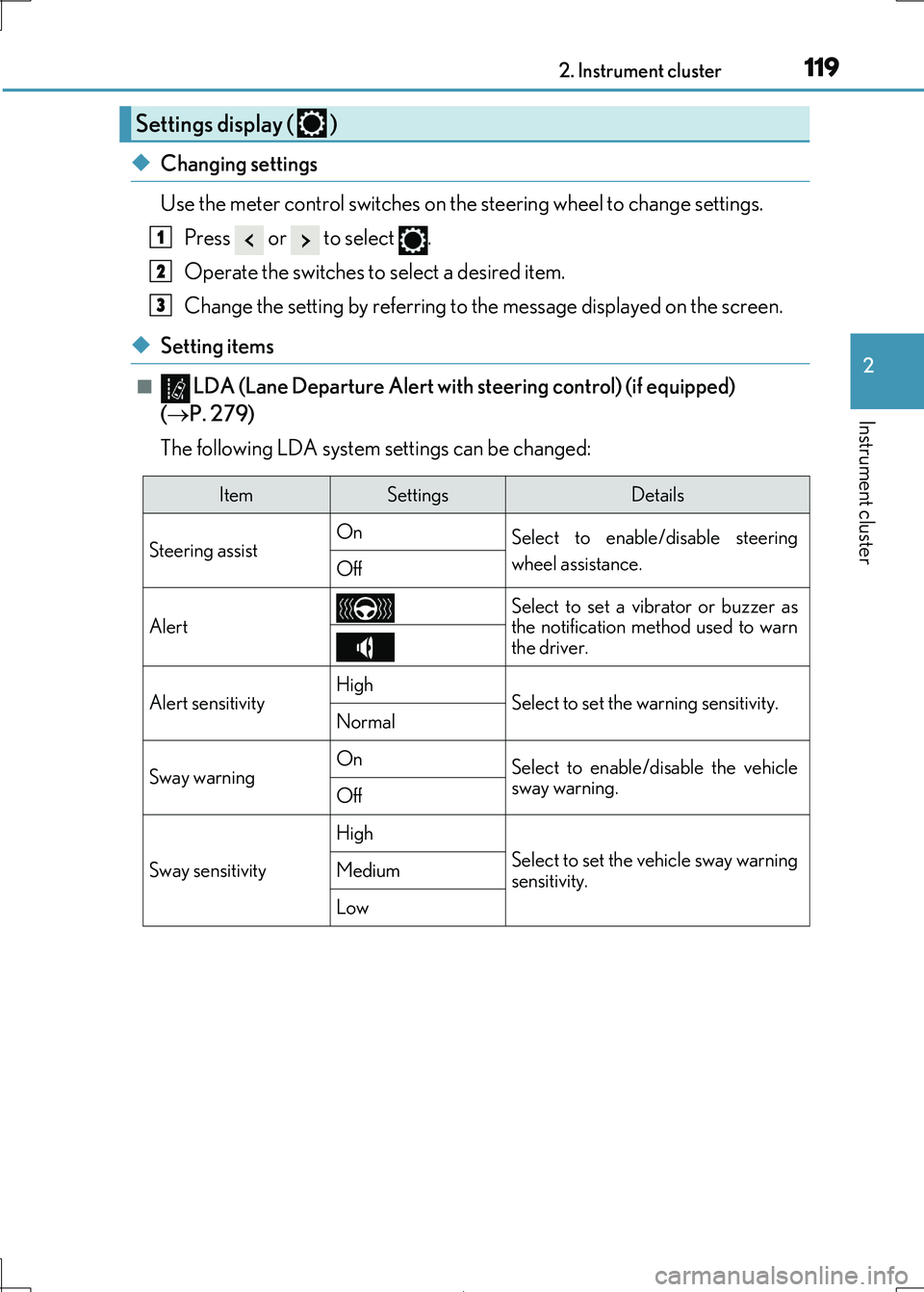

◆Changing settings
Use the meter control switches on the steering wheel to change settings.
Press or to select .
Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the screen.
◆Setting items
■ LDA (Lane Departure Alert with steering control) (if equipped)
( P. 279)
The following LDA system settings can be changed:
Settings display ( )
1
2
3
ItemSettingsDetails
Steering assist On Select to enable/disable steering
wheel assistance.Off
Alert
Select to set a vibrator or buzzer as
the notification method used to warn the driver.
Alert sensitivityHighSelect to set the warning sensitivity.Normal
Sway warningOnSelect to enable/disable the vehicle
sway warning.Off
Sway sensitivity
High
Select to set the vehicle sway warning
sensitivity.Medium
Low

1212. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)
■ RSA (Road Sign Assist) (if equipped) (P. 288)
The following RSA settings can be changed:
*: Vehicles with a navigation system
■Vehicle settings
ItemSettingsDetails
RSA On Select to enable/disable the RSA.Off
Excess speed
notification
No notificationSelect to set the notification method
used to warn the driver if the vehicle
speed exceeds the speed displayed on the speed limit sign on the multi-
information display.
Display only
Display and buzzer
Excess speed notifica-
tion level
10 km/h (5 mph)Select to set the speed threshold over
which the excess speed notification will start to operate when a speed
limit sign is disp layed on the multi-
information display.
5 km/h (3 mph)
2 km/h (1 mph)
Other notifications
No notificationSelect to set the notification method used to warn the driver if the system
detects the following:
• The vehicle is overtaking when a no overtaking sign is displayed on the
multi-information display.
• The vehicle is entering a no-entry
area when a no-entry sign is dis- played on the multi-information dis-
play.*
Display only
Display and buzzer
ItemSettingsDetails
Oil maintenance
Engine oil maintenance data reset
Select to reset the engine oil mainte- nance information (message indicat-
ing maintenance is required and
distance until the next oil change) after engine oil ma intenance is per-
formed. ( P. 518)

1222. Instrument cluster
IS300h_EE(OM53D89E)
■Meter settings
ItemSettingsDetails
Language Select to change the language dis-
played.
UnitsSelect to change the units of measure
displayed.
(EV indicator)OnSelect to enable/dis able the EV indi-
cator. ( P. 79)Off
Switch settings (except F SPORT mod- els)Select to display how to change thetop screen.
Drive information 1Select to select up to 2 items that will
be displayed on ea ch Drive informa-
tion screen (Drive information 1 screen, Drive information 2 screen,
and Drive information 3 screen)
respectively. (Selectable items: P. 116)
Drive information 2
Drive information 3
Pop-up display
Intersection guid-
ance (if equipped)
Select to enable/disable the pop-up
display.
Incoming calls (if
equipped)
Brightness adjust-
ment
Color (except F SPORT models)2 available colorsSelect to set the color of the cursor onthe multi-information display.
Needle (F SPORT
models)3 available colorsSelect to set the tachometer needle
color.
Tachometer setting
Change according
to driving modeSelect to set the tachometer or Hybrid System Indicator to always be
displayed or be changed to automati-
cally according to the driving mode.
Always tachometer
Always Hybrid Sys- tem Indicator

1232. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D89E)
Rev indicator (F SPORT models)
OnSelect to enable/disable the Rev indi-
cator. ( P. 107)Off
Rev setting
Select to set the desired engine speed at which the Rev indicator will begin
to be displayed.
Selectable engine speed range: 2000 r/min to 6000 r/min
Rev peak (F SPORT
models)
OnSelect to enable/disable the Rev peak.
( P. 107)Off
Default settingSelect to reset the meter display set-
tings to the default setting.
ItemSettingsDetails
