2017 Lexus IS200t bluetooth

266

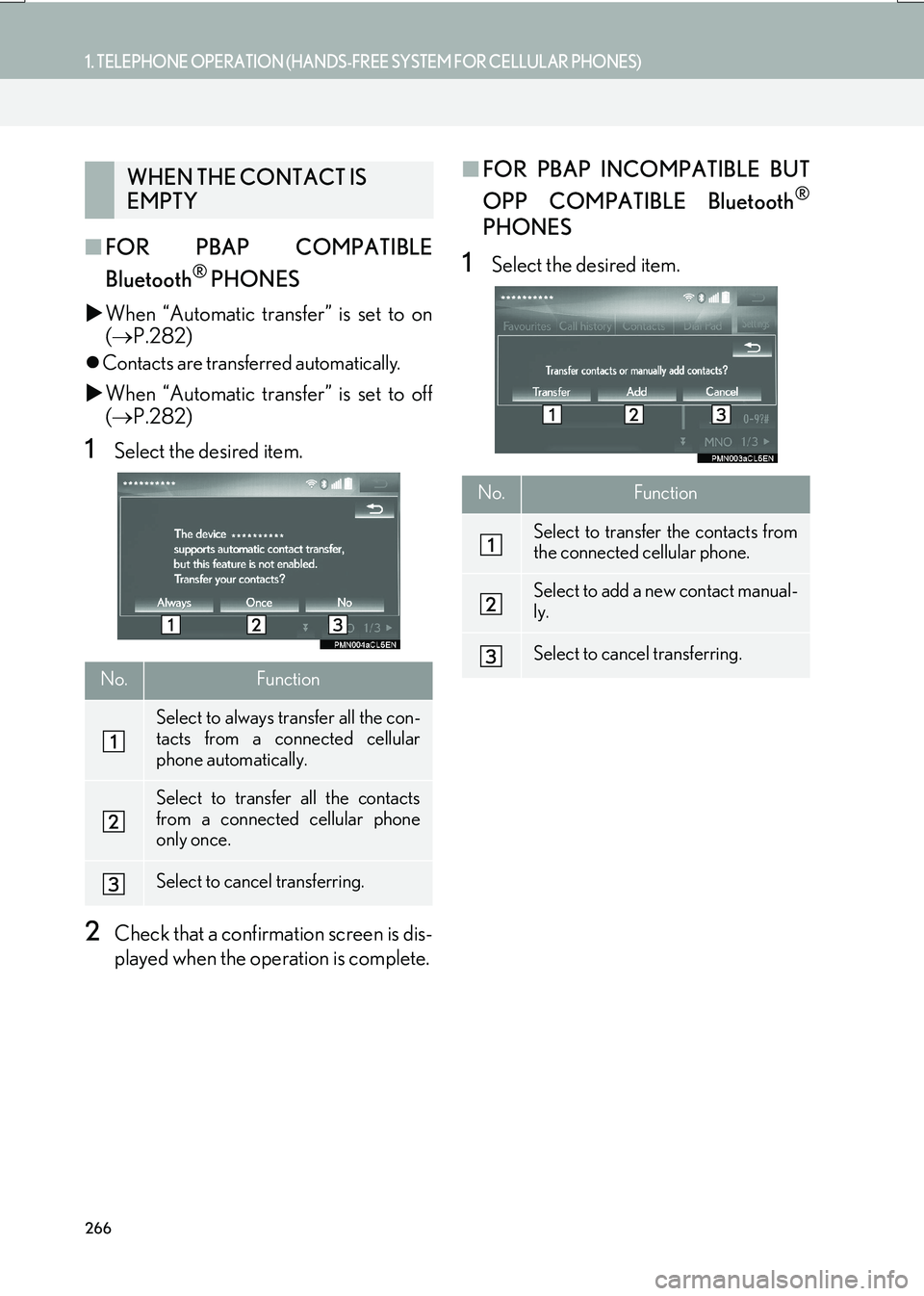

1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
IS_NAVI_EE
■FOR PBAP COMPATIBLE
Bluetooth
® PHONES
X When “Automatic transfer” is set to on
(→ P.282)
zContacts are transferred automatically.
X When “Automatic transfer” is set to off
(→ P.282)
1Select the desired item.
2Check that a confirmation screen is dis-
played when the operation is complete.
■FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth
®
PHONES
1Select the desired item.
WHEN THE CONTACT IS
EMPTY
No.Function
Select to always transfer all the con-
tacts from a connected cellular
phone automatically.
Select to transfer all the contacts
from a connected cellular phone
only once.
Select to cancel transferring.
No.Function
Select to transfer the contacts from
the connected cellular phone.
Select to add a new contact manual-
ly.
Select to cancel transferring.

267
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
TELEPHONE
IS_NAVI_EE
7
XWhen “Transfer” is selected
2Follow the steps in “ XWhen the contact
is not registered” from “STEP 2”.
( → P.285)
X When “Add” is selected
2Follow the steps in “REGISTERING A
NEW CONTACT TO THE CON-
TACTS LIST” from “STEP 2”.
(→ P.286)
1Display the telephone top screen.
(→ P.263)
2Select the “Dial Pad” tab and enter the
telephone number.
“SOS” : → P.268
3Select or press the switch on
the steering wheel.
4Check that the “Call” screen is dis-
played.INFORMATION
●Manual transfer operation cannot be
performed while driving.
● If your cellular phone is neither PBAP nor
OPP compatible, the contacts cannot be
transferred.
● Depending on the type of Bluetooth
®
phone:
• It may be necessary to perform addi-
tional steps on the telephone when
transferring contact data.
• The registered image in the contact list may not transfer depending on the type
of Bluetooth
® phone connected.
BY DIAL PAD
INFORMATION
● Depending on the type of Bluetooth®
phone being connected, it may be neces-
sary to perform additional steps on the
telephone.

270
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
IS_NAVI_EE
4. RECEIVING ON THE Bluetooth® PHONE
1Select or press the switch on
the steering wheel to talk on the tele-
phone.
To refuse to receive the call : Select
or press the switch on the steering
wheel.
To adjust the volume of a received call :
Turn the Power/Volume knob, or use the
volume control switch on the steering
wheel.
INCOMING CALLS
When a call is received, this screen is
displayed with a sound.
This screen can also be displayed on the
“Side Display”. ( →P.324)
INFORMATION
●During international telephone calls, the
other party’s name or number may not be
displayed correctly depending on the
type of cellular phone you have.
● The ringtone that has been set in the
“Sounds” screen sounds when there is an
incoming call. Depending on the type of
Bluetooth
® phone, both the system and
Bluetooth® phone may sound simulta-
neously when there is an incoming call.
( → P. 2 8 0 )
● The incoming call display mode can be
set. ( →P. 2 8 1 )

271
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
IS_NAVI_EE
TELEPHONE
7
5. TALKING ON THE Bluetooth® PHONE
While talking on the telephone, this
screen is displayed. The operations out-
lined below can be performed on this
screen.
This screen can also be displayed on the
“Side Display”. (→P.324)
No.FunctionPage
Select to display the dial
pad to send tones.272
Select to mute your voice to
the other party.
Select to adjust your voice
volume that the other party
hears from their speaker.
273
Select to send tones. This
button only appears when a
number that contains a (w)
is dialed in hands-free
mode.
272
Select to hang up the tele-
phone.
Select “+” or “-” to adjust
the volume of the other par-
ty’s voice.

Select to change handset
modes between hands-free
and cellular phone.

Select to start talking with
the other party.273
INFORMATION
● When cellular phone call is changed to
hands-free call, the hands-free screen will
be displayed and its functions can be
operated on the screen.
● Changing between cellular phone call
and hands-free call can be performed by
operating the cellular phone directly.
● Transferring methods and operations will
be different depending on the type of cel-
lular phone you have.
● For the operation of the cellular phone,
see the manual that comes with it.
● This screen can be displayed on the
“Main Display” or “Side Display”.
( → P. 2 8 1 )
No.FunctionPage

274
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
IS_NAVI_EE
6. Bluetooth® PHONE MESSAGE FUNCTION
1Press the “MENU” button on the
Remote Touch.
2Select “Info”.
3Select “Messages” .
4Check that the “Messages” screen is
displayed.
Received messages can be forwarded
from the connected Bluetooth
® phone,
enabling checking and replying using
the system.
Depending on the type of Bluetooth
®
phone connected, received messages
may not be transferred to the message
inbox.
If the telephone does not support the
message function, this function cannot
be used.
FunctionPage
Receiving a message275
Checking messages 276
Replying to a message (quick reply)277
Calling the message sender278
Message settings290

276
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
IS_NAVI_EE
1Display the “Messages” screen.
(→ P.274)
2Select the desired message from the list.
3Check that the message is displayed.
CHECKING MESSAGES
No.Function
Select “Mark unread” or “Mark
read” to mark e-mail unread or read
on the message screen.
This function is available when “Up-
date message read status on tele-
phone” is set to on. ( →P.290)
Select to reply the message.
(→ P.277)
Select to display the previous or next
message.
Select to have messages read out.
To cancel this function, select “Stop”.
When “Automatic message read-
out” is set to on, messages will be au-
tomatically read out. ( →P.290)
Select to make a call to the sender.
INFORMATION
●Depending on the type of Bluetooth®
phone being connected, it may be
necessary to perform additional steps on
the telephone.
● Messages are displayed in the
appropriate connected Bluetooth
®
phone’s registered mail address folder.
Select the tab of the desired folder to be
displayed.
● Only received messages on the
connected Bluetooth
® phone can be
displayed.
● Turn the Power/Volume knob, or use the
volume control switch on the steering
wheel to adjust the message read out
volume.

282
2. SETUP
IS_NAVI_EE
1Display the “Telephone settings”
screen. (→P.279)
2Select “Contact/Call history” .
3Select the desired item to be set.
Select to set display of the contact/
history transfer completion message
on/off.
Select to reset all setup items.
INFORMATION
●Depending on the telephone, these func-
tions may not be available.
No.Function“Contacts/Call history” SCREEN
The contact can be transferred from a
Bluetooth
® phone to the system. If your
cellular phone is neither PBAP nor OPP
compatible, the contacts cannot be
transferred.
The contact also can be added, edited
and deleted.
The call history can be deleted and con-
tact and favourites can be changed.

283
2. SETUP
IS_NAVI_EE
TELEPHONE
7
No.FunctionPage
For PBAP compatible
Bluetooth® phones: Select
to change the contact/his-
tory transfer settings.284
Select to update contacts
from the connected tele-
phone.285
Select to sort contacts by
the first name or last name
field.

Select to add contacts to
the favourites list. 288
Select to delete contacts
from the favourites list. 289
*Select to clear contacts
from the call history.
*Select to add new contacts
to the contact list.286
*Select to edit contacts in
the contact list.287
*Select to delete contacts
from the contact list.287
Select to reset all setup
items.
*: For PBAP compatible Bluetooth
®
phones, this function is available when
“Automatic transfer” is set to off.
( → P.282)
INFORMATION
●Depending on the type of telephone, cer-
tain functions may not be available.
● Contact data is managed independently
for every registered telephone. When
one telephone is connected, another
telephone’s registered data cannot be
read.
