2017 Lexus IS200t Navigation Manual

185
3. MEDIA OPERATION
IS_NAVI_EE
AUDIO/VISUAL SYSTEM
4

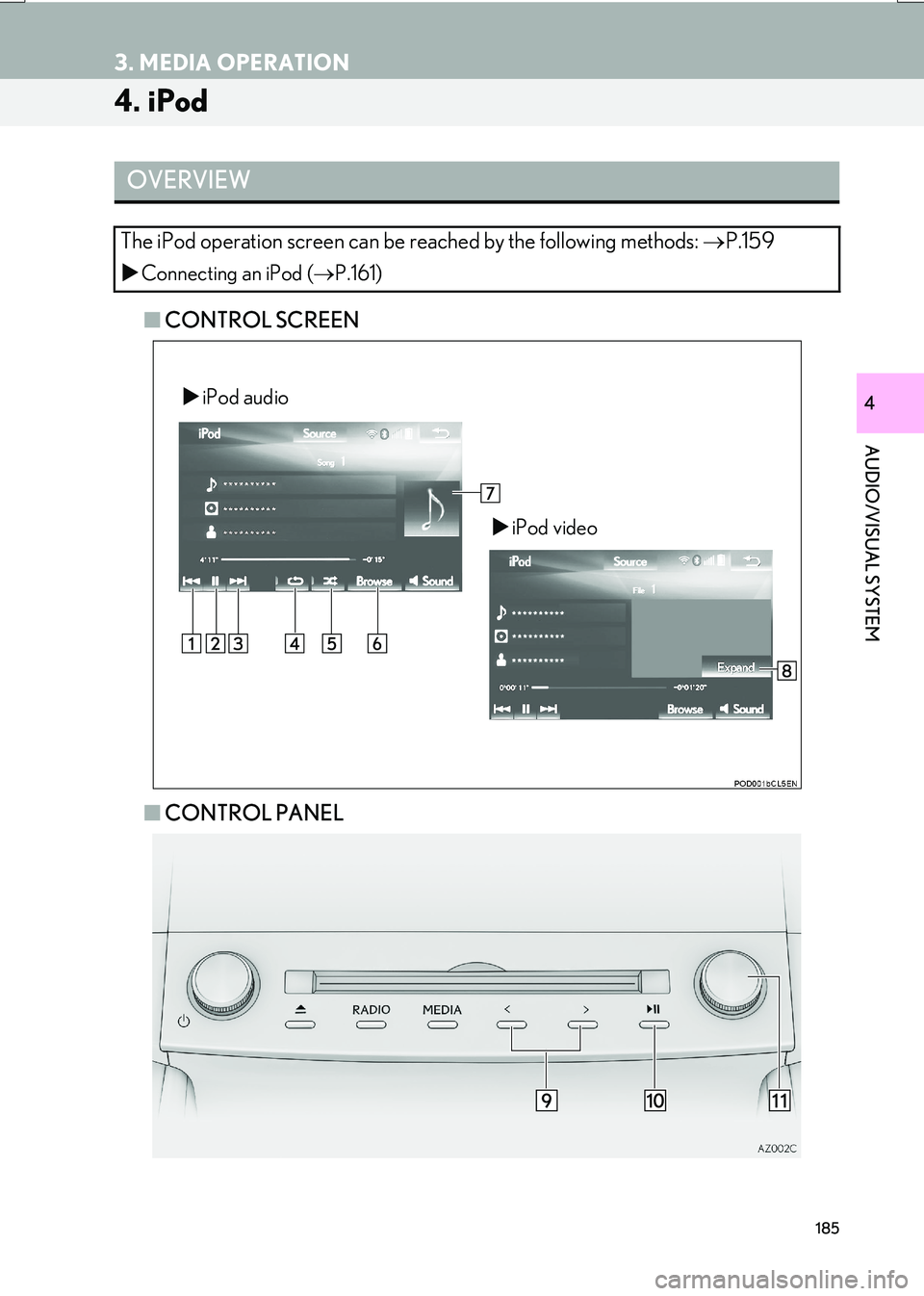

4. iPod
■CONTROL SCREEN
■ CONTROL PANEL
OVERVIEW
The iPod operation screen can be reached by the following methods: →P.159
XConnecting an iPod ( →P.161)
XiPod audio
XiPod video

186
3. MEDIA OPERATION
IS_NAVI_EE
No.Function
AudioVideo
•Select to select a track.
• Select and hold to rewind.•Select to select a file.
• Select and hold to rewind.
Select to play/pause.Select to play/pause.
•Select to select a track.
• Select and hold to fast forward.•Select to select a file.
• Select and hold to fast forward.
Select to set repeat playback. ( →P.188)
Select to set random playback. ( →P.188)
Select to display the play mode selection
screen.
To return to the top screen, select “Now
playing” on the list screen.Select to display the play mode selection
screen.
To return to the top screen, select “Now
playing” on the list screen.
•Displays cover art
• Select to display a track list.
To return to the top screen, select “Now
playing” on the list screen.

Select to display full screen video.
•Press to select a track.
• Press and hold to fast forward/rewind.•Press to select a file.
• Press and hold to fast forward/rewind.
Press to play/pause.Press to play/pause.
Tune/Scroll knob:
•Turn to select a track.
• Turn to move up/down the list.Tune/Scroll knob:
•Turn to select a file.
• Turn to move up/down the list.

187
3. MEDIA OPERATION
IS_NAVI_EE
AUDIO/VISUAL SYSTEM
4
WA R N I N G
●Do not operate the player’s controls or connect the iPod while driving.
NOTICE
●Depending on the size and shape of the iPod that is connected to the system, the console
box may not close fully. In this case, do not forcibly close the console box as this may dam-
age the iPod or the terminal, etc.
● Do not leave your portable player in the car. In particular, high temperatures inside the vehi-
cle may damage the portable player.
● Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
● Do not insert foreign objects into the port as this may damage the portable player or its ter-
minal.
INFORMATION
● The system can only output the sound while driving.
● When an iPod is connected using a genuine iPod cable, the iPod starts charging its battery.
● Depending on the iPod, the video sound may not be able to be heard.
● Depending on the iPod and the songs in the iPod, iPod cover art may be displayed. This
function can be changed to “On” or “Off ” . (→ P.201) It may take time to display iPod cover
art, and the iPod may not be operated while the cover art display is in process.
● When an iPod is connected and the audio source is changed to iPod mode, the iPod will
resume playing from the same point it was last used.
● Depending on the iPod that is connected to the system, certain functions may not be avail-
able.
● For viewing videos from an iPod, it is necess ary to set “Video sound input” to “External”.
( → P. 2 0 1 )
● The system may not function properly if a conversion adapter is used to connect a device.

188
3. MEDIA OPERATION
IS_NAVI_EE
1Select .
zEach time is selected, the mode
changes as follows:
•track repeat
→ off
1Select .
zEach time is selected, the mode
changes as follows:
• track shuffle
→ album shuffle → off
iPod AUDIO
REPEATING
The track currently being listened to can
be repeated.
RANDOM ORDER
Tracks or albums can be automatically
and randomly selected.
iPod VIDEO
To change to iPod video mode, select
“Browse” on the iPod audio screen, then
select the “Videos” tab and select the
desired video file.

189
3. MEDIA OPERATION
IS_NAVI_EE
AUDIO/VISUAL SYSTEM
4
5. Bluetooth® AUDIO
■CONTROL SCREEN
The Bluetooth
® audio system enables users to enjoy listening to music that is played
on a portable player on the vehicle speakers via wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of playing por-
table audio music without cables. If your device does not support Bluetooth
®, the
Bluetooth® audio system will not function.
OVERVIEW
The Bluetooth® audio operation screen can be reached by the following methods:
→ P.159
Depending on the type of portable player connected, some functions may not be avail-
able and/or the screen may look differently than shown in this manual.
X Connecting a Bluetooth® audio device ( →P.193)

190
3. MEDIA OPERATION
IS_NAVI_EE
■CONTROL PANEL

191
3. MEDIA OPERATION
IS_NAVI_EE
AUDIO/VISUAL SYSTEM
4
No.Function
Displays Bluetooth® device condition
Select to select an album.
•Select to select a track.
• Select and hold to rewind.
Select to play/pause.
•Select to select a track.
• Select and hold to fast forward.
Select to set repeat playback. ( →P.193)
Select to set random playback. ( →P.193)
Select to display the playlist screen.
To return to the top screen, select “Now playing” on the list screen.
Select to display the portable device connection screen. ( →P.193)
•Displays cover art
• Select to display a track list.
To return to the top screen, select “Now playing” on the list screen.
•Press to select a track.
• Press and hold to fast forward/rewind.
Press to play/pause.
Tune/Scroll knob:
Turn to select a track.

192
3. MEDIA OPERATION
IS_NAVI_EE
WA R N I N G
●Do not operate the player’s controls or connect to the Bluetooth® audio system while driv-
ing.
● Your audio unit is fitted with Bluetooth
® antennas. People with implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
defibrillators should maintain a reasonab le distance between themselves and the
Bluetooth
® antennas. The radio waves may affect the operation of such devices.
● Before using Bluetooth
® devices, users of any electrical medical device other than implant-
able cardiac pacemakers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should consult the manufacturer of the device for information
about its operation under the influence of ra dio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
● Do not leave your portable player in the vehicl e. In particular, high temperatures inside the
vehicle may damage the portable player.
INFORMATION
● Depending on the Bluetooth® device that is connected to the system, the music may start
playing when selecting wh ile it is paused. Conversely, the music may pause when
selecting while it is playing.
● In the following conditions, the system may not function:
• The Bluetooth
® device is turned off.
• The Bluetooth
® device is not connected.
• The Bluetooth
® device has a low battery.
● It may take time to connect the telephone when Bluetooth
® audio is being played.
● For operating the portable player, see the instruction manual that comes with it.
● If the Bluetooth
® device is disconnected due to poor reception from the Bluetooth® net-
work when the engine switch is in ACCESSORY or IGNITION ON mode,
the system automatically reconnects the portable player.
● If the Bluetooth
® device is disconnected on purpose, such as it was turned off, this does not
happen. Reconnect the portable player manually.
● Bluetooth
® device information is registered when the Bluetooth® device is connected to
the Bluetooth® audio system. When selling or disposing of the vehicle, remove the
Bluetooth® audio information from the system. ( →P. 7 1 )
● In some situations, sound output via the Bluetooth® audio system may be out of sync with
the connected device or output intermittently.
