6-3. Do-it-yourself maintenance
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
Checking and replacing fuses
Turn the power switch off.
Open the fuse box cover.
Engine compartment:
Remove the engine compartment
cover ( P. 405) and remove all of the
clips.
Push the tabs on either side to detach
the lock and lift the lid off while pulling
the lock plate.
When installing the lid, check that the lock plate and the tabs on either side are
connected correctly.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl ace the fuses as necessary.
1
2

4426-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30F92E_(EE)
Light bulbs
Check the wattage of the light bulb to be replaced. ( P. 558)
 P. 405
Front turn signal light (vehicles with single-beam headlights)
Outer foot light
You may replace the following bulbs by yourself. The difficulty level of replace-
ment varies depending on the bulb. As there is a danger that components may
be damaged, we recommend that replacement is carried out by any autho-
rized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
Preparing for light bulb replacement
Removing the engine compartment covers
Bulb locations
1
2

4847-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
Indicates that engine oil level is low This message may appear if the vehicle is stopped on a
slope. Move the vehicle to a level surface and check to see if the message disappears.A buzzer also sounds.
 Check the level of engine oil, and add if necessary.
Indicates that the hybrid system has overheated This message may be displayed when driving under
severe operating conditions. (For example, when driv- ing up a long steep hill.)A buzzer also sounds.
 Stop and check. (P. 535)
Indicates a malfunction in: • The AHS (Adaptive High-beam System) (ifequipped);
• The Automatic High Beam (if equipped); • The AFS (Adaptive Front-lighting System) (ifequipped); or
• The LED headlight system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer.
(If equipped)
Indicates a malfunction in the RSA (Road Sign Assist)
A buzzer also sounds  Have the vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.
Warning messageDetails/Actions

4877-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

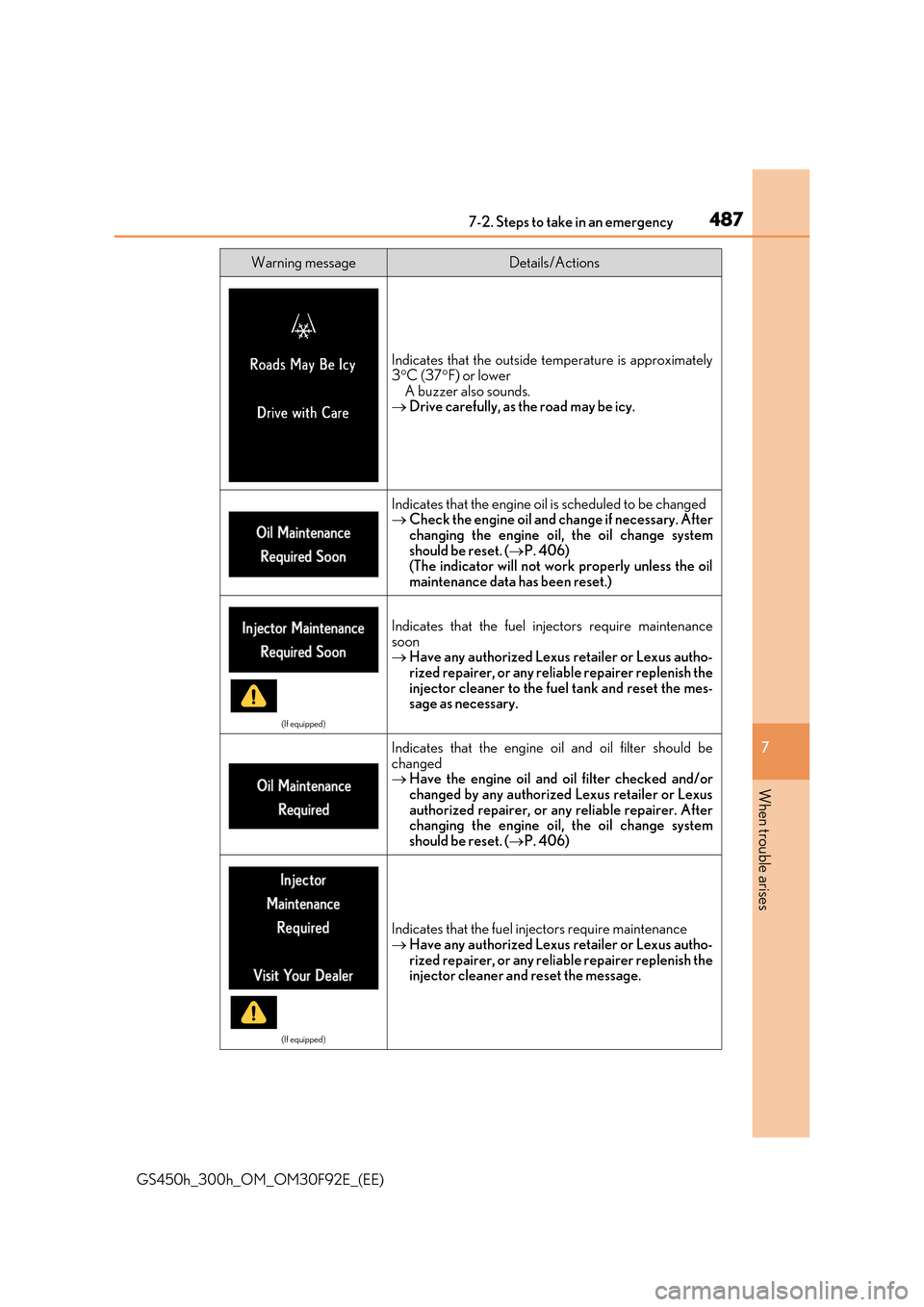

Indicates that the outside temperature is approximately
3 C (37F) or lower A buzzer also sounds. Drive carefully, as the road may be icy.
Indicates that the engine oil is scheduled to be changed  Check the engine oil and change if necessary. After changing the engine oil, the oil change system
should be reset. ( P. 406) (The indicator will not work properly unless the oilmaintenance data has been reset.)
(If equipped)
Indicates that the fuel in jectors require maintenance
soon  Have any authorized Lexus retailer or Lexus autho- rized repairer, or any reliable repairer replenish the
injector cleaner to the fuel tank and reset the mes- sage as necessary.
Indicates that the engine oil and oil filter should bechanged Have the engine oil and oil filter checked and/or
changed by any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer. Afterchanging the engine oil, the oil change system
should be reset. ( P. 406)
(If equipped)
Indicates that the fuel injectors require maintenance
 Have any authorized Lexus retailer or Lexus autho- rized repairer, or any reliable repairer replenish theinjector cleaner and reset the message.
Warning messageDetails/Actions

5407-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions. Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the indicator on the power
switch and the “READY” indicator are off. When the hybrid system is operating, the gasoline engine may automatically start, orthe cooling fan may suddenly operate even if the gasoline engine stops. Do not touch
or approach rotating parts such as the fan, which may lead to fingers or clothing (especially a tie, a scarf or a muffler) getting caught, resulting in serious injury.
●Do not loosen the coolant inlet cap or thecoolant reservoir caps while the hybrid sys-tem and radiator are hot.
High temperature steam or coolant could spray out.
GS450h
GS300h

5508-1. Specifications
GS450h_300h_OM_OM30F92E_(EE)
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Lubrication system
Oil capacity
(Drain and refill  reference*)With filter
Without filter
GS450hGS300h
6.3 L (6.7 qt., 5.5 Imp.qt.)
5.9 L (6.2 qt., 5.2 Imp.qt.)
4.5 L (4.8 qt., 4.0 lmp. qt.)
4.1 L (4.3 qt., 3.6 lmp. qt.)
Temperature range anticipated
before next oil change
Preferred

584Alphabetical index
