2017 Lexus GS350 Navigation Manual

239
1. VOICE COMMAND SYSTEM OPERATION
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
VOICE COMMAND SYSTEM
5
XRadio
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play station”Changes the radio to an FM station of the specified genre
“Tune to FM
HD ”Changes the radio to the specified HD radio station
“Tune to preset ”Changes the radio to the specified preset radio station
“Tune to ”Changes the radio to the satellite radio channel with the
specified name
“Tune to channel ”Changes the radio to the spec ified satellite radio channel
number
“Play satellite station”Changes the radio to a satellite radio channel of the spec-
ified genre
“AM Radio”Selects AM radio mode
“FM Radio”Selects FM radio mode
“Sirius XM”Selects satellite radio mode

240
1. VOICE COMMAND SYSTEM OPERATION
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
XAudio
X Info
CommandAction
“Play Playlist ”Plays tracks from the selected playlist
“Play Artist ”Plays tracks from the selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
“Turn Music On”Turns the audio system on
“Turn Music Off”Turns the audio system off
“Disc”Selects the selected disc mode
“USB”Selects USB audio mode
“iPod”Selects iPod audio mode
“Bluetooth* Audio”Selects Bluetooth® audio mode
“External”Selects VTR mode
“Auxiliary”Selects AUX audio mode
*: The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc.
CommandAction
“Destination Assist”*Connects the system to the Lexus response center
“Show Forecast”Displays weather information
“Show Traffic”Displays traffic information
“Lexus Insider”*Displays the Lexus insider list
*: With 12.3-inch display

241
1. VOICE COMMAND SYSTEM OPERATION
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
VOICE COMMAND SYSTEM
5

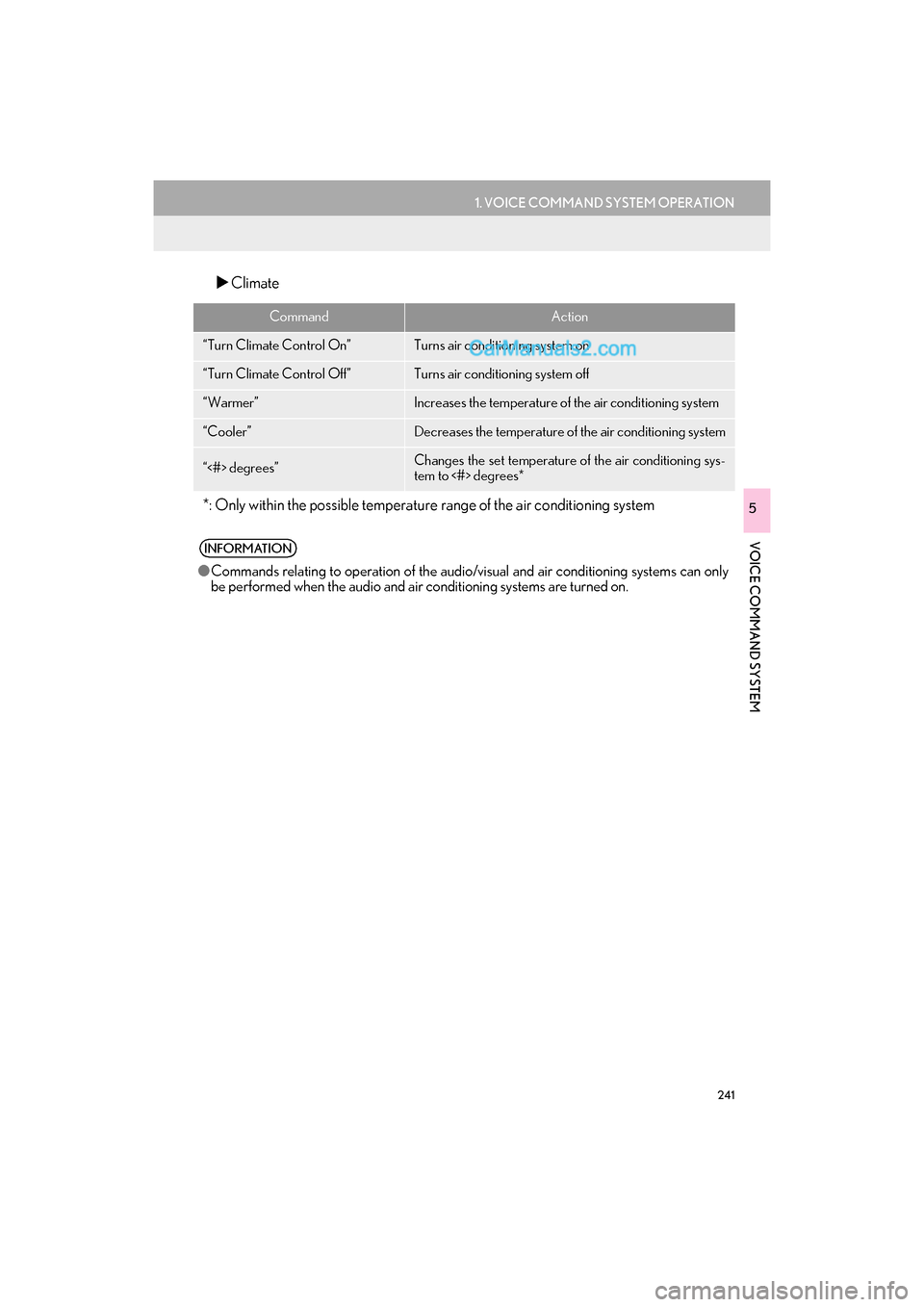

XClimate
CommandAction
“Turn Climate Control On”Turns air conditioning system on
“Turn Climate Control Off”Turns air conditioning system off
“Warmer”Increases the temperature of the air conditioning system
“Cooler”Decreases the temperature of the air conditioning system
“<#> degrees”Changes the set temperature of the air conditioning sys-
tem to <#> degrees*
*: Only within the possible temperature range of the air conditioning system
INFORMATION
●Commands relating to operation of the audio/visual and air conditioning systems can only
be performed when the audio and air conditioning systems are turned on.

242
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
2. MOBILE ASSISTANT OPERATION
1. MOBILE ASSISTANT
1Press and hold this switch until you hear
the beeps.
X GS 450h/GS 350/GS 200t
X GS F
2The Mobile Assistant can be used only
when the “Mobile Assistance” screen is
displayed.
z To cancel the Mobile Assistant, select
“Cancel” , or press and hold the on the
steering wheel.
z To restart the Mobile Assistant for addi-
tional commands, press the on the
steering wheel.
• Mobile Assistant can only be restarted
after the system responds to a voice com-
mand.
• After some phone and music commands, the Mobile Assistant feature will automat-
ically end to complete the requested
action.
The Mobile Assistant feature will
activate Apple’s Siri® Eyes Free mode
via the steering wheel switches. To
operate the Mobile Assistant, a
compatible cellular phone must be
registered and connected to this system
via Bluetooth
®. ( → P.44.)
zThe volume of the Mobile Assistant can
be adjusted using the “PWR·VOL” knob
or steering wheel volume control
switches. The Mobile Assistant and
phone call volumes are synchronized.

243
2. MOBILE ASSISTANT OPERATION
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
VOICE COMMAND SYSTEM
5
INFORMATION
●The available features and functions may
vary based on the iOS version installed
on the connected device.
● Some Siri features are limited in Eyes
Free mode. If you attempt to use an
unavailable function, Siri will inform you
that the function is not available.
● If Siri is not enabled on the cellular phone
connected via Bluetooth
®, an error mes-
sage will be displayed on the screen.
● While a phone call is active, the Mobile
Assistant cannot be used.
● If using the navigation feature of the cellu-
lar phone, ensure the active audio source
is Bluetooth
® audio or iPod in order to
hear turn by turn direction prompts.
MICROPHONE
It is not necessary to speak directly into
the microphone when using the Mobile
Assistant. (Microphone location:
→ P.228.)
INFORMATION
●Wait for the listening beeps before using
the Mobile Assistant.
● The Mobile Assistant may not recognize
commands in the following situations:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while the Mobile
Assistant is being used.
• The air conditioning speed is set high.
• The air conditioning vents are turned toward the microphone.

244
2. MOBILE ASSISTANT OPERATION
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00

6
245
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
1
2
3 4
5
6
7
8 9
10
1. RECEIVING DOPPLER WEATHER INFORMATION........... 246
DISPLAYING DOPPLER WEATHER
INFORMATION ................................................. 246
2. DATA SERVICES SETTINGS ............. 247
SETTING DOWNLOAD METHODS ......... 247
1INFORMATION DISPLAY
INFORMATION *
*: This function is not made available on some models.

246
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
1. INFORMATION DISPLAY

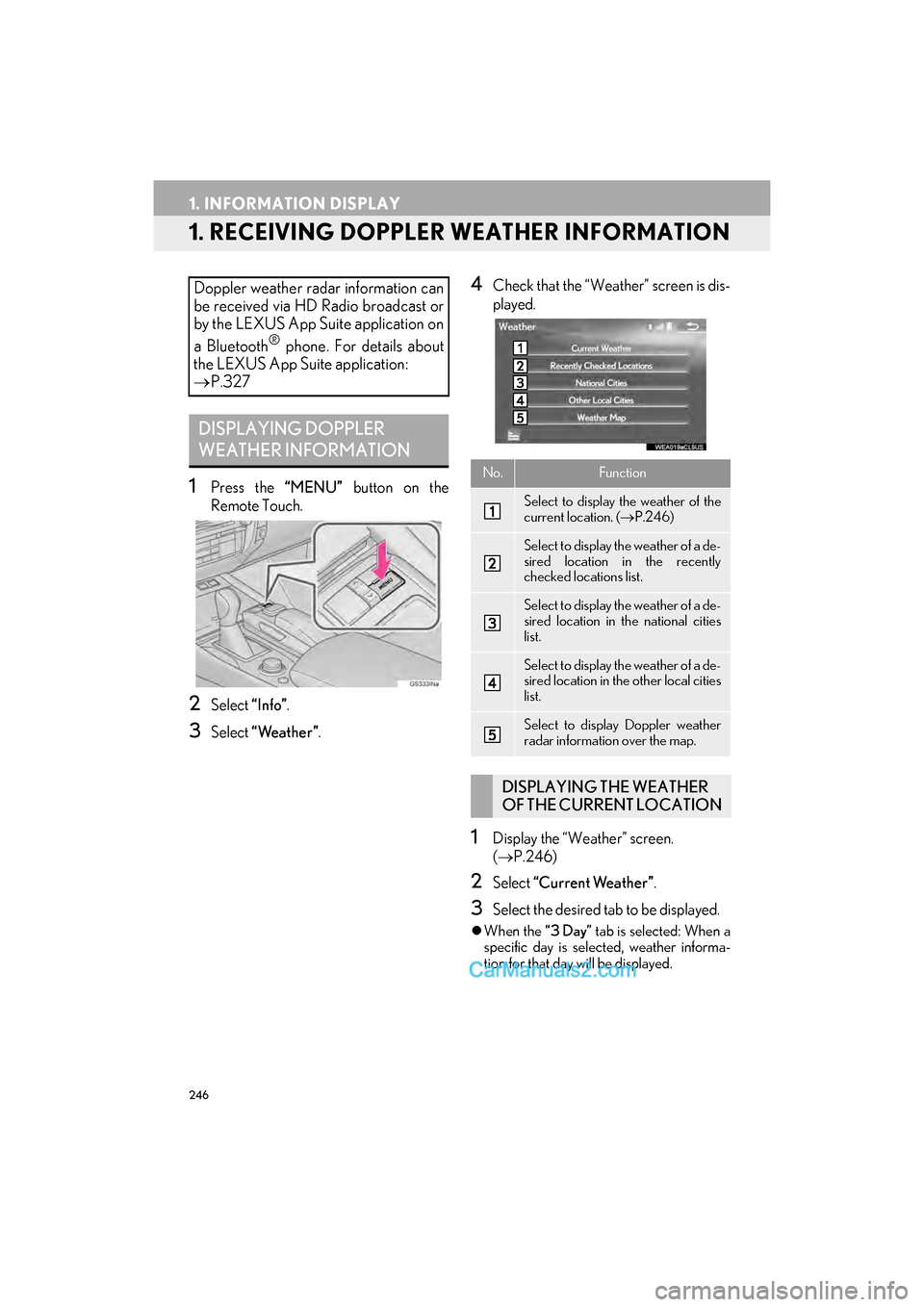

1. RECEIVING DOPPLER WEATHER INFORMATION
1Press the “MENU” button on the
Remote Touch.
2Select “Info”.
3Select “Weather” .
4Check that the “Weather” screen is dis-
played.
1Display the “Weather” screen.
(→ P.246)
2Select “Current Weather ” .
3Select the desired tab to be displayed.
zWhen the “3 Day” tab is selected: When a
specific day is selected, weather informa-
tion for that day will be displayed.
Doppler weather radar information can
be received via HD Radio broadcast or
by the LEXUS App Suite application on
a Bluetooth
® phone. For details about
the LEXUS App Suite application:
→ P.327
DISPLAYING DOPPLER
WEATHER INFORMATION
No.Function
Select to display the weather of the
current location. ( →P.246)
Select to display the weather of a de-
sired location in the recently
checked locations list.
Select to display the weather of a de-
sired location in the national cities
list.
Select to display the weather of a de-
sired location in the other local cities
list.
Select to display Doppler weather
radar information over the map.
DISPLAYING THE WEATHER
OF THE CURRENT LOCATION
