2017 Lexus GS300h engine

4747-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
(If equipped)
Indicates that steering control function is temporarily
canceled due to the LKA (L ane-Keeping Assist) system
determining that the driver does not have their hands on
the steering wheel while the steering control function is on A buzzer also sounds.
 Firmly hold the steering wheel.
Indicates that the parking brake system is overheating
A buzzer also sounds.
 Do not use the parking brake until the message dis-
appears.
Indicates an engine malfunction
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Indicates an engine malfunction
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Warning messageDetails/Actions

479
7-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
(If equipped)
Indicates a malfunction in the PCS (Pre-Crash Safety system)
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor) system
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Indicates abnormal engine oil pressure
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
(If equipped)
Indicates a malfunction in the VGRS (Variable Gear
Ratio Steering)
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Warning messageDetails/Actions
(Flashes)

4847-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
Indicates that engine oil level is low
This message may appear if the vehicle is stopped on a
slope. Move the vehicle to a level surface and check to
see if the message disappears.
A buzzer also sounds.
 Check the level of engine oil, and add if necessary.
Indicates that the hybrid system has overheated
This message may be displayed when driving under
severe operating conditions. (For example, when driv-
ing up a long steep hill.)
A buzzer also sounds.
 Stop and check. ( P. 535)
Indicates a malfunction in:

487
7-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
Indicates that the outside temperature is approximately 3 C (37 F) or lower
A buzzer also sounds.
 Drive carefully, as the road may be icy.
Indicates that the engine oil is scheduled to be changed
 Check the engine oil and change if necessary. After
changing the engine oil, the oil change system
should be reset. ( P. 406)
(The indicator will not work properly unless the oil
maintenance data has been reset.)
(If equipped)
Indicates that the fuel in jectors require maintenance
soon  Have any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer replenish the
injector cleaner to the fuel tank and reset the mes-
sage as necessary.
Indicates that the engine oil and oil filter should be
changedHave the engine oil and oil filter checked and/or
changed by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer. After
changing the engine oil, the oil change system
should be reset. ( P. 406)
(If equipped)
Indicates that the fuel injectors require maintenance  Have any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer replenish the
injector cleaner and reset the message.
Warning messageDetails/Actions

507
7-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■When using the compact spare tire
●Remember that the compact spare tire provid ed is specifically designed for use with
your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steerin g, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km /h (50 mph) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accid ent causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.

5307-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
If the 12-volt battery is discharged
If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt
battery, you can jump start your vehicle by following the steps below. Confirm that the electronic key is
being carried.
When connecting the jumper (or
booster) cables, depending on the situa-
tion, the alarm may activate and doors
locked. ( P. 93)
Open the hood ( P. 401), remove
the engine compartment covers (  P. 405) and open the fuse box
cover.
Remove all of the clips.
Push the tabs on either side to
detach the lock and lift the lid off
while pulling the lock plate.
Open the exclusive jump starting
terminal cover.
The following procedures may be used to start the hybrid system if the 12-volt
battery is discharged.
You can also call any authorized Lexus retailer or Lexus authorized repairer,
or any reliable repairer.
1
2
1
2
3

531
7-2. Steps to take in an emergency
7
When trouble arises

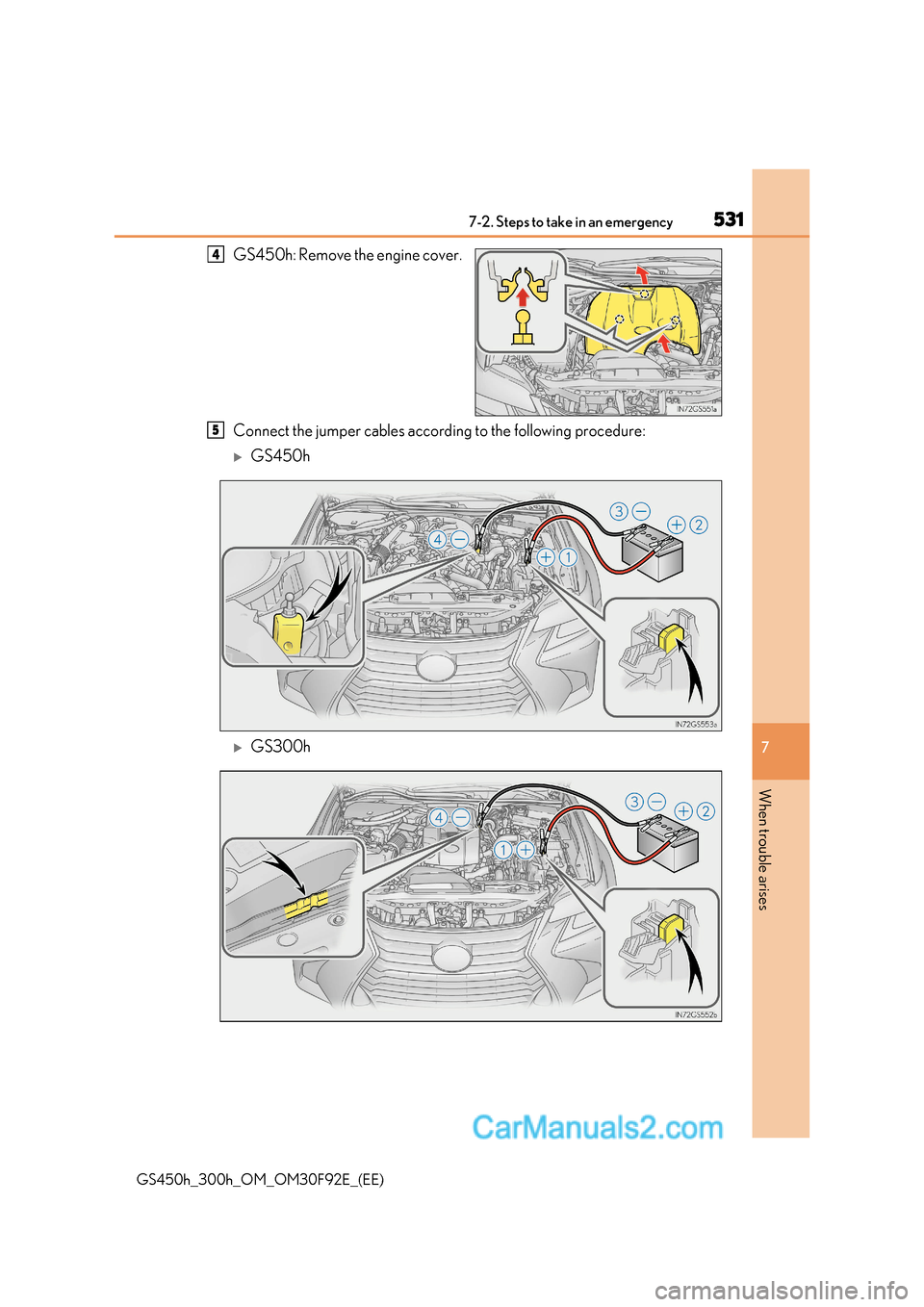

GS450h_300h_OM_OM30F92E_(EE) GS450h: Remove the engine cover.
Connect the jumper cables according to the following procedure:
GS450h
GS300h
4
5

5327-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE) Connect a positive jumper cable clamp to the exclusive jump starting ter-
minal on your vehicle.
Connect the clamp on the other end of the positive cable to the positive (+)
battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal on the
second vehicle.
Connect the clamp at the other end of the negative cable to a solid, station-
ary, unpainted metallic point away from the exclusive jump starting terminal
and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the 12-volt bat-
tery of your vehicle.
Open and close any of the doors of your vehicle with the power switch off.
Maintain the engine speed of the second vehicle and start the hybrid system
of your vehicle by turning the power switch to ON mode.
Make sure the “READY” indicator come s on. If the indicator does not come
on, contact any authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer.
Once the hybrid system has started, remove the jumper cables in the exact
reverse order from which they were connected.
Once the hybrid system starts, have the vehicle inspected at any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer as soon as
possible.
1
2
3
4
6
7
8
9
10
