2017 Lexus GS F navigation

3945-1. Remote Touch screen
GS350_200t_GS F_OM_OM30F83E_(EE)
*1
: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
* 2
: If equipped
■Full screen display
The following functions can be displayed full screen:
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
■Split-screen display
Different information can be displayed on the left and right of the screen. For
example, air conditioning system screen can be displayed and operated while
the fuel consumption information screen is being displayed. The large screen
on the left of the display is called the main display, and the small screen to the
right is called the side display.
12.3-inch display operation
● Initial screen *
● “Menu” screen ( P. 393)
● Map screen *
● Audio screen * ●
Fuel consumption screen ( P. 148)
● Air conditioning control screen ( P. 396)

395
5-1. Remote Touch screen
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
For details of the functions and operation of the main display, refer to the respec-
tive section.
■Display the side display
Basic screens
The following functions can be displayed and operated on the side display.
Select the desired button.
Navigation system *
Audio *
Phone *
Vehicle information ( P. 151)
Air conditioning system (  P. 400)
Hide the side display. *
If the item displayed on the main display is full screen display compatible ( P. 394),
it will be displayed full screen.
Interruption screens
Each of the following screens is displayed automatically in accordance with
conditions.

429
5-5. Using the other interior features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
The GPS clock’s time is automatically
adjusted by utilizing GPS time informa-
tion.
For details, refer to “NAVIGATION
AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Open the ashtray lid. To remove the ashtray, pull the ashtray
lid upwards.
Clock
Ashtrays (if equipped)
WARNING
●Keep the ashtray closed when not in use. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the open ash-
tray or ash flying out.
●To prevent fire

435
5
5-5. Using the other interior features
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)

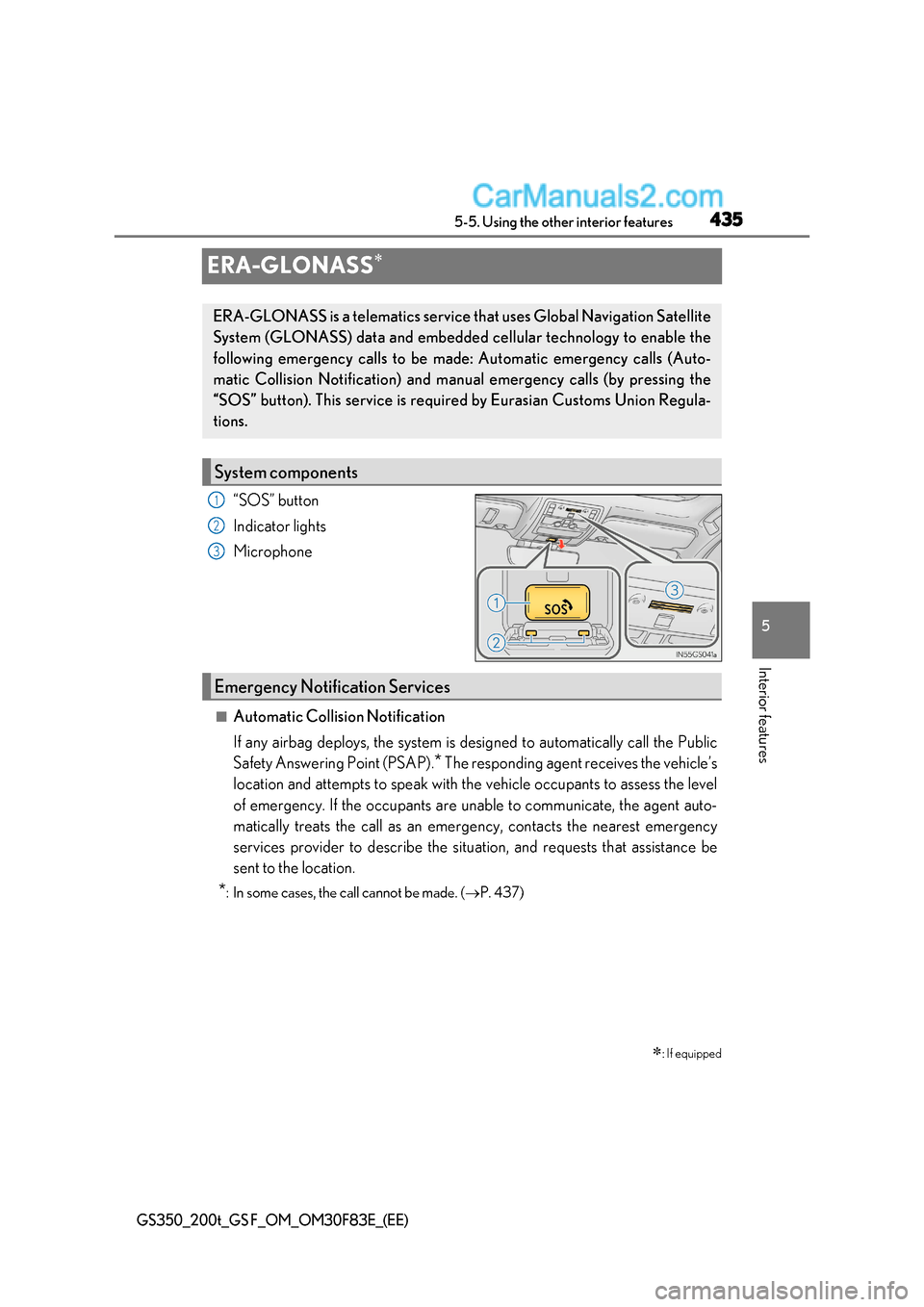

ERA-GLONASS
“SOS” button
Indicator lights
Microphone
■Automatic Collision Notification
If any airbag deploys, the system is designed to automatically call the Public
Safety Answering Point (PSAP).
*
The responding agent receives the vehicle’s
location and attempts to speak with the vehicle occupants to assess the level
of emergency. If the occupants are unable to communicate, the agent auto-
matically treats the call as an emer gency, contacts the nearest emergency
services provider to describe the situation, and requests that assistance be
sent to the location.
* : In some cases, the call cannot be made. ( P. 437)
: If equipped
ERA-GLONASS is a telematics service that uses Global Navigation Satellite
System (GLONASS) data and embedded cellular technology to enable the
following emergency calls to be ma de: Automatic emergency calls (Auto-
matic Collision Notification) and manu al emergency calls (by pressing the
“SOS” button). This service is require d by Eurasian Customs Union Regula-
tions.
System components
1
2
3
Emergency Notification Services

645
8
8-2. Customization
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
■Lexus parking assist-sensor*1, 2
* 1
:If equipped
* 2
: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.
* 3
: GS350/GS200t
■Driving mode select switch (vehicles with Adaptive Variable Suspension
system) ( P. 359)
FunctionDefault
settingCustomized setting
Detection distance of the front
center sensor *3FarNearO—O
Detection distance of the rear
center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when Lexus parking assist-
sensor is operating)All sensors
displayedDisplay offO—O
123
FunctionDefaultsettingCustomized setting
Power train controlNormalPowerO——Eco
Chassis controlNormalSportO——
Air conditioning operationNormalEcoO——
123

653
Index
GS350_200t_GS F_OM_OM30F83E_(EE)
What to do if... (Troubleshooting) ............................... 654
Alphabetical index.................................658
For information regarding the equipment listed below, refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”

659
Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
Anti-lock Brake System (ABS) ....... 375
Function .................................................. 375
Warning light ........................................ 519
Warning message............................. 524
Approach warning ...................338, 350
Armrest.....................................................430
Armrest door.......................................... 433
ASC (Active Sound Control)........... 261
Ashtrays .................................................... 429
Assist grips .............................................. 434
Audio input *
Audio system *
Automatic headlight leveling system ................................................... 264
Automatic High Beam ....................... 270
Automatic light control system ...... 262
Automatic transmission ..................... 246 If the shift lever cannot be
shifted from P ................................... 253
M mode .................................................. 249
Paddle shift switches ........................ 248
AUX port *
Auxiliary boxes ...................................... 423
AVS (Adaptive Variable Suspension system) .......................... 376 Back-up light
Replacing light bulb ......................... 504
Battery....................................................... 466
If the vehicle has discharged battery.................................................. 597
Preparing and checking before winter.................................... 383
Warning light.........................................518
Blind Spot Monitor (BSM) .............. 363
Blind Spot Monitor function ........ 368
Rear Crossing Traffic Alert function ............................................... 370
Bluetooth ®
*
Brake Fluid .......................................................... 628
Parking brake ...................................... 256
Warning light............................ 518, 520
Warning message ............................ 524
Brake assist ............................................ 375
Brake Hold .............................................. 259
Break-in tips ........................................... 224
Brightness control Instrument panel li ght control ...........111
BSM (Blind Spot Monitor) ............... 363 Blind Spot Monitor function ........ 368
Rear Crossing Traffic Alert function.................................... 370B
*: Refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

661
Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
Clock ...............................................109, 429
Coat hooks .............................................. 434
Condenser ............................................. 466
Console box ........................................... 420
Console box light................................... 421
Coolant ..................................................... 464
Capacity ................................................. 625
Checking ............................................... 464
Preparing and checking before winter ....................................383
Cooling system ...................................... 464 Engine overheating ..........................602
Cruise control Cruise control .....................................355
Dynamic radar cruise control with full-speed range......................331
Dynamic radar cruise control ..... 343
Cup holders ............................................. 421
Curtain shield airbags ............................ 51
Customizable features ....................... 634
DAB (Digital Audio Broadcast) *
Daytime running light system ......... 264
Defogger Front windshield ................................. 402
Outside rear view mirrors.............402
Rear window ........................................ 402
Differential Front differential.................................. 627
Rear differential ................................... 627 Digital Audio Broadcast (DAB)
*
Dimensions ............................................... 612
Display 12.3-inch display ................................ 394
Drive information.......................122, 130
Dynamic radar cruise control
with full-speed range ..................... 331
Dynamic radar cruise control ..... 343
LDA (Lane Departure Alert with steering control)..................... 321
LKA (Lane-Keeping Assist) .......... 312
Multi-information display.........121, 129
Trip information ...........................108, 113
Warning message ............................ 524
Do-it-yourself maintenance ............. 449
Door courtesy lights Location ................................................... 416
Wattage ................................................... 631
Door lock Doors......................................................... 159
Smart entry & start system ............. 173
Wireless remote control ................. 154
Doors...........................................................159 Automatic door locking and
unlocking system ............................. 163
Door glasses.......................................... 214
Door lock ................................................ 162
Open door warning buzzer .......... 174
Open door warning light .............. 520
Outside rear view mirrors ................ 211
Rear door child-protector ............. 163
D
* : Refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.
