2017 Lexus GS F display

4626-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
■Engine oil consumption
A certain amount of engine oil will be consum ed while driving. In the following situations,
oil consumption may increase, and engine oil may need to be refilled in between oil
maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
■After changing the engine oil (GS350/GS200t)
The engine oil maintenance data should be reset. Perform the following procedures:
Press or of the meter control switch and select .
Press or of the meter control switch an d select “Vehicle Settings”. Then press
.
Press or of the meter control switch and select “Oil Maintenance”. Then press
.
Select the “Yes” and press .
A message is displayed on the multi-informa-
tion display.
1
2
3
4
5

4706-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
If any washer does not work or the wa rning message appears on the multi-infor-
mation display, the washer tank may be empty. Add washer fluid.
Washer fluid
GS350/GS200tGS F
WARNING
■When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid contains
alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.

473
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
Your vehicle is equipped with a tire pressu re warning system that uses tire pres-
sure warning valves and transmitters to detect low tire inflation pressure bef ore
serious problems arise.
Vehicles without the tire inflation pressure display function
If the tire pressure drops below a predetermined level, the driver is warned by a
warning light. ( P. 521)
Vehicles with the tire inflation pressure display function
● If the tire pressure drops below a predetermined level, the driver is warned b y
the multi-information display and a warning light. ( P. 518, 524)
● The tire pressure detected by the
tire pressure warning system can be
displayed on the multi-information
display. ( P. 121, 129)
The illustration used is intended as an
example, and may differ from the image
that is actually displayed on the multi-
information display.
◆Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and transmitters
must also be installed.
When new tire pressure warning valves and transmitters are installed, new ID
codes must be registered in the tire pressure warning computer and the tire
pressure warning system must be initialized. Have tire pressure war ning valve
and transmitter ID codes registered by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer. ( P. 474)
◆Initializing the tire pressure warning system
■The tire pressure warning system must be initialized in the following circum-
stances: ● When rotating the tires.
● When the tire inflation pressure is changed such as when changing travel-
ing speed.
When the tire pressure warning system is initialized, the current tire inflation
pressure is set as the benchmark pressure.
Tire pressure warning system (if equipped)

4746-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
■How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the engine switch off.
Initialization cannot be performe d while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation pressure
level. ( P. 629)
Make sure to adjust the tire pressure to the specified cold tire inflation pressure
level. The tire pressure warning system will operate based on this pressure level.
Turn the engine switch to IGNITION ON mode.
Press or on the meter control switch and select .
Press or on the meter control switch and select “Vehicle Settings”.
Then press .
Press or on the meter
control switch and select “TPMS”.
Then press and hold until a
message is displayed.
The message will be displayed on the
multi-information display and the tire
pressure warning light will blink
slowly 3 times.
When the message disappears, ini- tialization is complete.
◆Registering ID codes
The tire pressure warning valve and tran smitter is equipped with a unique ID
code. When replacing a tire pressure wa rning valve and transmitter, it is nec-
essary to register the ID code. Have the ID code registered by any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer.
1
2
3
4
5
6

475
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
■When to replace your vehicle’s tires
Tires should be replaced if:
●The treadwear indicators are showing on a tire.
●You have tire damage such as cuts, splits, cracks deep enough to expose the fabric, and
bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the size or location of
a cut or other damage
If you are not sure, consult with any auth orized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
■Replacing tires and wheels (vehicles with the tire pressure warning system)
If the ID code of the tire pressure warning valve and transmitter is not registered, the tire
pressure warning system will not work proper ly. After driving for about 10 minutes, the
tire pressure warning light blinks for 1 minu te and stays on to indicate a system malfunc-
tion.
■Tire life
Any tire over 6 years old must be checked by a qualified technician even if it has seldom
or never been used or damage is not obvious.
■Routine tire inflation pressure checks
The tire pressure warning system does not re place routine tire inflation pressure checks.
Make sure to check tire inflation pressure as part of your routine of daily vehicle checks.
■When rotating the tires (vehicles with the tire pressure warning system featuring a tire
inflation pressure display function)
Make sure that the engine switch is off. If the tires are rotated while the engine switch is in
IGNITION ON mode, the tire position information will not be updated.
If this accidentally occurs, either turn the engine switch to off and then to IGNITION ON
mode, or initialize the system after checking th at the tire pressure is properly adjusted.
■Low profile tires (except 225/50R17 tires)
Generally, low profile tires will wear more rapidly and tire grip performance will be
reduced on snowy and/or icy roads when comp ared to standard tires. Be sure to use
snow tires or tire chains on snowy and/or icy roads and drive carefully at a speed appro-
priate for road and weather conditions. ( P. 385)
■If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.

477
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
■When initialization of the tire pressure warn ing system has failed (vehicles with the tire
pressure warning system)
Initialization can be co mpleted in a few minutes. However, in the following cases, the set-
tings have not been recorded and the syst em will not operate properly. If repeated
attempts to record tire inflation pressure settings are unsuccessful, have the vehicle
inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.
●The initialization message is not displayed on the multi-information display when per-
forming initialization.
●After carrying out the initializat ion procedure, the tire pressure warning light blinks for 1
minute then stays on after driving for 20 minutes.
■Registering ID codes (vehicles with the tire pressure warning system)
The ID codes of the tire pressure warning valve and transmitters for two sets of wheels
can be registered.
It is not necessary to register the ID codes when replacing normal tires with snow tires, if
the ID codes for the wheels of both normal tires and snow tires are registered before-
hand.
For information about changing ID codes, ask any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
■Certification for tire pressure warning system (vehicles with the tire pressu re warning
system)

483
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
WARNING
■When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train as well as dangerous han-
dling characteristics, which may lead to an acc ident resulting in death or serious injury.
●Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other than those recommended by Lexus.
●Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
●Do not mix summer, all season and snow tires.
●Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
●Vehicles with spare tire (GS350/GS200t with compact spare tire, and GS F):
Do not tow if your vehicle has a spare tire installed.
●Vehicles with emergency tire puncture repair kit: Do not tow anything if a tire that has
been repaired using the emergency tire punc ture repair kit is installed. The load on
the tire may cause unexpected damage to the tire.
■When initializing the tire pressure warning system (vehicles with the tire pressure
warning system)
Do not initialize tire inflation pressure withou t first adjusting the tire inflation pressure to
the specified level. Otherwise, the tire pre ssure warning light may not come on even if
the tire inflation pressure is low, or it may come on when the tire inflation pressure is
actually normal.
■Caution regarding interference with electronic devices (vehicles with the tire pres-
sure warning system featuring a tire inflation pressure display function)
●Users of any electrical medical device other than implantable cardiac pacemakers,
cardiac resynchronization therapy-pacemakers or implantable cardioverter defi-
brillators should consult the manufacturer of the device for information about its
operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
●People with implantable cardiac pacemakers,
cardiac resynchronization therapy-pacemak-
ers or implantable cardioverter defibrillators
should not come within 450 mm (17.7 in.) of
the tire pressure warning system initiators.
The radio waves may affect the operation of
such devices.

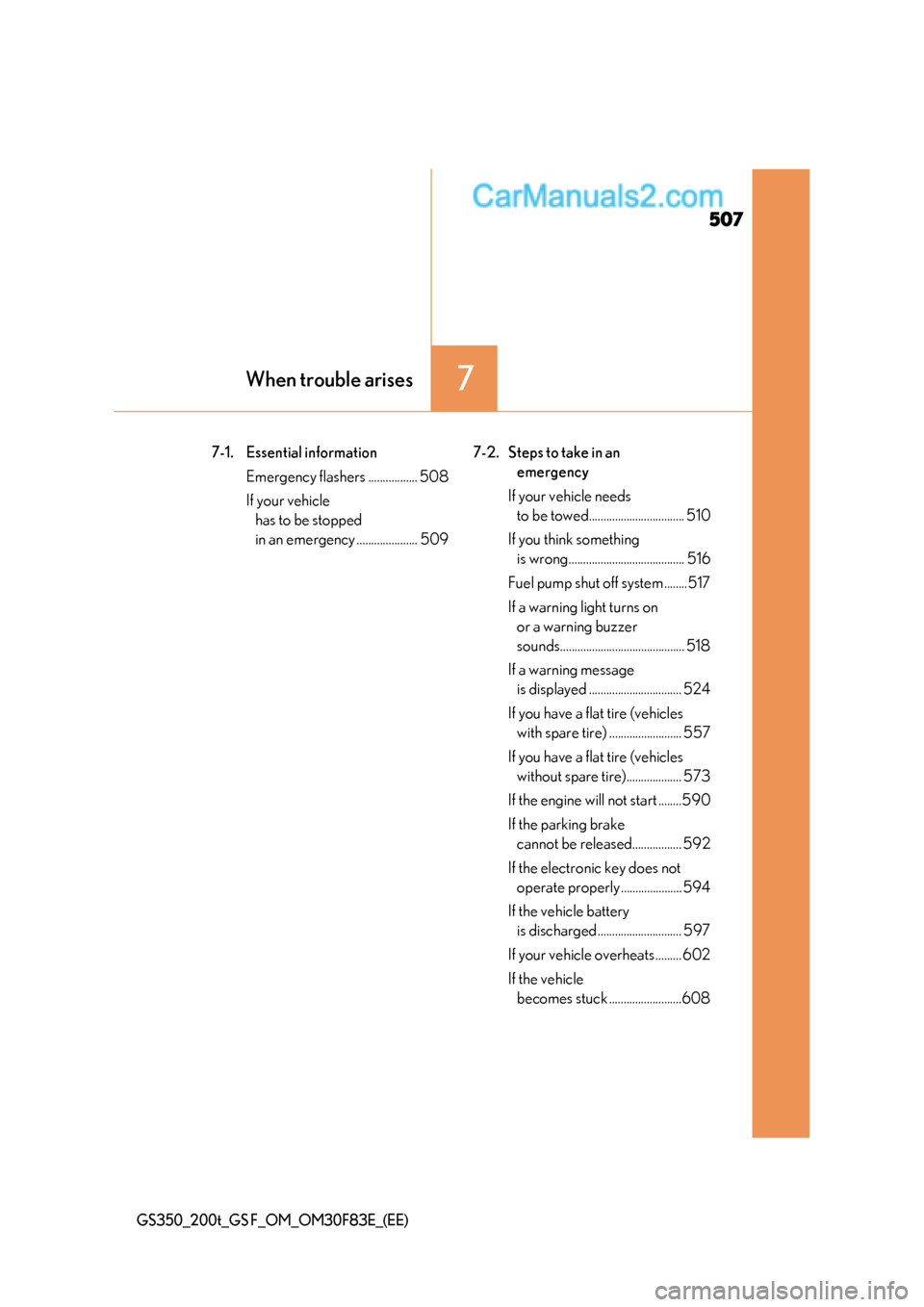

507
7When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
7-1. Essential informationEmergency flashers ................. 508
If your vehicle has to be stopped
in an emergency ..................... 509 7-2. Steps to take in an
emergency
If your vehicle needs to be towed................................. 510
If you think something is wrong........................................ 516
Fuel pump shut off system ........517
If a warning light turns on or a warning buzzer
sounds........................................... 518
If a warning message is displayed ................................ 524
If you have a flat tire (vehicles with spare tire) ......................... 557
If you have a flat tire (vehicles without spare tire)................... 573
If the engine will not start ........590
If the parking brake cannot be released................. 592
If the electronic key does not operate properly ..................... 594
If the vehicle battery is discharged ............................. 597
If your vehicle overheats ......... 602
If the vehicle becomes stuck .........................608
