Turn signal lever
Right turn
Lane change to the right (move the
lever partway and then release it)
The right hand signals will flash 3 times.
Lane change to the left (move the
lever partway and then release it)
The left hand signals will flash 3 times.
Left turn
■Turn signals can be operated when
The engine switch is in IGNITION ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or re
ar turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■Customization
The number of times the turn signals flash during a lane change can be changed.
(→ P. 5 3 8 )
Operating instructions
1
2
3
4

462
ES350_OM_OM33C68U_(U)7-3. Do-it-yourself maintenance
Light bulbs
Check the wattage of the light bulb to be replaced. (
→P. 5 2 4 )
→ P. 4 3 2
■Front
Front side marker light
Headlight high beam (halogen bulb)
Front turn signal light
You may replace the following bulbs by yourself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
Preparing for light bulb replacement
Removing the engine compartment cover
Bulb locations
1
2
3

ES350_OM_OM33C68U_(U)
4657-3. Do-it-yourself maintenance
7
Maintenance and care
Set the connector.
Shake the bulb base gently to check
that it is not loose, turn the headlight
high beams on once and visually
confirm that no light is leaking
through the mounting.
Install the cover and turn it clock-
wise.
Align the ▲ of the cover to the posi-
tioning mark of the lamp body and
insert and turn it.
■Front turn signal lights
To allow enough working space,
turn the steering wheel to the
opposite side of the bulb to be
replaced.
Remove the 3 fender liner clips
and 1 screw.
5
6
1

ES350_OM_OM33C68U_(U)
4677-3. Do-it-yourself maintenance
7
Maintenance and care
When installing, reverse the steps
listed.
After installing the bulb base, reinstall
the fender liner and install the clips
and screw.

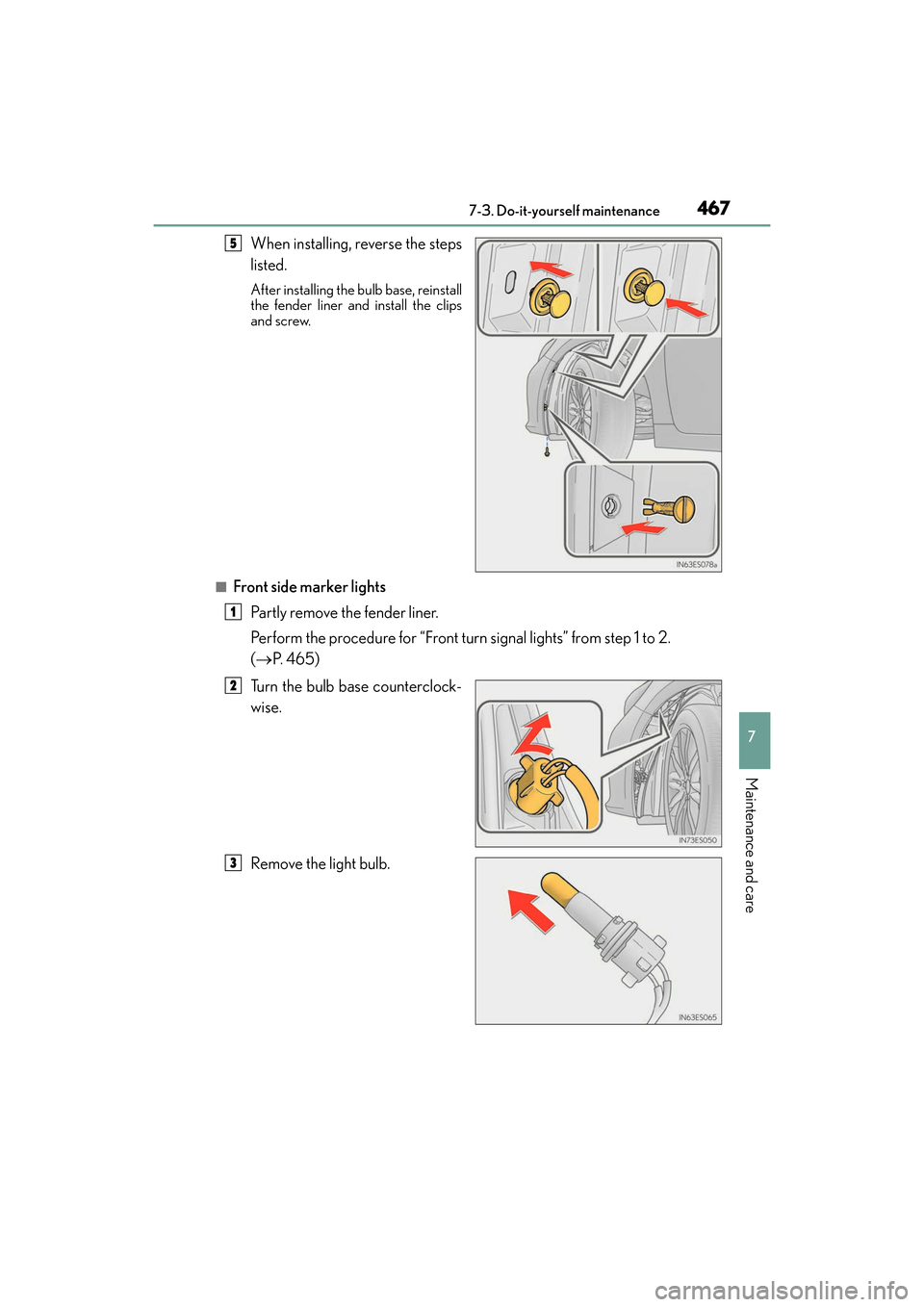

■Front side marker lights
Partly remove the fender liner.
Perform the procedure for “Front turn signal lights” from step 1 to 2.
(→ P. 4 6 5 )
Turn the bulb base counterclock-
wise.
Remove the light bulb.
5
1
2
3

468
ES350_OM_OM33C68U_(U)7-3. Do-it-yourself maintenance
When installing, reverse the steps
listed.
After installing the bulb base, reinstall
the fender liner an
d install the clips
and screw.

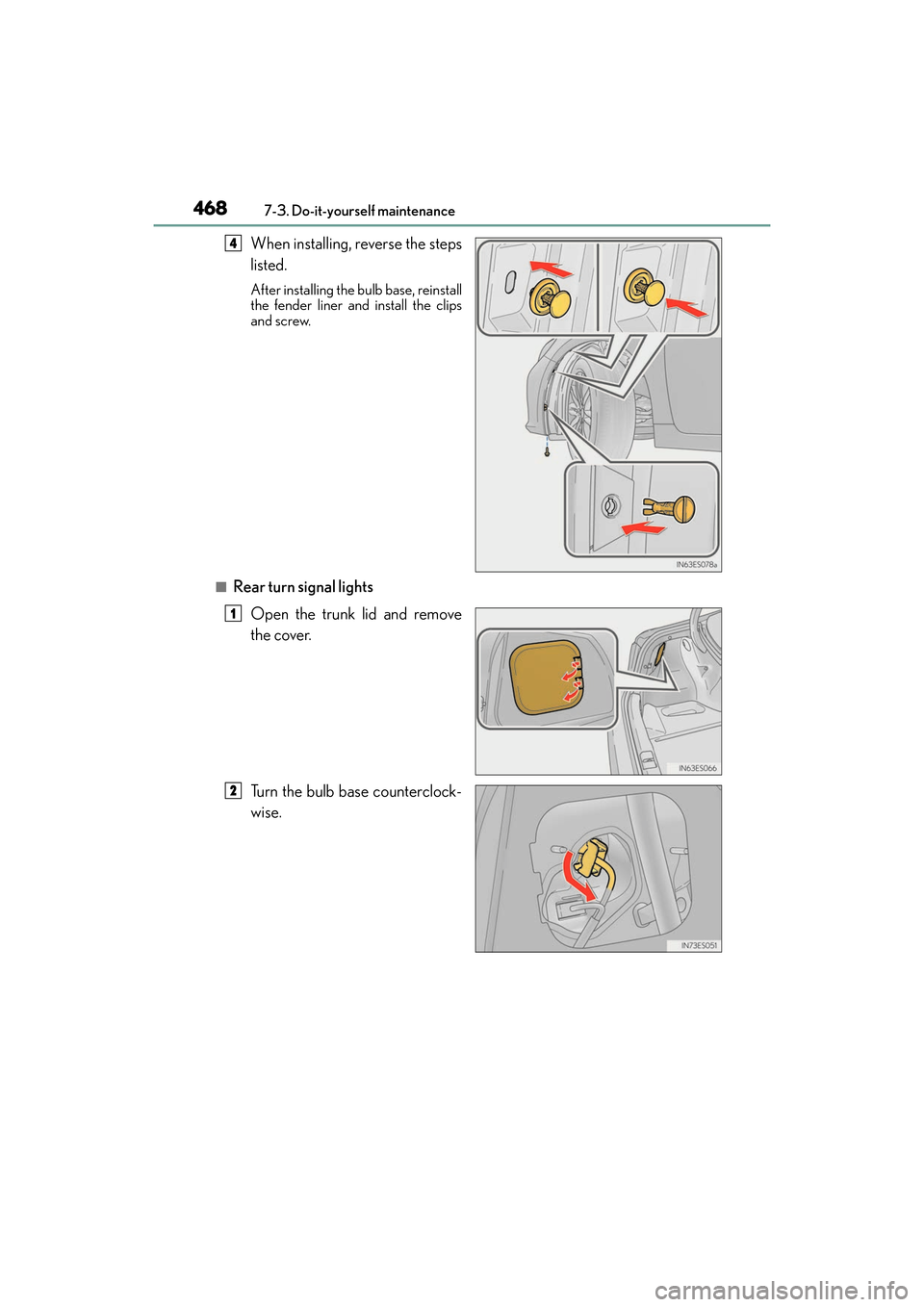

■Rear turn signal lights
Open the trunk lid and remove
the cover.
Turn the bulb base counterclock-
wise.
4
1
2

470
ES350_OM_OM33C68U_(U)7-3. Do-it-yourself maintenance
Remove the light bulb.
When installing, reverse the steps listed.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer.
●Headlight low beams
●Headlight high beams (LED type)
●Parking lights/daytime running lights
●Side turn signal lights
●Fog lights
●Stop/tail lights
●High mounted stoplight
●License plate lights
●Outer foot lights
●Rear side marker lights
■LED lights
The headlight low beams, headlight high beams (LED type), parking lights/daytime run-
ning lights, fog lights, side turn signal lights,
stop/tail lights, rear side marker lights, high
mounted stoplight and license plate lights consis t of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Lexus dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact your Lexus dealer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
→ P. 4 6 0
5
6

524
ES350_OM_OM33C68U_(U)9-1. Spec
ifications
A: H9 halogen bulbs B: Wedge base bulbs (amber)
C: Wedge base bulbs (clear)
Light bulbs
Light bulbsBulb No.WTy p e
Exterior
Headlights high beam
(halogen bulbs)65A
Front turn signal lights7444NA28 /8B
Front side marker lightsW5W5C
Rear turn signal lightsWY21W21B
Back-up lightsW16W16C
Outer foot lightsW5W5C
Interior
Door courtesy lights5C
Vanity lights8C
Trunk light5C
