ES350_OM_OM33C68U_(U)
4397-3. Do-it-yourself maintenance
7
Maintenance and care
Check the battery as follows.
■Battery exterior
Make sure that the battery terminals are not corroded and that there are no
loose connections, cracks, or loose clamps. Make sure that the terminal cov-
ers are secured over the battery terminals.Te r m i n a l s
Hold-down clamp
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and explosive.
Therefore, observe the following before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect the ground
cable.
●Make sure the power switch on the charger is off when connecting and disconnecting
the charger cables to the battery.
■After recharging/reconnecting the battery
The engine may not start. Follow the pr ocedure below to initialize the system.
Shift the shift lever to P.
Open and close any of the doors.
Restart the engine.
●Unlocking the doors using the smart access system with push-button start may not be
possible immediately after reconnecting the battery. If this happens, use the wireless
remote control or the mechanical key to lock/unlock the doors.
●Start the engine with the engine switch in ACCESSORY mode. The engine may not
start with the engine switch turned off. However, the engine will operate normally from
the second attempt.
●The engine switch mode is recorded by the vehicle. If the battery is reconnected, the
vehicle will return the engine switch mode to the status it was in before the battery was
disconnected. Make sure to turn off the engine before disconnect the battery. Take
extra care when connecting the battery if the engine switch mode prior to discharge is
unknown.
If the engine will not start even after mult iple attempts, contact your Lexus dealer.
Battery
1
2
1
2
3

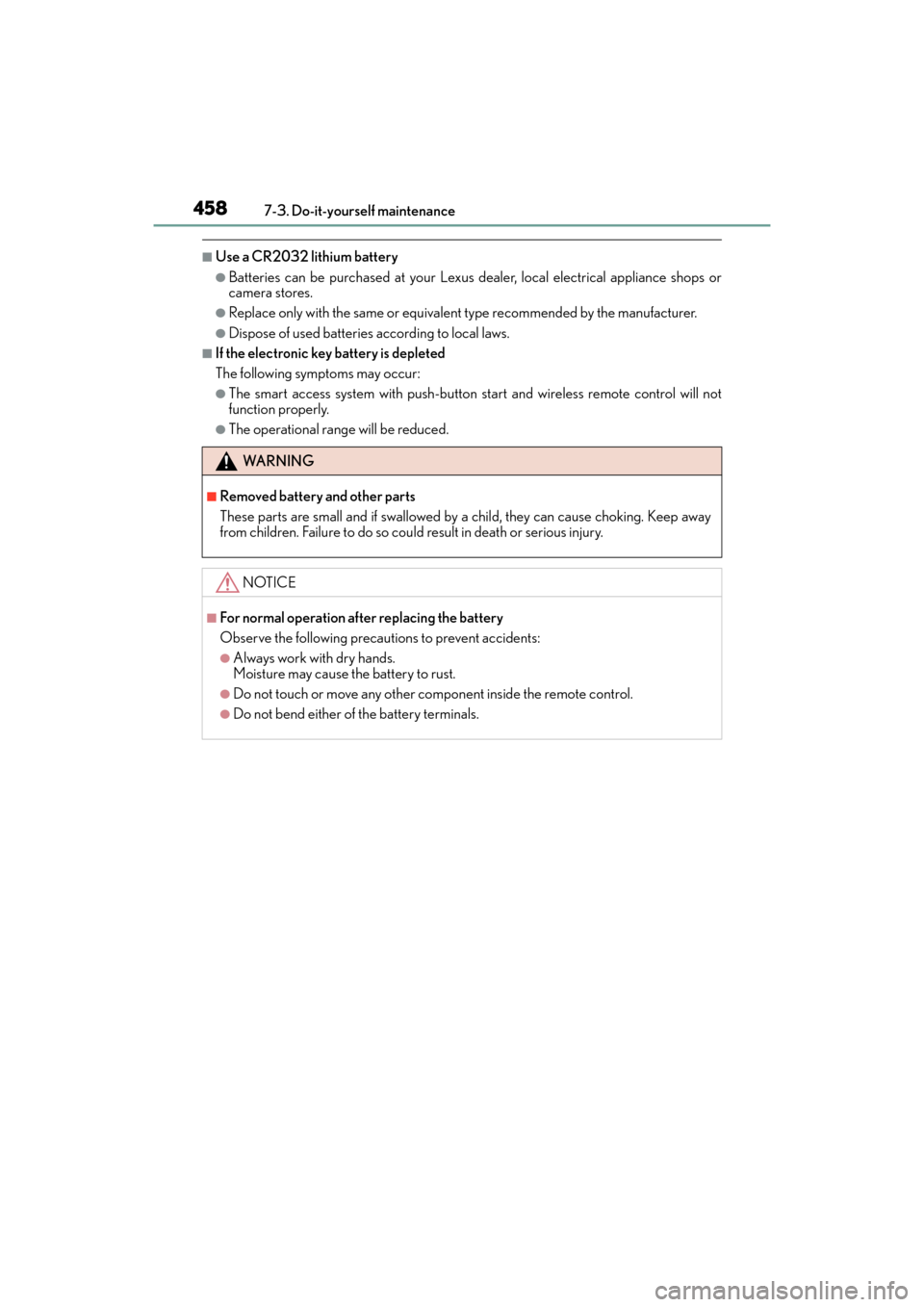

458
ES350_OM_OM33C68U_(U)7-3. Do-it-yourself maintenance
■Use a CR2032 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance shops or
camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to local laws.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart access system with push-button start and wireless remote control will not
function properly.
●The operational range will be reduced.
WA R N I N G
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so could result in death or serious injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

504
ES350_OM_OM33C68U_(U)8-2. Steps to take in an emergency
If the electronic key does not operate properly
■Doors
Use the mechanical key (
→P. 9 2 ) i n
order to perform the following oper-
ations:
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other doors.
Opens the windows and moon roof (turn and hold)*
*
: This setting must be customized at your Lexus dealer.
■Tr u n k
Turn the mechanical key clockwise
to open.
An alarm will sound if the alarm is set.
( → P. 6 7 )
If communication between the electronic key and vehicle is interrupted
(→ P. 110) or the electronic key cann ot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened and the engine can be started by following the procedure below.
Locking and unlocking the doors, unlocking the trunk and key linked
functions
1
2
3
4

5088-2. Steps to take in an emergency
ES350_OM_OM33C68U_(U)
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is stopped.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle is not
in use, due to natural discharge and the draining effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.)
■When recharging or replacing the battery
●In some cases, it may not be possible to unlock the doors using the smart access system
with push-button start when the battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will
start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was discharged.
Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery discharged, be
especially careful when reconnecting the battery.

ES350_OM_OM33C68U_(U)
5399-2. Customization
9
Vehicle specifications
Some function settings are changed simultaneously with other functions being
customized. Contact your Lexus dealer for further details.
Settings that can be changed using the Remote Touch or Lexus Display Audio
controller
Settings that can be changed using the meter control switches
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, — = Not available
■Multi-information display ( →P. 8 0 )
Customizable features
1
2
3
FunctionDefault
settingCustomized setting
LanguageEnglishFrench–O–Spanish
Units*1miles (MPG US)
miles
(MPG Imperial)
OO–km (L/100 km)
km (km/L)
Eco Driving Indicator Light On Off – O –
switch settingsDrive
information 1Desired status screen
*2–O–
Drive information screen dis-
played on the first screen of

(Drive information 1)Current fuel
consumption
*3–O–Average fuel economy
(after reset)
Drive information screen dis-
played on the second screen
of
(Drive information 2)Distance (range)
*3–O–Average speed (after reset)
Drive information screen dis-
played on the third screen of

(Drive information 3)Average fuel economy
(after refuel)
*3–O–
Elapsed time (after start)
Pop-up displayOnOff–O–
Accent colorColor 1Color 2OO–
123

542

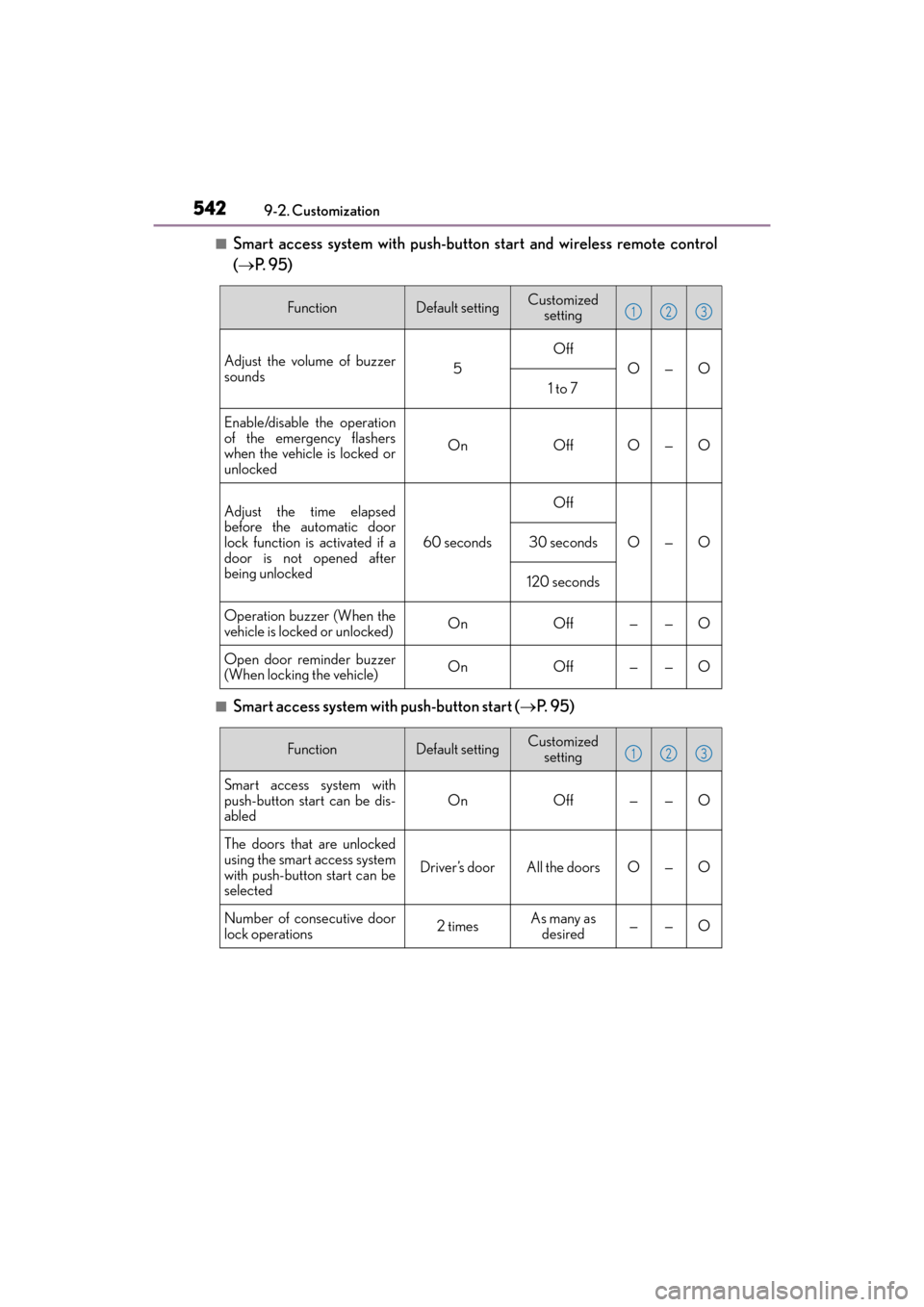

ES350_OM_OM33C68U_(U)9-2. Customization
■Smart access system with push-button start and wireless remote control
(→
P. 9 5 )
■Smart access system with push-button start ( →P. 9 5 )
FunctionDefault settingCustomized
setting
Adjust the volume of buzzer
sounds5
Off
O—O
1 to 7
Enable/disable the operation
of the emergency flashers
when the vehicle is locked or
unlocked
OnOffO—O
Adjust the time elapsed
before the automatic door
lock function is activated if a
door is not opened after
being unlocked
60 seconds
Off
O—O30 seconds
120 seconds
Operation buzzer (When the
vehicle is locked or unlocked)OnOff——O
Open door reminder buzzer
(When locking the vehicle)OnOff——O
123
FunctionDefault settingCustomized
setting
Smart access system with
push-button start can be dis-
abledOnOff——O
The doors that are unlocked
using the smart access system
with push-button start can be
selected
Driver’s doorAll the doorsO—O
Number of consecutive door
lock operations2 timesAs many as desired——O
123

ES350_OM_OM33C68U_(U)
5479-2. Customization
9
Vehicle specifications
■Rear sunshade (if equipped) (→P. 3 9 1 )
■Seat belt reminder ( →P. 4 8 3 )
■Vehicle customization
●When the smart access system with push-button start is off, the selecting door to
unlock cannot be customized.
●When the doors remain closed after unlock ing the doors and the automatic door lock
function is activated, the signals will be generated in accordance with the operation
buzzers and the operation signal (emergency flashers) settings.
■When customizing using Remote Touch or Lexus Display Audio controller
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engine running while customizing the features.
FunctionDefault
settingCustomized setting
Reverse operationOnOff——O
Time elapsed before the
reverse operation feature
activates
0.7 seconds
0 second
——O0.9 seconds
1.2 seconds
123
FunctionDefaultsettingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff——O
123
WA R N I N G
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.

570Alphabetical index
ES350_OM_OM33C68U_(U)
Inside rear view mirror .........................126
Instrument panel light control .............77
Interior light............................................. 379
Intuitive parking assistFunction .................................................. 223
Jack Positioning a floor jack ................... 430
Vehicle-equipped jack ................... 492
Jack handle .................................................. 492
Jam protection function
Moon roof .............................................. 135
Power trunk opener and closer............................................ 103
Power windows ..................................... 131
Keyless entry Smart access system with push-button start .....................95
Wireless remote control ...................95
Keys
Battery-saving function ...................... 110
Electronic key ......................................... 92
Engine switch ........................................ 154
If the electronic key does not operate properly ....... 504
Key number plate ................................. 92
Keyless entry ...........................................95
Mechanical key ...................................... 92
Replacing the battery ....................... 457
Warning buzzer .................................. 109
Wireless remote control key ..........95
Knee airbags ............................................. 35 Language
(multi-information display)............ 539
LATCH anchors.......................................56
LDA (Lane Departure Alert with steering control).................................. 199
Lever Auxiliary catch lever ......................... 429
Hood lock release lever................. 429
Internal trunk release lever ............ 103
Shift lever .................................................159
Turn signal lever ...................................163
Wiper lever............................................. 173
Lexus Display Audio system ............270
Display settings ................................... 287
Setup menu .......................................... 282
Lexus Enform
*
Lexus Enform Remote*........................411
Lexus Enform Safety Connect ....... 406
Lexus Safety System+ ......................... 180
License plate lights Light switch.............................................165
Replacing light bulbs ....................... 470
Light bulbs
Replacing ............................................... 462
Wattage ................................................. 524
J
K
L
