For safe driving
Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. (→P. 1 2 9 )
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
( → P. 1 2 9 )
Lock the head restraint in place with th e center of the head restraint closest to
the top of your ears. ( →P. 1 3 5 )
Wear the seat belt correctly. ( →P. 3 2 )
Make sure that all occupants are wearing their seat belts before driving the vehi-
cle. ( →P. 3 2 )
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. ( →P. 5 3 )
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. ( →P. 140, 142)
For safe driving, adjust the seat and mi rror to an appropriate position before
driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4

84
ES300h_OM_OM33C75U_(U)2. Instrument cluster

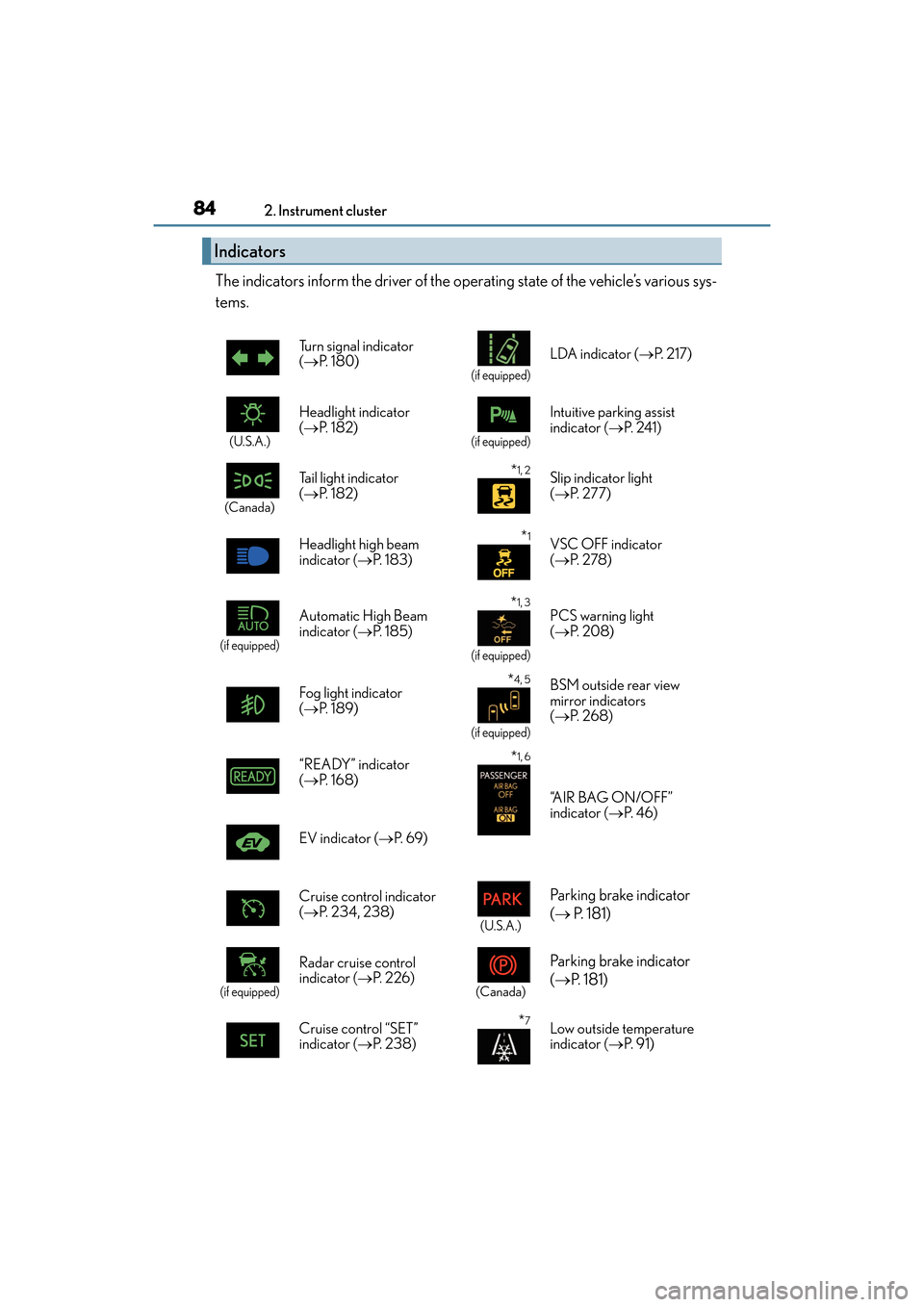

The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator
(
→ P. 1 8 0 )
(if equipped)
LDA indicator ( →P. 2 1 7 )
(U.S.A.)
Headlight indicator
(→ P. 1 8 2 )
(if equipped)
Intuitive parking assist
indicator ( →P. 2 4 1 )
(Canada)
Tail light indicator
(→ P. 1 8 2 ) *1, 2Slip indicator light
(→ P. 277)
Headlight high beam
indicator ( →P. 1 8 3 )
*1VSC OFF indicator
(→ P. 2 7 8 )
(if equipped)
Automatic High Beam
indicator ( →P. 1 8 5 ) *1, 3
(if equipped)
PCS warning light
(→ P. 2 0 8 )
Fog light indicator
( → P. 1 8 9 )
*4, 5
(if equipped)
BSM outside rear view
mirror indicators
(→ P. 2 6 8 )
“READY” indicator
(→ P. 1 6 8 )*1, 6
“A I R B A G O N / O F F ”
indicator ( →P. 4 6 )
EV indicator ( →P. 6 9 )
Cruise control indicator
( → P. 2 3 4 , 2 3 8 )
(U.S.A.)
Parking brake indicator
(→ P. 181)
(if equipped)
Radar cruise control
indicator ( →P. 2 2 6 )
(Canada)
Parking brake indicator
(→ P. 1 8 1 )
Cruise control “SET”
indicator ( →P. 2 3 8 )*7Low outside temperature
indicator ( →P. 9 1 )

ES300h_OM_OM33C75U_(U)
852. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indicate that asystem check is being performe d. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunction in a system if a light does not come
on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illuminate in the following situations:
• When the power switch is turned to ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the power switch is in ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system. If this occurs, have the vehicle inspected
by your Lexus dealer.
*5: This light illuminates on the outside rear view mirrors.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 37°F (3°C) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
