Specifications, Consumer information, Reporting safety defects

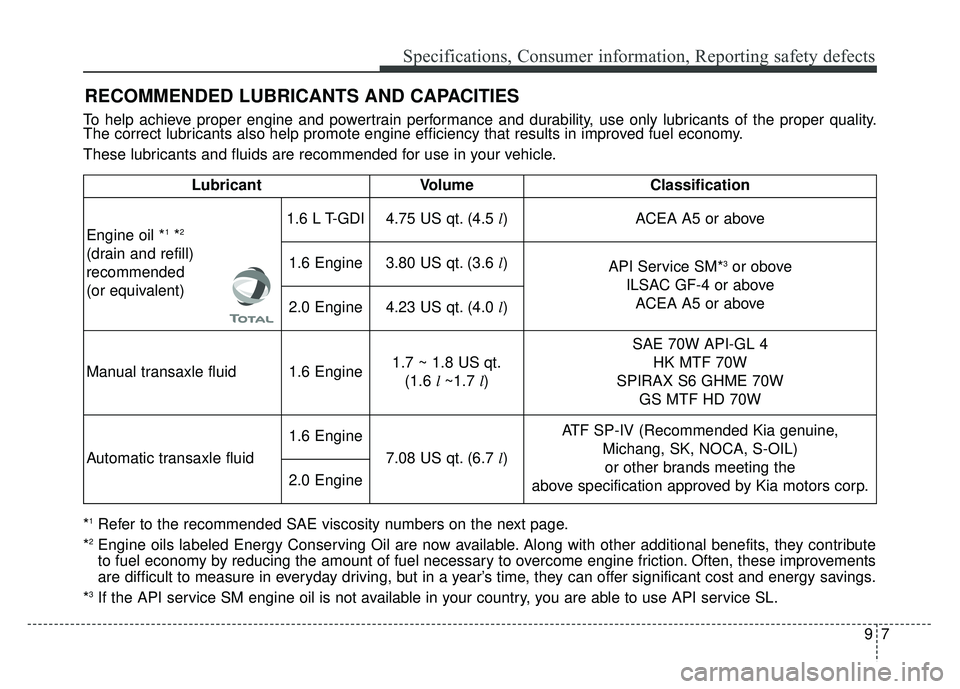

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute
to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements
are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL. Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
recommended
(or equivalent) 1.6 L T-GDI
4.75 US qt. (4.5 l)
ACEA A5 or above
1.6 Engine 3.80 US qt. (3.6
l)
API Service SM*3or obove
ILSAC GF-4 or above ACEA A5 or above
2.0 Engine 4.23 US qt. (4.0 l)
Manual transaxle fluid 1.6 Engine 1.7 ~ 1.8 US qt.
(1.6 l ~1.7 l) SAE 70W API-GL 4
HK MTF 70W
SPIRAX S6 GHME 70W GS MTF HD 70W
Automatic transaxle fluid 1.6 Engine
7.08 US qt. (6.7 l)ATF SP-IV (Recommended Kia genuine,
Michang, SK, NOCA, S-OIL)or other brands meeting the
above specification approved by Kia motors corp.
2.0 Engine

Specifications, Consumer information, Reporting safety defects
89

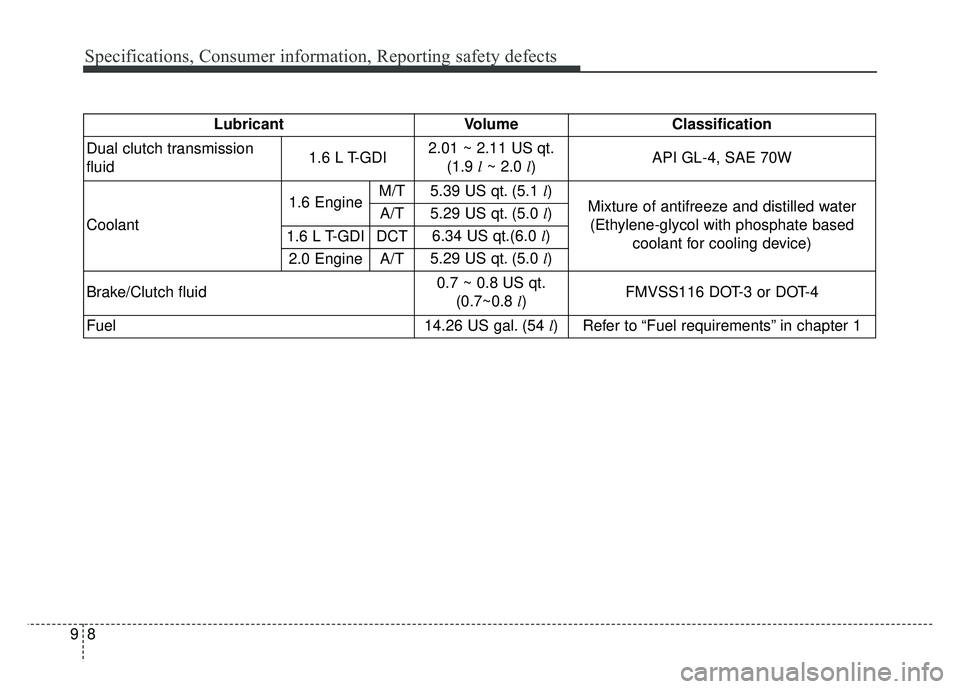

LubricantVolume Classification
Dual clutch transmission
fluid 1.6 L T-GDI2.01 ~ 2.11 US qt.
(1.9 l~ 2.0 l) API GL-4, SAE 70W
Coolant 1.6 Engine
M/T
5.39 US qt. (5.1 l)
Mixture of antifreeze and distilled water
(Ethylene-glycol with phosphate based coolant for cooling device)
A/T5.29 US qt. (5.0 l)
1.6 L T-GDIDCT6.34 US qt.(6.0 l)
2.0 EngineA/T5.29 US qt. (5.0 l)
Brake/Clutch fluid 0.7 ~ 0.8 US qt.
(0.7~0.8 l) FMVSS116 DOT-3 or DOT-4
Fuel 14.26 US gal. (54 l)
Refer to “Fuel requirements” in chapter 1

99
Specifications, Consumer information, Reporting safety defects

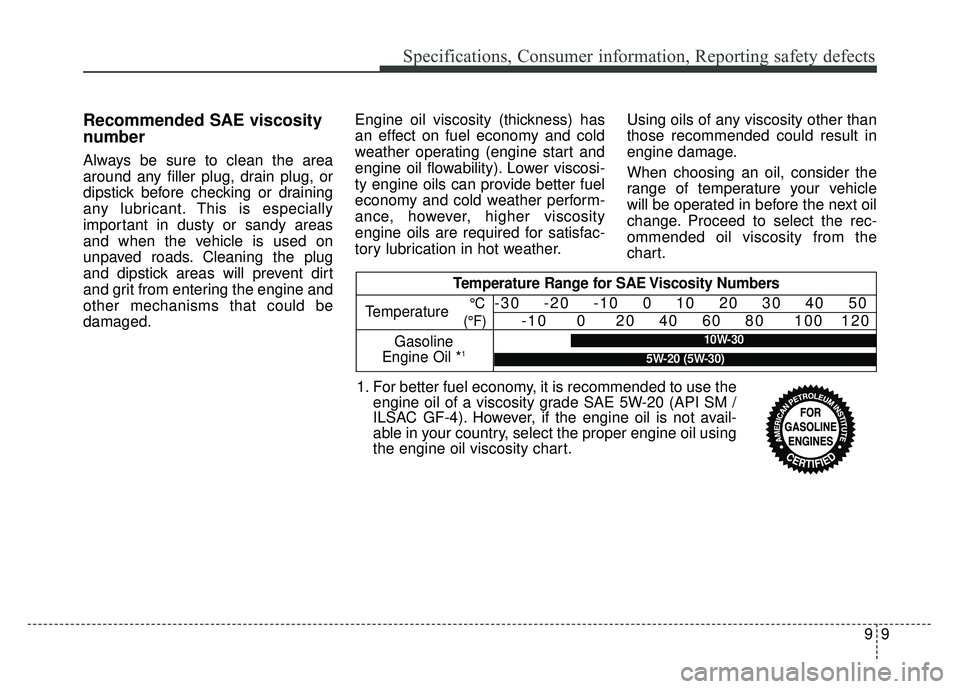

Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine and
other mechanisms that could be
damaged.Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use theengine oil of a viscosity grade SAE 5W-20 (API SM /
ILSAC GF-4). However, if the engine oil is not avail-
able in your country, select the proper engine oil using
the engine oil viscosity chart.
10W-30
5W-20 (5W-30)

911
Specifications, Consumer information, Reporting safety defects

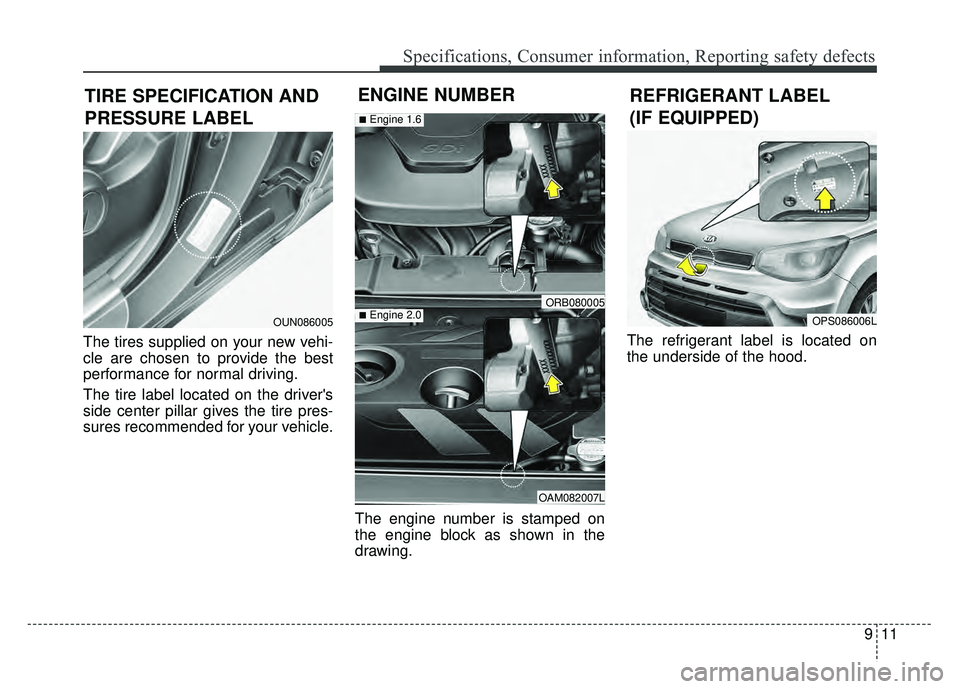

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The engine number is stamped on
the engine block as shown in the
drawing.The refrigerant label is located on
the underside of the hood.
ENGINE NUMBER
OUN086005OPS086006L
TIRE SPECIFICATION AND
PRESSURE LABEL
OAM082007L
■Engine 2.0
■Engine 1.6
ORB080005
REFRIGERANT LABEL
(IF EQUIPPED)

Specifications, Consumer information, Reporting safety defects
14
9
Registering your vehicle in a foreign country
If you plan to register your vehicle in a foreign country,
you should confirm that it conforms to the regulations in
that country. Even if you successfully register the vehicle
in a foreign country, you may experience the following
problems and should therefore consider the possibility of
having to deal with them:
1. The fuel specified for your vehicle may be unavailable.
If other than the specified fuel is used, it could cause
damage to the engine, the fuel injection system, and
other fuel-related parts which may not be covered
under your New Vehicle Emissions Limited Warranty.
2. We must, therefore, clearly state that when you leave the country in which you purchased your Kia new and
register it in another country, problems arising from the
use of fuel other than the specified fuel are not subject
to manufacturer’s warranty. Because vehicles like
yours may not be marketed in the new country of reg-
istration, parts, servicing techniques and tools neces-
sary to maintain and repair your vehicle may be
unavailable.
Even if vehicles like yours are sold there, mechanical
specifications required by the government may vary
enough from the country of purchase to cause addi-
tional problems. 3. There may not be an Authorized Kia Dealer in the area
in which you plan to register your vehicle. You may
additionally experience difficulty in obtaining services
in a foreign country for any number of reasons.
Further, we cannot assume any responsibility for prob-
lems that result from unsatisfactory service or lack of
service outside of the United States.

915
Specifications, Consumer information, Reporting safety defects

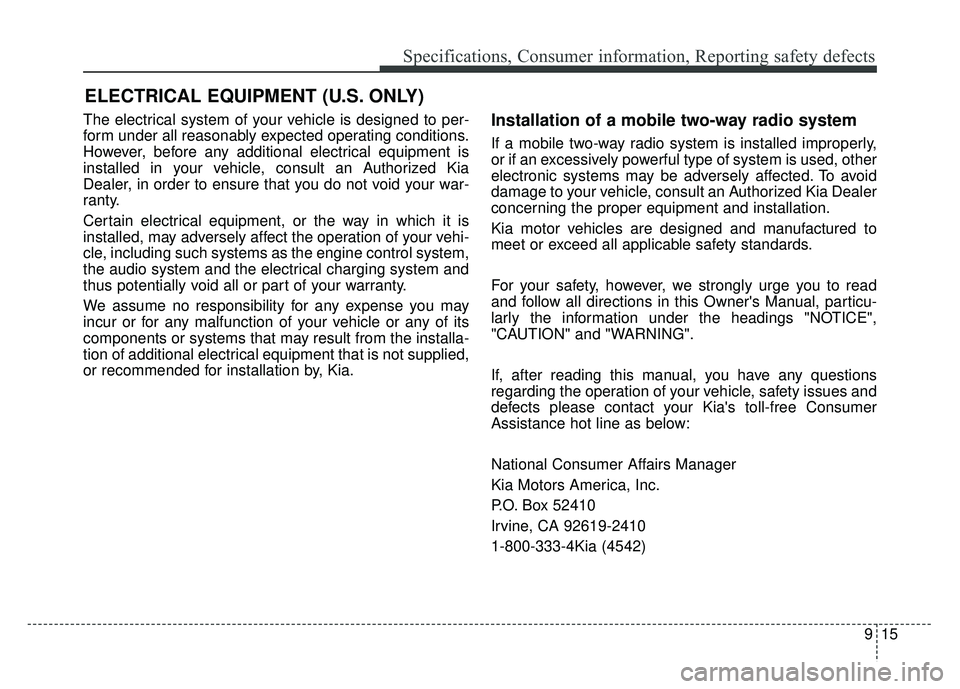

The electrical system of your vehicle is designed to per-
form under all reasonably expected operating conditions.
However, before any additional electrical equipment is
installed in your vehicle, consult an Authorized Kia
Dealer, in order to ensure that you do not void your war-
ranty.
Certain electrical equipment, or the way in which it is
installed, may adversely affect the operation of your vehi-
cle, including such systems as the engine control system,
the audio system and the electrical charging system and
thus potentially void all or part of your warranty.
We assume no responsibility for any expense you may
incur or for any malfunction of your vehicle or any of its
components or systems that may result from the installa-
tion of additional electrical equipment that is not supplied,
or recommended for installation by, Kia.Installation of a mobile two-way radio system
If a mobile two-way radio system is installed improperly,
or if an excessively powerful type of system is used, other
electronic systems may be adversely affected. To avoid
damage to your vehicle, consult an Authorized Kia Dealer
concerning the proper equipment and installation.
Kia motor vehicles are designed and manufactured to
meet or exceed all applicable safety standards.
For your safety, however, we strongly urge you to read
and follow all directions in this Owner's Manual, particu-
larly the information under the headings "NOTICE",
"CAUTION" and "WARNING".
If, after reading this manual, you have any questions
regarding the operation of your vehicle, safety issues and
defects please contact your Kia's toll-free Consumer
Assistance hot line as below:
National Consumer Affairs Manager
Kia Motors America, Inc.
P.O. Box 52410
Irvine, CA 92619-2410
1-800-333-4Kia (4542)
ELECTRICAL EQUIPMENT (U.S. ONLY)

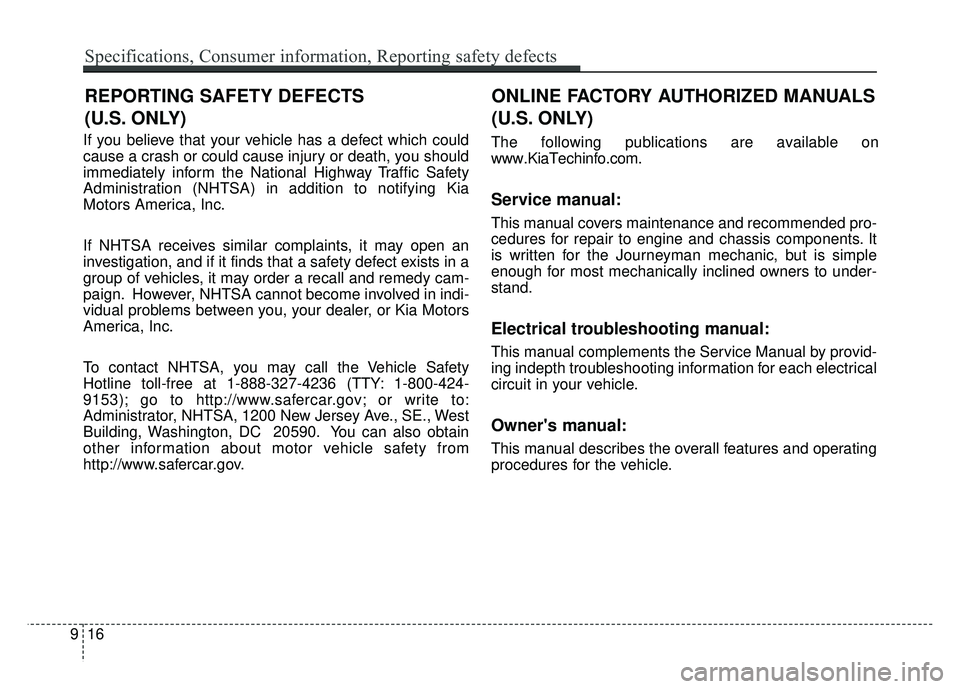

If you believe that your vehicle has a defect which could
cause a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Kia
Motors America, Inc.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in a
group of vehicles, it may order a recall and remedy cam-
paign. However, NHTSA cannot become involved in indi-
vidual problems between you, your dealer, or Kia Motors
America, Inc.
To contact NHTSA, you may call the Vehicle Safety
Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey Ave., SE., West
Building, Washington, DC 20590. You can also obtain
other information about motor vehicle safety from
http://www.safercar.gov.The following publications are available on

www.K
iaTechinfo.com.
Service manual:
This manual covers maintenance and recommended pro-
cedures for repair to engine and chassis components. It
is written for the Journeyman mechanic, but is simple
enough for most mechanically inclined owners to under-
stand.
Electrical troubleshooting manual:
This manual complements the Service Manual by provid-
ing indepth troubleshooting information for each electrical
circuit in your vehicle.
Owner's manual:
This manual describes the overall features and operating
procedures for the vehicle.
REPORTING SAFETY DEFECTS
(U.S. ONLY) ONLINE FACTORY AUTHORIZED MANUALS
(U.S. ONLY)
916
Specifications, Consumer information, Reporting safety defects

Index
4I
Filter replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-50
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Combined instrument, see instrument cluster . . . . . . . 4-48
CONSUMER ASSISTANCE . . . . . . . . . . . . . . . . . . . . 9-12
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 8-41
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . . 8-41
Crankcase emission control system . . . . . . . . . . . . . . 8-114
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 6-45 Cruise control switch . . . . . . . . . . . . . . . . . . . . . . . . 6-46
To set cruise control speed . . . . . . . . . . . . . . . . . . . . 6-46
To increase cruise control set speed . . . . . . . . . . . . . 6-47
To decrease the cruising speed . . . . . . . . . . . . . . . . . 6-47
To temporarily accelerate with the cruisecontrol on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-47
To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . 6-48
To resume cruising speed at more than approximately 20 mph(30 km/h) . . . . . . . . . . . . . . 6-48
To turn cruise control off . . . . . . . . . . . . . . . . . . . . . 6-49
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-61
Dashboard illumination, see instrument panel illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Dashboard, see instrument cluster . . . . . . . . . . . . . . . . 4-48
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-43
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . 5-84 FCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 5-84
Defogging (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-128
Defroster (Rear window) . . . . . . . . . . . . . . . . . . . . . . 4-101
Defrosting (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-128
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-\
2
Display illumination, see instrument panel illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Displays, see instrument cluster . . . . . . . . . . . . . . . . . . 4-48
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
17 from outside the vehicle . . . . . . . . . . . . . . . . . . . . . . 4-17
from inside the vehicle . . . . . . . . . . . . . . . . . . . . . . . 4-18
Central door lock switch . . . . . . . . . . . . . . . . . . . . . 4-19
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-21
Drive mode integrated control system . . . . . . . . . . . . . 6-50 ECO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-50
SPORT mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-51
Driver's 3-point systemwith emergency locking retractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Driver's and passenger's front air bag . . . . . . . . . . . . . . 3-56
Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-73
Driving in flooded areas . . . . . . . . . . . . . . . . . . . . . . . . 6-74
Driving in the rain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-74
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-75
DUAL CLUTCH TRANSMISSION . . . . . . . . . . . . . . 6-24 Sports mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-29
Shift-lock override . . . . . . . . . . . . . . . . . . . . . . . . . . 6-30
Good driving practices . . . . . . . . . . . . . . . . . . . . . . . 6-31
D
