If you select the "EV" menu at the
AVN home screen or press the "EV"
button on the left side of the air-con-
ditioning button panel, you can enter
EV mode.
❈Refer to the AVN manual for details. The EV mode has a total of 6 menus
including Available Range, Near by
stations, Energy information, ECO
driving, Set timings for Charging
/Climate and EV settings.
■ ■
Available Range
EV MODE
EV Mode (if equipped)
OPSE0Q4003NNameDescription
Green CircleReachable area
Red CircleRisky area (depending on
circumstances)
Grey AreaUnreachable area

8
■ ■Near by stations
Stations around the current location
is searched. Depending on the sym-
bol color of the station, it is catego-
rized as Reachable area, Risky area
and Unreachable area.
■ ■Energy Information
You can check battery information
and power consumption.
  Battery Information
You can check the available range,
battery charge amount that can be
used, and approximate expected
charging time for each charge type.
More accurate time will be
appeared while charging.
 Power Consumption
Power that is consumed by the
drive system, climate and electri-
cal components are displayed
respectively.
You can check how far the vehicle
can drive currently, and how much
more the vehicle can drive if the
climate is turned OFF.
EV MODE

9
■ ■ECO Driving
You can check ECO level information
and ECO driving history.
  ECO Level
A total of 8 ECO levels and the
average energy consumption are
displayed depending on vehicle
driving style.
 Driving History
You can check the driving date ,
driving distance , and the aver-
age energy consumption rating
for previous 30 driving trips. The
date with the highest ECO level is
marked with a star shaped icon.
■ ■Set Charging Times
This is a feature that starts charging
the battery on the date and time that
is designated by the user. One reser-
vation can be set between 2 options.
EV MODE
NameDescription
Set Start Time
+ Charging
Ratio 100% You can set start charging
time and ratio is set 100
automatically by days of
the week.
Set Start Time
+ Set End
TimeYou can set charging time
from start to end by days of
the week.

10

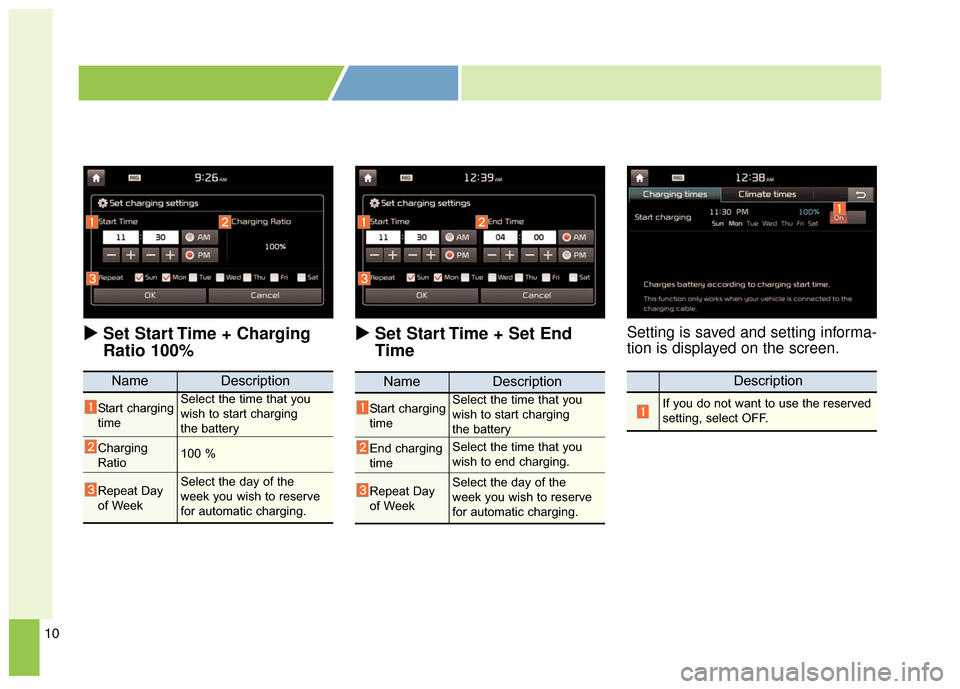

 Set Start Time + Charging
Ratio 100%
Set Start Time + Set End
TimeSetting is saved and setting informa-
tion is displayed on the screen.
NameDescription
Start charging
timeSelect the time that you
wish to start charging
the battery
Charging
Ratio100 %
Repeat Day
of WeekSelect the day of the
week you wish to reserve
for automatic charging.
NameDescription
Start charging
timeSelect the time that you
wish to start charging
the battery
End charging
timeSelect the time that you
wish to end charging.
Repeat Day
of WeekSelect the day of the
week you wish to reserve
for automatic charging.
Description
If you do not want to use the reserved
setting, select OFF.

11

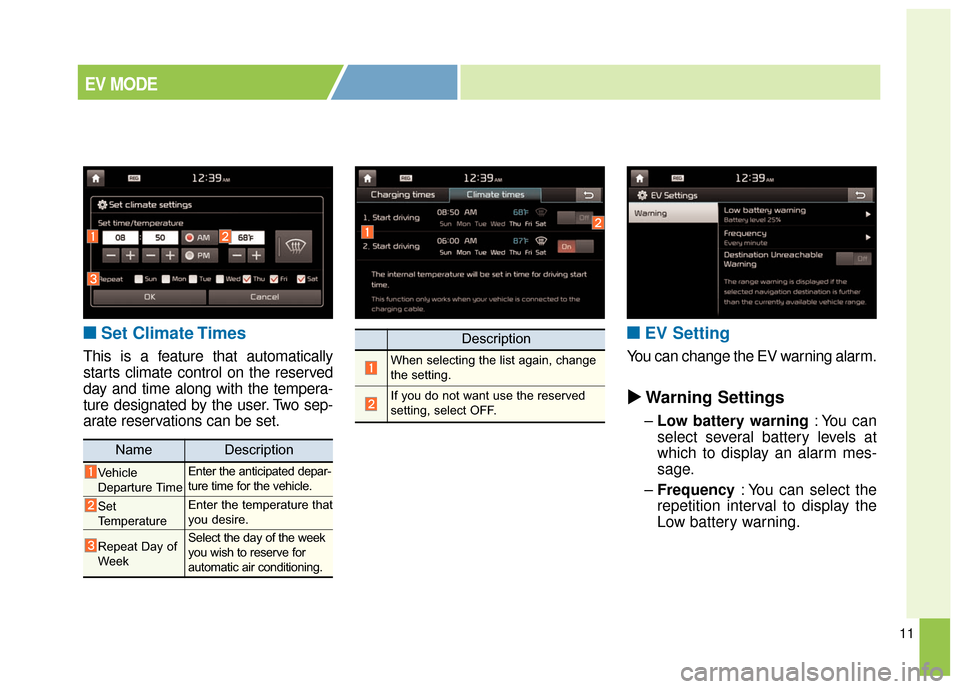

■ ■Set Climate Times
This is a feature that automatically
starts climate control on the reserved
day and time along with the tempera-
ture designated by the user. Two sep-
arate reservations can be set.
■ ■EV Setting
You can change the EV warning alarm.
  Warning Settings
–Low battery warning : You can
select several battery levels at
which to display an alarm mes-
sage.
– Frequency : You can select the
repetition interval to display the
Low battery warning.
Description
When selecting the list again, change
the setting.
If you do not want use the reserved
setting, select OFF.
NameDescription
Vehicle
Departure TimeEnter the anticipated depar-
ture time for the vehicle.
Set
TemperatureEnter the temperature that
you desire.
Repeat Day of
WeekSelect the day of the week
you wish to reserve for
automatic air conditioning.
EV MODE

12

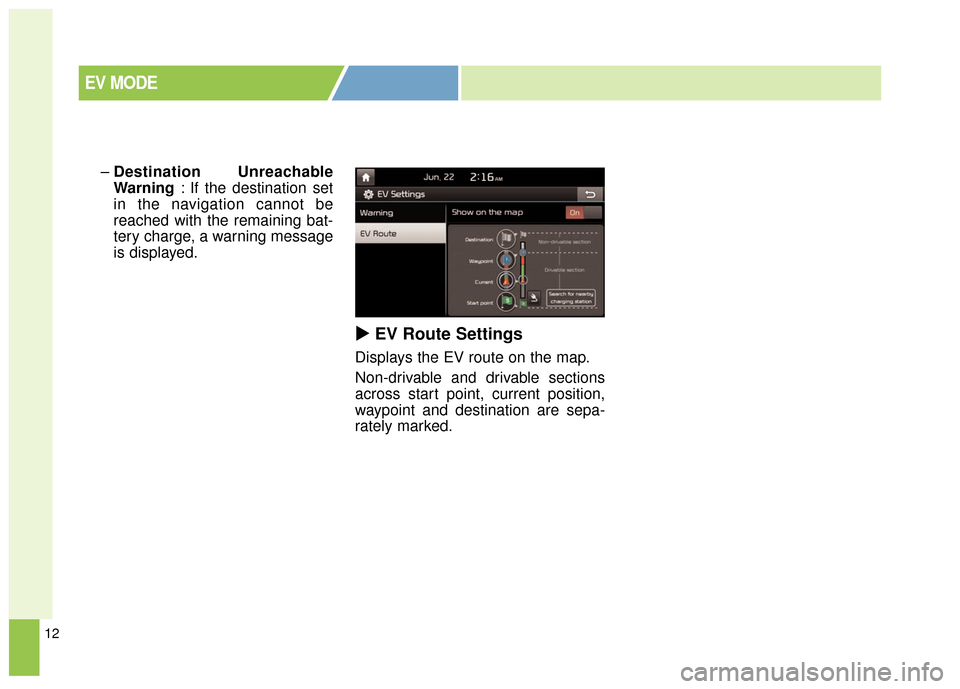

–Destination Unreachable
Warning : If the destination set
in the navigation cannot be
reached with the remaining bat-
tery charge, a warning message
is displayed.
  EV Route Settings
Displays the EV route on the map.
Non-drivable and drivable sections
across start point, current position,
waypoint and destination are sepa-
rately marked.
EV MODE

13
Normal Charge :We recommend using normal
charging for usual charging of the
vehicle.
(Refer to “Normal Charge.“ in this
chapter)
Quick Charge (if equipped) : You can charge at high speeds at
public charging stations. Refer to
the respective company's manual
that is provided for each quick
charger type.
Battery performance and durability
can deteriorate if the quick charger
is used constantly.
Use of quick charge should be
minimized in order to help prolong
high voltage battery life.
Trickle Charge : Trickle Charge can be used when
Normal Charge or Quick Charge
is not available by using house-
hold electricity. Normal Charge :
Takes about 4-5 hours at room tem-
perature (depending on charger ) for
a full charge (208V - 5.5kW: 5h
10min, 240V - 6.3kW: 4h 30min.)
(Can be charged to 100%.)
Quick Charge (if equipped) : Takes about 30 minutes at room
temperature to 80% of SOC.
(50kw charger) (Can be charged
directly to 94%)
DC cable shorter than 10m.
Trickle Charge : Takes up to 24 hours at room tem-
perature. (120V-12A : 24hours)
(Can be charged to 100%.) Depending on the condition and dura-
bility of the high voltage battery, charg-
er specifications, and ambient temper-
ature, the time required for charging
the high voltage battery may vary.
CHARGE TYPES FOR ELECTRIC
VEHICLE
Charging Information Charging Time Information

14
CHARGE TYPES FOR ELECTRIC
VEHICLE
Charging Types
CategoryCharging Inlet(Vehicle)Charging ConnectorCharging OutletHow to ChargeCharging Time
Normal
Charge
Use the normal
charger that is
installed in your
home or public
charging stationApprox. 4-5 hours
(208V - 5.5kW: 5h
10min, 240V - 6.3kW:
4h 30min. room tem-
perature) (Can be
charged to 100% )
Quick
Charge
(if equipped)Use the quick
charger at public
charging stationApprox. 33 min
(50 kW, room tem-
perature) (Can be
charged to 94%)
Trickle
ChargeUse household
electricity
Approx. 24hours
(120V-12A: 24hours,
room temper-ature)
(Can be charged to
100%)
OPSE0Q4035
OPSE0Q4036
OPSE0Q4035
OPSE0Q4005
OPSE0Q4006
OPSE0Q4005
OPSE0Q4057N
OPSE0Q4004
OPSE0Q4007
❈Shape of charger and how to use the charger may be different for each manufacturer.
❈ Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temper-
ature, the time required for charging the high voltage battery may vary.
