2017 KIA Soul EV power

15
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.
■ ■Normal charging and trickle
charging ■ ■
Quick charge
Charging Status Information
OPSE0Q4008
CHARGE INDICATOR LAMP FOR
ELECTRIC VEHICLE
Operation of Charging
Indicator LampDetails(1)(2)(3)
(OFF)(OFF)(OFF)Not Charged
Blinking(OFF)(OFF)
Charging
0~33%
(ON)Blinking(OFF)34~66%
(ON)(ON)Blinking67~99%
(ON)(ON)(ON)Charging complete
(100%)(turns OFF in 3 seconds)
BlinkingBlinkingBlinking
Error while charg-ing /If charging
cables are con-
nected when the vehicle is in the
ready mode or the POWER button is
in the ON position.
(OFF)(OFF)Blinking
Charging 12 V aux-
iliary battery or
reserved air condi- tioner is operating
(OFF)Blinking(OFF)
Reserved charging is operating
(turns OFF after 3 minutes)
Operation of ChargingIndicator LampDetails(1)(2)(3)
(OFF)(OFF)(OFF)Not Charged
Blinking(OFF)(OFF)
Charging
0~33%
(ON)Blinking(OFF)34~66%
(ON)(ON)Blinking67~94%
BlinkingBlinkingBlinking
Error while charg-
ing /If charging
cables are con-
nected when the vehicle is in the
ready mode or the POWER button is
in the ON position.

24
9. Check if the charge indicator lampof the high voltage battery in the
instrument cluster is turned ON.
Charging is not done when the
charging indicator lamp is OFF.
When the charging connector is
not connected properly, reconnect
the charging cable to charge. You can start charging when the
Power button is in the OFF posi-
tion and the shift lever is in P
(Park). After charging has started,
you can use electrical compo-
nents such as the radio by press-
ing the Power button to the ACC or
ON position.
If you move the shift lever from P (Park) to R (Rear), N (Neutral), D
(Drive), charging stops immedi-
ately. If you want to start charging
again, place the shift lever to P
(Park) and press the Power button
to the OFF position. Unplug and
reconnect the charging cable to
start charging again. 10.After charging has started, the
estimated charging time is dis-
played on the instrument cluster
for about 1 minute.
If you open the driver seat door
while charging, the estimated
charging time is also displayed on
the instrument cluster for about 1
minute.
When reserved charging is set,
the estimated charging time is
displayed as “--" .
OPSE0Q4058LOPSE044044L
CHARGING ELECTRIC VEHICLE
(NORMAL CHARGE)

26
■ ■Emergency Release of the
Charging connector lock
system
Use this function if the charging con-
nector lock does not unlatch even
after the door lock has been
released. You can release the charg-
ing connector lock system by using
the emergency release lever.
Open the hood, and then fully lift the
charging connector emergency
release cover after turning it. Then,
pull on the emergency release lever
to disconnect the charging connector.
■ ■Checking Charging Status
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.
CHARGING ELECTRIC VEHICLE
(NORMAL CHARGE)
OPSE0Q4008
Operation of Charging
Indicator Lamp
Details
(1)(2)(3)
(OFF)(OFF)(OFF)Not Charged
Blinking(OFF)(OFF)
Charging
0~33%
(ON)Blinking(OFF)34~66%
(ON)(ON)Blinking67~99%
(ON)(ON)(ON)
Charging complete
(100%)(turns OFF in 3 seconds)
BlinkingBlinkingBlinking
Error while charging/If charging cables
are connected when the vehicle is in theready mode or the
POWER button is in the ON position.
(OFF)(OFF)Blinking
Charging 12 V aux- iliary battery or
reserved air condi- tioner is operating
(OFF)Blinking(OFF)
Reserved charging is operating
(turns OFF after 3 minutes)
OPSE075034

31
❈During cold weather, quick charg-
ing may not be available to prevent
high voltage battery degradation.
You can start charging when the Power button is in the OFF posi-
tion and the shift lever is in P
(Park).
After charging has started, you
can use electrical components
such as the radio by pressing the
Power button to ACC or ON posi-
tion.
If you move the shift lever from P (Park) to R (Reverse), N (Neutral),
D (Drive), charging stops immedi-
ately. If you want to start charging
again, place the shift lever to P
(Park) and press the Power button
to the OFF position. Unplug and
reconnect the charging cable to
start charging again.
■ ■Unlock Charging Door in
Emergency
If the charging door does not open
due to battery discharge and failure
of the electric wires, open the hood
and slightly pull the emergency cable
as shown above. The charging door
will then open.
■ ■Checking Charging Status
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.
OPSE0Q4016
CHARGING ELECTRIC VEHICLE
(QUICK CHARGE)
OPSE0Q4008

32
Depending on the condition and
durability of the high voltage battery,
charger specifications, and ambient
temperature, the time required for
charging the battery may vary.
■ ■How to Disconnect Quick
Charger
1. Remove the charging connector
when quick charging is completed,
or after you stop charging using
the quick charger. Refer to each
respective quick charger manual
for details about how to discon-
nect the charging connector.
Operation of Charging
Indicator Lamp
Details
(1)(2)(3)
(OFF)(OFF)(OFF)Not Charged
Blinking(OFF)(OFF)
Charging
0~33%
(ON)Blinking(OFF)34~66%
(ON)(ON)Blinking67~94%
BlinkingBlinkingBlinking
Error while charging
/If charging cables
are connected when the vehicle is in theready mode or the
POWER button is in the ON position.
OPSE0Q4019
CHARGING ELECTRIC VEHICLE
(QUICK CHARGE)

34

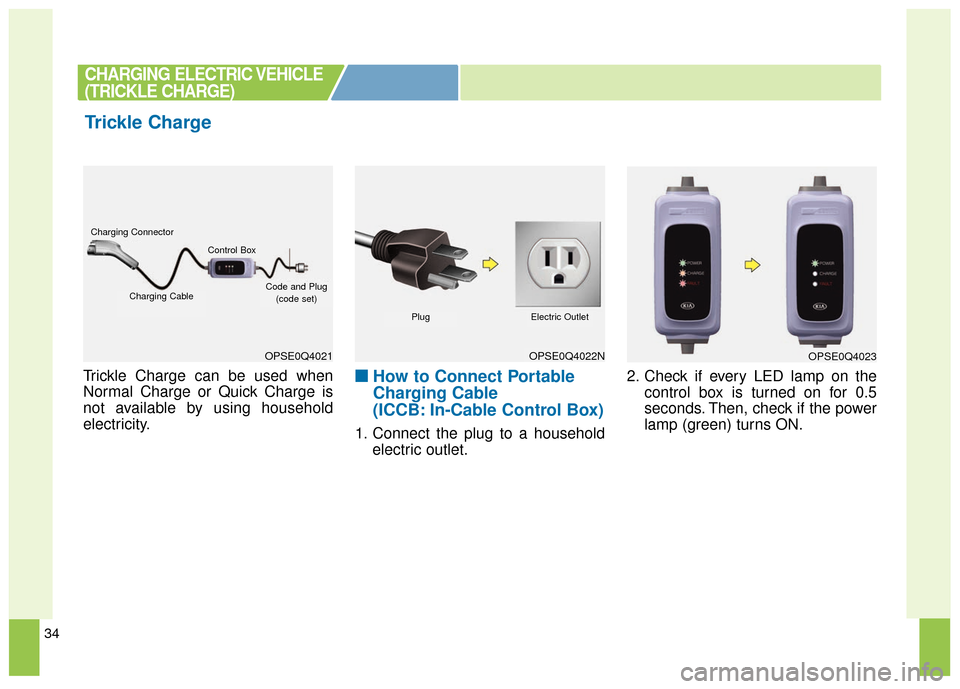

Trickle Charge can be used when
Normal Charge or Quick Charge is
not available by using household
electricity.■ ■How to Connect Portable
Charging Cable
(ICCB: In-Cable Control Box)
1. Connect the plug to a household
electric outlet. 2. Check if every LED lamp on the
control box is turned on for 0.5
seconds. Then, check if the power
lamp (green) turns ON.
Trickle Charge
CHARGING ELECTRIC VEHICLE
(TRICKLE CHARGE)
OPSE0Q4021OPSE0Q4022N
Charging Connector
Charging Cable
Control Box
Code and Plug
(code set)
PlugElectric Outlet
OPSE0Q4023

36

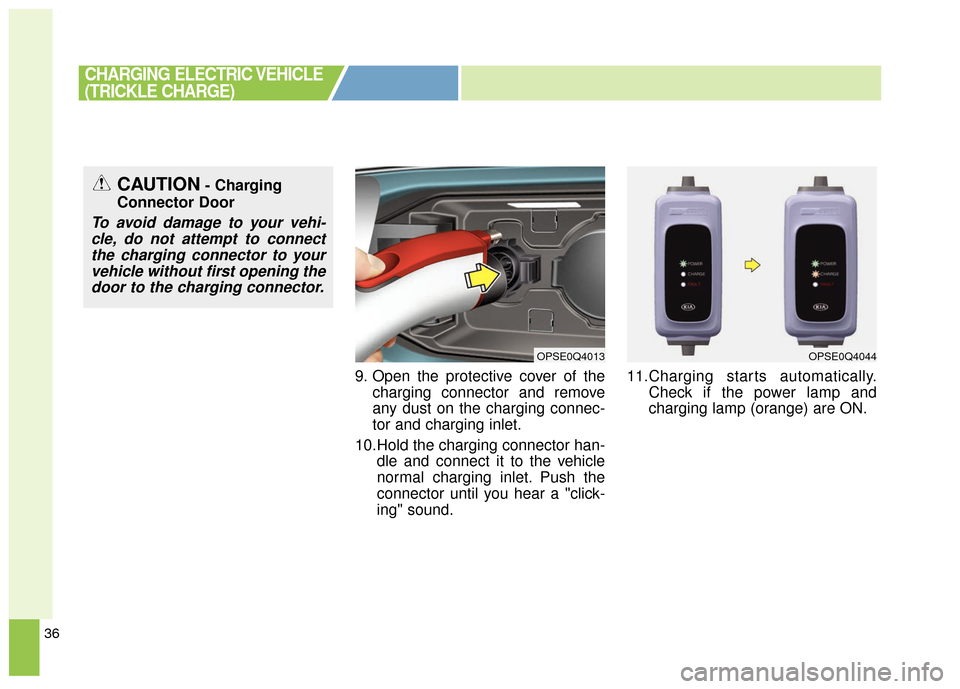

9. Open the protective cover of thecharging connector and remove
any dust on the charging connec-
tor and charging inlet.
10.Hold the charging connector han- dle and connect it to the vehicle
normal charging inlet. Push the
connector until you hear a "click-
ing" sound. 11.Charging starts automatically.
Check if the power lamp and
charging lamp (orange) are ON.
CHARGING ELECTRIC VEHICLE
(TRICKLE CHARGE)
CAUTION- Charging
Connector Door
To avoid damage to your vehi- cle, do not attempt to connectthe charging connector to yourvehicle without first opening thedoor to the charging connector.
OPSE0Q4013OPSE0Q4044

37
12.Check if the charge indicatorlamp of the high voltage battery in
the instrument cluster is turned
ON. Charging is not done when
the charging indicator lamp is
OFF.
When the charging connector is
not connected properly, recon-
nect the charging cable to charge
it again. You can start charging when the
Power button is in the OFF posi-
tion and the shift lever is in P
(Park).
After charging has started, you
can use electrical components
such as the radio by pressing the
Power button to ACC or ON posi-
tion.
If you move the shift lever from P (Park) to R (Reverse), N (Neutral),
D (Drive), charging stops immedi-
ately. If you want to start charging
again, place the shift lever to P
(Park) and press the Power button
to the OFF position. Unplug and
reconnect the charging cable to
start charging again. 13.After charging has started, the
estimated charging time is dis-
played on the instrument cluster
for about 1 minute.
If you open the driver seat door
while charging, the estimated
charging time is also displayed on
the instrument cluster for about 1
minute.
When reserved charging is set,
the estimated charging time is
displayed as “--" .
CHARGING ELECTRIC VEHICLE
(TRICKLE CHARGE)
OPSE0Q4058LOPSE044044L
