Basic Mode Screen (HD Radio™ reception ON)
NameDescription
HD
Channel
Number Analog station and corresponding HD Radio channel number
saved in the preset list.
Broadcast
Info Displays detailed information about the current broadcast (the
details of the information shown are different depending on
whether the Info button is selected)
HD Radio
When the HD Radio soft button is ON (the red indicator on
the HD Radio button is illuminated), HD Radio signals will be
received.
HD Radio™
Reception
&Channel
buttons Displays main HD Radio™ channels and used to directly select
the currently available channels
HD Radio technology allows AM and FM radio stations to
transmit audio and data using a digital signal. The HD Radio
format allows stations to simultaneously broadcast one or
more different programs in addition to the program being
transmitted on the station’s analog channel. When the HD
Radio soft button on the screen is ON (red indicator on the
HD Radio button is illuminated), HD Radio reception will
become active whenever a broadcast channel sends an
HD Radio signal and when the vehicle is in areas where the
signal reception is strong. If multiple HD Radio programs are
available, a soft button for each channel will appear on the
screen allowing you to select from HD1, HD2, etc.
002400450052005800570003002B00270003003500440047004C0052043000030037
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 18 of 92
15
SiriusXM™ Mode Hard Key Controls
You can access the radio player either by pressing the 003500240027002C0032 hard key or by
selecting the Radio menu option from All Menus on the Home screen. Select
the SiriusXM™ tab from the radio player.
i Information
• If you press the 003500240027002C0032 hard key when the power is off, then the power will turn on and a
radio broadcast will be tuned up.
• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget from the Home screen to access the radio player.
• When the power is off, pressing the
003500240027002C0032 key will turn the power on and play a
SiriusXM™ Radio broadcast.
0036004C0055004C00580056003B0030043000030030005200470048
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 19 of 92
16
SiriusXM™ Mode Display Controls
FeaturesDescription
Mode DisplayDisplays currently operating mode.
Tap to select desired mode, it will change to selected mode in
Radio.
PresetShows saved presets for user selection After selecting fre-
quency press and hold (over 0.8 seconds) the preset button.
A ‘beep’ will sound and the frequency is saved to the selected
preset button.
A total of 18 frequencies for SiriusXM™ modes can be saved.
Channel Logo
Displays the current channel logo.
Channel Info Displays the current channel number and name.
Contents InfoDisplays the artist, title and other information about the current
playing song.
Category Info
Displays the current playing category.
ScanPlays all receivable channels for 10 seconds each.
Direct TuneUsed to search for channels by entering channel numbers.
CategoryIf you press Category, when search channels through SEEK,
Tune and Scan, search it in the current category.
Category
Selection
Buttons
Used to select the previous/next category.
Play Live It will change to listening live broadcast mode.
Skip
Backward Repeats the previously broadcasted program.
• Holding for less than 0.8 seconds : Moves to the previous
segment
• Holding for longer than 0.8 seconds: Moves to the previous
5 seconds
0036004C0055004C00580056003B0030043000030030005200470048
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 20 of 92
17
FeaturesDescription
Play Pause
Pauses/plays the currently broadcasting program.
Skip ForwardMoves to the next segment.
ListDisplays SiriusXM™ Radio Categories/Channel Lists
MenuWhat’s on My Preset?
The program schedule saved in my preset. (For more details,
see Section 2.5. Viewing Menu.)
• Featured Favorite
Theme channels recommended by SiriusXM™. (For more
details, see Section 2.5. Viewing Menu.)
• Preset Scan
Plays preset frequencies for 5 seconds each.
SoundHound Runs the SoundHound feature.
For more detailed feature, please refer to SoundHound section
in Info part.
SEEK/TRACK When key is pressed shortly.(under 0.8 seconds) Plays
the previ-
ous/next channelWhen key is pressed and held.(over 0.8 seconds) Continuously changes
the channel until the key is released and plays the current channel
TUNE Changes the channel
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 21 of 92
18
Basic Mode Screen
NameDescription
Mode
Displays currently operating mode
Track IndexShows the current track/total tracks
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time
Play InfoDisplays track/artist/title/album information
Previous
Tr a c k
• When the play time is under 3 seconds the previous track
• When the play time is over 3 seconds current song from the
beginning
Play/Pause Plays/pauses the current track
Next Track Moves to the next track
RepeatRepeats the current track
Press the 003500480053004800440057 button to switch between repeating the current
track ª
and turning repeat off
Shuffle Plays disc tracks in random order
Press the 0036004B005800490049004F0048 button to switch between shuffle all
ª
and turning shuffle off
Scan Scans the beginning parts of disc tracks (approx. 10 seconds
per track)
Press the 0036004600440051 button to switch between scan all
ª
and turning scan off
List Moves to the track list screen
SoundHoundRuns the SoundHound feature.
For more detailed feature, please refer to SoundHound section
in Info part.
0026002700030030005200470048
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 22 of 92
19
NameDescription
SEEK/TRACK
• If button pressed for less than 0.8 seconds: moves to previ-
ous or next track
• If button pressed for greater than 0.8 seconds: it rewinds or
fast-forward the track When button pressed for 5 seconds, it will rewind or
fast-forward the track at 4x speed. After that, it will rewind
or fast-forward at 20x speed. Once released, the track will
begin playing at normal speed.
TUNE
Turn the 0003 knob and search a desired track. When the
track name is displayed, press the
0003 knob to play the
track.
If the 0003 knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 23 of 92
20

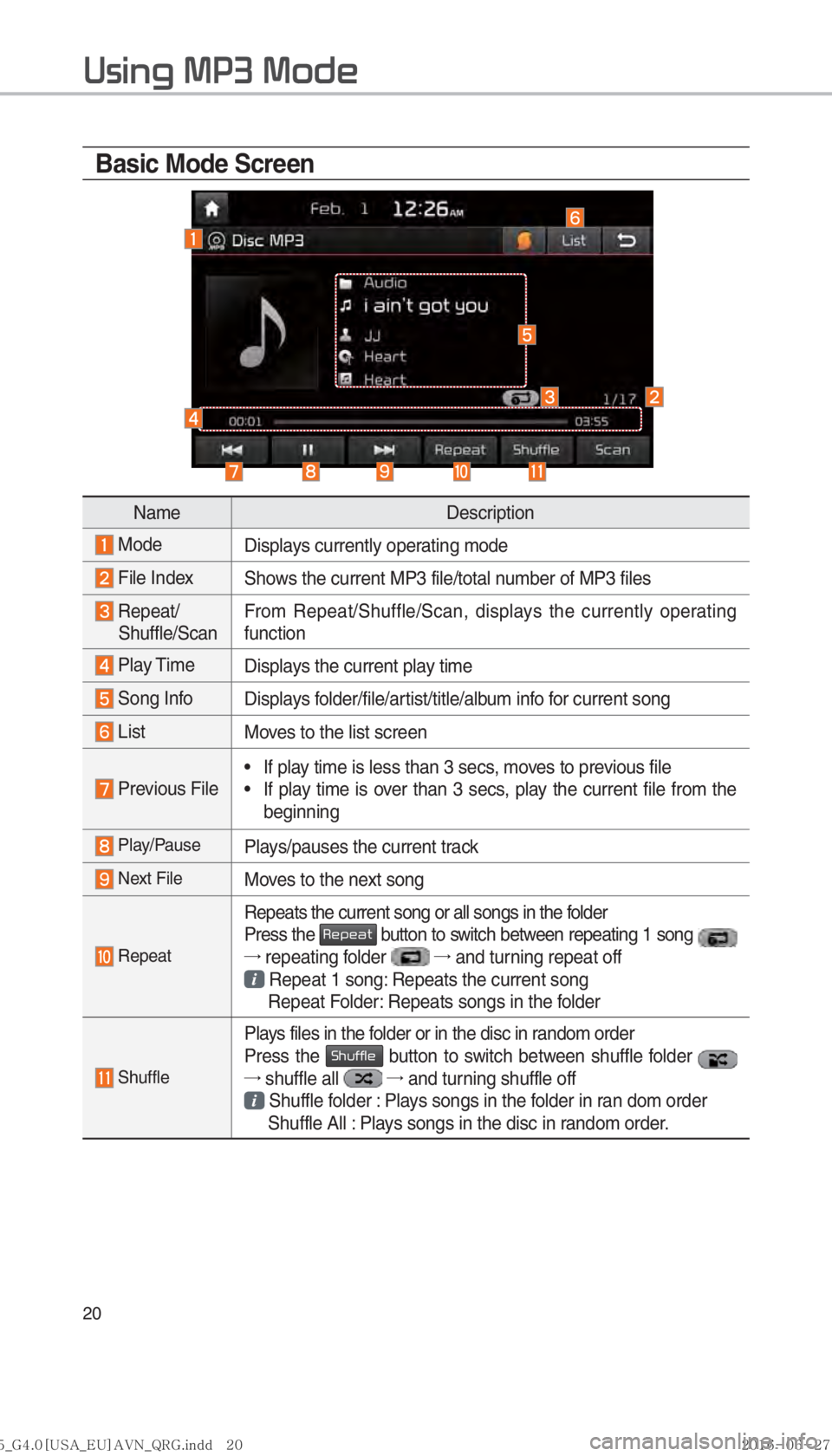

Basic Mode Screen
