Maintenance
80
7
Side repeater lamp replace-
ment
If the light bulb does not
operate,have the vehicle checked by
an authorized Kia dealer.
A skilled technician should check or
repair the side repeater lamp, for it
may damage related out side mirror
parts of the vehicle.
Rear combination lamp bulb
replacement
(1) Stop and tail light
(2) Tail light
(3) Rear turn signal light
(4) Back-up light
(5) Rear side marker light
Outside lamp
1. Open the tailgate.
2. Loosen the lamp assembly retain-
ing screws with a philips head
screwdriver.
OYP074019K
OYP074020K
■Type A
■Type BOYP074018K
OYP074021K
OYP074022K

Maintenance
84
7

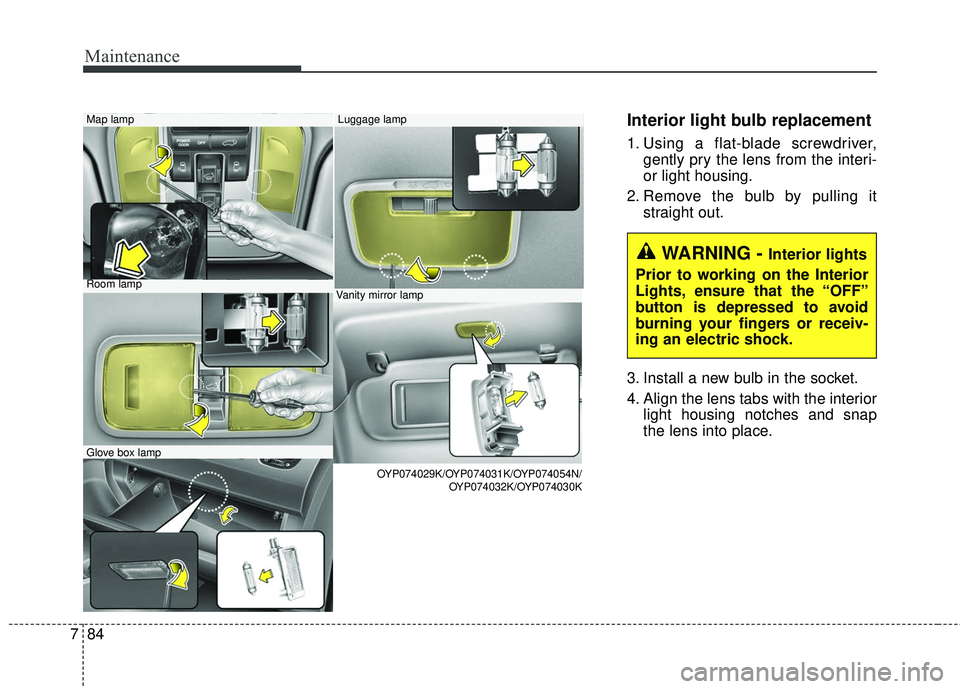

Interior light bulb replacement
1. Using a flat-blade screwdriver,
gently pry the lens from the interi-
or light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap
the lens into place.
Room lamp
Map lamp
Glove box lamp
Luggage lamp
Vanity mirror lamp
OYP074029K/OYP074031K/OYP074054N/ OYP074032K/OYP074030K
WARNING - Interior lights
Prior to working on the Interior
Lights, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.

83
BULB WATTAGESpecifications & Consumer information
* If equipped
Light Bulb
Wattage(W) Bulb type
Front Headlamps (Low)
55 H7 S LL
Headlamps (Low) - HID type* 35 D3S
Headlamps (High) 55 H7 LL
Front turn signal lamps 28 PY28/8W
Front position lamps Bulb type 8 PY28/8W
LED type LED LED
Daytime running light 24 H7 LL
Front fog lamps MFR 35
H8
PROJ 55 HB4
Side Repeater lamps LED type LED LED
Side Marker lamps Bulb type 5 W5W
LED type LED LED
Rear Rear Stop/Tail lamps (outside)
Bulb type28 P28/8W
Rear tail lamps (Inside) 8 P28/8W
Rear Stop/Tail lamps (outside) LED typeLED LED
Rear tail lamps (Inside) LED LED
Rear turn signal lamps 28 P28/8W
Back-up lamps 16 W16W
Side Marker lamps Bulb type 5 W5W
LED type LED LED
High mounted stop lamp* LED type LED LED
License plate lamps 5 W5W
Interior Map lamps
10 WEDGE
Room lamps 10 FESTOON
Vanity mirror lamps 5 FESTOON
Glove box lamp 5 WEDGE
Luggage lamp 10 FESTOON

I5
