Safety features of your vehicle
56
3

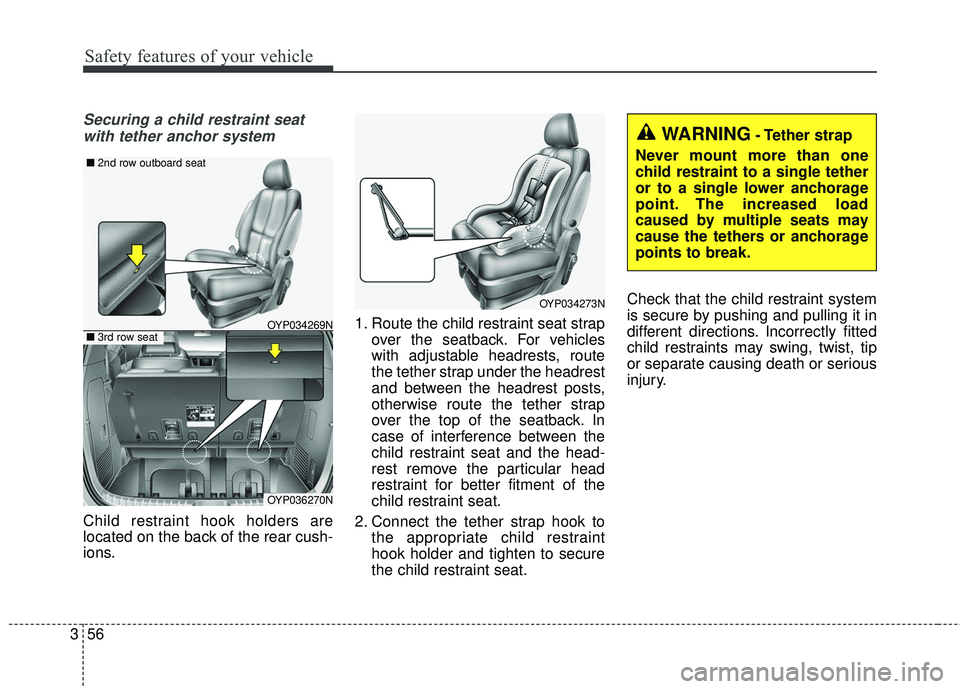

Securing a child restraint seat
with tether anchor system
Child restraint hook holders are
located on the back of the rear cush-
ions. 1. Route the child restraint seat strap
over the seatback. For vehicles
with adjustable headrests, route
the tether strap under the headrest
and between the headrest posts,
otherwise route the tether strap
over the top of the seatback. In
case of interference between the
child restraint seat and the head-
rest remove the particular head
restraint for better fitment of the
child restraint seat.
2. Connect the tether strap hook to the appropriate child restraint
hook holder and tighten to secure
the child restraint seat. Check that the child restraint system
is secure by pushing and pulling it in
different directions. Incorrectly fitted
child restraints may swing, twist, tip
or separate causing death or serious
injury.
OYP034273N
WARNING- Tether strap
Never mount more than one
child restraint to a single tether
or to a single lower anchorage
point. The increased load
caused by multiple seats may
cause the tethers or anchorage
points to break.
OYP036270N
OYP034269N
■ 2nd row outboard seat
■3rd row seat
I7
Index
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6Owner maintenance schedule . . . . . . . . . . . . . . . . . . 7-6
Parking assist system . . . . . . . . . . . . . . . . . . . . . . . . . 4-125 Non-operational conditions of parking assistsystem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12\
7
Operation of the parking assist system . . . . . . . . . 4-125
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-37 Checking the parking brake . . . . . . . . . . . . . . . . . . . 7-37
Power sliding door and power tailgate . . . . . . . . . . . . . 4-34 Automatic stop and reversal . . . . . . . . . . . . . . . . . . . 4-36
Emergency tailgate safety release . . . . . . . . . . . . . . 4-45
How to reset the power sliding door and powertailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36\
Power door ON/OFF button . . . . . . . . . . . . . . . . . . . 4-37
Power sliding door operation . . . . . . . . . . . . . . . . . . 4-38
Power tailgate non-opening conditions . . . . . . . . . . 4-44
Power tailgate opening height user setting . . . . . . . 4-44
Power tailgate operation . . . . . . . . . . . . . . . . . . . . . . 4-42
Smart Tailgate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36 Checking the power steering fluid level . . . . . . . . . 7-36
Checking the power steering hose . . . . . . . . . . . . . . 7-36 Rear parking assist system . . . . . . . . . . . . . . . . . . . . . 4-121
Non-operational conditions of rear parkingassist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122
Operation of the rear parking assist system . . . . . . 4-121
Rear parking assist system precautions . . . . . . . . . 4-123
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Rearview camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-129
Recommended lubricants and capacities . . . . . . . . . . . . 8-6 Recommended SAE viscosity number. . . . . . . . . . . . 8-7
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2 Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . 6-2
Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 7-8
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-34 Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-50
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-45
Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . 3-47
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-34
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 3-2 Driver position memory system (for power seat) . . 3-10
Front seat adjustment - manual . . . . . . . . . . . . . . . . . 3-6
Front seat adjustment - power . . . . . . . . . . . . . . . . . . 3-8
Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . 3-12
Headrest (for rear seat). . . . . . . . . . . . . . . . . . . . . . . 3-30
O
P
R
S
