Safety features of your vehicle
22
3

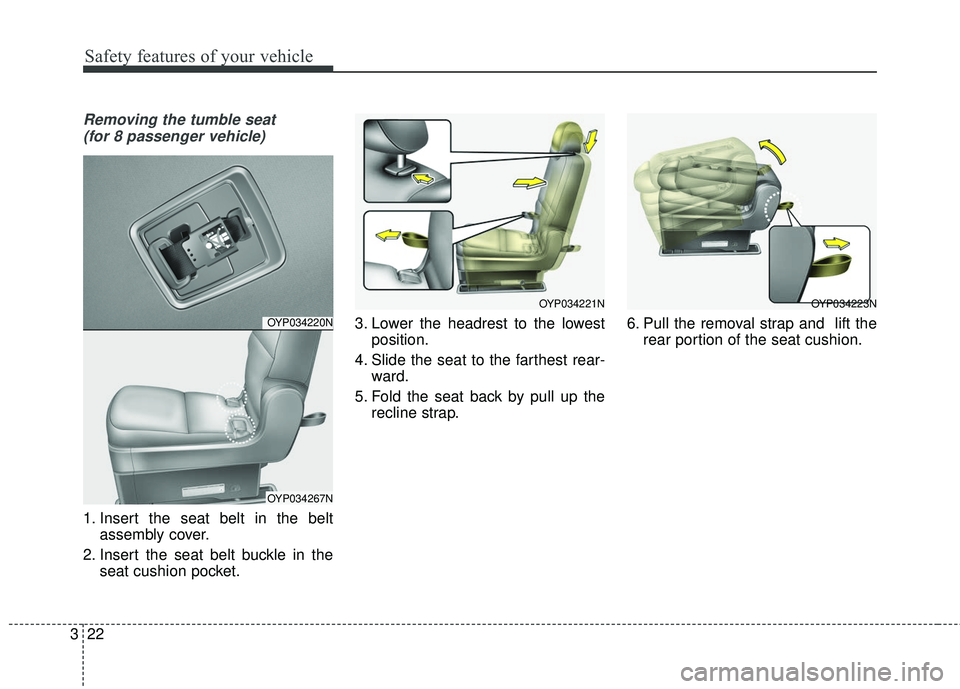

Removing the tumble seat
(for 8 passenger vehicle)
1. Insert the seat belt in the belt assembly cover.
2. Insert the seat belt buckle in the seat cushion pocket. 3. Lower the headrest to the lowest
position.
4. Slide the seat to the farthest rear- ward.
5. Fold the seat back by pull up the recline strap. 6. Pull the removal strap and lift the
rear portion of the seat cushion.
OYP034223N
OYP034220N
OYP034267N
OYP034221N

325
Safety features of your vehicle
Pull the removal strap and lift the
rear portion of the seat cushion.
Then the rear catches will be
released.
Remove the seat while lifting up the
rear portion of seat cushion and then
reinstalling the tumble seat.
Stowing the rear seat - 3rd row seat
The rear seat can be folded and
stowed in the luggage compartment
to provide additional cargo space. To stow the rear seat :
1. Lower the headrest to the lowest
position. To stow easily, adjust the
seatback to upright position.
(if necessary)
OYP034223N
OYP034240N

329
Safety features of your vehicle

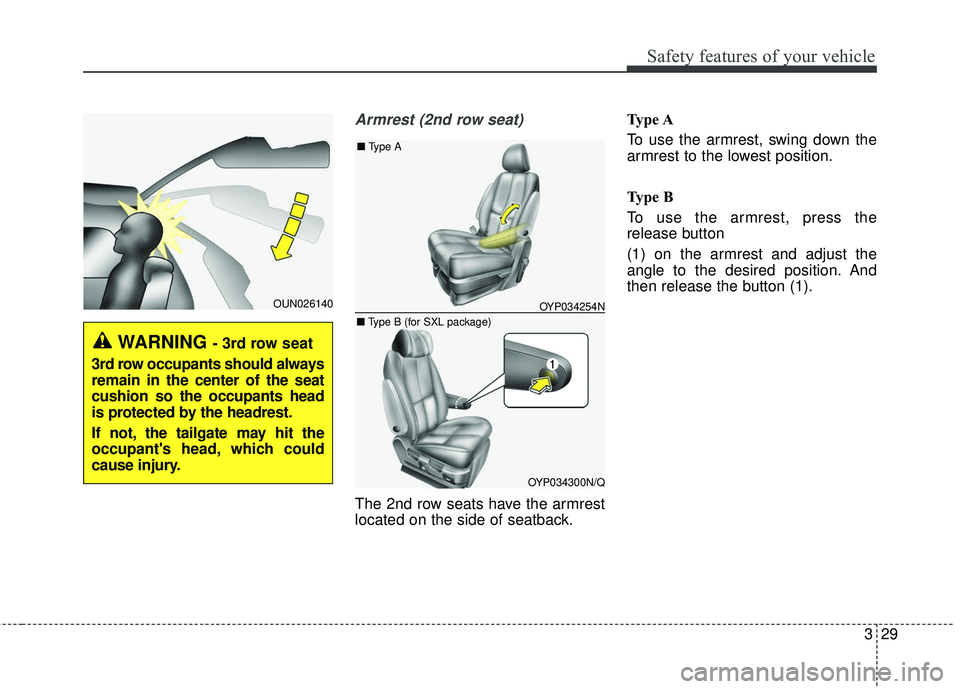

Armrest (2nd row seat)
The 2nd row seats have the armrest
located on the side of seatback.Type A
To use the armrest, swing down the
armrest to the lowest position.
Type B
To use the armrest, press the
release button
(1) on the armrest and adjust the
angle to the desired position. And
then release the button (1).
OUN026140
WARNING - 3rd row seat
3rd row occupants should always
remain in the center of the seat
cushion so the occupants head
is protected by the headrest.
If not, the tailgate may hit the
occupant's head, which could
cause injury.
OYP034254N
OYP034300N/Q
■ Type A
■ Type B (for SXL package)

Safety features of your vehicle
30
3

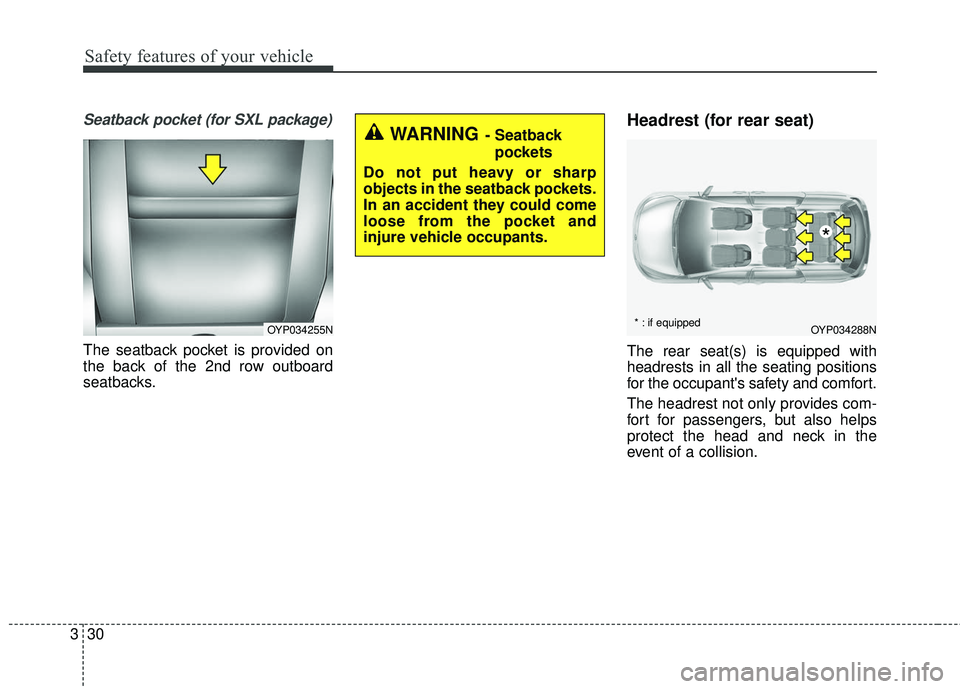

Seatback pocket (for SXL package)
The seatback pocket is provided on
the back of the 2nd row outboard
seatbacks.
Headrest (for rear seat)
The rear seat(s) is equipped with
headrests in all the seating positions
for the occupant's safety and comfort.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision.
OYP034288N
* : if equipped
*
OYP034255N
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.

331
Safety features of your vehicle

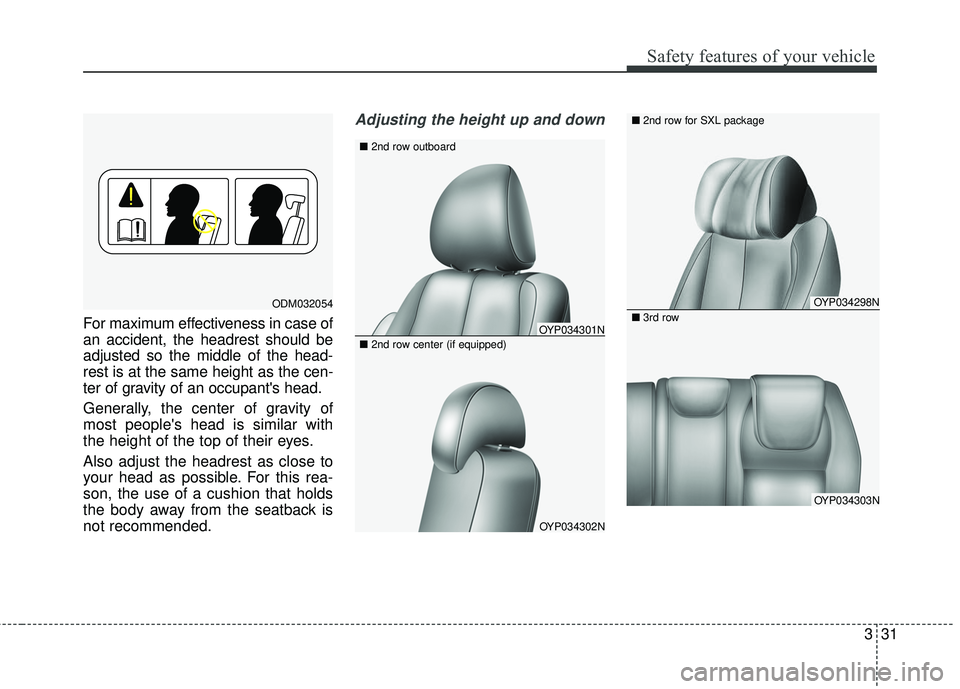

For maximum effectiveness in case of
an accident, the headrest should be
adjusted so the middle of the head-
rest is at the same height as the cen-
ter of gravity of an occupant's head.
Generally, the center of gravity of
most people's head is similar with
the height of the top of their eyes.
Also adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
Adjusting the height up and down
ODM032054
OYP034301N
OYP034302N
■2nd row outboard
OYP034298N
OYP034303N
■2nd row for SXL package
■3rd row
■2nd row center (if equipped)

Safety features of your vehicle
32
3

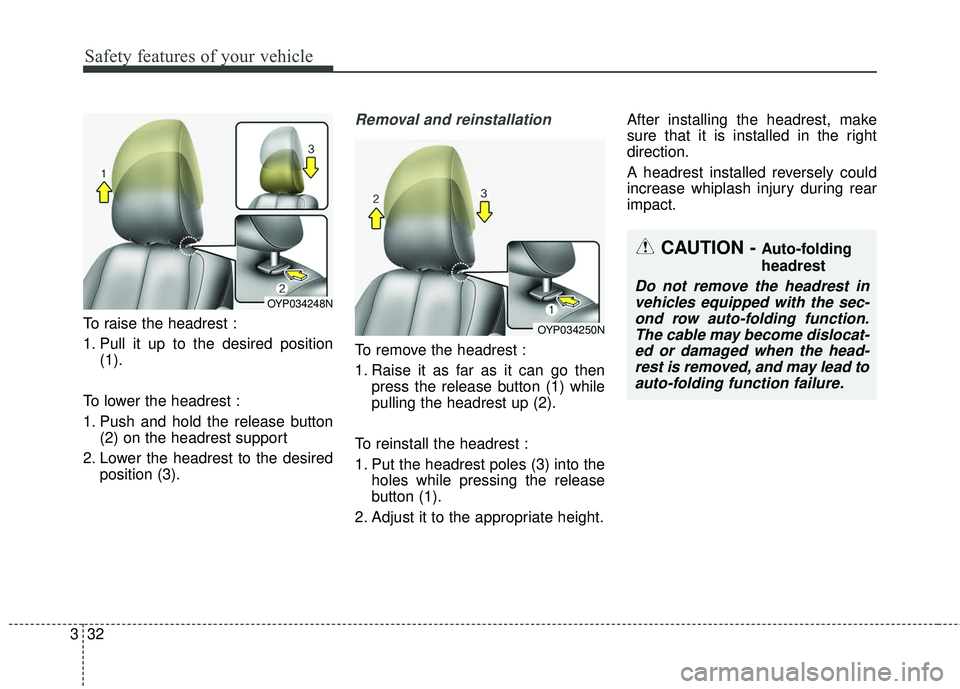

To raise the headrest :
1. Pull it up to the desired position
(1).
To lower the headrest :
1. Push and hold the release button (2) on the headrest support
2. Lower the headrest to the desired position (3).
Removal and reinstallation
To remove the headrest :
1. Raise it as far as it can go thenpress the release button (1) while
pulling the headrest up (2).
To reinstall the headrest :
1. Put the headrest poles (3) into the holes while pressing the release
button (1).
2. Adjust it to the appropriate height. After installing the headrest, make
sure that it is installed in the right
direction.
A headrest installed reversely could
increase whiplash injury during rear
impact.
OYP034248N
OYP034250N
CAUTION - Auto-folding
headrest
Do not remove the headrest in
vehicles equipped with the sec-ond row auto-folding function.The cable may become dislocat-ed or damaged when the head-rest is removed, and may lead toauto-folding function failure.

333
Safety features of your vehicle

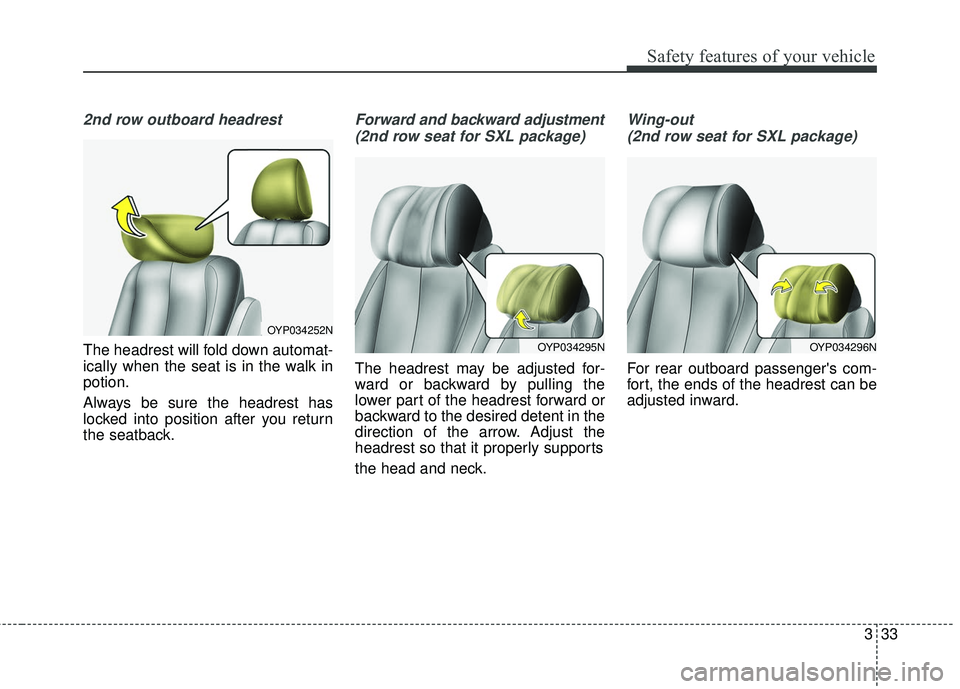

2nd row outboard headrest
The headrest will fold down automat-
ically when the seat is in the walk in
potion.
Always be sure the headrest has
locked into position after you return
the seatback.
Forward and backward adjustment(2nd row seat for SXL package)
The headrest may be adjusted for-
ward or backward by pulling the
lower part of the headrest forward or
backward to the desired detent in the
direction of the arrow. Adjust the
headrest so that it properly supports
the head and neck.
Wing-out(2nd row seat for SXL package)
For rear outboard passenger's com-
fort, the ends of the headrest can be
adjusted inward.
OYP034252N
OYP034296NOYP034295N

Safety features of your vehicle
54
3
If the vehicle headrest prevents prop-
er installation of a child seat (as
described in the child seat system
manual), the headrest of the respec-
tive seating position shall be read-
justed or entirely removed.
3. Pull the shoulder portion of theseat belt all the way out. When the
shoulder portion of the seat belt is
fully extended, it will shift the
retractor to the “Auto Lock” (child
restraint) mode. 4. Slowly allow the shoulder portion
of the seat belt to retract and listen
for an audible “clicking” or “ratchet-
ing” sound. This indicates that the
retractor is in the “Auto Lock”
mode. If no distinct sound is
heard, repeat steps 3 and 4.
