Hybrid system warning
light
This warning light illumi‐nates:
When there is a malfunction with the
hybrid system.
In this case, we recommend that you
have the vehicle inspected by an au‐ thorized Kia dealer.
When the warning light illuminates
while driving, or does not go OFF after
starting the vehicle, have your vehicle inspected by an authorized Kia dealer.
EV mode indicator
This indicator illuminateswhen the vehicle is driven
by the electric motor.EV
Charging cable
connection indicator
(Plug-in hybrid)
This indicator illuminates in red when the charging cable is connec‐
ted. ❈ Example of a deceleration event is
going down an extended hill, slow‐
ing down approaching a toll booth,
and approaching reduced speed
zones.
• User settings
Press the Engine Start/Stop button
and put the shift lever in P (Park). In
the User Settings Mode, select Driv‐ ing Assist, Coasting Guide, and then
On to turn on the system. Cancel the
selection of coasting guide to turn off
the system. For the explanation of
the system, press and hold the [OK] button.
• Operation conditions To activate the system, take the fol‐
lowing procedures. Enter your desti‐
nation information on the navigation
and select the driving route. Select
the ECO mode in the Integrated Driv‐ ing Control System. Then, satisfy the
following. - The driving speed should be be‐ tween 60 km/h (37 mph) and
160 km/h (99 mph).
❈ The operating speed may vary due
to difference between instrument
cluster and navigation effected by
tire inflation level.NOTICE
Coasting guide is only a supplemen‐
tal system to assist with fuel-effi‐
cient driving. Thus, the operating
conditions may be different in ac‐
cordance with traffic/road condi‐
tions (i.e. driving in a traffic jam,
driving on a slope, driving on a
curve). Thus, take the actual driving
conditions into consideration, such
as distances from the vehicles
ahead/ behind, while referring to the
coasting guide system as guidance.
Unplug vehicle to start (Plug-in
hybrid)
The message is displayed when you
start the engine without unplugging the charging cable. Unplug the charging
cable, and then start the vehicle.
Shift to P to charge (Plug-in hybrid)
The message is displayed when the
charging connector is plugged with the
shift lever in R (Reverse), N (Neutral) or D (Drive). Move the shift lever to P
(Park) and re-start the charging proc‐
ess.
Hybrid system overview
1-20

Turn by turn mode (if equipped)
0+'-
This mode displays the state of the
navigation.
LDWS/LKAS (if equipped)
-%84
0+')1-
-,"4
0+')1-
This mode displays the state of the
Lane Departure Warning System (LDWS) and Lane Keeping Assist Sys‐
tem (LKAS). For more information, refer to L

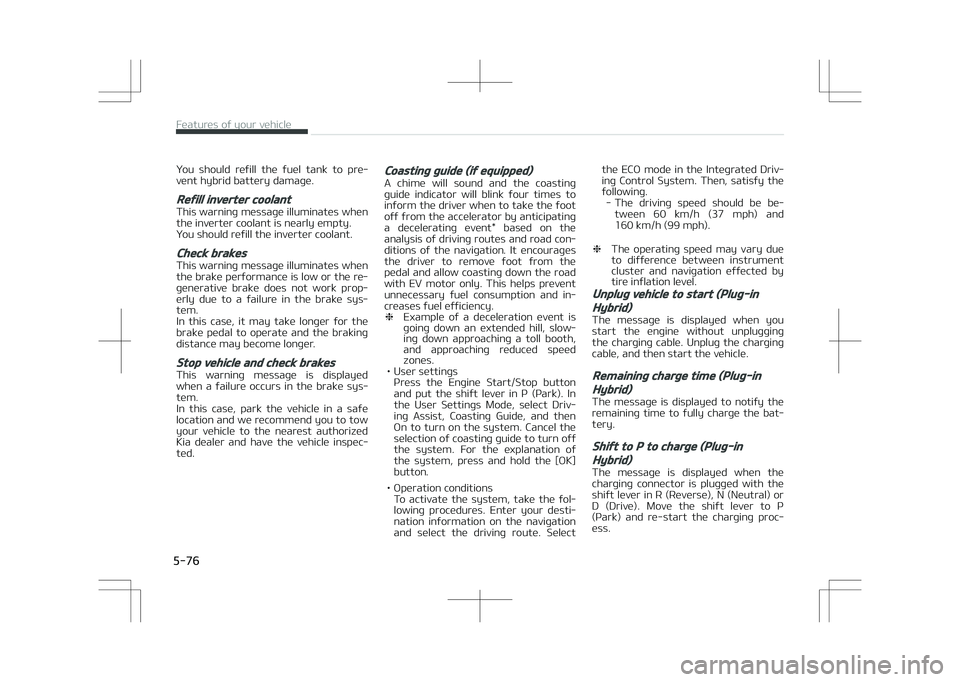

You should refill the fuel tank to pre‐
vent hybrid battery damage.
Refill inverter coolant
This warning message illuminates when
the inverter coolant is nearly empty.
You should refill the inverter coolant.
Check brakes
This warning message illuminates when
the brake performance is low or the re‐ generative brake does not work prop‐
erly due to a failure in the brake sys‐
tem.
In this case, it may take longer for the brake pedal to operate and the braking
distance may become longer.
Stop vehicle and check brakes
This warning message is displayed
when a failure occurs in the brake sys‐ tem.
In this case, park the vehicle in a safe
location and we recommend you to tow
your vehicle to the nearest authorized Kia dealer and have the vehicle inspec‐
ted.
Coasting guide (if equipped)
A chime will sound and the coasting
guide indicator will blink four times to inform the driver when to take the foot
off from the accelerator by anticipating
a decelerating event* based on the analysis of driving routes and road con‐
ditions of the navigation. It encourages
the driver to remove foot from the pedal and allow coasting down the road
with EV motor only. This helps prevent
unnecessary fuel consumption and in‐ creases fuel efficiency. ❈ Example of a deceleration event is
going down an extended hill, slow‐ ing down approaching a toll booth,
and approaching reduced speed
zones.
• User settings
Press the Engine Start/Stop button
and put the shift lever in P (Park). In
the User Settings Mode, select Driv‐
ing Assist, Coasting Guide, and then On to turn on the system. Cancel the
selection of coasting guide to turn off
the system. For the explanation of
the system, press and hold the [OK]
button.
• Operation conditions To activate the system, take the fol‐
lowing procedures. Enter your desti‐
nation information on the navigation
and select the driving route. Select the ECO mode in the Integrated Driv‐
ing Control System. Then, satisfy the
following. - The driving speed should be be‐ tween 60 km/h (37 mph) and
160 km/h (99 mph).
❈ The operating speed may vary due
to difference between instrument
cluster and navigation effected by
tire inflation level.
Unplug vehicle to start (Plug-in
Hybrid)
The message is displayed when you
start the engine without unplugging
the charging cable. Unplug the charging
cable, and then start the vehicle.
Remaining charge time (Plug-in
Hybrid)
The message is displayed to notify the
remaining time to fully charge the bat‐ tery.
Shift to P to charge (Plug-in
Hybrid)
The message is displayed when the
charging connector is plugged with the
shift lever in R (Reverse), N (Neutral) or
D (Drive). Move the shift lever to P
(Park) and re-start the charging proc‐ ess.
Features of your vehicle
5-76

REARVIEW CAMERA (IF EQUIPPED)
0+')
The rearview camera will activate when
the back-up light is ON with the ignition switch ON and the shift lever in the R
(Reverse) position. This system is a supplemental system
that shows behind the vehicle through the rearview display mirror while back‐
ing up.
WARNING
•This system is a supplementaryfunction only. It is the responsibili‐ty of the driver to always checkthe inside/outside rearview mirrorand the area behind the vehiclebefore and while backing up be‐cause there is a dead zone thatcan't be seen by the camera.
•Always keep the camera lensclean. If the lens is covered withforeign matter, the camera maynot operate normally.
❈ If your vehicle is equipped with AVN
(Audio, Video and Navigation) sys‐
tem, rearview display will show be‐
hind the vehicle through the AVN
monitor while backing up. Refer to
a separately supplied manual for
detailed information.
Features of your vehicle
5-112

SPEED LIMIT INFORMATION FUNCTION (SLIF) (IF EQUIPPED)
06.
The system displays the information of
speed limit and no passing restriction to the driver in both the instrument
cluster and navigation screen. SLIF de‐
tects traffic signs with camera system attached on the top of the windscreen.
The SLIF also utilizes the navigation in‐
formation to display the speed limit in‐
formation.
WARNING
•Speed Limit Information Functionis only an aid and is not alwaysable to correctly display speed lim‐its and overtaking restrictions.
•The driver always keeps the re‐sponsibility not to exceed themaximum allowed speed.
•Do not place any accessories,stickers or tint the windshield nearthe rearview mirror.
•The system detects traffic signsand displays speed limit informa‐tion by a camera therefore, if traf‐fic signs are hard to detect, thesystem may not work properly.Please refer to L

Operation
0+'-
• If a traffic sign that is relevant toyour vehicle is passed, the system
displays the information of the speed limits and no passing restrictions to
the driver.
• When the driver turns on the ignition, the system displays stored informa‐
tion of the speed limit before turning
off the ignition. • Sometimes different speed limits are
displayed for the same road. The in‐
formation displayed is depending on
the situation. Because, traffic signs
with additional sign (e.g rainy, ar‐
row...) are also detected and com‐ pared with vehicle interior data (e.g
wiper operation, turn signal...).
• The system can update the speed limit information without visible
speed limit signs in the following sit‐ uations. - When you change your driving di‐ rection with right or left or U turn‐ ing.
- When vehicle changes roads. (e.g. from highway to country road…)
- When you enter or exit into town or village.
NOTICE
If speed limit value has the differ‐
ence between cluster and naviga‐
tion, check the speed unit setting in
navigation.
Display
/P
SFMJBCMF
TQFFE
MJNJU
JOGPSNBUJPO
86.
• If the system doesn’t have a reliablespeed limit information, the following
symbol is displayed in both the in‐ strument cluster and navigation
screen.
/P
QBTTJOH
JOGPSNBUJPO
86.86.
• If the system detects no passing sign,no passing is displayed in both the in‐
strument cluster and navigation
screen.
Driving your vehicle
7-56

• Broken LED traffic signs.
• Poor weather like snow, rain, fog.
• Reflected glare around and/or on thetraffic sign.
• There is insufficient illumination of the traffic signs in the night.
• There is bright lights around traffic signs.
• There is dirt, ice or frost on the wind‐ shield in the area of the camera.
• When camera field of view is covered by objects such as a sticker, paper,
leaf fall.
• When driving very close to the vehicle in front of you.
• When navigation system has mal‐ function.
• When bus or trucks attached with a speed sticker are passing you.
• When you are at a certain location not covered by the navigation sys‐
tem.
• When the navigation system is not updated to the latest map version.Driver's attention
The driver must be cautious in the be‐
low situations for the system may not assist the driver and may not work
properly. • Do not stick or attach anything to the windshield in front of the camera as
this may reduce effectiveness or cause one more of the systems de‐
pendent on the camera to stop work‐
ing.
• Keep the windshield in the area be‐ hind the interior rear view mirror
clean.
• Do not place reflective materials, such as white paper or a mirror, on
the instrument panel.
• Do not strike or damage the areas around the camera unit.
• Do not touch the camera lens or re‐ move the screw located on the cam‐era unit.
• The system does not work in all sit‐ uations but is designed merely as a
supplementary aid.
• The system assists the driver and does not replace the human eye. • The driver always bears ultimate re‐
sponsibility for ensuring that the ve‐hicle is driven safely and that applica‐
ble road traffic rules and regulations
are followed.
Driving your vehicle
7-58

NOTICE
If there is a malfunction with the
TPMS, the low tire pressure position
telltale will not be displayed even
though the vehicle has an under-in‐
flated tire.
CAUTION
•The TPMS malfunction indicatormay blink for approximately 1 mi‐nute and then remain continuouslyilluminated if the vehicle is movingaround electric power supply ca‐bles or radio transmitters such asat police stations, government andpublic offices, broadcasting sta‐tions, military installations, air‐ports, or transmitting towers, etc.This can interfere with normal op‐eration of the Tire Pressure Moni‐toring System (TPMS).
(Continued)
(Continued)
•The TPMS malfunction indicatormay blink for approximately 1 mi‐nute and then remain continuouslyilluminated if snow chains are usedor some separate electronic devi‐ces such as notebook computer,mobile charger, remote starter ornavigation etc., are used in the ve‐hicle.This can interfere with normal op‐eration of the Tire Pressure Moni‐toring System (TPMS).
Changing a tire with TPMS
If you have a flat tire, the low Tire
Pressure and Position telltales will come on. We recommend that the sys‐
tem be checked by an authorized Kia
dealer.
CAUTION
We recommend that you use thesealant approved by Kia.The sealant on the tire pressuresensor and wheel shall be eliminatedwhen you replace the tire with a newone.
Each wheel is equipped with a tire pres‐
sure sensor mounted inside the tire be‐ hind the valve stem. You must use
TPMS specific wheels. It is recommen‐
ded that you have your tires serviced by an authorized Kia dealer.
If you drive the vehicle for about 10 mi‐
nutes at speeds above 25 km/h after
replacing the low pressure tire with the spare tire, one of the following will hap‐
pen: • The TPMS malfunction indicator may blink for approximately 1 minute and
then remain continuously illuminated because the TPMS sensor is not
mounted on the spare wheel.
(changed tire equipped with a sensor
not in the vehicle)
• The TPMS malfunction indicator will remain continuously illuminated whiledriving because the TPMS sensor is
not mounted on the spare wheel.
(changed tire equipped with a sensor
in the vehicle)
What to do in an emergency
8-12
