2017 KIA OPTIMA PLUG-IN HYBRID brake sensor

-There is a group of pedestrians.
WARNING
•Cancel the AEB in the User Set‐tings on the LCD display, beforetowing another vehicle. While tow‐ing, the brake application may ad‐versely affect your vehicle safety.
•Pay great caution to the vehicle infront, when it has heavy loadingextended rearward, or when it hashigher ground clearance.
•The sensor only detects pedes‐trians, not carts, bicycles, motor‐cycles, luggage bags, or strollers.
•The AEB does not operate in a cer‐tain situation. Thus, never test-operate the AEB against a personor an object. It may cause a severeinjury or even death.
NOTICE
The system may temporarily cancel
due to the strong electric waves.
Driving your vehicle

7-46

Advanced smart cruise control will
be temporarily canceled when:
0+'-
Cancelled manually
The advanced smart cruise control is
temporarily canceled when the brake pedal is depressed or the CANCEL but‐
ton is pressed. The speed and vehicle to
vehicle distance indicator on the cluster is disappeared and the CRUISE indicator
is illuminated continuously.
Cancelled automatically
• The driver's door is opened.
• The shift lever is shifted to N (Neu‐ tral), R (Reverse) or P (Parking). • The EPB (electronic parking brake) is
applied.
• The vehicle speed is over 190 km/h (120 mph).
• The ESC, ABS or TCS is operating.
• The ESC is turned off.
• The sensor or the cover is dirty or blocked with foreign matter.
• When the vehicle is stopped for over 5 minutes.
• The driver starts driving by pushing the lever up (RES +) or down (SET -)
or depressing the accelerator pedal approximately 3 seconds after the
vehicle is stopped by the advanced
smart cruise control system with no
other vehicle ahead or a vehicle stop‐
ped far away in front.
• The accelerator pedal is continuously depressed for a long time.
• The engine RPM is in dangerous range.
• The SCC system has malfunctioned.
Each of these actions will cancel the
advanced smart cruise control opera‐
tion. (the set speed and vehicle to vehi‐
cle distance on the LCD display will go
off.) In a condition the advanced smart
cruise control is cancelled automatical‐
ly, the advanced smart cruise control
will not resume even though the RES+ or SET- lever is moved. Also, the EPB
(electronic parking brake) will be ap‐
plied when the vehicle is stopped. • When activating the ISG mode.
• When activating the AEB (Autono‐ mous Emergency Braking).
CAUTION
If the advanced smart cruise controlis cancelled by other than the rea‐sons mentioned, we recommendhave the system checked by an au‐thorized Kia dealer.
Driving your vehicle
7-62

CAUTION
If the vehicle ahead (vehicle speed:less than 30 km/h) disappears to thenext lane, the warning chime willsound and a message will appear.Adjust your vehicle speed for vehi‐cles or objects that can suddenly ap‐pear in front of you by depressingthe brake pedal according to theroad condition ahead and drivingcondition.
In traffic situation
0+'-
In traffic, your vehicle will stop if the
vehicle ahead of you stops. Also, if the vehicle ahead of you starts moving,
your vehicle will start as well. However,
if the vehicle stops for more than 3 seconds, you must depress the acceler‐
ator pedal or move up/down the lever
(to RES+ or SET-) to start driving.
Radar to detect distance to the
vehicle ahead
0+')1
The sensor detects the distance to the
vehicle ahead.
If the sensor is covered with dirt or
other foreign matter, the vehicle to ve‐
hicle distance control may not operate
correctly.
Always keep the area in front of the sensor clean.

7-67
7
Driving your vehicle

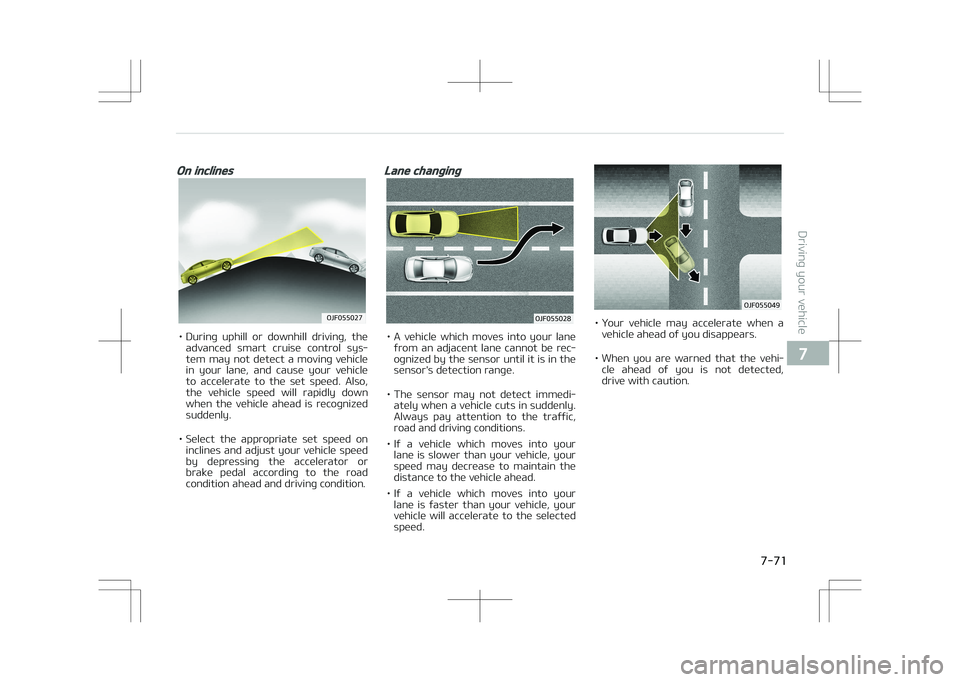

On inclines
0+'
• During uphill or downhill driving, theadvanced smart cruise control sys‐
tem may not detect a moving vehicle in your lane, and cause your vehicle
to accelerate to the set speed. Also,
the vehicle speed will rapidly down
when the vehicle ahead is recognized
suddenly.
• Select the appropriate set speed on inclines and adjust your vehicle speed
by depressing the accelerator or
brake pedal according to the road
condition ahead and driving condition.
Lane changing
0+'
• A vehicle which moves into your lane from an adjacent lane cannot be rec‐
ognized by the sensor until it is in the sensor's detection range.
• The sensor may not detect immedi‐ ately when a vehicle cuts in suddenly.
Always pay attention to the traffic,
road and driving conditions.
• If a vehicle which moves into your lane is slower than your vehicle, yourspeed may decrease to maintain the
distance to the vehicle ahead.
• If a vehicle which moves into your lane is faster than your vehicle, your
vehicle will accelerate to the selected
speed.
0+'
• Your vehicle may accelerate when a vehicle ahead of you disappears.
• When you are warned that the vehi‐ cle ahead of you is not detected,drive with caution.

7-71
7
Driving your vehicle

Vehicle recognition
0+'
Some vehicles ahead in your lane can‐
not be recognized by the sensor as fol‐ lows:
- Narrow vehicles such as motorcycles
or bicycles
- Vehicles offset to one side
- Slow-moving vehicles or sudden-de‐
celerating vehicles
- Stopped vehicles
- Vehicles with small rear profile such
as trailers with no loads A vehicle ahead cannot be recognized
correctly by the sensor if any of follow‐
ing occurs:
- When the vehicle is pointing upwards
due to overloading in the trunk
- While making turns by steering
- When driving to one side of the lane
- When driving on narrow lanes or on
curves
Adjust your vehicle speed by depressing
the brake pedal according to the road
condition ahead and driving condition.
0+'
• When vehicles are at a standstill and the vehicle in front of you changes to
the next lane, be careful when your vehicle starts to move because it may not recognize the stopped vehi‐
cle in front of you.
0+'
• Always look out for pedestrians when your vehicle is maintaining a distance
with the vehicle ahead.
Driving your vehicle
7-72

You may not be able to identify a low
tire by simply looking at it. Always use a good quality tire pressure gauge to
measure the tire's inflation pressure.
Please note that a tire that is hot (from being driven) will have a higher pres‐
sure measurement than a tire that is
cold (from sitting stationary for at least 3 hours and driven less than
1.6 km (1 mile) during that 3 hour peri‐
od).
Allow the tire to cool before measuring the inflation pressure. Always be sure
the tire is cold before inflating to the
recommended pressure.
A cold tire means the vehicle has been sitting for 3 hours and driven for less
than 1.6 km (1 mile) in that 3 hour peri‐od.
CAUTION
We recommend that you use thesealant approved by Kia if your vehi‐cle is equipped with a Tire PressureMonitoring System. The liquid seal‐ant can damage the tire pressuresensors.
WARNING
nTPMS
•The TPMS cannot alert you to se‐vere and sudden tire damagecaused by external factors such asnails or road debris.
•If you feel any vehicle instability,immediately take your foot off theaccelerator, apply the brakes grad‐ually and with light force, andslowly move to a safe position offthe road.
WARNING
nProtecting TPMS
Tampering with, modifying, or disa‐bling the Tire Pressure MonitoringSystem (TPMS) components may in‐terfere with the system's ability towarn the driver of low tire pressureconditions and/or TPMS malfunc‐tions. Tampering with, modifying, ordisabling the Tire Pressure Monitor‐ing System (TPMS) components mayvoid the warranty for that portion ofthe vehicle.
WARNING
nFor EUROPE
•Do not modify the vehicle, it mayinterfere with the TPMS function.
•The wheels on the market do nothave a TPMS sensor.For your safety, we recommendthat you use parts for replace‐ment from an authorized Kia deal‐er.
•If you use the wheels on the mar‐ket, use a TPMS sensor approvedby a Kia dealer.If your vehicle is not equipped witha TPMS sensor or TPMS does notwork properly, you may fail theperiodic vehicle inspection conduc‐ted in your country.❈All vehicles sold in the EUROPEmarket during below periodmust be equipped with TPMS.-New model vehicle:Nov. 1, 2012 ~
-Current model vehicle:Nov. 1, 2014 ~ (Based on vehi‐cle registrations)

8-13
8
What to do in an emergency

Instrument panel (Driver’s side fuse
panel)
Fuse NameSymbolFuse rat‐ingCircuit Protected
MODULE 7
10A Around View Monitor Unit, Front Air Ventilation Seat Control Module, Front
Seat Warmer Control Module, Rear Seat Warmer Control Module
MODULE 5
10A A/C Control Module, Electro Chromic Mirror, Driver IMS Module, Head Lamp
LH/RH, Auto Head Lamp Leveling Device Module, Fuel Lid & Trunk Open Switch,
Shift Lever Indicator, Front Air Ventilation Seat Control Module, Front Seat
Warmer Control Module, Rear Seat Warmer Control Module
MODULE 6
10A BCM, Smart Key Control Module
A/CON
10A A/C Control Module, E/R Junction Block (RLY. 4 - Blower Relay), Ionizer, Active
Incar Sensor, Electronic A/C Compressor
START
10A Transaxle Range Switch, Smart Key Control Module
A/BAG
15A SRS Control Module, Passenger Occupant Detection Sensor
MODULE 3
10A BCM, Stop Lamp Switch, AFLS Unit, Keyboard, VESS Unit, A/V & Navigation Head Unit, Sport Mode Switch
MODULE 4
10A Console Switch, Blind Spot Detection Radar LH/RH, Smart Parking Assist Con‐
trol Module, Smart Cruise Control Unit, Lane Keeping Assist Module, Active Air
Flap Unit, Electric Parking Brake Module, BMS Control Module
INTERIOR LAMP
10A Trunk Room Lamp, Driver/Passenger Door Lamp, Glove Box Lamp, Driver/
Passenger Smart Key Outside Handle, Front Vanity Lamp Switch LH/RH, Over‐
head Console Lamp, Rear Personal Lamp LH/RH, Driver/Passenger Foot Lamp,Room Lamp, Center Personal Lamp
MDPS
10A MDPS Unit (Column/Rack)
Maintenance
9-58

Fuse NameSymbolFuse ratingCircuit Protected
FUSE EPB1
130A Electric Parking Brake Module
H/Lamp Washer
30A RLY. 9 (H/Lamp Washer Relay)
B+4
40A Smart Junction Block (Leak Current Autocut Device Fuse - INTERI‐
OR LAMP, MULTI MEDIA, MEMORY2, MEMORY1, Fuse - MODULE1,
DR LOCK, SMART KEY, BRAKE SWITCH)
EPB 2
230A Electric Parking Brake Module
OPCU 1
OPCU120A Electric Oil Pump Unit
DEICER
20A RLY. 10 (Deicer Relay)
AMS
10A Battery Sensor
HEATED MIRROR
10A A/C Control Module, Driver/Passenger Power Outside Mirror
WIPER 2
210A BCM, PCM
H/LAMP HI
20A Not used
HEV ECU 1
HEV
ECU110A HPCU
OPCU2
OPCU110A Electric Oil Pump Unit
ELECTRICAL WATER PUMP
ELECTRICALWATERPUMP10A Electric Water Pump (HEV)
FUEL PUMP
20A Fuel Pump Relay
Maintenance
9-66
