2017 KIA NIRO Owners Manual

Maintenance
66
8
Fuse NameFuse ratingCircuit Protected
P/WINDOW RH25APower Window Right Handle side Relay, Driver/Passenger Safety Power Window Module
P/WINDOW LH25APower Window Left Handle side Relay, Driver/Passenger Safety Power Window Module
PDM 27.5A[Without Smart Key] Immobilizer Module
[With Smart Key] Smart Key Control Module, Start/Stop Button Switch
BRAKE SWITCH7.5AStop Lamp Switch
A/CON7.5AAir Conditioner Control Module, Ionizer, Engine Room Junction Block (Relay.1/2/12), Electronic Air
Conditioner Compressor
WASHER15AMultifunction Switch
S/HEATER (FRT)25AFront Seat Warmer Control Module, Front Air Ventilation Seat Control Module
BATTERY
MANAGEMENT10ABMS Control Module
P/SEAT (DRV)30A[Without Integrated memory system] Driver Seat Manual Switch
[With Integrated memory system] Driver Seat Manual Switch, Driver Integrated memory system Module
AMP30AAMP (Amplifier)
AMS10ABattery Sensor
MODULE 110AData Link Connector, Hazard Switch/Key Interlock, AEB Module, Driver Door Module, Passenger Door
Module, Driver Smart Key Outside Handle, Passenger Smart Key Outside Handle

867
Maintenance
Fuse NameFuse ratingCircuit Protected
DOOR LOCK20ADoor Lock/Unlock Relay, ICM Relay Box (Dead Lock Relay)
WIPER2 (FRT)10ABCM (Body Control Module), ECM (Engine Control Module)
MODULE 67.5ABCM (Body Control Module), Smart Key Control Module
S/HEATER(REAR)25ARear Seat Warmer Control Module
HEATED
MIRROR10AAir Conditioner Control Module, Driver/Passenger Power Outside Mirror
WIPER1 (FRT)30AWiper Motor, Printed Circuit Board Block (Front Wiper (Low) Relay

Maintenance
68
8

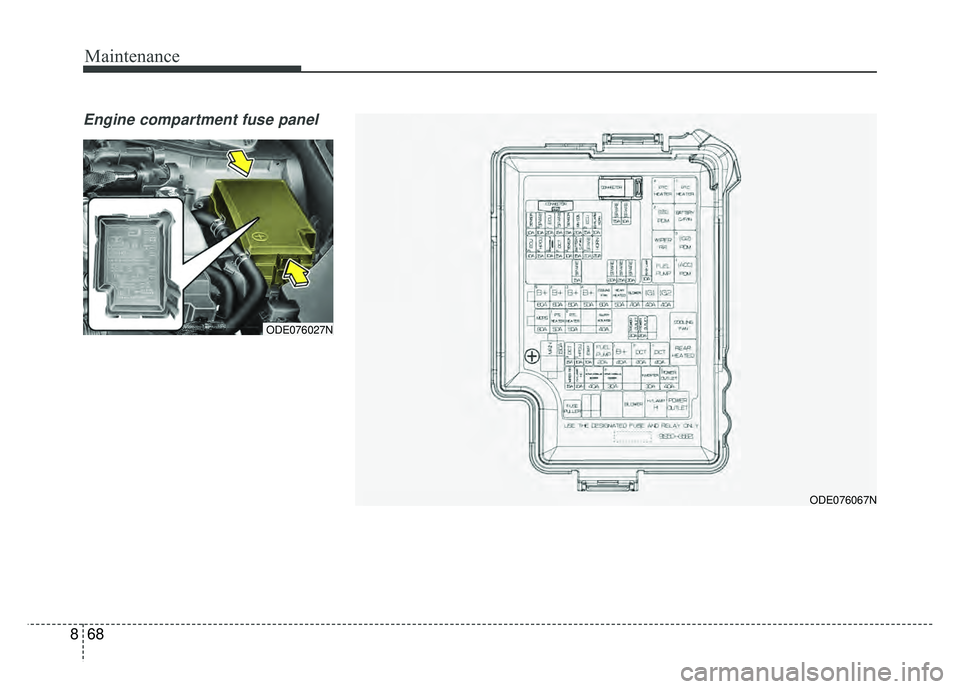

Engine compartment fuse panel
ODE076067N
ODE076027N

869
Maintenance
Engine room compartment fuse panel
Fuse NameFuse ratingCircuit Protected
MULTI FUSE
B+ 560APrinted Circuit Board Block (Fuse - F40, F41, F42, F49, F50, Engine Control Relay)
B+ 260AIntegrated Gateway Power control Module (Fuse - F47, ARISU(4CH), IPS(2CH), IPS(2CH))
B+ 360AIntegrated Gateway Power control Module(ARISU(4CH), IPS(2CH), IPS(2CH), IPS(2CH))
B+ 450AIntegrated Gateway Power control Module (Fuse - F24, F30, F31, F32, F38, F39, F40, F41,
F42)
COOLING FAN60ARelay.9
REAR HEATED50ARelay.10
BLOWER40ARelay.12
IG 140AIgnition Switch/ Engine Room Junction Block (Relay.3/8)
IG 240AIgnition Switch/ Engine Room Junction Block (Relay.6)
MDPS80AMDPS (Motor Driven Power Steering) Unit
PTC
HEATER 150ARelay
PTC
HEATER 250ARelay
CLUTCH
ACTUATOR40AClutch Actuator (HEV)
MAIN150AFuse - F26, F27, F28, F29, F31, F32, Low Voltage DC-DC Converter

Maintenance
70
8
Fuse NameFuse ratingCircuit Protected
FUSE
POWER
OUTLET 320APower Outlet #2
POWER
OUTLET 220APower Outlet #1
DCT 315ATCM (Transmission Control Module)
HPCU 110AHPCU
EWP10AElectric Water Pump (Engine)
B+ 140AIntegrated Gateway Power control Module (Fuse - F25, F33, F34, F43, F44, Leak Current
Autocut Device)
DCT 240ATCM (Transmission Control Module)
DCT 140ATCM (Transmission Control Module)
REAR WIPER15ARelay.5
HEAD LAMP HI10ARelay.13
AHB 140AIntegrated Brake Actuation Unit, Multipurpose Check Connector
AHB 230AIntegrated Brake Actuation Unit

871
Maintenance
Fuse NameFuse ratingCircuit Protected
FUSE
INVERTER30AAC Inverter Module
POWER
OUTLET140ARelay.14
B/UP LAMP10AAudio, Electro Chromic Mirror, Back-Up Lamp Left Handle side/Right Handle side
FUEL PUMP20AFuel Pump Relay

Maintenance
72
8
Fuse ratingFuse NameCircuit Protected
10AECU 3ECU
15AHPCU 2HPCU, Clutch Actuator (HEV)
10AACTIVE
HYDRAULIC BOOTER 3Integrated Brake Actuation Unit, Multipurpose Check Connector
15ADCT 4Dual clutch transmission Shift Lever, TCM (Transmission Control Module), Inhibitor Switch
10ASENSOR 3Fuel Pump Relay, Oil Control Valve #1/#2 (Intake/Exhaust), Camshaft Position Sensor #1/#2
(Intake/Exhaust)
15ABATTERY C/FANEngine Room Junction Block (Relay.4)
20AHORNHorn Relay
10ASENSOR 2Purge Control Solenoid Valve, Engine Room Junction Block (RLY.9), Mass Air Flow Sensor
20AECU 1ECU
Circuit (PCB Block)

873
Maintenance
Fuse ratingFuse NameCircuit Protected
15ASENSOR 1Oxygen Sensor (UP/DOWN)
20AIGN COILIgnition Coil #1~#4
15AECU 2ECM (Engine Control Module)
10AB/ALARM HORNBurglar Alarm Horn Relay
