Maintenance
110
8
3. Exhaust emission control
system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
whilst maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
If you use unauthorised electronic devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge or fire. For your
safety, do not use unauthorised
electric devices.
Engine exhaust gas precautions
(carbon monoxide)
Carbon monoxide can be present with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately. Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in orout of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage tothe emission control system.
WARNING - Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colourless and odourless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
following to avoid CO poison-ing.

8111
Maintenance
Operating precautions for catalyt-ic converters (if equipped)Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Make sure to refuel your vehicle according to the "Fuel require- ments" suggested in chapter 1.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse arecoasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any par t of the engine or emission con-
trol system. We recommend that the
system be inspected by an autho-
rised Kia dealer. Avoid driving with an extremely low
fuel level. Running out of fuel
cause the engine to misfire, dam-
aging the catalytic converter.
Failure to observe these precautionscould result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
WARNING - Fire
A hot exhaust system can ignite flammable items under
your vehicle. Do not park,
idle, or drive the vehicle over
or near flammable objects,
such as dry grass, paper,
leaves, etc.
The exhaust system and cat- alytic system are very hotwhilst the engine is running or
immediately after the engine
is turned off. Keep away from
the exhaust system and cat-
alytic. You may get burned.
Also, do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.

Diesel Particulate Filter (if equipped)
The Diesel Particulate Filter (DPF)
system removes the soot in the
exhaust gas.
Unlike a disposable air filter, the DPF
system automatically burns (oxidizes)
and removes the accumulated soot
according to the driving condition. In
other words, the active burning byengine control system and high
exhaust gas temperature caused by
normal/high driving condition burns
and removes the accumulated soot.
However, if the vehicle continues to
be driven at repeated short distance
or driven at low speed for a long
time, the accumulated soot may not
be automatically removed because
of low exhaust gas temperature.
More than a certain amount of sootdeposited, the malfunction indicator
light ( ) illuminates. When the malfunction indicator light
blinks, it may stop blinking by driving
the vehicle at more than 60 km/h (37mph) or at more than second gear
with 1500 ~ 2500 engine rpm for a
certain time (for about 25 minutes). If the malfunction indicator light ( )
continues to be blinked or the warn-
ing massage “Check exhaust system”
illuminates in spite of the procedure,
please visit an authorised Kia dealer
and the check the DPF system.
If you continue to drive with the mal-
function indicator light blinking for a
long time, the DPF system can bedamaged and fuel consumption can
be worsen.
Lean NOx Trap (if equipped)
The Lean NOx Trap (LNT) system
removes the nitrogen oxide in the
exhaust gas. The smell can occur in
the exhaust gas depending on the
quality of the fuel and it can degrade
NOx reduction performance, please
use the regulated automotive dieselfuel.
CAUTION -
Diesel Fuel
(if equipped with DPF)
It is recommended to use the regulated automotive diesel fuelfor diesel vehicle equipped with the DPF system.
If you use diesel fuel includinghigh sulfur (more than 50 ppmsulfur) and unspecified addi-tives, it can cause the DPF sys- tem to be damaged and whitesmoke can be emitted.
8112
Maintenance

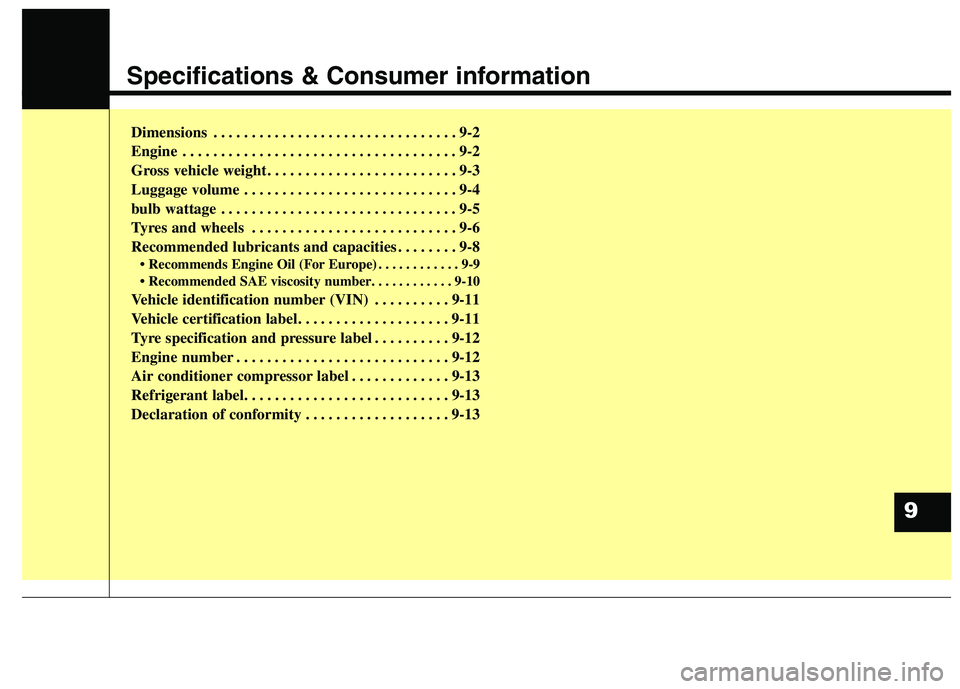

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 9-3
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4
bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
Tyres and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
Recommended lubricants and capacities . . . . . . . . 9-8• Recommends Engine Oil (For Europe) . . . . . . . . . . . . 9-9

Vehicle identification number (VIN) . . . . . . . . . . 9-11
Vehicle certification label. . . . . . . . . . . . . . . . . . . . 9-11
Tyre specification and pressure label . . . . . . . . . . 9-12
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12
Air conditioner compressor label . . . . . . . . . . . . . 9-13
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
Declaration of conformity . . . . . . . . . . . . . . . . . . . 9-13
9

Specifications & Consumer information
2
9
DIMENSIONS ENGINE
Item Petrol 1.6L Petrol 2.0L Diesel 1.7L
Displacement cc (cu. in) 1,591
(97.09) 1,999
(121.99) 1,685
(102.83)
Bore x Stroke mm (in.)77x85.4
(3.03x3.36) 81x97
(3.19x3.82) 77.2x90
(3.04x3.54)
Firing order 1-3-4-2 1-3-4-2 1-3-4-2
No. of cylinders 4, In-line 4, In-line 4, In-line
Item mm (in)
Overall length 4,525 (178.1)
Overall width 1,805 (71.1)
Overall height 1,610 (63.4)
Front tread 205/55 R16 1,573 (61.9)
225/45 R17 1,569 (61.8)
225/45 R18 1,563 (61.5)
Rear tread 205/55 R16 1,586 (62.4)
225/45 R17 1,582 (62.3)
225/45 R18 1,576 (62.0)
Wheelbase 2,750 (108.3)

93
Specifications & Consumer information

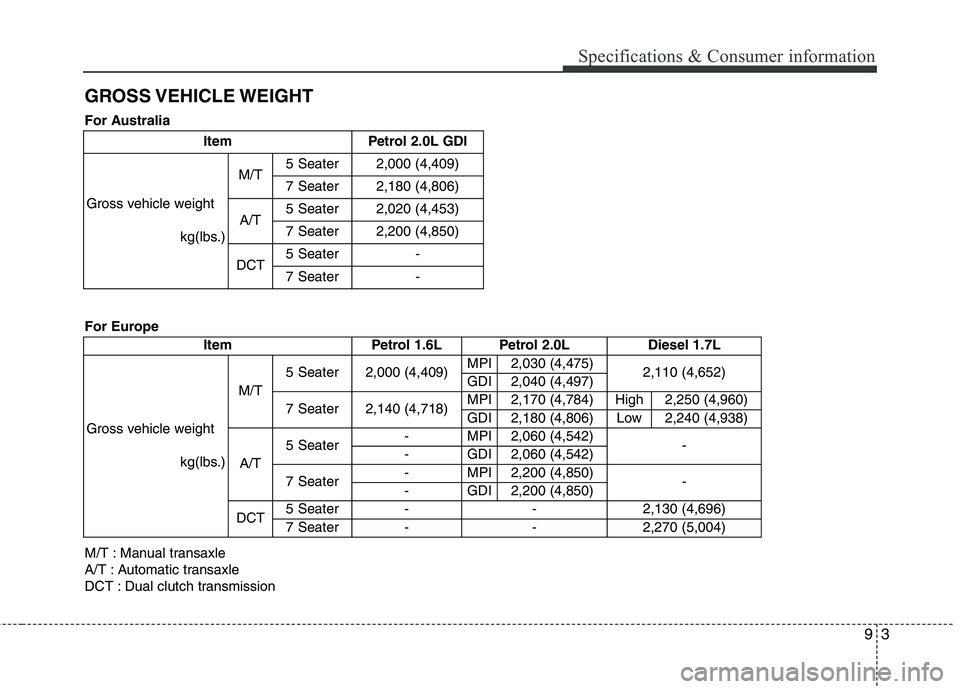

GROSS VEHICLE WEIGHT
Item Petrol 2.0L GDI
Gross vehicle weight kg(lbs.)M/T
5 Seater 2,000 (4,409)
7 Seater 2,180 (4,806)
A/T 5 Seater 2,020 (4,453)
7 Seater 2,200 (4,850)
DCT 5 Seater -
7 Seater -
For Australia
Item Petrol 1.6L Petrol 2.0L
Diesel 1.7L
Gross vehicle weight kg(lbs.)M/T
5 Seater 2,000 (4,409)
MPI 2,030 (4,475)
2,110 (4,652)
GDI 2,040 (4,497)
7 Seater 2,140 (4,718) MPI 2,170 (4,784)
High 2,250 (4,960)
GDI 2,180 (4,806)
Low 2,240 (4,938)
A/T 5 Seater
- MPI 2,060 (4,542)
-
- GDI 2,060 (4,542)
7 Seater - MPI 2,200 (4,850)
-
- GDI 2,200 (4,850)
DCT 5 Seater - -
2,130 (4,696)
7 Seater - -
2,270 (5,004)
For Europe
M/T : Manual transaxle
A/T : Automatic transaxle
DCT : Dual clutch transmission

Specifications & Consumer information
4
9
ltem 5 Seater 7 Seater
VDA MIN.
536
l(18.9 cu ft) 492 l(17.4 cu ft)
MAX. 1,694
l(59.8 cu ft) 1,650 l(58.3 cu ft)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof. Item Petrol 1.6L Petrol 2.0L Diesel 1.7L
Gross vehicle weight kg(lbs.)M/T
5 Seater 1,990 (4,387)
MPI 2,030 (4,475)
2,100 (4,630)
GDI -
7 Seater 2,150 (4,740) MPI 2,180 (4,806)
2,240 (4,938)
GDI -
A/T 5 Seater 2,020 (4,453)
MPI 2,050 (4,519)
-
GDI -
7 Seater 2,150 (4,740) MPI 2,210 (4,872)
-
GDI -
DCT 5 Seater - MPI - 2,100 (4,630)
7 Seater - GDI - 2,240 (4,938)
Except Europe

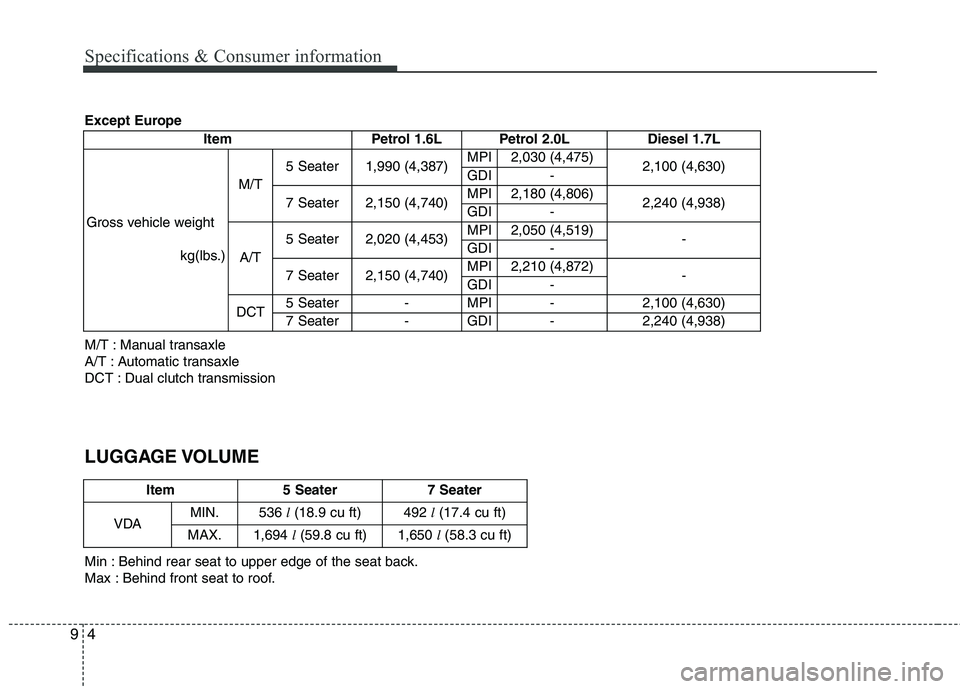

LUGGAGE VOLUME
M/T : Manual transaxle
A/T : Automatic transaxle
DCT : Dual clutch transmission

95
Specifications & Consumer information
BULB WATTAGELight Bulb Wattage Bulb type
Front Headlamps (Low) 55 H7L
Headlamps (Low) - HID type* 35 D3S
Headlamps (High) 55 H7L
Front turn signal lamps* 21 PY21W
Front position lamps* LED LED
Front fog lamps* 35 H8LL
Side Repeater lamps* 5 WY5W
Static bending lamps* 55 H7L
Daytime running lamps* LED LED
Rear Rear fog lamps* 21 P21W
Bulb type Rear Stop/Tail lamps (outside) 21/5 P21/5W
Rear tail lamps (Inside) 5 P21/5W
LED type Rear Stop/Tail lamps (outside) LED LED
Rear tail lamps (Inside) LED LED
Rear turn signal lamps 21 PY21W
Back-up lamps 16 W16W
High mounted stop lamp* LED LED
License plate lamps 5 W5W
Interior Map lamps 10 or LED 10W or LED Room lamps
10 10W
LEDLED
Vanity mirror lamps5FESTOON
Luggage lamp 5 or LED FESTOON or LED
Portable lamp* LED LED
* If equipped
Type A Type B
