2017 KIA CARENS RHD window

437
Features of your vehicle
When the power window lock switch is pressed:
The driver's master control canoperate all the power windows.
The front passenger's control can operate the front passenger's
power window.
The rear passenger's control can- not operate the rear passenger's
power window.
WARNING - Windows
NEVER leave the keys in your vehicle with unsupervised
children, when the Engine isrunning.
NEVER leave any child unat- tended in the vehicle. Even
very young children may inad-
vertently cause the vehicle to
move, entangle themselves in
the windows, or otherwise
injure themselves or others.
Always double check to make sure all arms, hands, headand other obstructions are
safely out of the way before
closing a window.
Do not allow children to play with the power windows. Keep
the driver’s door power window
lock switch in the LOCK posi-
tion (pressed). Serious injury
can result from unintentional
window operation by the child.
Do not extend face or arms out- side the window whilst driving.
CAUTION
To prevent possible damage
to the power window system,do not open or close two win-dows or more at the sametime. This will also ensure the longevity of the fuse.
Never try to operate the main switch on the driver's doorand the individual door win-dow switch in opposing direc- tions at the same time. If this isdone, the window will stop andcannot be opened or closed.

Features of your vehicle
52
4
Inside rearview mirror
Adjust the rearview mirror so that the
centre view through the rear window
is seen. Make this adjustment before
you start driving.Day/night rearview mirror
(if equipped)
Make this adjustment before you
start driving and whilst the day/night
lever (3) is in the day position.
Pull the day/night lever (3) toward
you to reduce glare from the head-
lights of vehicles behind you during
night driving.
Remember that you lose somerearview clarity in the night position.
❈ (1) : Day, (2) : Night
MIRRORS
WARNING -
Rear visibility
Do not place objects in the rear
seat or cargo area which would
interfere with your vision out
the rear window.
WARNING
Do not adjust the rearview mir-
ror whilst the vehicle is moving.This could result in loss of con-
trol, and an accident which
could cause death, serious
injury or property damage.
WARNING
Do not modify the inside mirror
and do not install a wide mirror.
It could result in injury, during
an accident or deployment of
the air bag.
ORP046320L

4121
Features of your vehicle
Auto light (if equipped)
When the light switch is in the AUTO light position, the taillights and head-
lights will be turned ON or OFF auto-matically depending on the amount
of light outside the vehicle.High - beam operation
1. Turn the light switch to the head-
light position.
2. Push the lever away from you.
CAUTION
Never place anything over the sensor (1) located on the instru-ment panel, this will ensure bet-ter auto-light system control.
Don’t clean the sensor using a window cleaner, the cleanermay leave a light film which could interfere with sensoroperation.
If your vehicle has window tint or other types of coating on thefront windscreen, the Auto light system may not work properly.
ORP042119
ORP042119R
■ Type A
■Type BORP042118
ORP042118R
■ Type A
■Type B

4127
Features of your vehicle

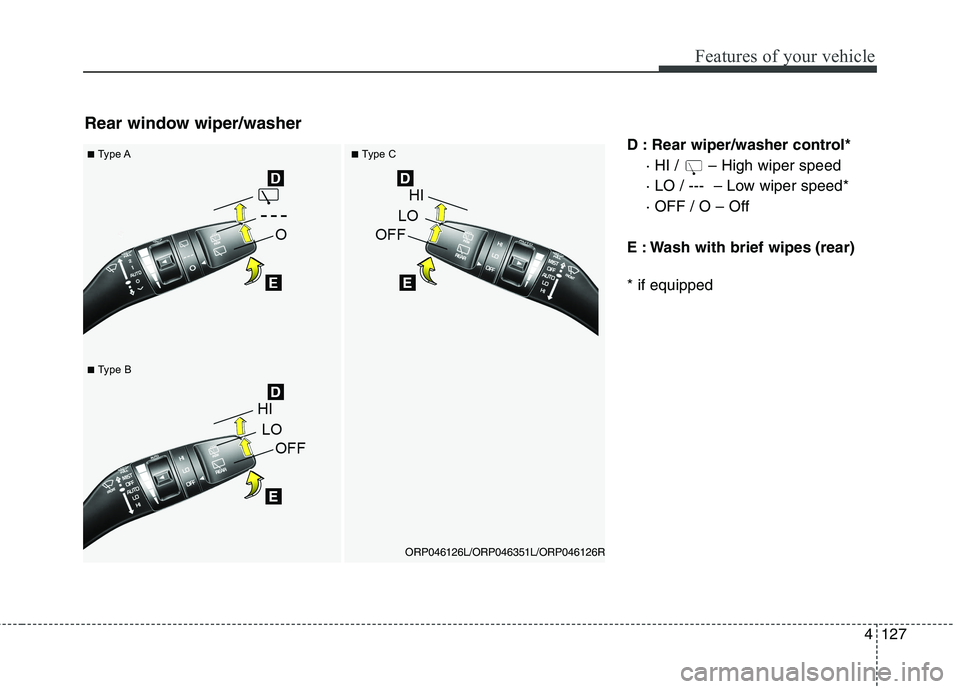

D : Rear wiper/washer control*· HI / – High wiper speed
· LO / --- – Low wiper speed*· OFF / O – Off
E : Wash with brief wipes (rear) * if equipped
Rear window wiper/washer
■ Type A■Type C
ORP046126L/ORP046351L/ORP046126R
■Type B

4133
Features of your vehicle
Rear window wiper and washer
switch
The rear window wiper and washer
switch is located at the end of the
wiper and washer switch lever. Turn
the switch to the desired position to
operate the rear wiper and washer.HI / - High wiper speed
LO / --- - Low wiper speed (if equipped)
OFF / O - Wiper is not in operation
Push the lever away from you to
spray rear washer fluid and to run the
rear wipers 1~3 cycles. The spray
and wiper operation will continue
until you release the lever.
ORP046130L
ORP046130R
■Type A
■Type B
ORP046129L
ORP046129R
■ Type A
■Type B

Features of your vehicle
138
4
✽✽
NOTICE
If you want to defrost and defog the
front windscreen, refer to
“Windscreen Defrosting and
Defogging” in this chapter.

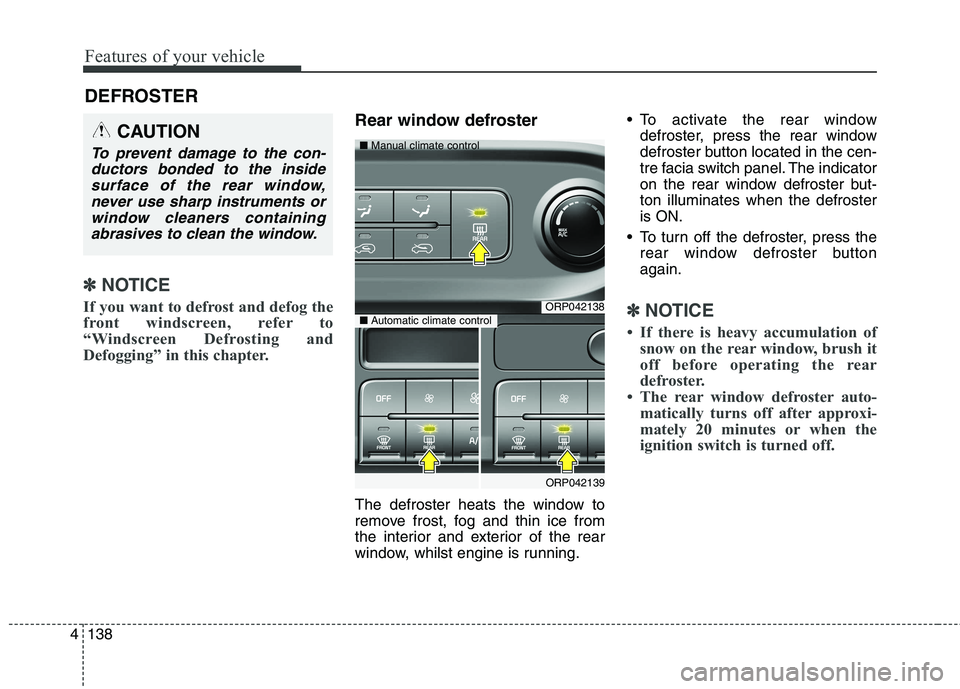

Rear window defroster
The defroster heats the window to
remove frost, fog and thin ice from
the interior and exterior of the rear
window, whilst engine is running. To activate the rear window
defroster, press the rear window
defroster button located in the cen-
tre facia switch panel. The indicator
on the rear window defroster but-ton illuminates when the defrosteris ON.
To turn off the defroster, press the rear window defroster buttonagain.
✽✽ NOTICE
 If there is heavy accumulation of snow on the rear window, brush it
off before operating the rear
defroster.
 The rear window defroster auto- matically turns off after approxi-
mately 20 minutes or when the
ignition switch is turned off.
DEFROSTER
CAUTION
To prevent damage to the con-
ductors bonded to the insidesurface of the rear window, never use sharp instruments orwindow cleaners containingabrasives to clean the window.
ORP042138
ORP042139
■
Manual climate control
■Automatic climate control

4139
Features of your vehicle

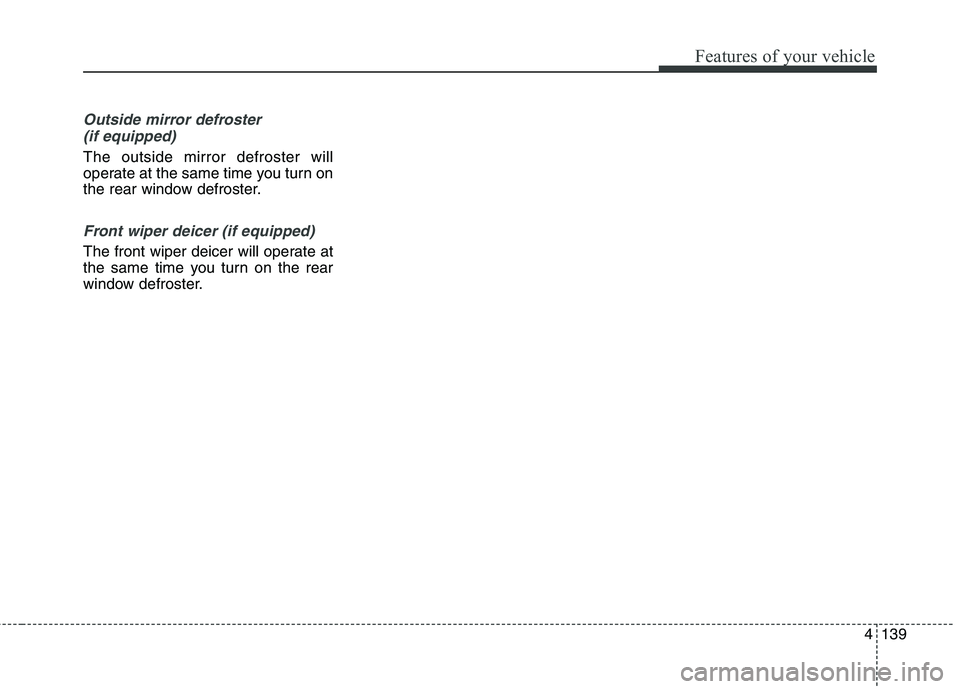

Outside mirror defroster (if equipped)
The outside mirror defroster will
operate at the same time you turn on
the rear window defroster.
Front wiper deicer (if equipped)
The front wiper deicer will operate at
the same time you turn on the rear
window defroster.

Features of your vehicle
140
4

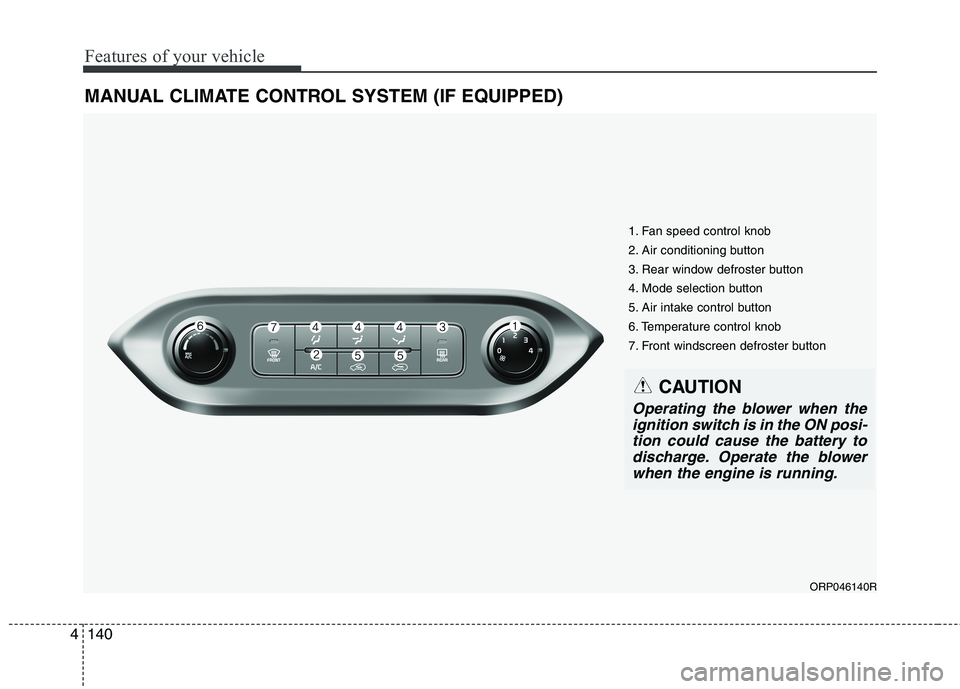

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
ORP046140R
1. Fan speed control knob
2. Air conditioning button
3. Rear window defroster button
4. Mode selection button
5. Air intake control button
6. Temperature control knob
7. Front windscreen defroster button
CAUTION
Operating the blower when the
ignition switch is in the ON posi-tion could cause the battery todischarge. Operate the blower when the engine is running.
