2017 KIA CARENS RHD headrest

321
Safety features of your vehicle

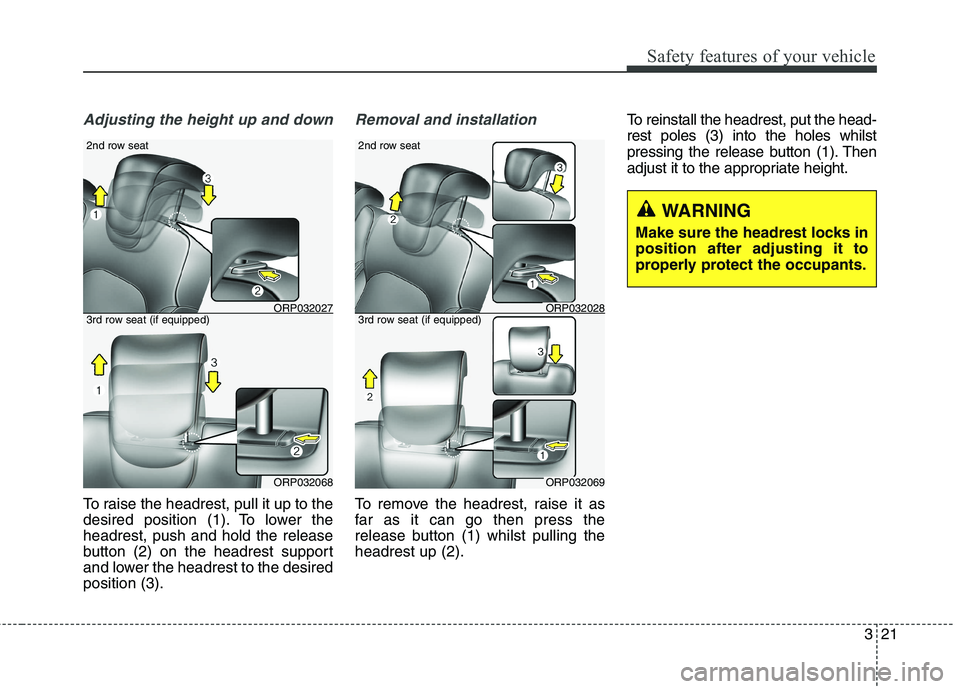

Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower theheadrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desiredposition (3).
Removal and installation
To remove the headrest, raise it as
far as it can go then press the
release button (1) whilst pulling theheadrest up (2).To reinstall the headrest, put the head- rest poles (3) into the holes whilst
pressing the release button (1). Then
adjust it to the appropriate height.
WARNING
Make sure the headrest locks in position after adjusting it to
properly protect the occupants.
ORP032068
ORP032027
2nd row seat
3rd row seat (if equipped)
ORP032069
ORP032028
2nd row seat
3rd row seat (if equipped)

Safety features of your vehicle
42
3

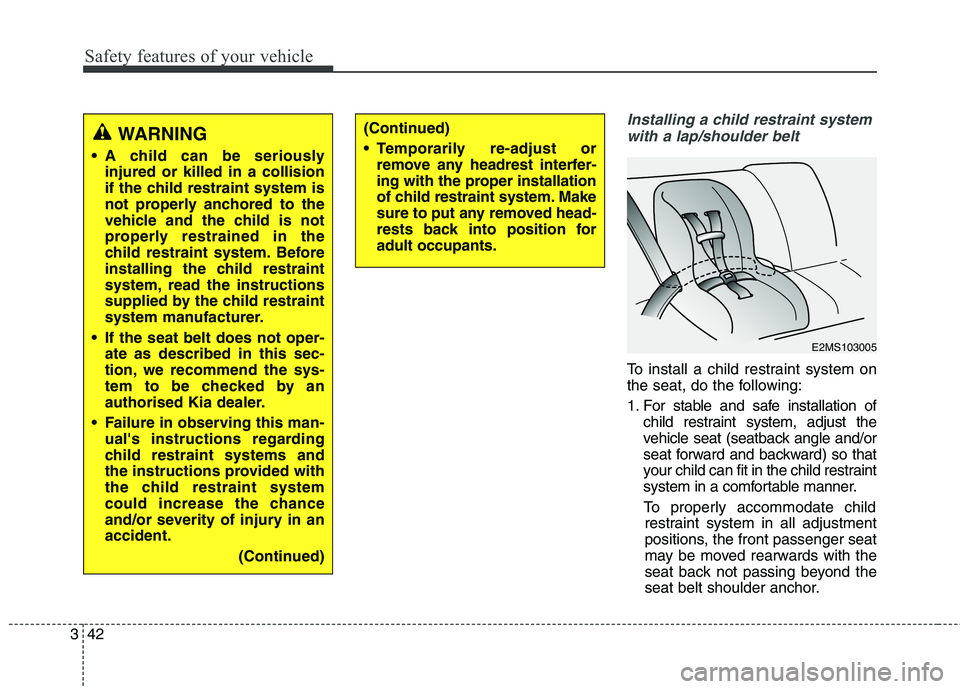

Installing a child restraint system
with a lap/shoulder belt
To install a child restraint system on
the seat, do the following:
1. For stable and safe installation of child restraint system, adjust the
vehicle seat (seatback angle and/or
seat forward and backward) so that
your child can fit in the child restraint
system in a comfortable manner.
To properly accommodate child restraint system in all adjustment
positions, the front passenger seat
may be moved rearwards with the
seat back not passing beyond the
seat belt shoulder anchor.
WARNING
A child can be seriously injured or killed in a collision
if the child restraint system is
not properly anchored to the
vehicle and the child is not
properly restrained in the
child restraint system. Before
installing the child restraint
system, read the instructions
supplied by the child restraint
system manufacturer.
If the seat belt does not oper- ate as described in this sec-
tion, we recommend the sys-
tem to be checked by an
authorised Kia dealer.
Failure in observing this man- ual's instructions regarding
child restraint systems and
the instructions provided with
the child restraint system
could increase the chance
and/or severity of injury in anaccident.
(Continued)(Continued)
Temporarily re-adjust orremove any headrest interfer-
ing with the proper installation
of child restraint system. Make
sure to put any removed head-
rests back into position foradult occupants.
E2MS103005

Safety features of your vehicle
46
3
Securing a child restraint system
with top tether anchor system (if equipped)
* : if equipped
Child restraint system top tether
anchorages are located on the back
of the rear seatbacks. This symbol indicates the position of the tether
anchor.
1. Route the child restraint systemtop tether over the seatback.
For vehicles with adjustable head-
rest, route the top tether strap
under the headrest and between
the headrest posts, otherwise route
the top tether over the top of the
seatback. In case of interference
between the child restraint system
and the headrest remove the par-
ticular head restraint for better fit-
ment of the child restraint system.
2. Connect and tighten the top tether to the corresponding child restraint
system to secure the child restraintsystem.
ORP032038
ORP032037
ORP032037L
■Type A
■Type B
