Driving your vehicle
12
6
START/RUN
To start the engine, depress the
brake pedal and press the engine
start/stop button with the shift lever in
the P (Park) or the N (Neutral) posi-
tion. For your safety, start the engine
with the shift lever in the P (Park)position.
✽✽
NOTICE
If you press the engine start/stop
button without depressing the brake
pedal, the engine will not start and
the engine start/stop button changes
as follow:
OFF ➔
➔
ACC ➔➔
ON ➔➔
OFF or ACC
✽
✽
NOTICE
If you leave the engine start/stop
button in the ACC or ON position
for a long time, the battery will dis-
charge.
WARNING
Never press the engine start/stop button while the
vehicle is in motion. This
would result in loss of direc-
tional control and braking
function, which could causean accident.
The anti-theft steering column lock is not a substitute for the
parking brake. Before leaving
the driver's seat, always make
sure the shift lever is engaged
in P (Park), set the parking
brake fully and shut the
engine off. Unexpected and
sudden vehicle movement
may occur if these precau-tions are not taken.
(Continued)
Not illuminated
(Continued)
Never reach for the enginestart/ stop button or any other
controls through the steering
wheel while the vehicle is in
motion. The presence of yourhand or arm in the area could
cause loss of vehicle control,an accident and serious bodi-
ly injury or death.
Do not place any movable objects around the driver's
seat as they may move while
driving, interfere with the driv-er and lead to an accident.

613
Driving your vehicle
Starting the engineStarting the gasoline engine
1. Carry the smart key or leave itinside the vehicle.
2. Make sure the parking brake is firmly applied.
3. Place the transaxle shift lever in P (Park). Depress the brake pedal
fully.
You can also start the engine
when the shift lever is in the N(Neutral) position.
4. Press the engine start/stop button.
It should be started without
depressing the accelerator.
5. Do not wait for the engine to warm up while the vehicle remains sta-
tionary.
Start driving at moderate engine
speeds. (Steep accelerating and
decelerating should be avoided.)
Starting the diesel engine
To start the diesel engine when the engine is cold, it has to be pre-heat-
ed before starting the engine and
then have to be warmed up before
starting to drive.
1. Make sure the parking brake isapplied.
2. Place the transaxle shift lever in P (Park). Depress the brake pedal
fully.
You can also start the engine
when the shift lever is in the N(Neutral) position.
WARNING
Always wear appropriate shoes when operating your
vehicle. Unsuitable shoes
(high heels, ski boots,etc.)
may interfere with your abilityto use the brake and accelera-tor pedal.
Do not start the vehicle with the accelerator pedal
depressed. The vehicle can
move and lead to an accident.
Wait until the engine rpm is normal. The vehicle may sud-
denly move if the brake padelis released when the rpm ishigh.

Driving your vehicle
14
6
3. Press the engine start/stop button
while depressing the brake pedal.
4. Continue depressing the brake pedal until the illuminated glow
indicator goes off. (approximately5 seconds)
5. The engine starts running when the glow indicator goes off.
✽✽
NOTICE
If the engine start/stop button is
pressed once more while the engine
is pre-heating, the engine may start.
Starting and stopping the engine for
turbocharger intercooler
1. Do not race or accelerate the engine immediately after starting.
If the engine is cold, idle for sever-
al seconds before sufficient lubri-cation is ensured in the tur-bocharger unit.
2. After high speed or extended driv- ing, requiring a heavy engine load,
idle the engine about 1 minute
before turning it off.
This idle time will allow the tur- bocharger to cool prior to shutting
the engine off. Even if the smart key is in the vehi-
cle, if it is far away from you, the
engine may not start.
When the engine start/stop button is in the ACC position or above, if
any door is opened, the system
checks for the smart key. If the
smart key is not in the vehicle, a
message “Key is not in the vehicle”
will appear on the LCD display. Andif all doors are closed, the chime
will sound for 5 seconds. The indi-
cator or warning will turn off while
the vehicle is moving. Always have
the smart key with you.
W-60
Glow indicator light
CAUTION
Do not turn the engine off imme-
diately after it has been subject-ed to a heavy load. Doing so may cause severe damage tothe engine or turbocharger unit.

615
Driving your vehicle
✽✽
NOTICE
 If the battery is weak or the smart key does not work correctly, you
can start the engine by pressing
the engine start/stop button with
the smart key.
The side with the lock button
should be contacted directly.
When you press the engine
start/stop button directly with the
smart key, the smart key should
contact the button at a right angle. (Continued) (Continued)
 When the stop lamp fuse is blown,
you cannot start the engine nor-
mally.
Replace the fuse with a new one. If
it is not possible, you can start the
engine by pressing the engine
start/stop button for 10 seconds
while it is in the ACC position. The
engine can start without depress-
ing the brake pedal. But for your
safety always depress the brake
pedal before starting the engine.
WARNING
The engine will start, only when
the smart key is in the vehicle.
Never allow children or any per- son who is unfamiliar with the
vehicle touch the engine
start/stop button or related
parts.
CAUTION
If the engine stalls while the vehicle is in motion, do notattempt to move the shift lever
to the P (Park) position. If thetraffic and road conditions per-mit, you may put the shift lever in the N (Neutral) position whilethe vehicle is still moving andpress the engine start/stop but- ton in an attempt to restart theengine.
OHM056050
CAUTION
Do not press the engine start/stop button for more than10 seconds except when thestop lamp fuse is blown.

Driving your vehicle
42
6
ESC operation
ESC ON condition
ON, ESC and ESC OFF
indicator lights illuminate for
approximately 3 seconds,
then ESC is turned on.
ton for at least half a sec-
ond after turning the igni-
tion ON to turn ESC off.(ESC OFF indicator will
illuminate). To turn theESC on, press the ESC
OFF button (ESC OFFindicator light will go off).
you may hear a slight tick-
ing sound. This is the ESC
performing an automatic
system self-check anddoes not indicate a prob-lem. When operating
When the ESC is in opera-tion, ESC indicator light
blinks.
Stability Control is operat-
ing properly, you can feel a
slight pulsation in the vehi-
cle. This is only the effect
of brake control and indi-
cates nothing unusual.
mud or slippery road, the
engine rpm (revolution per
minute) may not increase
even if you press the
accelerator pedal deeply.This is to maintain the sta-
bility and traction of the
vehicle and does not indi-
cate a problem.
ESC operation off
ESC OFF state
This car has 2 kinds of ESC
off states. If the engine stops when
ESC is off, ESC remains off.
Upon restarting the engine,the ESC will automatically
turn on again.
-

859
Maintenance
Inner fuse panel (Instrument panel)
DescriptionFuse ratingProtected component
AUDIO15AAudio, A/V & Navigation Head Unit, MTS E-Call Module
MEMORY7.5A
Front/Rear A/C Control Module, Instrument Cluster(IND.), FAM, RAM,
Driver/Passenger Door Module, IMS Control Module, Tilt & Telescopic Module,
RF Receiver
IG2-17.5A
Front A/C Control Module, Multifunction Switch, Driver/Passenger Seat Warmer Module,
Rain Sensor, Around View Monitor, Smart Key Control Module,
Relay Block(Front/Rear Blower Relay), E/R Sub Block (COOLING FAN2 Relay,
Fuel Heater Relay), Driver/Passenger CCS Control Module
HEATED S/WHEEL15ASteering Wheel Heated
IG2-27.5ARear A/C Control Module, Driver/Passenger Door Module, FAM
OBD-II7.5AStart Stop Button Switch
ROOM7.5AHazard Switch, Map Lamp, Vanity Lamp Switch LH/RH,
Front/Rear A/C Control Module, Center Room Lamp, Rear Room Lamp
K/LOCK7.5ASport Mode Switch, Driver/Passenger Door Module, Ignition Key Interlock
ILLUMI7.5AIPM
RR S/WARMER20ARear Seat Warmer Relay
SEAT WARMER20ADriver Seat Warmer Module, Passenger Seat Warmer Module,
Driver / Passenger CCS Control Module
SUNROOF25ASunroof Module
TPMS7.5ATire Pressure Monitoring Module
S/TILT20ATilt & Telescopic Module

I3
Index
Battery recharging ......................................................8-40
Reset items ..................................................................8-41
Battery replacement ......................................................4-12
Battery saver function ....................................................4-98
Before driving ..................................................................6-4
Blind Spot Detection System(BSD) ..............................6-62 BSD (Blind Spot Detection) /LCA (Lane Change Assist) ......................................6-63
RCTA (Rear cross traffic alert) ..................................6-66
Bonnet see the hood ......................................................4-29
Brake system..................................................................6-34 Power brakes ..............................................................6-34
Parking brake ............................................................6-36
Anti-lock brake system (ABS)....................................6-38
Electronic stability control (ESC) ..............................6-40
Hill-start assist control (HAC) ....................................6-45
Brakes fluid....................................................................8-27 Checking the brake fluid level ....................................8-27
Bulb replacement ..........................................................8-68
Bulb wattage ....................................................................9-4
Button start/stop, see engine start/stop button ..............6-10
Camera (Rear view) ......................................................4-96
Capacities (Lubricants) ....................................................9-6Care Care of seat belts ........................................................3-38 SRS Care ....................................................................3-70
Tire care ......................................................................8-42
Exterior care ................................................................8-77
Interior care ................................................................8-83
Care of seat belts ..........................................................3-38
Center console storage ................................................4-138
Central door lock switch................................................4-19
Chains - Tire ..................................................................6-76
Checking tire inflation pressure ....................................8-43
Child restraint system ....................................................3-39 "Installing a child restraint systemwith a lap belt" ....3-42"Installing a child restraint systemwith a lap/shoulder belt" ....................................................3-42
"Securing a child restraint seat withtether anchor system" ........................................................3-46
"Securing a child restraint systemwith “ISOFIX” system and “TetherAnchorage” system" ............................3-47
Child-protector rear door lock ......................................4-20
Climate control air filter ................................................8-33 Filter inspection ..........................................................8-33
Filter replacement ......................................................8-33
Climate control system Automatic climate control system ............................4-117
Automatic heating and air conditioning ..................4-119
Manual heating and air conditioning ........................4-120
Rear heating and air conditioning ............................4-128
Coat hook ....................................................................4-148
Combined instrument, see instrument cluster ..............4-47
C

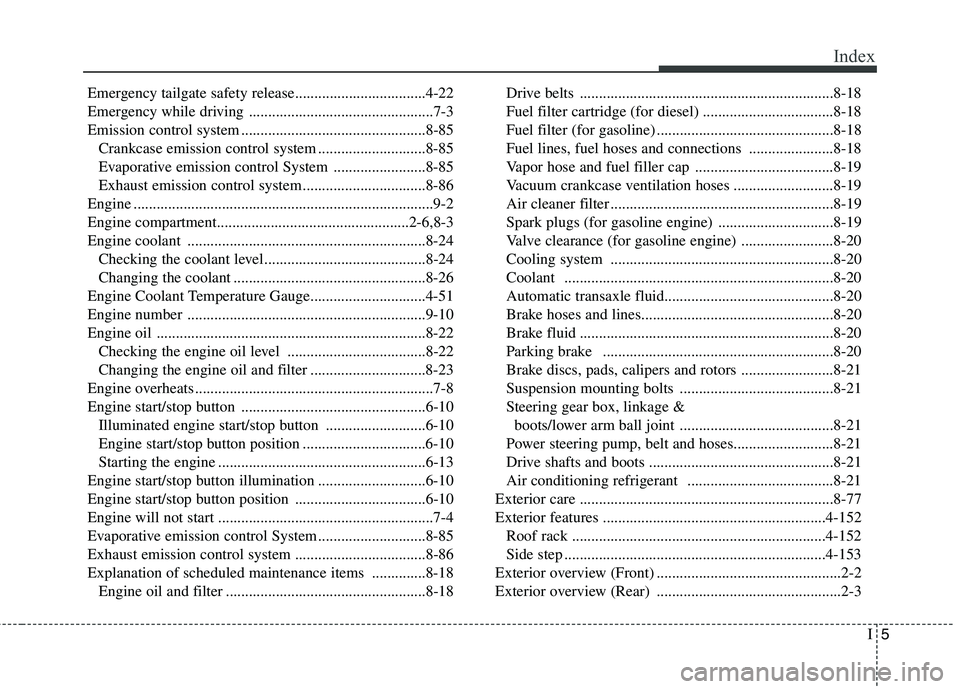

I5
Index
Emergency tailgate safety release..................................4-22
Emergency while driving ................................................7-3
Emission control system ................................................8-85
Crankcase emission control system ............................8-85
Evaporative emission control System ........................8-85
Exhaust emission control system ................................8-86
Engine ..............................................................................9-2
Engine compartment..................................................2-6,8-3
Engine coolant ..............................................................8-24 Checking the coolant level..........................................8-24
Changing the coolant ..................................................8-26
Engine Coolant Temperature Gauge..............................4-51
Engine number ..............................................................9-10
Engine oil ......................................................................8-22 Checking the engine oil level ....................................8-22
Changing the engine oil and filter ..............................8-23
Engine overheats ..............................................................7-8
Engine start/stop button ................................................6-10 Illuminated engine start/stop button ..........................6-10
Engine start/stop button position ................................6-10
Starting the engine ......................................................6-13
Engine start/stop button illumination ............................6-10
Engine start/stop button position ..................................6-10
Engine will not start ........................................................7-4
Evaporative emission control System ............................8-85
Exhaust emission control system ..................................8-86
Explanation of scheduled maintenance items ..............8-18 Engine oil and filter ....................................................8-18 Drive belts ..................................................................8-18
Fuel filter cartridge (for diesel) ..................................8-18
Fuel filter (for gasoline) ..............................................8-18
Fuel lines, fuel hoses and connections ......................8-18
Vapor hose and fuel filler cap ....................................8-19
Vacuum crankcase ventilation hoses ..........................8-19
Air cleaner filter ..........................................................8-19
Spark plugs (for gasoline engine) ..............................8-19
Valve clearance (for gasoline engine) ........................8-20
Cooling system ..........................................................8-20Coolant ......................................................................8-20Automatic transaxle fluid............................................8-20
Brake hoses and lines..................................................8-20
Brake fluid ..................................................................8-20
Parking brake ............................................................8-20
Brake discs, pads, calipers and rotors ........................8-21
Suspension mounting bolts ........................................8-21
Steering gear box, linkage & boots/lower arm ball joint ........................................8-21
Power steering pump, belt and hoses..........................8-21
Drive shafts and boots ................................................8-21
Air conditioning refrigerant ......................................8-21
Exterior care ..................................................................8-77
Exterior features ..........................................................4-152 Roof rack ..................................................................4-152
Side step ....................................................................4-153
Exterior overview (Front) ................................................2-2
Exterior overview (Rear) ................................................2-3
