2017 INFINITI QX60 buttons

MOD system limitations........................ 4-46
System maintenance ........................... 4-47
Vents ........................................... 4-47
Heater and air conditioner (automatic) ..............4-48
Automatic operation ........................... 4-49
Manual operation .............................. 4-50
Operating tips ................................. 4-50
CLIMATE setting screen ........................ 4-51
Rear automatic air conditioning system. . .........4-53
Servicing air conditioner ........................... 4-56
Audio system .................................... 4-56
Audio operation precautions ....................4-56
Names and functions of audio control
buttons ....................................... 4-70
Antenna ...................................... 4-72
Audio main operation .......................... 4-72
Radio ........................................ 4-74
Compact Disc (CD) player .....................4-78
USB (Universal Serial Bus) connection port ......4-79
iPod® player .................................. 4-82
USB/iPod® Charging Ports ....................4-85
Bluetooth® streaming audio ....................4-86Digital Versatile Disc (DVD) player
(if so equipped)
............................... 4-89
Auxiliary (AUX) devices ......................... 4-90
Audio settings ................................. 4-91
Disc/USB memory device care and cleaning ......4-95
Mobile entertainment system (MES)
(if so equipped) .................................. 4-95
Precautions ................................... 4-96
Technical information .......................... 4-96
Connecting rear media interface ................4-104
Remote controller and headphones .............4-105
Activating rear displays ........................ 4-109
Operations on rear displays ....................4-110
Settings and information ....................... 4-111
Controlling the

rear system on the front
display ...................................... 4-113
Operating tips ................................ 4-114
Care and maintenance ........................ 4-115
Car phone or CB radio ........................... 4-115
Bluetooth® Hands-Free Phone System ............4-116
Regulatory information ........................ 4-118
Phone ....................................... 4-119

2button
Push this switch to go back to the previous
screen or cancel the selection if it is not
completed.
NOTE:
You are unable to operate the display of
Infiniti InTouch
TMusing the buttons on the
steering wheel switch whenever the meter
shows the setting display.
3+- button
Use to adjust the volume. These buttons
have the same function as that of the
VOL/ON•OFF knob on the audio system.
For additional information, refer to “Steering
wheel switch for audio control” in this sec-
tion.
4SOURCE button
Use to switch the audio mode (source) .
For additional information, refer to “Steering
wheel switch for audio control” in this sec-
tion.
5(TALK) button
Push to start a voice recognition session.
During a voice recognition session, pushing
this button cancels the voice guidance and
you can speak a voice command immedi-
ately.
Push and hold this button to end a voice
recognition session.
6button
Push to display the phone mode screen.
For additional information, refer to
“Bluetooth® hands-free phone system” in
this section.
7button
This button is used for the vehicle informa-
tion display operation.
For additional information, refer to “Vehicle
information display in theInstruments and
controls section of this manual.
TOUCH PANEL OPERATION
This system is mainly operated with the touch
panel screen.
CAUTION
●The glass screen on the display screen
may break if it is hit with a hard or sharp
object. If the glass screen breaks, do
not touch it. Doing so could result in an
injury.
● To clean the display, use a soft, dry
cloth. If additional cleaning is neces-
sary, use a small amount of neutral de-
tergent with a soft cloth. Never use a
rough cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel with
a chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
WARNING
●ALWAYS give your full attention to
driving.
● Avoid using vehicle features that could
distract you. If distracted, you could
lose control of your vehicle and cause
an accident.
4-8Monitor, climate, audio, phone and voice recognition systems

●Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.
Start the engine and operate the controls to
activate the air conditioner.
NOTE: ● Odors from inside and outside the vehicle
can build up in the air conditioner unit. Odor
can enter the passenger compartment
through the vents.
● When parking, set the heater and air condi-
tioner controls to turn off air recirculation to
allow fresh air into the passenger compart-
ment. This should help reduce odors inside
the vehicle.
AUTOMATIC OPERATION
Cooling and/or dehumidified heating
(AUTO)
This mode may be used all year round as the
system automatically works to keep a constant
temperature. Air flow distribution, intake air con-
trol, and fan speed are also controlled automati-
cally. 1. Press the AUTO button on. (The indicator on
the button will illuminate and AUTO will be
displayed.)
2. Operate the driver’s side temperature con- trol buttons.
● Adjust the temperature display to about
75°F (24°C) for normal operation.
● The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution, intake air control, and fan
speed are also controlled automatically.
● A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
Dehumidified defrosting or defogging
1. Press thefront defroster button on.
(The indicator light on the button will come
on.)
2. Operate the temperature control buttons to set the desired temperature.
● To quickly remove ice from the outside of the
windows, use the
fan speed control
buttons to set the fan speed to maximum. ●
As soon as possible after the windshield is
clean, press the AUTO button to return to
the automatic mode.
● When the
front defroster button is
pressed, the air conditioner will automati-
cally be turned on at outside temperatures
above 36°F (2°C) . The air recirculate mode
automatically turns off, allowing outside air
to be drawn into the passenger compart-
ment to further improve the defogging per-
formance.
Voice Recognition logic (if so
equipped)
When the climate control system is on, the front
and rear fan speeds may be automatically low-
ered so that commands are more easily recog-
nized. Fan speed can be adjusted using the fan
speed decrease and increase buttons, if desired.
Remote start logic (if so equipped)
Vehicles equipped with automatic climate con-
trols and remote start function may go into auto-
matic heating or cooling mode when remote start
is activated depending on outside and cabin tem-
peratures. During this period, the climate control
display and buttons will be inoperable until the
ignition switch is turned on. In remote start de-
frosting mode, the heated steering wheel (if so
equipped) may be activated automatically.
Monitor, climate, audio, phone and voice recognition systems4-49

MANUAL OPERATION
Fan speed control
Press thefan speed control buttons to
manually control the fan speed.
Press the AUTO button to return to automatic
control of the fan speed.
Temperature control
Press the temperature control buttons up or
down to set the desired temperature.
The temperature can be set within the following
range:
● For U.S.: 60 to 90ºF (16 to 32ºC)
● For Canada: 64 to 90ºF (18 to 32ºC)
Air recirculation
Press theair recirculation button to recir-
culate interior air inside the vehicle. The
indicator light on the button will come on.
The air recirculation cannot be activated when
the air conditioner is in the
front defrosting
mode.
Automatic intake air control
In the AUTO mode, the intake air will be con-
trolled automatically. To manually control the in-
take air, press the
air recirculation button. To return to the automatic control mode, press
and hold the
air recirculation button for
about 2 seconds. The indicator light will flash
twice, and then the intake air will be controlled
automatically.
Air flow control
Press thebutton to manually control air
flow. Pressing the button repeatedly will cycle
through the available modes and display the cor-
responding icon on the center display:
— Air flows from center and side
vents.
— Air flows from center and sidevents and foot outlets.
— Air flows mainly from foot outlets.
— Air flows from defroster and footoutlets.
— Air flows from defroster outlets.
To turn system off
Press the OFF button.
Rear window and outside mirror
defroster switch
For additional information, refer to “Rear window
and outside mirror defroster switch” in the “In-
struments and controls” section of this manual.
OPERATING TIPS
●When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate for a
maximum of 150 seconds. However, this is
not a malfunction. After the coolant tempera-
ture warms up, air flow from the foot outlets
will operate normally.
4-50Monitor, climate, audio, phone and voice recognition systems

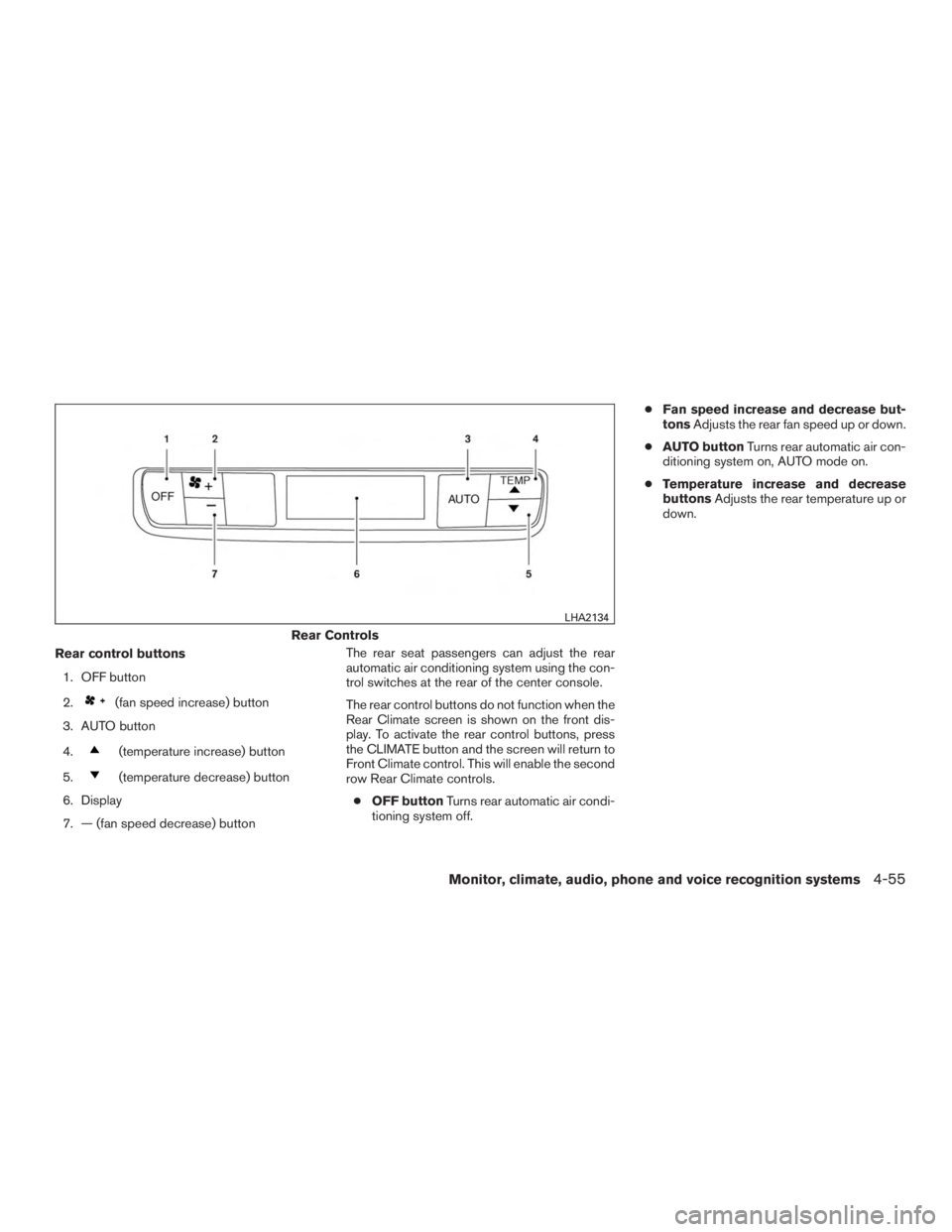

REAR AUTOMATIC AIR
CONDITIONING SYSTEM
1. OFF button2.
(fan speed) increase and decrease
buttons
3. AUTO button
4. REAR (ON-OFF) button 5. CLIMATE button
6.
(temperature) increase and decrease
buttons (driver’s side)
To turn on/off the rear automatic air conditioning
system with the front air conditioner control
panel, press the REAR (ON-OFF) button.
The rear automatic air conditioning system can
be adjusted with the front air conditioner control
panel when the Rear Climate screen is displayed.
To control the rear automatic air condition system
with the front air conditioner control panel, press
the CLIMATE button. When the display shows
front climate control, touch the Rear Climate key
on the screen.
Automatic operation
1. Press the AUTO button. The AUTO indicator light will illuminate in the Rear Climate dis-
play.
2. Press the temperature increase and de- crease buttons (driver’s side) to set the de-
sired temperature.
Front Controls
LHA4251
Monitor, climate, audio, phone and voice recognition systems4-53

Manual operation● Temperature control
Press the temperature increase and de-
crease buttons (driver’s side) to set the de-
sired temperature.
● Fan speed control
Press the
(fan speed) increase and
decrease buttons to manually control the fan
speed. Fan screen can also be controlled
using the display screen. Touch the
orkey to set the desired fan speed.
Rear Heating (A/C off)1. To control the rear automatic air condition system with the front air conditioner control
panel, press the CLIMATE button. When the
display shows front climate control, touch
the Rear Climate key displayed on the
screen.
2. Press the AUTO button. The AUTO indicator light will illuminate in the display. Or, using
the touch-screen display, touch the right
side arrow key to display additional keys;
touch the AUTO key on the display and the
feature will activate. ●
Do not set the temperature lower than the
outside air temperature. Doing so may cause
the temperature to not be controlled prop-
erly.
Turning the system off
1. Press the REAR (ON-OFF) button on the front control panel and the indicator light will
turn off.
2. Or, press the OFF button. The Rear Climate Controls will turn OFF.
Turning the system off using the display
screen 1. To control the rear automatic air condition system with the front air conditioner control
panel, press the CLIMATE button. When the
display shows front climate control, touch
the Rear Climate key displayed on the
screen.
2. Touch the
ON/OFF key to turn off the
rear controls using the Rear Climate display
screen.
LHA4219
4-54Monitor, climate, audio, phone and voice recognition systems

Rear control buttons1. OFF button
2.
(fan speed increase) button
3. AUTO button
4.
(temperature increase) button
5.
(temperature decrease) button
6. Display
7. — (fan speed decrease) button The rear seat passengers can adjust the rear
automatic air conditioning system using the con-
trol switches at the rear of the center console.
The rear control buttons do not function when the
Rear Climate screen is shown on the front dis-
play. To activate the rear control buttons, press
the CLIMATE button and the screen will return to
Front Climate control. This will enable the second
row Rear Climate controls.
● OFF button Turns rear automatic air condi-
tioning system off. ●
Fan speed increase and decrease but-
tons Adjusts the rear fan speed up or down.
● AUTO button Turns rear automatic air con-
ditioning system on, AUTO mode on.
● Temperature increase and decrease
buttons Adjusts the rear temperature up or
down.
Rear Controls
LHA2134
Monitor, climate, audio, phone and voice recognition systems4-55

NAMES AND FUNCTIONS OF
AUDIO CONTROL BUTTONSMain audio buttons
1VOL/ON•OFF
knob
Push to turn the audio system on/off.
Turn to adjust the volume.
2SEEK•CAT•TRACK button
Functions to seek radio stations or to skip
and fast-forward /rewind through tracks.
3Disc slot: Insert a disc with the label side facing up.
4RADIO button
Push to switch to the radio mode. The radio
band will switch between AM, FM and SXM
(SiriusXM) each time the button is pushed.
5DISC button
Push to switch to the CD or DVD (if so
equipped) mode.
6MEDIA button
Each time the button is pushed, a different
audio source will be selected.
7RPT RDM button
Push to change the play mode.
8SCAN button
Push to tune from low to high frequencies
and stop at each broadcasting
station/channel for 5 seconds. Pushing the
button again will stop SCAN tuning and the
radio will remain tuned to that
station/channel.JVH1412X
4-70Monitor, climate, audio, phone and voice recognition systems
