2017 INFINITI QX60-HYBRID sensor

This vehicle has new and unique surfaces on the
center console and door pull finishers. If cleaning
is required, use mild soap and water. However, if
mild soap and water won’t clean the center con-
sole and door pull finishers, use Genuine
NISSAN Vinyl and Leather Cleaner (or equiva-
lent) .
Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth damp-
ened in mild soap solution, then wipe clean with a
dry, soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the manu-
facturer’s recommendations. Some fabric pro-
tectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water to clean
the meter and gauge lens.WARNING
Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can dam-
age the seat or occupant classification
sensor. This can also affect the operation
of the air bag system and result in serious
personal injury.
CAUTION
●Never use benzene, thinner, or any simi-
lar material on the interior surfaces or
surface damage may occur. Such dam-
age is not covered under the INFINITI
warranty.
● Small dirt particles can be abrasive and
damaging to leather surfaces and
should be removed promptly. Do not
use saddle soap, car waxes, polishes,
oils, cleaning fluids, solvents, deter-
gents or ammonia-based cleaners as
they may damage the leather’s natural
finish.
● Never use fabric protectors unless rec-
ommended by the manufacturer.
● Do not use glass or plastic cleaner on
meter or gauge lens covers. It may dam-
age the lens cover.
LITHIUM-ION (LI-ION) BATTERY AIR
VENT
CAUTION
● Do not place objects over or into the air
vent. The Li-ion battery may overheat
and be damaged.
● Do not allow any liquid to get on or in
the air vent. It may cause a short circuit
and damage the Li-ion battery.
● Clean the air vent regularly to prevent
the Li-ion battery from overheating.
LPD2173
CLEANING INTERIOR
7-4Appearance and care

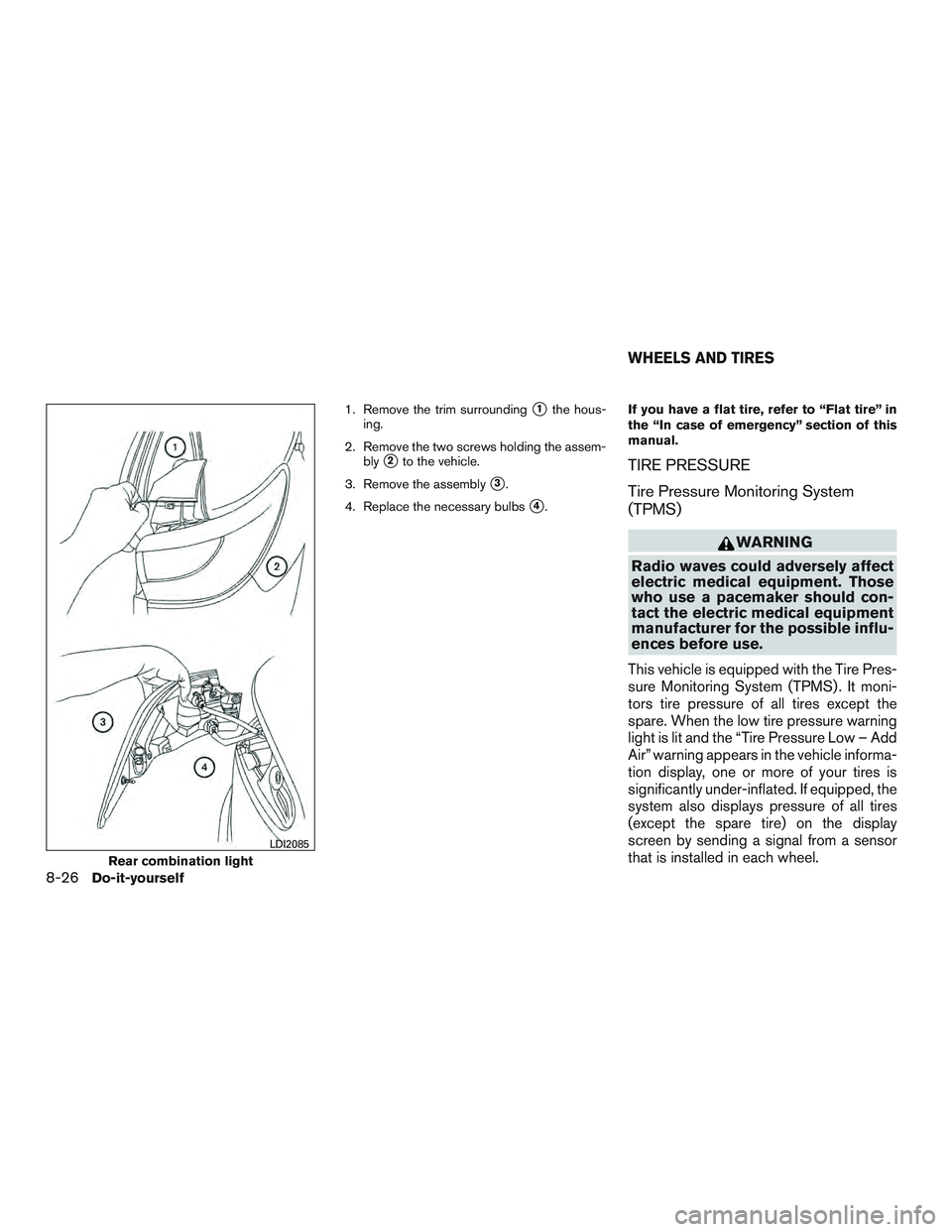

1. Remove the trim surrounding1the hous-
ing.
2. Remove the two screws holding the assem- bly
2to the vehicle.
3. Remove the assembly
3.
4. Replace the necessary bulbs
4. If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
WARNING
Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.
This vehicle is equipped with the Tire Pres-
sure Monitoring System (TPMS) . It moni-
tors tire pressure of all tires except the
spare. When the low tire pressure warning
light is lit and the “Tire Pressure Low – Add
Air” warning appears in the vehicle informa-
tion display, one or more of your tires is
significantly under-inflated. If equipped, the
system also displays pressure of all tires
(except the spare tire) on the display
screen by sending a signal from a sensor
that is installed in each wheel.
Rear combination light
LDI2085
WHEELS AND TIRES
8-26Do-it-yourself

●The TPMS sensor may be damaged if it
is not handled correctly. Be careful
when handling the TPMS sensor.
● When replacing the TPMS sensor, the
ID registration may be required. It is
recommended that you visit an INFINITI
retailer for ID registration.
● Do not use a valve stem cap that is not
specified by INFINITI. The valve stem
cap may become stuck.
● Be sure that the valve stem caps are
correctly fitted. Otherwise the valve may
be clogged up with dirt and cause a
malfunction or loss of pressure.
● Do not install a damaged or deformed
wheel or tire even if it has been re-
paired. Such wheels or tires could have
structural damage and could fail with-
out warning.
● The use of retread tires is not
recommended.
● For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.Wheel balance
Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can get
out of balance. Therefore, they should be bal-
anced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
● For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
Care of wheels
● Wash the wheels when washing the vehicle
to maintain their appearance.
● Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.
● Do not use abrasive cleaners when washing
the wheels.
● Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead. ●
INFINITI recommends waxing the road
wheels to protect against road salt in areas
where it is used during winter.
Spare tire (TEMPORARY USE ONLY
spare tire)
Since the spare tire is not equipped with the
TPMS, when a spare tire is mounted (TEMPO-
RARY USE ONLY or conventional) , the TPMS
will not function.
Observe the following precautions if the TEM-
PORARY USE ONLY spare tire must be used.
Otherwise, your vehicle could be damaged or
involved in an accident:
WARNING
● The spare tire should be used for emer-
gency use only. It should be replaced
with the standard tire at the first oppor-
tunity to avoid possible tire or differen-
tial damage.
● Drive carefully while the TEMPORARY
USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving.
8-36Do-it-yourself

M
Maintenance General maintenance .............9-2
Insidethevehicle...............9-3
Maintenance precautions ...........8-2
Outside the vehicle ..............9-2
Seat belt maintenance ............1-24
Under the hood and vehicle .........9-4
Maintenance log .................9-15
Maintenance requirements ............9-2
Maintenance schedules ..............9-7
Maintenance under severe operation
conditions ....................9-13
Malfunction indicator light ............2-14
Maplights ....................2-71
Map pocket ....................2-56
Memory Seat ...............3-36,3-38
Meters and gauges ................2-4
Instrument brightness control ........2-45
Mirror Automatic anti-glare inside mirror ......3-33
Outside mirrors ...............3-34
Vanity mirror .................3-33
Mirrors ......................3-33
Mobile Entertainment System (MES) ......4-95
Moonroof ..................2-66,7-5
Moving Object Detection (MOD) ........4-44
O
Octanerating(Seefueloctanerating).....10-5
Odometer .....................2-5 Oil
Capacities and recommended
fuel/lubricants ................10-2
Changingengineoil..............8-8
Changing engine oil filter ...........8-9
Checking engine oil level ...........8-7
Engine oil ...................8-7
Engine oil and oil filter recommendation . .10-7
Engine oil viscosity ..............10-7
Operation of the hybrid system ........HEV-4
Outside mirrors .................3-34
Owner’s manual order form ..........10-33
Owner’s manual/service manual order
information ...................10-33
P
Parking Parking brake operation ...........5-23
Parking/parking on hills ..........5-134
Parking brake ...................5-23
Personallights..................2-71
Phone, Bluetooth® hands-free system ....4-116
Power Power door locks ............3-5,3-6
Power outlet ..............2-53,2-54
Power rear windows .............2-64
Power steering fluid .............8-11
Power steering system ...........5-134
Power windows ...............2-63
Rear power windows ............2-64
Power inverter switch ..............2-52
Power meter ....................2-6
Power outlet ................2-53,2-54
Power steering .................5-134 P
ower steering fluid
...............8-11
Precautions Maintenance precautions ...........8-2
On-pavement and off-road driving
precautions ..................5-9
Precautions on booster
seats ...........1-28,1-34,1-40,1-46
Precautions on child
restraints .........1-28,1-34,1-40,1-46
Precautions on seat belt usage .......1-16
Precautions on supplemental restraint
system ....................1-49
Precautions when starting and driving ....5-4
Predictive Forward Collision Warning
(PFCW).....................5-117
Push starting ...................6-14
R
Radio CarphoneorCBradio...........4-115
FM/AM radio with compact disc (CD)
player .....................4-71
Steering wheel audio control
switch..................4-7,4-72
Rainsensor....................2-37
Readiness for inspection maintenance (I/M)
test .......................10-32
Rear Cross Traffic Alert (RCTA) ........5-66
Rear power windows ..............2-64
RearView Monitor ................4-21
Rear window defroster switch .........2-39
Rear window wiper and washer switches . . .2-38
Recommended Fluids ..............10-2
11-5
