2017 INFINITI QX60 HYBRID headlight

1. Engine hood (P. 3-21)
2. Wiper and washer switch (P. 2-36)Wiper blades (P. 8-17)
3. Windshield (P. 8-17)
4. Power windows (P. 2-63)
5. Door locks (P. 3-4) INFINITI Intelligent Key (P. 3-7)
Remote engine start (if so equipped)
(P. 3-19)
Keys (P. 3-2)
6. Mirrors (P. 3-33) Side camera (if so equipped) (P. 4-28)
7. Tire pressure (P. 8-26) Flat tire (P. 6-3)
Tire chains (P. 8-26)
8. Replacing bulbs (P. 8-23) Headlight and turn signal switch
(P. 2-40)
Daytime running lights system (P. 2-40)
9. Fog light switch (P. 2-40)
10. Front and rear sonar system
(if so equipped) (P. 5-140)
11. Front camera (if so equipped) (P. 4-28)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2497
EXTERIOR FRONT
Illustrated table of contents0-3

1. Vent (P. 4-49)
2. Headlight/fog light/turn signal switch(P. 2-40)
3. Instrument brightness control (P. 2-40)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-7)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-49) Horn (P. 2-46)
6. Back-up Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-58)
7. Twin trip odometer reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-36) Rear wiper and washer switch
(P. 2-36)
9. Rear window and outside mirror de-
froster switch (P. 2-39)
10. Center display* Navigation system* (if so equipped)
11. Automatic heater and air conditioning
controls (P. 4-50)
12. Front passenger supplemental air bag
(P. 1-56)
13. Glove box (P. 2-56)
14. Center multi-function control buttons*
15. Power outlet (P. 2-53)
LII2436
INSTRUMENT PANEL
0-6Illustrated table of contents

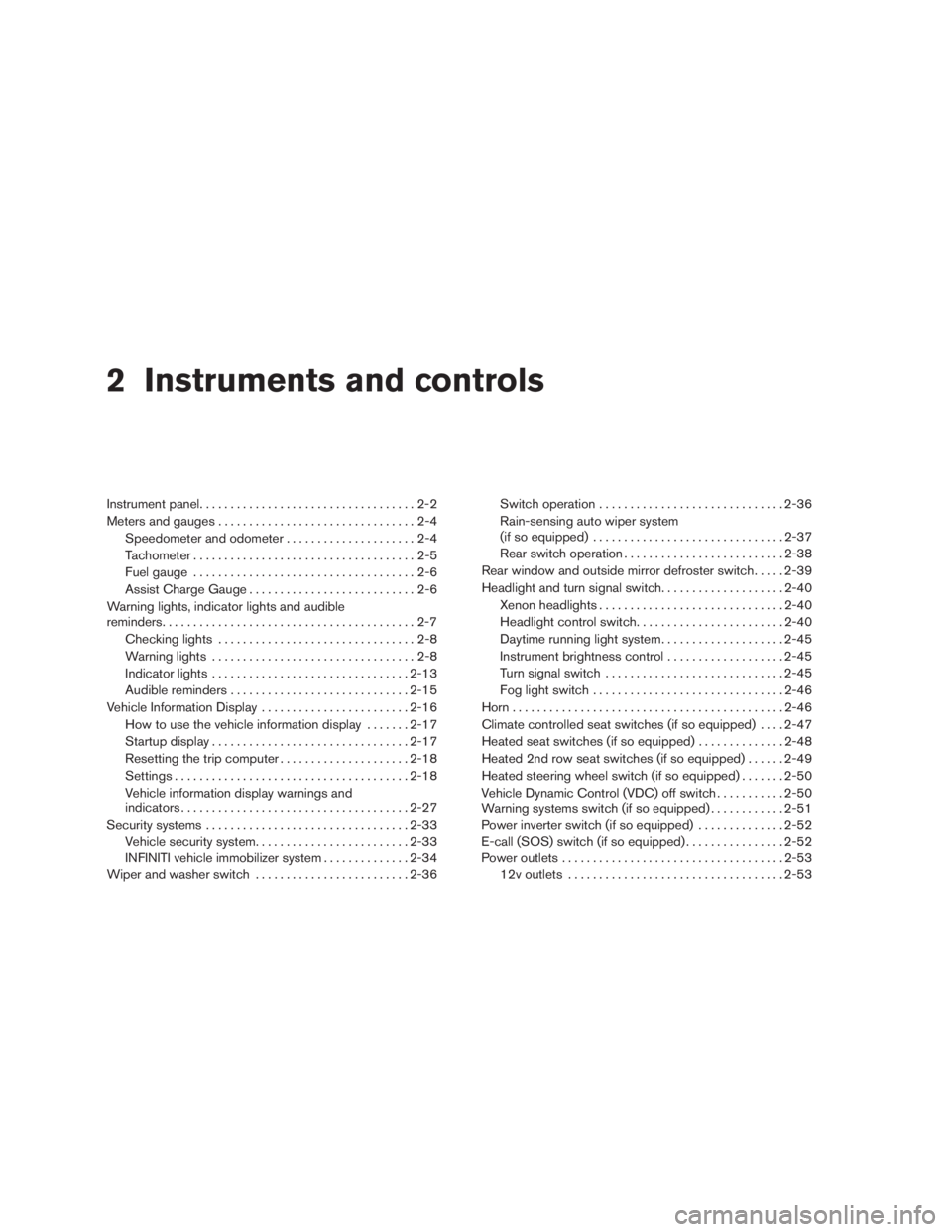

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-4
Speedometer and odometer .....................2-4
Tachometer ....................................2-5
Fuel gauge ....................................2-6
Assist Charge Gauge ...........................2-6
Warning lights, indicator lights and audible
reminders .........................................2-7
Checking lights ................................2-8
Warning lights .................................2-8
Indicator lights ................................ 2-13
Audible reminders ............................. 2-15
Vehicle Information Display ........................2-16
How to use the vehicle information display .......2-17
Startup display ................................ 2-17
Resetting the trip computer .....................2-18
Settings ...................................... 2-18
Vehicle information display warnings and
indicators ..................................... 2-27
Security systems ................................. 2-33
Vehicle security system ......................... 2-33
INFINITI vehicle immobilizer system ..............2-34
Wiper and washer switch ......................... 2-36Switch operation
.............................. 2-36
Rain-sensing auto wiper system
(if so equipped) ............................... 2-37
Rear switch operation .......................... 2-38
Rear window and outside mirror defroster switch .....2-39
Headlight and turn signal switch ....................2-40
Xenon headlights .............................. 2-40
Headlight control switch ........................ 2-40
Daytime running light system ....................2-45
Instrument brightness control ...................2-45
Turn signal switch ............................. 2-45
Fog light switch ............................... 2-46
Horn ............................................ 2-46
Climate controlled seat switches (if so equipped) ....2-47
Heated seat switches (if so equipped) ..............2-48
Heated 2nd row seat switches (if so equipped) ......2-49
Heated

steering wheel switch (if so equipped) .......2-50
Vehicle Dynamic Control (VDC) off switch ...........2-50
Warning systems switch (if so equipped) ............2-51
Power inverter switch (if so equipped) ..............2-52
E-call (SOS) switch (if so equipped) ................2-52
Power outlets .................................... 2-53
12v outlets ................................... 2-53

1. Vent (P. 4-49)
2. Headlight/fog light/turn signal switch(P. 2-40)
3. Instrument brightness control (P. 2-40)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-7)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-49) Horn (P. 2-46)
6. Back-up Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-58)
7. Twin trip odometer reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-36) Rear wiper and washer switch
(P. 2-36)
9. Rear window and outside mirror de-
froster switch (P. 2-39)
10. Center display* Navigation system* (if so equipped)
11. Automatic heater and air conditioning
controls (P. 4-50)
12. Front passenger supplemental air bag
(P. 1-56)
13. Glove box (P. 2-56)
14. Center multi-function control buttons*
15. Power outlet (P. 2-53)
LII2436
INSTRUMENT PANEL
2-2Instruments and controls

12–volt battery charge warning lightSeat belt warning light and chimeMalfunction Indicator Light (MIL)
orAnti-lock Braking System (ABS)
warning lightSupplemental air bag warning lightREADY to drive indicator light
orBrake warning light (red)Approaching Vehicle Sound for Pedestrians
(VSP) OFF indicator lightSecurity indicator light
Direct Response Hybrid system warning lightEV indicator lightSide light and headlight indicator light (green)
Electronically controlled brake warning light
(yellow)Front fog light indicator lightSlip indicator light
Forward Emergency Braking (FEB) system
warning light (if so equipped)Front passenger air bag status lightTurn signal/hazard indicator lights
Low tire pressure warning lightHigh beam assist indicator light (green)
(if so equipped)Vehicle Dynamic Control (VDC) OFF indicator
light
Master warning lightHigh beam indicator light (blue)
Power steering warning lightLow temperature indicator light (blue)
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS
Instruments and controls2-7

Supplemental air bag warninglight
When the ignition switch is placed in the ON
position, the supplemental air bag warning light
illuminates for about 7 seconds and then turns
off. This means the system is operational.
If any of the following conditions occur, the front
air bag, front seat-mounted side-impact air bag,
roof-mounted curtain air bag and pretensioner
systems need servicing:
● The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
It is recommended that you visit an INFINITI re-
tailer for these services. Unless checked and
repaired, the supplemental restraint system (air
bag system) and/or the pretensioner systems
may not function properly. For additional informa-
tion, refer to “Supplemental Restraint System
(SRS)” in the “Safety—Seats, seat belts and
supplemental restraint system” section of this
manual.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag systems
and/or pretensioner systems will not op-
erate in an accident. To help avoid injury to
yourself or others, have your vehicle
checked. It is recommended that you visit
an INFINITI retailer for this service.
INDICATOR LIGHTS
For additional information, refer to “Vehicle infor-
mation display” in this section.
Approaching Vehicle Sound for Pedestrians (VSP) OFF
indicator light
This light comes on if there is a malfunction in the
Approaching Vehicle Sound for Pedestrians
(VSP) system.
EV indicator light
This illuminates when the engine stops but the
vehicle is running.
Front fog light indicator light
The front fog light indicator light illuminates when
the front fog lights are on. For additional informa-
tion, refer to “Fog light switch” in this section.
Front passenger air bag statuslight
The front passenger air bag status light will be lit
and the passenger front air bag will be off de-
pending on how the front passenger seat is being
used.
For additional information, refer to “Front passen-
ger air bag and status light” in the “Safety —
Seats, seat belts and supplemental restraint sys-
tem” section of this manual.
High beam assist indicator light(green) (if so equipped)
This indicator light illuminates when the head-
lights come on while the headlight switch is in the
AUTO position with the high beams selected.
This indicates that the high beam assist is opera-
tional.
For additional information, refer to “Headlight and
turn signal switch” in this section.
Instruments and controls2-13

High beam indicator light(blue)
This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.
The high beam indicator light also comes on
when the passing signal is activated.
Low temperature indicatorlight (blue)
The low temperature indicator light illuminates
when the engine coolant temperature is low.
When the ignition switch is placed in the ON
position, the low temperature indicator light illu-
minates and then turns off after the engine cool-
ant has warmed up.
If the low temperature indicator light stays illumi-
nated after the engine has sufficiently warmed
up, it may indicate the low temperature sensor in
the engine coolant system is not functioning
properly and may need servicing. It is recom-
mended that you have the system checked, and if
necessary repaired. It is recommended that you
visit an INFINITI retailer for this service.
Malfunction Indicator Light(MIL)
If this indicator light comes on steady or blinks
while the engine is running, it may indicate a
potential emission control malfunction.
The MIL may also come on steady if the fuel-filler
cap is loose or missing, or if the vehicle runs out
of fuel. Check to make sure the fuel-filler cap is
installed and closed tightly, and that the vehicle
has at least 3 gal (11.4 L) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light comes on steady for 20 sec-
onds and then blinks for 10 seconds when the
engine is not running, it indicates that the vehicle
is not ready for an emission control system
inspection/maintenance test. For additional infor-
mation, refer to “Readiness for
inspection/maintenance (I/M) test” in the “Tech-
nical and consumer information” section of this
manual. Operation
The MIL will come on in one of two ways:
● MIL on steady — An emission control system
malfunction has been detected. Check the
fuel-filler cap if the LOOSE FUEL CAP
warning appears in the vehicle information
display. If the fuel-filler cap is loose or miss-
ing, tighten or install the cap and continue to
drive the vehicle. The
light should turn
off after a few driving trips. If the
light
does not turn off after a few driving trips,
have the vehicle inspected. It is recom-
mended that you visit an INFINITI retailer for
this service. You do not need to have your
vehicle towed to the retailer.
● MIL blinking — An engine misfire has been
detected which may damage the emission
control system. To reduce or avoid emission
control system damage:
– do not drive at speeds above 45 mph (72 km/h).
– avoid hard acceleration or deceleration.
– avoid steep uphill grades.
– if possible, reduce the amount of cargo being hauled or towed.
2-14Instruments and controls

The MIL may stop blinking and come on steady.
Have the vehicle inspected. It is recommended
that you visit an INFINITI retailer for this service.
You do not need to have your vehicle towed to the
retailer.
CAUTION
Continued vehicle operation without hav-
ing the emission control system checked
and repaired as necessary could lead to
poor driveability, reduced fuel economy,
and possible damage to the emission con-
trol system.
READY to drive indicator light
The READY to drive indicator light illuminates
when the hybrid system is powered and the ve-
hicle may be driven.
Security indicator light
This light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position. This function
indicates the security system equipped on the
vehicle is operational.
For additional information, refer to “Security sys-
tems” in this section.
Side light and headlightindicator light (green)
The side light and headlight indicator light illumi-
nates when the side light or headlight position is
selected. For additional information, refer to
“Headlight and turn signal switch” in this section.
Slip indicator light
This indicator will blink when the VDC system is
operating, thus alerting that the vehicle is nearing
its traction limits. The road surface may be slip-
pery.
Turn signal/hazard indicatorlights
The appropriate light flashes when the turn signal
switch is activated.
Both lights flash when the hazard switch is turned
on.
Vehicle Dynamic Control(VDC) OFF indicator light
This indicator light comes on when the VDC OFF
switch is pushed to OFF. This indicates the VDC
has been turned off.
Push the VDC OFF switch again or restart the
engine and the system will be reactivated. For
additional information, refer to “Vehicle Dynamic Control (VDC) system” in the “Starting and driv-
ing” section of this manual.
The VDC light also comes on when the ignition
switch is placed to the ON position. The light will
turn off after about 2 seconds if the system is
operational. If the light stays on or comes on
along with the
indicator light while you are
driving, have the system checked. It is recom-
mended that you visit an INFINITI retailer for this
service.
WARNING
VDC should remain on unless freeing a
vehicle from mud or snow.
While the VDC system is operating, you might
feel a slight vibration or hear the system working
when starting the vehicle or accelerating, but this
is normal.
AUDIBLE REMINDERS
Brake pad wear warning
The disc brake pads have audible wear warnings.
When a disc brake pad requires replacement, it
makes a high pitched scraping sound when the
vehicle is in motion, whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.
Instruments and controls2-15
