2017 INFINITI QX30 engine

Message Possible causes/consequences and solutions
[Blind Spot Warning Not
Available When Towing a
Trailer See Operator’s
Manual]Blind Spot Warning is deactivated while towing a trailer.
You have established the electrical connection between the trailer and your vehicle.
Press on the steering wheel to confirm the display message.
[Blind Spot Warning
Inoperative]Blind Spot Warning (BSW) is faulty.
The BSW indicator lights also light up.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Park Assist Canceled] The driver’s door is open and the driver’s seat belt has not been fastened.
Repeat the parking process with the seat belt fastened and the driver’s door closed.
You inadvertently touched the steering wheel while steering intervention was active.
While steering intervention is active, make sure not to touch the steering wheel.
The vehicle has started to skid and VDC has intervened.
Use Intelligent Park Assist again later.
[Park Assist Inoperative] You have just carried out a large number of turning or parking maneuvers.
Intelligent Park Assist will become available again after approximately ten minutes.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Restart the engine.
If the display message continues to be displayed, have the system checked. It is recommended you visit an INFINITI retailer for this
service.
The parking sensor system is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Park Assist Finished] The vehicle is parked. A warning tone also sounds.
The display message disappears automatically.
[ICC Off]
Intelligent Cruise Control has been deactivated (seeIntelligent Cruise Control (ICC) system (Full speed range) (if equipped)in the5.
Starting and drivingsection).
If it was not deactivated by the driver, a warning tone also sounds.
Instruments and controls2-47

Message Possible causes/consequences and solutions
[ICC Now Available] Intelligent Cruise Control is operational again after having been temporarily unavailable. You can now reactivate IntelligentCruise
Control (seeIntelligent Cruise Control (ICC) system (Full speed range) (if equipped)in the5. Starting and drivingsection)
[ICC Currently Unavailable
See Operator’s Manual]Intelligent Cruise Control is temporarily inoperative.
Possible causes:
•The function is impaired due to heavy rain or snow.•The radar sensor system is temporarily inoperative, e.g. due to electromagnetic radiation emitted by nearby TV or radio stations or
other sources of electromagnetic radiation.
•The system is outside the operating temperature range.•The on-board voltage is too low.
A warning tone also sounds.
Once the causes listed above no longer apply, the display message goes out.
Intelligent Cruise Control is operational again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away
3. Restart the engine
[ICC Inoperative] Intelligent Cruise Control is faulty. Forward Emergency Braking may also have become inoperative.
A warning tone also sounds.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[ICC Suspended] You have depressed the accelerator pedal. Intelligent Cruise Control is no longer controlling the speed of the vehicle.
Remove your foot from the accelerator pedal.
[ICC---MPH] An activation condition for Intelligent Cruise Control is not fulfilled.
Check the activation conditions for Intelligent Cruise Control (seeIntelligent Cruise Control (ICC) system (Full speed range) (if equipped)
in the5. Starting and drivingsection)
[ICC and Speed Limiter Inop-
erative]Intelligent Cruise Control and Speed Limiter are faulty.
A warning tone also sounds.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
2-48Instruments and controls

Vehicle
Message Possible causes/consequences and solutions
[Depress Brake to Start
Engine](DCT models only). You have attempted to start the engine with the transmission in position N (Neutral) without depressing the brake
pedal.
Depress the brake pedal.
[To Deselect P or N, Depress
Brake and Start Engine]You have attempted to shift the shift lever to position R (Reverse) or D (Drive) without starting the engine.
Start the engine and depress the brake pedal.
NOTE•It is only possible to move the shift lever from position P (Park) to the desired position if you depress the brake pedal. Only then can
the parking lock be deactivated.
•At transmission fluid temperatures below -5oF (-20oC) you can only shift out of position P (Park) into another transmission position
when the engine is running.
[Apply Brake to Shift From
’P’]You have attempted to shift the shift lever to position R (Reverse), N (Neutral) or D (Drive) without depressing the brake pedal.
Depress the brake pedal.
[Risk of Rolling Transmission
Not in P]The driver’s door is open/not fully closed and the shift lever is in position R (Reverse), N (Neutral) or D (Drive).
A warning tone also sounds
WARNING
The vehicle may roll away.
There is a risk of an accident.
1. Press the P (Park) button.
2. Secure the vehicle against rolling away.
3. Close the driver’s door fully.
[Service Required Do Not
Shift Gears Visit Dealer]You cannot change the transmission position due to a malfunction.
A warning tone also sounds.
If transmission position D (Drive) is selected, Drive to an INFINITI retailer without shifting the transmission from position D (Drive).
If transmission position R (Reverse), N (Neutral) or P (Park), secure the vehicle against rolling away. It is recommended you consult an
INFINITI retailer.
2-52Instruments and controls

Message Possible causes/consequences and solutions
[Only Shift to ’P’ when
Vehicle is Stationary]The vehicle is moving.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions.
2. Shift the shift lever to position P.
[Reversing Not Possible Ser-
vice Required]The automatic transmission is malfunctioning. You cannot drive in reverse.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Transmission Malfunction] The automatic transmission is malfunctioning.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Transmission Malfunction
Stop]The automatic transmission is malfunctioning.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away
3. It is recommended you consult an INFINITI retailer.
[Stop vehicle Shift to P
Leave Engine Running]The automatic transmission has overheated.
Drive on carefully. If the display message disappears, the automatic transmission is available again.
If the display message continues to be displayed:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away
3. Wait until the automatic transmission has cooled down and the display message goes out.
[Auxiliary Battery Malfunc-
tion]The auxiliary battery for the automatic transmission is no longer being charged.
1. It is recommended you visit an INFINITI retailer at the next opportunity.
2. Until then, press the P (Park) button before you switch off the engine.
3. Before leaving the vehicle, apply the electric parking brake.
[Trans. Oil Overheated Drive
On With Care]Manual drive program M and the temporarily active manual drive program are no longer available. Engine power output is reduced
Allow the vehicle to cool down.
[4WD System Currently Un-
available]The 4WD system has overheated. The vehicle is only driven by the front wheels.
Drive on, the airflow cools the 4WD system more quickly.
When the display message goes out, the 4WD system is available again and the vehicle is driven by all four wheels.
Instruments and controls2-53

Message Possible causes/consequences and solutions
[4WD system Inoperative] The 4WD system is malfunctioning. The vehicle is only driven by the front wheels.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
The lift gate is open.
WARNING
When the engine is running, exhaust gases can enter the vehicle interior if the lift gate is open.
There is a risk of poisoning
Close the lift gate.
The hood is open.
A warning tone also sounds.
WARNING
The open hood may then block your view when the vehicle is in motion.
There is a risk of an accident.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions.
2. Secure the vehicle against rolling away.
3. Close the hood.
At least one door is open. A warning tone also sounds.
Close all doors.
[Power Steering Malfunction
See Operator’s Manual]The power steering assistance is faulty.
A warning tone also sounds.
WARNING
You will need to use more force to steer.
There is a risk of an accident.
1. Check whether you are able to apply the extra force required.
2. If you are able to steer safely: carefully drive on to a qualified specialist workshop.
3. If you are unable to steer safely: do not drive on. It is recommended you contact the nearest INFINITI retailer.
2-54Instruments and controls

IMMOBILISER
The immobiliser prevents your vehicle from
being started without the correct key.
•To activate with the key: remove the key
from the ignition lock.
•To deactivate:switch on the ignition.
When leaving the vehicle, always take the key
with you and lock the vehicle. Anyone can start
the engine if a valid key has been left inside the
vehicle.
NOTE
The immobiliser is always deactivated when you
start the engine.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.NOTE
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.
ANTI-THEFT ALARM SYSTEM (IF
EQUIPPED)
To arm:lock the vehicle with the key or Intelli-
gent key. Indicator lamp
1flashes. The alarm
system is armed after approximately 15 sec-
onds.
To deactivate:unlock the vehicle with the key or
intelligent key.
or
Insert the key into the ignition switch.
NIC2750
SECURITY SYSTEM
Instruments and controls2-57

CAUTION
•When cleaning the inner side of the rear
window, be careful not to scratch or damage
the rear window defroster.
•When operating the defroster continu-
ously, be sure to start the engine. Other-
wise, it may cause the battery to discharge.
•When cleaning the inner side of the win-
dow, be careful not to scratch or damage the
electrical conductors on the surface of the
window.The windshield de-icer switch (defogger switch)
Aoperates when the ignition switch is in the
ON position.
You can use this function to defrost the wind-
shield or to demist the inside of the windshield
and the side windows
NOTE
You should only select the windshield de-icer
function until the windshield is clear again.When the switch
is pushed, the indicator
light in the switch illuminates. The climate
control system switches to the following func-
tions:
•High airflow
•High temperature
•Air distribution to the windshield and front
side windows
•Air recirculation mode off
NOTE
The “Windshield demisting” function automati-
cally sets the blower output to the optimum de-
misting effect. As a result, the airflow may in-
crease or decrease automatically after the
button is pressed
NOTE
You can adjust the blower output manually while
the “Windshield demisting” function is in opera-
tion: by adjusting the airflow control for the air-
conditioning or climate control system (see
Heater and air conditionerin the4. Display
screen, heater and air conditioner, and audio
systemsection).
NAA1659
WINDSHIELD DE-ICER SWITCH (IF
EQUIPPED)
Instruments and controls2-61

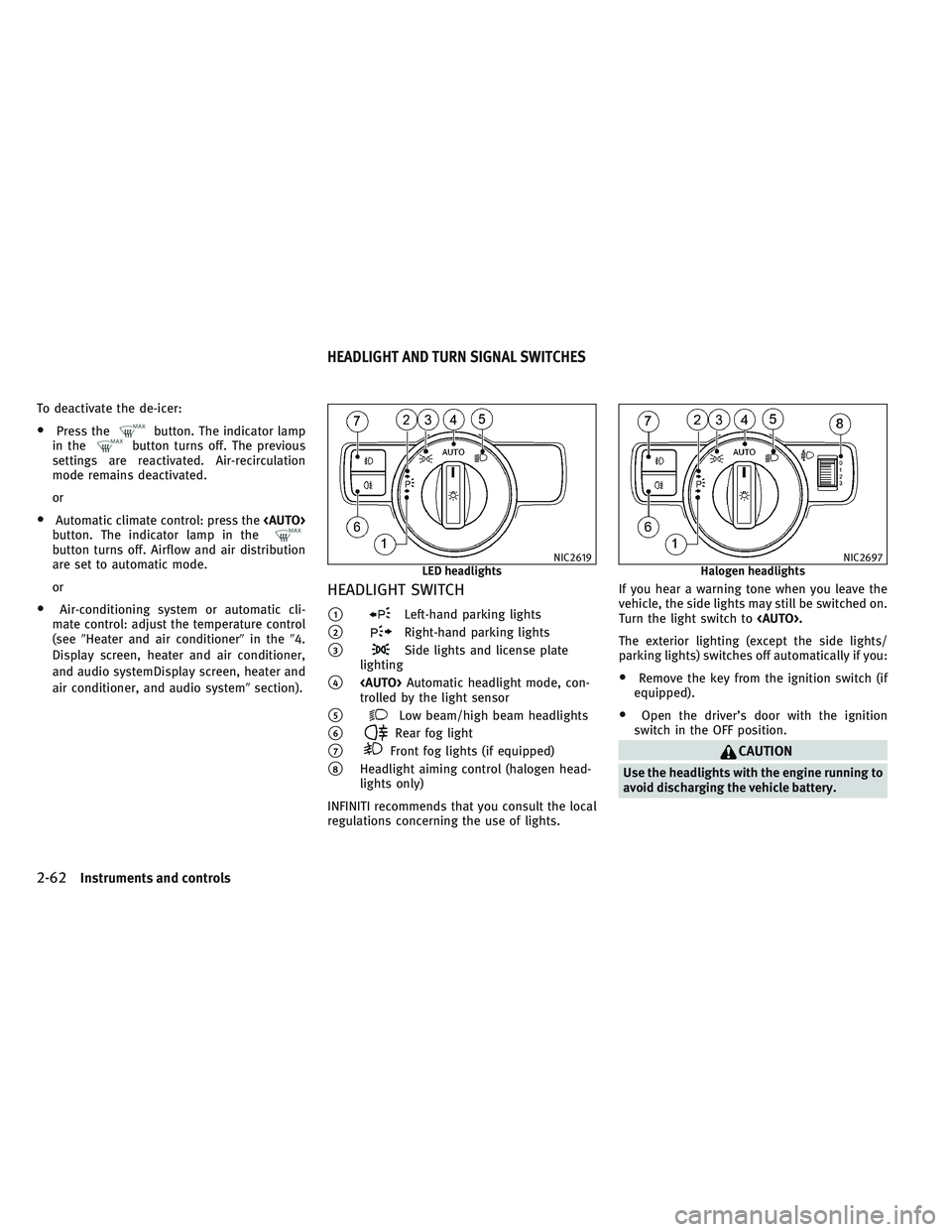

To deactivate the de-icer:
•Press thebutton. The indicator lamp
in thebutton turns off. The previous
settings are reactivated. Air-recirculation
mode remains deactivated.
or
•Automatic climate control: press the
button. The indicator lamp in the
button turns off. Airflow and air distribution
are set to automatic mode.
or
•Air-conditioning system or automatic cli-
mate control: adjust the temperature control
(seeHeater and air conditionerin the4.
Display screen, heater and air conditioner,
and audio systemDisplay screen, heater and
air conditioner, and audio systemsection).
HEADLIGHT SWITCH
1Left-hand parking lights
2Right-hand parking lights
3Side lights and license plate
lighting
4Automatic headlight mode, con-
trolled by the light sensor
5Low beam/high beam headlights
6Rear fog light
7Front fog lights (if equipped)
8Headlight aiming control (halogen head-
lights only)
INFINITI recommends that you consult the local
regulations concerning the use of lights.If you hear a warning tone when you leave the
vehicle, the side lights may still be switched on.
Turn the light switch to.
The exterior lighting (except the side lights/
parking lights) switches off automatically if you:
•Remove the key from the ignition switch (if
equipped).
•Open the driver’s door with the ignition
switch in the OFF position.
CAUTION
Use the headlights with the engine running to
avoid discharging the vehicle battery.
NIC2619LED headlightsNIC2697Halogen headlights
HEADLIGHT AND TURN SIGNAL SWITCHES
2-62Instruments and controls
