SYSTEM MALFUNCTION
If the LDW system malfunctions, it will cancel
automatically, and the message [Lane Depar-
ture Warning Inoperative] will appear.
Action to take:
Stop the vehicle in a safe location,
engage P (Park), turn the engine off and restart the
engine. If the message continues to appear, have
the system checked. It is recommended you visit
an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The lane camera unit1for the LDW system is
located above the inside mirror.
To ensure the proper operation of the LDW
system and prevent a system malfunction, be
sure to observe the following:
•Always keep the windshield clean.
•Do not attach a sticker (including transpar-
ent material) or install an accessory near the
camera unit.
•Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability of
detecting the lane markers.
•Do not strike or damage the areas around
the camera unit. Do not touch the camera
lens or remove parts from the camera unit. If
the camera unit is damaged due to an acci-
dent, it is recommended you contact an
INFINITI retailer.
NSD644
5-34Starting and driving

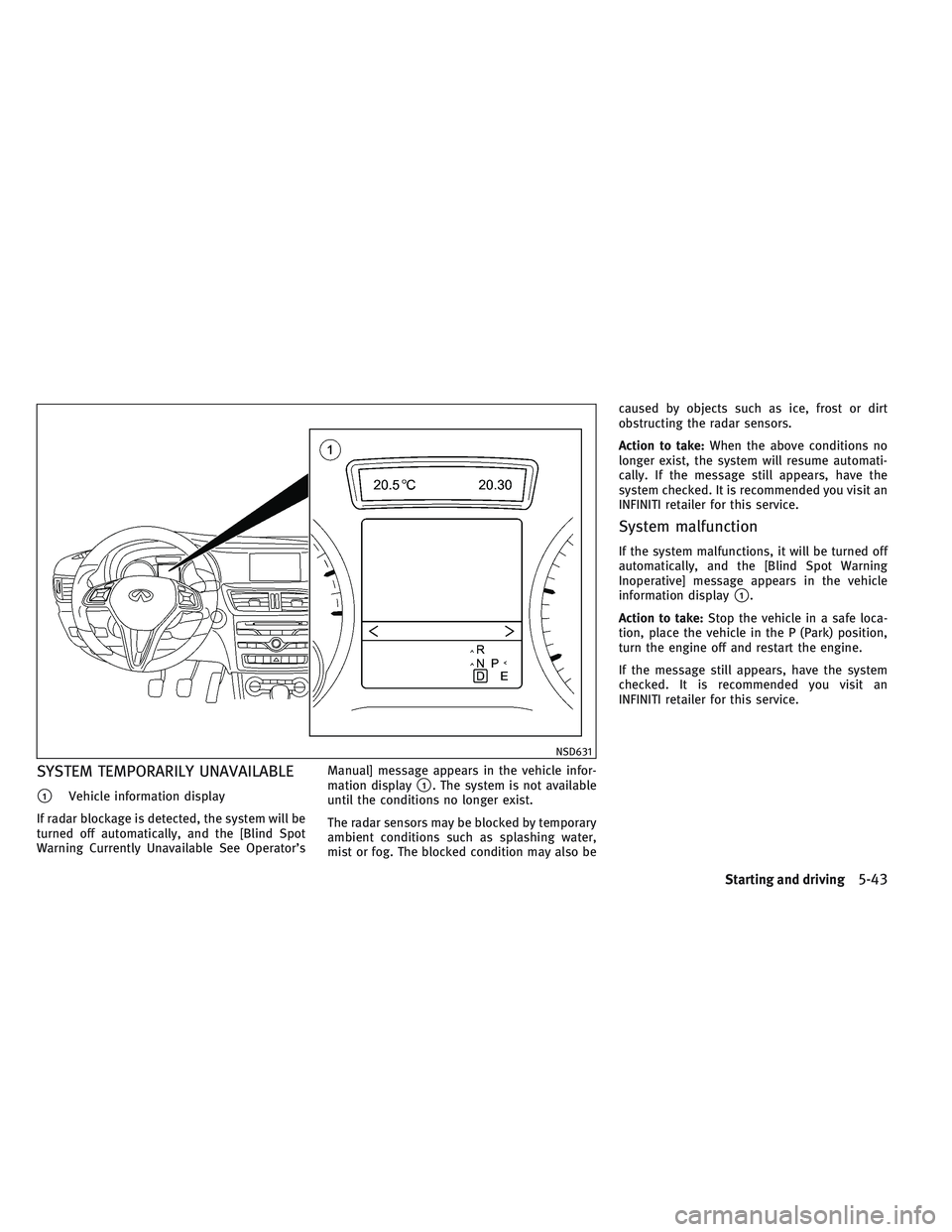

SYSTEM TEMPORARILY UNAVAILABLE
1Vehicle information display
If radar blockage is detected, the system will be
turned off automatically, and the [Blind Spot
Warning Currently Unavailable See Operator’sManual] message appears in the vehicle infor-
mation display1. The system is not available
until the conditions no longer exist.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog. The blocked condition may also becaused by objects such as ice, frost or dirt
obstructing the radar sensors.
Action to take:When the above conditions no
longer exist, the system will resume automati-
cally. If the message still appears, have the
system checked. It is recommended you visit an
INFINITI retailer for this service.
System malfunction
If the system malfunctions, it will be turned off
automatically, and the [Blind Spot Warning
Inoperative] message appears in the vehicle
information display
1.
Action to take:Stop the vehicle in a safe loca-
tion, place the vehicle in the P (Park) position,
turn the engine off and restart the engine.
If the message still appears, have the system
checked. It is recommended you visit an
INFINITI retailer for this service.
NSD631
Starting and driving5-43

RADAR MAINTENANCE
The two radar sensor unitsAfor the BSW
system are located near the rear bumper. Al-
ways keep the area near the radar sensors
clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors.
Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.Do not strike or damage the area around the
radar sensors. It is recommended you consult
an INFINITI retailer if the area around the radar
sensors is damaged due to a collision.
FCC NOTICE
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
NOTE
Changes or modification not expressly approved
by the party responsible for compliance could
void the user’s authority to operate the equip-
ment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause harmful interference, and
(2) this device must accept any interference re-
ceived, including interference that may cause
undesired operation of the device.Cruise control maintains a constant road speed
for you. It brakes automatically in order to avoid
exceeding the set speed. You must select a
lower gear in good time on long and steep
downhill gradients, especially if the vehicle is
laden or towing a trailer.WARNING
For vehicles with automatic transmission, you
need to have selected manual drive program M
(seeManual drive programearlier in this sec-
tion). By doing so, you will make use of the
braking effect of the engine. This relieves the
load on the brake system and prevents the
brakes from overheating and wearing too
quickly.
Use cruise control only if road and traffic con-
ditions are appropriate for maintaining a steady
speed for a prolonged period. You can set the
cruise control at any road speed above 20 MPH
(30 km/h).
The speed indicated in the speedometer may
differ slightly from the set speed.
NAA1640
CRUISE CONTROL
5-44Starting and driving

[ICC Currently Unavailable See Operator’s
Manual]:The ICC system is temporarily inopera-
tive. Possible causes:
•The function is impaired due to heavy rain or
snow.
•The radar sensor system is temporarily
inoperative, e. g. due to electromagnetic
radiation emitted by nearby TV or radio sta-
tions or other sources of electromagnetic
radiation.
•The system is outside the operating tem-
perature range.
•The on-board voltage is too low.
A warning tone also sounds.
Once the causes listed above no longer apply,
the display message goes out.
If the display message does not disappear:
•Pull over and stop the vehicle safely as soon
as possible, paying attention to road and
traffic conditions.
•Secure the vehicle against rolling away.
•Restart the engine.[ICC Inoperative]:The ICC system is malfunc-
tioning. The adaptive brake assist function may
also have failed. A warning tone also sounds.
Have the system checked. It is recommended
you visit an INFINITI retailer for this service.
[ICC Suspended]:You have depressed the accel-
erator pedal. The ICC system is no longer
controlling the speed of the vehicle.
The display message should disappear when
you remove your foot from the accelerator pedal
[ICC–––MPH]:An activation condition for the
ICC system is not fulfilled.
Check the activation conditions for the ICC
system.
SYSTEM MAINTENANCE
The sensor for the ICC systemAis located
behind the INFINITI logo at the front of the
vehicle.
To keep the ICC system operating properly, be
sure to observe the following:
•Always keep area around the sensor clean.
•Do not strike or damage the areas around
the sensor. Do not touch or remove the screw
located on the sensor. Doing so could cause
failure or malfunction. If the sensor is dam-
aged due to an accident, it is recommended
you contact an INFINITI retailer.
•Do not cover or attach stickers (including
transparent material) or install an accessory
near the sensor. This could cause failure or
malfunction.
NSD645
Starting and driving5-59

2. Press theorbutton to select
[Emergency Brake].
3. Press thebutton on the steering wheel
1. The current selection is displayed.
4. To activate/deactivate the FEB system:
press thebutton again
When the FEB system is deactivated, the
symbolCappears in the vehicle information
display.
NOTE
The FEB system will be automatically turned on
when the engine is restarted.
FEB SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for the
FEB system. Failure to operate the vehicle in
accordance with these system limitations
could result in serious injury or death.
•The FEB system cannot detect all vehicles
under all conditions.
•The radar sensor does not detect the follow-
ing objects:
–Pedestrians or animals
–Oncoming vehicles
–Crossing vehicles
•The radar sensor has some performance
limitations. For stationary vehicles, the FEB
system will not function when the vehicle is
driven at speeds over:
–Approximately 31 MPH (50 km/h) for the
Autonomous braking function.
•The radar sensor may not detect a vehicle
ahead in the following conditions:
–Dirt, ice, snow or other material covering
the radar sensor.
–Interference by other radar sources.
–Snow or heavy rain.
–If the vehicle ahead is narrow (e.g. mo-
torcycle).
–If the vehicle ahead is in a different lane.–Under strong radar reflections, for ex-
ample, in a multi-level parking garage.
–New vehicle or after a maintenance of
the FEB system. For additional informa-
tion, seeBreak-in schedulelater in this
section
–When driving on a steep downhill slope
or roads with sharp curves.
–When towing a trailer.
•In some road or traffic conditions, the FEB
system may intervene unnecessarily or give
an unnecessary warning. Always pay care-
ful attention to the traffic situation. Do not
rely solely on the distance warning function
and terminate the intervention if necessary.
•Braking distances increase on slippery sur-
faces.
•The system is designed to automatically check
the sensor’s functionality, within certain limi-
tations. The system may not detect some forms
of obstruction of the sensor area such as ice,
snow, stickers, for example. In these cases, the
system may not be able to warn the driver prop-
erly. Be sure that you check, clean and clear the
sensor area regularly.
•Excessive noise will interfere with the warn-
ing chime sound, and the chime may not be
heard.
NSD630
5-64Starting and driving

PROBLEMS WITH PARKING SENSOR SYSTEM
Problem Possible causes/consequences and solutions
Only the red segments in the
Parking Sensor System displays are
lit. You also hear a warning tone for
approximately two seconds.
The Parking Sensor System is then
deactivated and the indicator light
on the Parking Sensor System
button lights up.The Parking Sensor System has malfunctioned and has been
deactivated.
If problems persist, have the Parking Sensor System checked. It is
recommended you visit an INFINITI retailer for this service.
Only the red segments in the
parking sensor displays are lit. The
Parking Sensor System is then
deactivated.The parking sensors are dirty or there is interference.
•Clean the sensors.•Switch the ignition back on.
The problem may be caused by an external source of radio or ultrasound
waves.
See if the Parking Sensor System functions in a different location.
During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum
engine performance and ensure the future reli-
ability and economy of your new vehicle. Failure
to follow these recommendations may result in
shortened engine life and reduced engine per-
formance.
•Avoid driving for long periods at constant
speed, either fast or slow, and do not run the
engine over 4,000 RPM.
•Do not accelerate at full throttle in any gear.
•Avoid quick starts.
•Avoid hard braking as much as possible.
•Do not tow a trailer for the first 500 mi (805
km). Your engine, axle or other parts could
be damaged.
You should also observe these notes on
break-in if the engine or parts of the drive train
on your vehicle have been replaced.
BREAK-IN SCHEDULE
Starting and driving5-81

If you switch the engine off with the transmis-
sion in position R (Reverse) or D (Drive), the
automatic transmission shifts to N (Neutral)
automatically.
With the key: if you then open the driver’s door
or the front-passenger door or remove the key
from the ignition, the automatic transmission
shifts to P (Park) automatically.
If you want the automatic transmission to re-
main in neutral N (Neutral), e.g. when having
the vehicle cleaned in an automatic car wash
with a towing system:
With the key
:
1. Switch the ignition on.
2. Depress the brake pedal and keep it de-
pressed.
3. Shift to N (Neutral).
4. Release the brake pedal.
5. Release the electric parking brake.
6. Switch off the ignition and leave the key in
the ignition switch.
EXTENDED PARKING
If you leave the vehicle parked up for longer
than four weeks, the battery may be damaged
by exhaustive discharging.
If you leave the vehicle parked up for longer
than six weeks, it may suffer from lack of use.
Visit an INFINITI retailer and seek advice
NOTE
You can obtain information about trickle char-
gers from an INFINITI retailer.The electric power steering system is designed
to reduce the driver effort required to steer the
vehicle.
WARNING
If during operation a fault is detected the fol-
lowing message will be displayed in the ve-
hicle information display along with an audible
warning tone.
[Power Steering Malfunction See Operators
Manual]
In conjunction with this warning, steering as-
sistance will no longer be provided by the sys-
tem.
The effort required to steer the vehicle will
increase. This will be most noticeable at low
speed and when performing a tight turning
maneuver.
Check whether you are able to provide the ex-
tra effort required.
If you are able to steer safely: Carefully drive on
to an INFINITI retailer.
If you are unable to steer safely: Do NOT drive
on. It is recommended you contact the nearest
INFINITI retailer for assistance.
ELECTRIC POWER STEERING SYSTEM
5-86Starting and driving

Tire type and condition may also affect braking
effectiveness.
–When replacing tires, install the specified
size of tires on all four wheels.
–
When installing a replacement tire, make sure
that it is the proper size and type as specified on
the tire and loading information label. (See
Wheels and Tiresin the9. Maintenance and
Schedulessection.)
–For detailed information, seeWheels and
tiresin the8. Do-it-yourselfsection.
The Anti-lock Braking System (ABS) controls the
brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each
wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Using system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady pres-
sure, but do not pump the brakes. The ABS will
operate to prevent the wheels from locking up.
Steer the vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
Self-test feature
The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer.
The computer has a built-in diagnostic feature
that tests the system each time you start the
engine and move the vehicle at a low speed in
forward or reverse. When the self-test occurs,
you may hear a “clunk” noise and/or feel a
pulsation in the brake pedal. This is normal and
does not indicate a malfunction. If the computer
senses a malfunction, it switches the ABS off
and illuminates the ABS warning light on the
instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked. It is recommended you visit an
INFINITI retailer for this service.
Normal operation
The ABS operates at speeds above 3 to 6 MPH
(5 to 10 km/h). The speed varies according to
road conditions.
When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly
applies and releases hydraulic pressure. This
action is similar to pumping the brakes very
quickly. You may feel a pulsation in the brake
pedal and hear a noise from under the hood or
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are haz-
ardous and extra care is required while driving.
Starting and driving5-89
