10iPod menu:
- [Previous List]
- [Playlists]
- [Artists]
- [Songs]
- [Albums]
- [Genres]
- [Composers]
- [Podcasts]
- [Audiobooks]
- [Shuffle]
- [Repeat]
11Repeat mode indicator:
Touch to change the repeat mode.
Mode Screen display
All Track Repeat
All
1 Track Repeat
1 Track
Repeat Off
OFF
iPod player operation
Activation and playing:
Inserting the iPod cable into the connector will
activate the iPod mode.
iPod can also be selected from the audio
sources list and the source bar by touch panel
operation or by pushing.Selecting audio source
Main audio buttons
To play and pause the iPod, touch [Play]/
[Pause] in the iPod menu.
Selecting search method
:
A list of search methods is displayed in the iPod
menu. Touch and select an item to play the iPod
in your preferred settings.
Fast-forwarding/rewinding
:
Push and holdto fast-
forward or rewind the song. Release •TRACK> to play the song at normal speed.
Changing play mode
:
Touch [Shuffle] or [Repeat] from the iPod menu
to select the play mode.
Skipping songs
:
Pushto skip to the next or
previous song.
Even when iPods or iPhones are inserted into
both of the two USB connectors, the system
recognizes only one of the connected iPods or
iPhones at a time.
BLUETOOTH® STREAMING AUDIO
Your vehicle is equipped with Bluetooth®
Streaming Audio.
If you have a compatible Bluetooth® device
with streaming audio (A2DP profile), you can set
up a wireless connection between your
Bluetooth® device and the in-vehicle audio
system. This connection allows you to listen to
the audio from the Bluetooth® device using
your vehicle speakers. It may also allow basic
control of the device for playing and skipping
audio files using the AVRCP Bluetooth® profile.
Not all Bluetooth® devices have the same level
of controls for AVRCP. Please consult the
manual for your Bluetooth® device for more
details.
Wireless LAN (Wi-Fi) and the Bluetooth® func-
tions share the same frequency band (2.4 GHz).
Using the Bluetooth® and the wireless LAN
functions at the same time may slow down or
disconnect the communication and cause unde-
sired noise. It is recommended that you turn off
the wireless LAN (Wi-Fi) when using the
Bluetooth® functions.
4-78Display screen, heater and air conditioner, and audio system

Regulatory Information
FCC Regulatory information:
FCC ID : HYQDNNS075
NOTE: This device complies with part 15 of the
FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including in-
terference that may cause undesired operation.
FCC WARNING: Changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
CAUTION : Radio Frequency Radiation Exposure
This equipment complies with FCC radiation
exposure limits set forth for uncontrolled envi-
ronment and meets the FCC radio frequency (RF)
Exposure Guidelines. This equipment has very
low levels of RF energy that it deemed to comply
without maximum permissive exposure evalua-
tion (MPE). But it is desirable that it should be
installed and operated with at least 20cm and
more between the radiator and person’s body.
Co-location: This transmitter must not be co-
located or operated in conjunction with any
other antenna or transmitter.IC Regulatory information
:
The antenna cannot be removed (and changed)
by user.
NOTE: This device complies Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) This
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.
CAUTION : Radio Frequency Radiation Exposure
This equipment complies with IC radiation ex-
posure limits set forth for uncontrolled environ-
ment and meets RSS-102 of the IC radio fre-
quency (RF) exposure rules. This equipment has
very low levels of RF energy that it deemed to
comply without maximum permissive exposure
evaluation (MPE). But it is desirable that it
should be installed and operated with at least
20cm and more between the radiator and per-
son’s body.
Co-location: This transmitter must not be co-
located or operated in conjunction with any
other antenna or transmitter.
This Class B digital apparatus meets all require-
ments of the Canadian Interference Causing
Equipment Regulations.
Connecting Bluetooth® streaming
audio device
Bluetooth® streaming audio device must be
connected to the vehicle before operation.
Connecting Bluetooth® device
Display screen, heater and air conditioner, and audio system4-79

How to view Bluetooth® streaming
audio operation screen
1[Source]:Touch to switch to the source list screen.
Selecting audio source
2Track information:
Track information such as the song title,
artist name and folder name is dis-
played.
3Audio source indicator:
This indicates that Bluetooth® stream-
ing audio is currently selected among
other sources.
4Play time:
The play time of the track is displayed.
5[Control]:
Touch to display the control screen.
Bluetooth® streaming audio operation
6Track number
This indicates the track number.
7Repeat mode indicator:
Touch to change the repeat mode.
Mode Screen display
All repeat
All
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
Repeat Off
OFF
8Bluetooth® streaming audio menu:
- [Play]
- [Pause]
- [Folder/Track]
- [Repeat]
- [Random]
9Random mode indicator:
Touch to change the random mode.
NAA1634
4-80Display screen, heater and air conditioner, and audio system

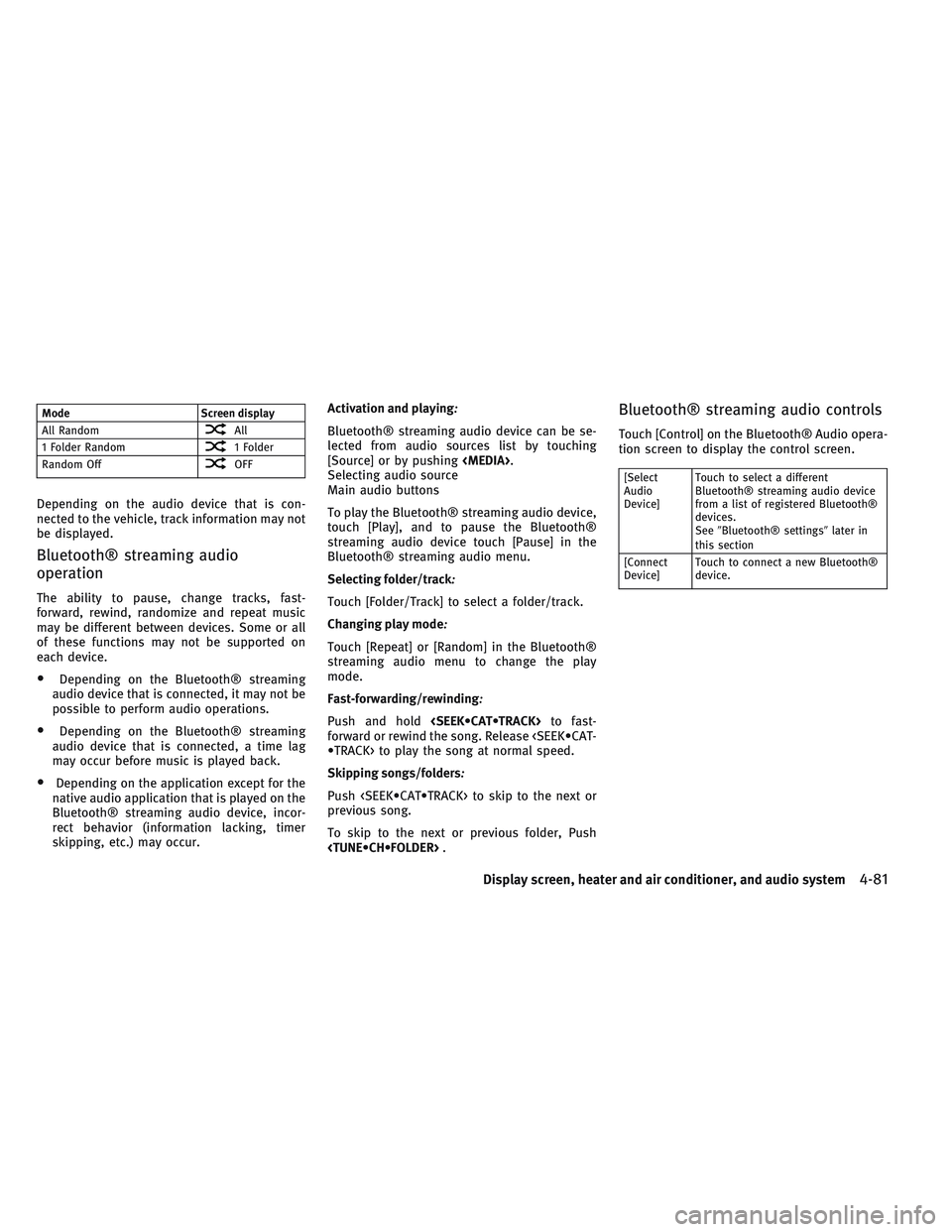

Mode Screen display
All Random
All
1 Folder Random
1 Folder
Random Off
OFF
Depending on the audio device that is con-
nected to the vehicle, track information may not
be displayed.
Bluetooth® streaming audio
operation
The ability to pause, change tracks, fast-
forward, rewind, randomize and repeat music
may be different between devices. Some or all
of these functions may not be supported on
each device.
•Depending on the Bluetooth® streaming
audio device that is connected, it may not be
possible to perform audio operations.
•Depending on the Bluetooth® streaming
audio device that is connected, a time lag
may occur before music is played back.
•Depending on the application except for the
native audio application that is played on the
Bluetooth® streaming audio device, incor-
rect behavior (information lacking, timer
skipping, etc.) may occur.Activation and playing
:
Bluetooth® streaming audio device can be se-
lected from audio sources list by touching
[Source] or by pushing.
Selecting audio source
Main audio buttons
To play the Bluetooth® streaming audio device,
touch [Play], and to pause the Bluetooth®
streaming audio device touch [Pause] in the
Bluetooth® streaming audio menu.
Selecting folder/track
:
Touch [Folder/Track] to select a folder/track.
Changing play mode
:
Touch [Repeat] or [Random] in the Bluetooth®
streaming audio menu to change the play
mode.
Fast-forwarding/rewinding
:
Push and holdto fast-
forward or rewind the song. Release •TRACK> to play the song at normal speed.
Skipping songs/folders
:
Push to skip to the next or
previous song.
To skip to the next or previous folder, Push
.
Bluetooth® streaming audio controls
Touch [Control] on the Bluetooth® Audio opera-
tion screen to display the control screen.
[Select
Audio
Device]Touch to select a different
Bluetooth® streaming audio device
from a list of registered Bluetooth®
devices.
SeeBluetooth® settingslater in
this section
[Connect
Device]Touch to connect a new Bluetooth®
device.
Display screen, heater and air conditioner, and audio system4-81

WARNING
•Only use a phone after stopping your ve-
hicle in a safe location. If you have to use a
phone while driving, exercise extreme cau-
tion at all times so full attention may be
given to vehicle operation.
•If you find yourself unable to devote full
attention to vehicle operation while talking
on the phone, pull off the road in a safe
location and stop your vehicle before doing
so.
CAUTION
To avoid draining the vehicle battery, only use
a phone after starting the engine.
Your vehicle is equipped with a Bluetooth®
Hands-Free Phone System. If you are an owner
of a compatible Bluetooth® enabled cellular
phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth® wireless tech-
nology, you can make or receive a telephone
call with your cellular phone in your pocket.
Once a cellular phone is connected to the
in-vehicle phone module, the procedure for
connecting the phone does not need to beperformed again. Your phone is automatically
selected by the in-vehicle phone module when
the ignition switch is switched to the ON posi-
tion with the selected cellular phone turned on
and carried in the vehicle.
You can register up to 5 different Bluetooth®
cellular phones to the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
The Voice Recognition system supports phone
commands, so dialing a phone number using
your voice is possible.
SeeINFINITI Voice Recognition systemlater in
this section
Before using the Bluetooth® Hands-Free Phone
System, refer to the following notes.
•Wireless LAN (Wi-Fi) and the Bluetooth®
functions share the same frequency band
(2.4 GHz). Using the Bluetooth® and wire-
less LAN functions at the same time may
slow down or disrupt communications and
could cause undesired noise. It is recom-
mended that you turn wireless LAN (Wi-Fi) off
when using the Bluetooth® functions.
•Set up the wireless connection between a
compatible cellular phone and the in-vehicle
phone module before using the Bluetooth®
Hands-Free Phone System.
•Some Bluetooth® enabled cellular phones
may not be recognized by the in-vehicle
phone module. Please visit
www.infinitiusa.com/bluetooth and search
for a recommended phone list.
•You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside the service area
for your cellular phone network.
– Your vehicle is in an area where it is
difficult to receive radio waves, such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order to
prevent dialing.
•When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
•This Bluetooth® system supports Wideband
speech, which enhances the sound quality of
phone calls placed over Bluetooth®. To take
advantage of this feature, the cellular device
should be used on a carrier supporting Adap-
tive Multi-Rate Wideband (AMR-WB) or HD
voice technology. The performance of
AMR-WB may vary by carrier and calling area.
Consult your cellular carrier if you experience
issues with call quality or connection.
BLUETOOTH® HANDS-FREE PHONE
SYSTEM
4-86Display screen, heater and air conditioner, and audio system

•Immediately after the ignition switch is
turned ON, it may be impossible to receive a
call for a short period of time.
•Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
•While a cellular phone is connected through
the Bluetooth® wireless connection, the bat-
tery of the cellular phone may discharge
quicker than usual.
•If the Bluetooth® Hands-Free Phone System
seems to be malfunctioning, please visit
www.infinitiusa.com/bluetooth for trouble-
shooting help.
•Some cellular phones or other devices may
cause interference or a buzzing noise to be
emitted from the audio system speakers.
Storing the device in a different location may
reduce or eliminate the noise.
•Refer to the owner’s manual for the cellular
phone for information regarding the telephone
pairing procedure specific to your phone, bat-
tery charging, and cellular phone antenna, etc.
•The antenna display on the monitor may not
match the antenna display of some cellular
phones.
•The battery display on the monitor may not
match the battery display of some cellular
phones.
•Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize echoes.
•If reception between callers is unclear,
adjusting the incoming or outgoing call vol-
ume may improve the clarity.
REGULATORY INFORMATION
FCC Regulatory Information
FCC ID : HYQDNNS075
NOTE: This device complies with part 15 of the
FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including in-
terference that may cause undesired operation.
FCC WARNING: Changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
CAUTION : Radio Frequency Radiation Exposure
This equipment complies with FCC radiation
exposure limits set forth for uncontrolled envi-
ronment and meets the FCC radio frequency (RF)Exposure Guidelines. This equipment has very
low levels of RF energy that it deemed to comply
without maximum permissive exposure evalua-
tion (MPE). But it is desirable that it should be
installed and operated with at least 20cm and
more between the radiator and person’s body.
Co-location: This transmitter must not be co-
located or operated in conjunction with any
other antenna or transmitter.
IC Regulatory information
The antenna cannot be removed (and changed)
by user.
NOTE: This device complies Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) This
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.
CAUTION : Radio Frequency Radiation Exposure
This equipment complies with IC radiation ex-
posure limits set forth for uncontrolled environ-
ment and meets RSS-102 of the IC radio fre-
quency (RF) exposure rules. This equipment has
very low levels of RF energy that it deemed to
comply without maximum permissive exposure
evaluation (MPE). But it is desirable that it
should be installed and operated with at least
Display screen, heater and air conditioner, and audio system4-87

20cm and more between the radiator and per-
son’s body.
Co-location: This transmitter must not be co-
located or operated in conjunction with any
other antenna or transmitter.
This Class B digital apparatus meets all require-
ments of the Canadian Interference Causing
Equipment Regulations.
The Bluetooth® word mark and logos are reg-
istered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by DENSO
CORPORATION is under license. Other trade-
marks and trade names are those of their
respective owners.
PHONE
Connecting Bluetooth® Hands-Free
Phone
The cellular phone must be connected to the
Bluetooth® Hands-Free Phone System before
commencing operation. Up to 5 cellular phones
can be connected to the system.
SeeConnecting Bluetooth® devicelater in
this section
Phone selection
Select one of the connected devices for opera-
tion.
1. Push

CONNECTING BLUETOOTH® DEVICE
Your vehicle is equipped with a Bluetooth®
Hands-Free Phone System and Bluetooth®
streaming audio device. If you are an owner of a
compatible Bluetooth® enabled cellular phone
or Bluetooth® audio device, you can set up the
wireless connection between your cellular
phone and the in-vehicle phone module, or
Bluetooth® audio and in-vehicle audio module.
With Bluetooth® wireless technology, you can
make or receive a telephone call with your
cellular phone in your pocket and listen to
music on your Bluetooth® streaming audio
device via the in-vehicle system.
Connecting cellular phone/audio
device
1. Push
