2017 INFINITI QX30 navigation system

Clock settings
Clock settings can be changed.
1. Push

ADDITIONAL SYSTEM INFORMATION
System Start-Up
Due to the large number of features and capa-
bilities that the INFINITI InTouch system needs
to load on start-up, it may take up to a minute
for all functions (such as Apps) to be available.
The system will display the message indicating
that the application is loading during this time.
During the start-up period, hard button controls
for audio will become available before start-up
is complete. Features will become available in
the following order.
•Audio volume and music playback
•Audio Full Screen Access
•Full App Availability – System will display the
message indicating the completion of the
application loading process.
System Response Delay
INFINITI InTouch uses an operating system like
those found on many computers, tablets and
cell phones. Like these devices, processing
speed may vary, and system response delays or
resets may occur intermittently. This does not
indicate a malfunction, and further information
on system operation can be found below. In most situations, simply waiting a few mo-
ments longer should be sufficient for the pend-
ing operations to complete.
If the system temporarily does not respond to
commands, the system can be easily reset.
Simply push down the Audio Power knob for at
least 5 seconds. The system will turn off and
restart.
After restart, all functions should be available.
•Audio will resume, but if you were using
Bluetooth® Audio or an Audio App, the
connection may need to be re-established.
•If a navigation route was set, the route
should resume automatically (models with
navigation system).
•If a phone call was in progress, the call may
be temporarily transferred back to the hand-
set.
System Reset
As noted above, intermittent system resets may
occur during normal operation. You may also
wish to reset the system if you find that a
particular feature is not loading or responding.
Often, a quick system reset will resolve any
issue you may be experiencing. After restart, all
functions will be available as described above. System Updates
Like many digital devices, the INFINITI InTouch
system is designed to allow for software up-
dates as enhancements are developed and ad-
ditional features added. If you have questions
about system performance, it is recommended
you contact your INFINITI retailer to ensure that
your vehicle has had the latest available soft-
ware installed.
Operating Tips
INFINITI InTouch provides several methods of
operation to suit your preferences. The follow-
ing are suggested operating tips.
•Operating the INFINITI Controller, Steering
Wheel Controls, or other controls too quickly
can cause a lag between the control and the
display. Operate the controls carefully and
allow the system to respond to your request.
•INFINITI recommends using Voice Recogni-
tion whenever possible to select options
while driving. Some touch screen functional-
ity is intentionally unavailable during driving.
Please view the available voice commands by
pushing
<
>on the steering wheel and
then selecting a category on the display.
•In some situations, the system may not be
able to recognize your command even if you
Display screen, heater and air conditioner, and audio system4-15

Making a call
1. Push

MAJOR APPS AVAILABLE FOR USE IN
THIS SYSTEM
The major applications currently available for INFINITI InTouch are introduced here.
Note that the applications are subject to updates and changes.
AppsDescriptions
[Maintenance Note] You can check maintenance items inside the vehicle at your convenience.
[Calendar]* (if equipped) The day’s schedule can be checked. The schedule in the [Calendar] works with web-based services.
[Email]* (if equipped) The Email account you use can also be accessed through the vehicle system. You will be informed when a new
incoming message is received. This application works with web-based services.
[Compass]
(models with navigation system) The current traveling direction of the vehicle is shown in various kinds of skins.
Accurate information cannot be provided if GPS position information cannot be obtained.
[Clock] [Clock] shows the current time in various kinds of skins.
Mobile Apps Many popular applications you usually use on your smartphone can also be used in your vehicle.
After registering a subscription in “INFINITI InTouch Apps” you can use these applications by operating the
in-vehicle display.
Applications such as Facebook, etc.
*: Requires an account to be set up. To use [Calendar], [Email] and Mobile Apps, INFINITI InTouch Apps must be downloaded to your smartphone.
WARNING
•Look at the display screen only briefly while
driving. Keep your eyes on the road. Inatten-
tive driving may lead to a crash resulting in
serious injuries or death.NOTE
When Email service and calendar schedule infor-
mation are displayed on the in-vehicle display,
the system controls the display based on the
in-vehicle profiles (user ID and password).
Therefore, users are required to create a profile
to make use of Email and calendar services. IMPORTANT:
A PIN code can be used so that other people
cannot see your Email and calendar apps. When
the engine is turned OFF and then ON again, the
PIN code has to be entered.
After the PIN code is entered, regardless of
whether your smartphone is connected to the
vehicle or not, Email and calender apps will be
viewable until the engine is turned OFF. When
Display screen, heater and air conditioner, and audio system4-101

Command list
To use the Voice Recognition function, you can speak commands in the order of 1st command, 2nd command and 3rd command. You can also operate
the system with directly speaking the 2nd or 3rd command.
Variable numbers or words such as names can be applied in < > when speaking a command.
See the separate Navigation System Owner’s Manual (if equipped) for the navigation command.
General command
CommandAction
Show More Com-
mands Display other commands of the same category.
Go Back Correct the last recognition result to return to the previous screen.
Exit Cancel Voice Recognition.
Next Skip to next page.
Previous Skip to previous page.
General phone command
The following commands can be used during the phone Voice Recognition session.
Command Action
Dial The system makes a call to spoken phone number.
Change Number Correct the phone number when it is not recognized (available during phone number entry).
4-108Display screen, heater and air conditioner, and audio system

Information command
1st command2nd command Action
Information Voice Menu Connects to the INFINITI InTouchTMServices Response Specialists. Refer to the Navigation Owner’s Manual for
details.
Operator Connects to the INFINITI InTouch
TMServices Response Specialists. Refer to the Navigation Owner’s Manual for
details.
Where am I?* Displays the information of the current position.
Fuel Prices Displays the fuel prices.
Weather Forecast Displays the weather forecast.
Current Weather Displays the nearby weather (current weather).
Sports Scores Displays the sports scores.
Traffic Information* Turns the traffic information system on or off.
Route Information* Displays the route information.
*: Models with navigation system only.
NOTE
The Fuel Prices, Weather Forecast, Current
Weather, Sports Scores and Traffic Information
will not operate without a subscription to
SiriusXM Radio.
VOICE RECOGNITION SETTINGS
Voice recognition functions can be set.
1. Push

The information screen sets or displays various information that is helpful for using the vehicle. Available items include vehicle information, traffic
information, current location information and navigation software version (if equipped).
1. Push

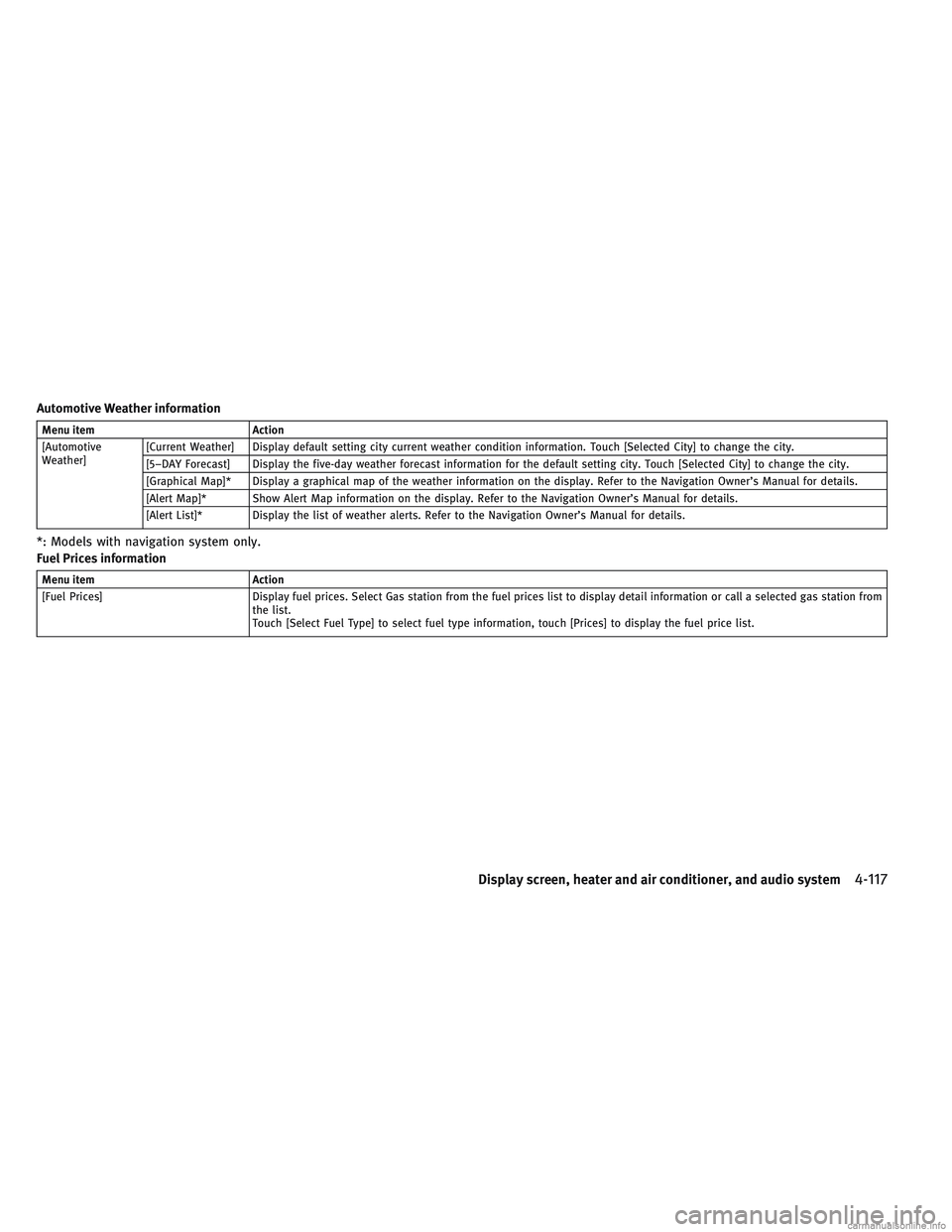

Automotive Weather information
Menu itemAction
[Automotive
Weather] [Current Weather] Display default setting city current weather condition information. Touch [Selected City] to change the city.
[5–DAY Forecast] Display the five-day weather forecast information for the default setting city. Touch [Selected City] to change the city.
[Graphical Map]* Display a graphical map of the weather information on the display. Refer to the Navigation Owner’s Manual for details.
[Alert Map]* Show Alert Map information on the display. Refer to the Navigation Owner’s Manual for details.
[Alert List]* Display the list of weather alerts. Refer to the Navigation Owner’s Manual for details.
*: Models with navigation system only.
Fuel Prices information
Menu item
Action
[Fuel Prices] Display fuel prices. Select Gas station from the fuel prices list to display detail information or call a selected gas station from
the list.
Touch [Select Fuel Type] to select fuel type information, touch [Prices] to display the fuel price list.
Display screen, heater and air conditioner, and audio system4-117
