2017 Hyundai Ioniq Hybrid set clock

3-137
Convenient features of your vehicle
3

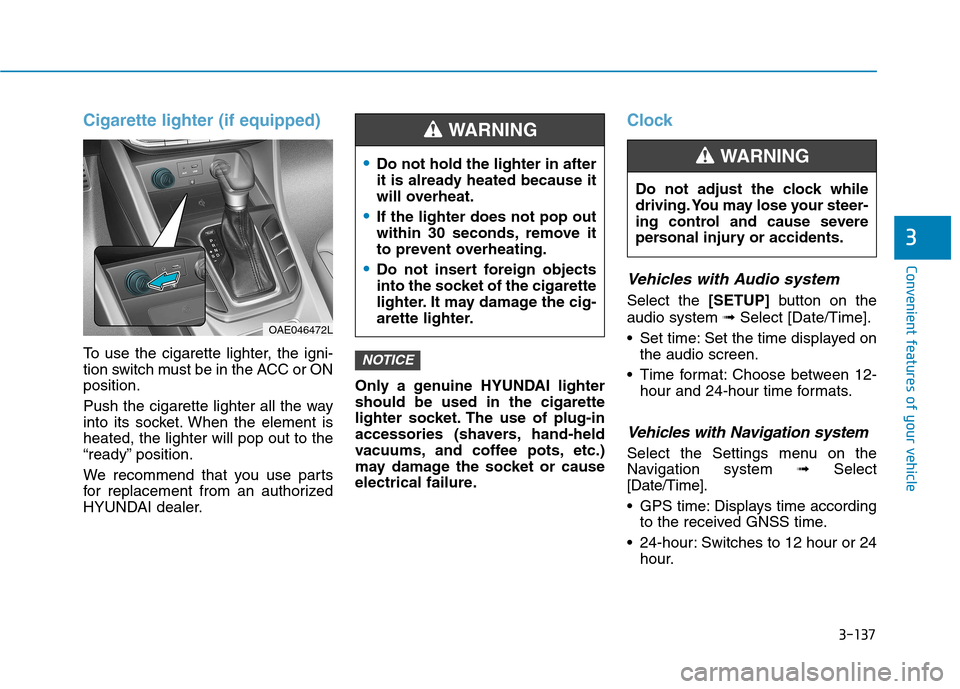

Cigarette lighter (if equipped)
To use the cigarette lighter, the igni-
tion switch must be in the ACC or ONposition.
Push the cigarette lighter all the way
into its socket. When the element isheated, the lighter will pop out to the
“ready” position.
We recommend that you use parts
for replacement from an authorized
HYUNDAI dealer.Only a genuine HYUNDAI lightershould be used in the cigarette
lighter socket. The use of plug-in
accessories (shavers, hand-held
vacuums, and coffee pots, etc.)
may damage the socket or cause
electrical failure.
Clock
Vehicles with Audio system
Select the
[SETUP]button on the
audio system ➟Select [Date/Time].
Set time: Set the time displayed on the audio screen.
Time format: Choose between 12- hour and 24-hour time formats.
Vehicles with Navigation system
Select the Settings menu on the
Navigation system ➟Select
[Date/Time].
GPS time: Displays time according to the received GNSS time.
24-hour: Switches to 12 hour or 24 hour.
NOTICE
Do not adjust the clock while
driving. You may lose your steer-
ing control and cause severe
personal injury or accidents.
WARNING Do not hold the lighter in after
it is already heated because it
will overheat.
If the lighter does not pop out
within 30 seconds, remove it
to prevent overheating.
Do not insert foreign objects
into the socket of the cigarette
lighter. It may damage the cig-
arette lighter.
WARNING
OAE046472L

4-42
Multimedia System
Screensaver
Set the information displayed when
the audio system is switched off or
the screen is turned off. Select the [SETUP]button on the
audio system ➟Select [Screensaver].
Analogue: An analog clock is dis-
played.
Digital: A digital clock is displayed.
None: No information is displayed.
Display Off
To prevent glare, the screen can be
turned off with the audio system in
operation. Select the [SETUP]button on the
audio system ➟Select [Display Off].
Information
Use ‘Screensaver’ to set the informa-
tion to be displayed when the screen is
turned off.
i
DD eeccllaa rraa ttiioo nn oo ff CC oonnffoo rrmm iitt yy
CE for EU

7-40
Maintenance
By jump starting
After a jump start from a good bat-
tery, drive the vehicle for 20-30 min-
utes before it is shutoff. The vehicle
may not restart if you shut it off
before the battery had a chance to
adequately recharge. See “Jump
Starting” in chapter 6 for more infor-
mation on jump starting procedures.Information An inappropriately disposedbattery can be harmful to
the environment and human
health.
Dispose the battery according to your
local law(s) or regulation.
Reset features
Some items need to be reset after
the battery has been discharged or
the battery has been disconnected.
See chapter 3 for:
Power Windows
Trip Computer
Climate Control System
Clock
Audio System
Sunroof
Driver Position Memory System
i

7-54
Maintenance
Fuse switch
Always, place the fuse switch to the ON position.
If you move the switch to the OFF position, some items such as the
audio system and digital clock must
be reset and the smart key may not
work properly.Information
If the fuse switch is OFF, “Turn on
FUSE SWITCH” message will appear.
Always place the fuse switch in the ON position while driving the
vehicle.
Do not move the transportation fuse switch repeatedly. The fuse
switch may be damaged.
Engine compartment panel fuse replacement
1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by pressing the tap and pulling up.
NOTICE
i
OAE076023
OAE076024
■Blade type fuse
■Cartridge type fuseOAE076019OLFH044149L

I-7
LCD display control ..................................................3-71
LCD display messages...............................................3-62
LCD modes ..........................................................3-72, 79
Trip computer ............................................................3-86
User settings mode ..............................................3-76, 82
Warning and indicator lights......................................3-50
Instrument panel fuse replacement ...............................7-53
Instrument panel overview .............................................1-6
Interior care...................................................................7-88
Interior features Ashtray .....................................................................3-132
Bottle holder ............................................................3-132
Cellular phone holder ..............................................3-135
Cigarette lighter .......................................................3-137
Clock ........................................................................3-137
Clothes hanger .........................................................3-138
Cup holder ...............................................................3-132
Floor mat anchor(s) .................................................3-138
Luggage net (holder) ...............................................3-139
Power outlet .............................................................3-133
Sunvisor ...................................................................3-133
USB charger.............................................................3-135
Wireless cellular phone charging system ................3-135
Interior lamp AUTO cut ...............................................3-98
Interior lights ................................................................3-98 Front lamps ................................................................3-98
Front vanity mirror lamp .........................................3-100
Interior lamp AUTO cut ............................................3-98 Puddle lamp .............................................................3-100
Rear lamps .................................................................3-99
Tailgate room lamp ....................................................3-99
Interior overview ............................................................1-4
Inverter coolant .............................................................7-24
Jack and tools ...............................................................6-16
Jump starting...................................................................6-4
Label
Air conditioner compressor label ................................8-9
Tire sidewall labeling.................................................7-47
Tire specification and pressure label ...........................8-9
Vehicle certification label ............................................8-8
Lane keeping assist system (LKAS) ............................5-59
Lap/shoulder belt ..........................................................2-29
LCD display..................................................................3-71 Assist mode................................................................3-81
LCD modes ..........................................................3-72, 79
Trip computer mode ............................................3-73, 80
Turn By Turn (TBT) mode ..................................3-73, 81
User settings mode ..............................................3-76, 82
LCD display control .....................................................3-71
LCD display messages .................................................3-62
LCD modes.............................................................3-72, 79
I
Index
J
L
