2017 Hyundai Ioniq Electric service schedule

7
Maintenance
7
Maintenance
Motor compartment...............................................7-3
Maintenance services ...........................................7-4Owner's responsibility ......................................................7-4
Owner maintenance precautions ..................................7-4
Owner maintenance ...............................................7-5 Owner maintenance schedule ........................................7-5
Scheduled maintenance services.........................7-7 Normal maintenance schedule - For Europe.............7-8
Maintenance under severe usage conditions -
For Europe ........................................................................7-10 Normal maintenance schedule - Except Europe ....7-12
Maintenance under severe usage conditions -
Except Europe..................................................................7-14
Explanation of scheduled maintenance items .7-16 Coolant...................................................................7-17 Checking the coolant level ...........................................7-17 Changing coolant.............................................................7-20
Brake fluid ............................................................7-21 Checking the brake fluid level .....................................7-21
Washer fluid .........................................................7-22 Checking the washer fluid level ..................................7-22
Climate control air filter .....................................7-23 Filter inspection ...............................................................7-23 Wiper blades .........................................................7-25
Blade inspection ..............................................................7-25
Blade replacement ..........................................................7-25
Battery (12 Volt) ..................................................7-27 For best battery service................................................7-28
Battery capacity label ....................................................7-28
Battery recharging .........................................................7-29
Reset features .................................................................7-30
Tires and wheels ..................................................7-31 Tire care ............................................................................7-31
Recommended cold tire inflation pressures.............7-32
Check tire inflation pressure........................................7-33
Tire rotation .....................................................................7-34
Wheel alignment and tire balance ..............................7-35
Tire replacement ............................................................7-35
Wheel replacement .........................................................7-36
Tire traction ....................................................................7-36
Tire maintenance ............................................................7-36
Tire sidewall labeling ......................................................7-36
Low aspect ratio tires ....................................................7-40
Fuses ......................................................................7-42 Instrument panel fuse replacement ...........................7-43
Motor compartment panel fuse replacement ..........7-44
Fuse/relay panel description .......................................7-45
7

7-4
MaintenanceM
M AAIINN TTEENN AANN CCEE SS EE RR VV IICC EE SS
You should exercise the utmost care
to prevent damage to your vehicle
and injury to yourself whenever per-
forming any maintenance or inspec-
tion procedures.
We recommend you have your vehi-
cle maintained and repaired by an
authorized HYUNDAI dealer. An
authorized HYUNDAI dealer meets
HYUNDAI’s high service quality
standards and receives technical
support from HYUNDAI in order to
provide you with a high level of serv-
ice satisfaction.Owner’s responsibility
Maintenance service and record reten-
tion are the owner’s responsibility.
You should retain documents that
show proper maintenance has been
performed on your vehicle in accor-dance with the scheduled mainte-
nance service charts shown on the
following pages. You need this infor-
mation to establish your compliance
with the servicing and maintenance
requirements of your vehicle war-
ranties.
Detailed warranty information is pro-
vided in your Service Passport. Repairs and adjustments required as a result of improper maintenance or
a lack of required maintenance are
not covered.
Owner maintenance precau-
tions
Inadequate, incomplete or insuffi-
cient servicing may result in opera-
tional problems with your vehicle that
could lead to vehicle damage, an
accident, or personal injury. This
chapter provides instructions only forthe maintenance items that are easy
to perform. Several procedures can
be done only by an authorized
HYUNDAI dealer with special tools.
Your vehicle should not be modified
in any way. Such modifications may
adversely affect the performance,
safety or durability of your vehicle
and may, in addition, violate condi-
tions of the limited warranties cover-
ing the vehicle.
Improper owner maintenance dur-
ing the warranty period may affect
warranty coverage. For details, read
the separate Service Passport pro-
vided with the vehicle. If you’re
unsure about any service or mainte-
nance procedure, have it done by an
authorized HYUNDAI dealer.
NOTICE

7-8
Maintenance

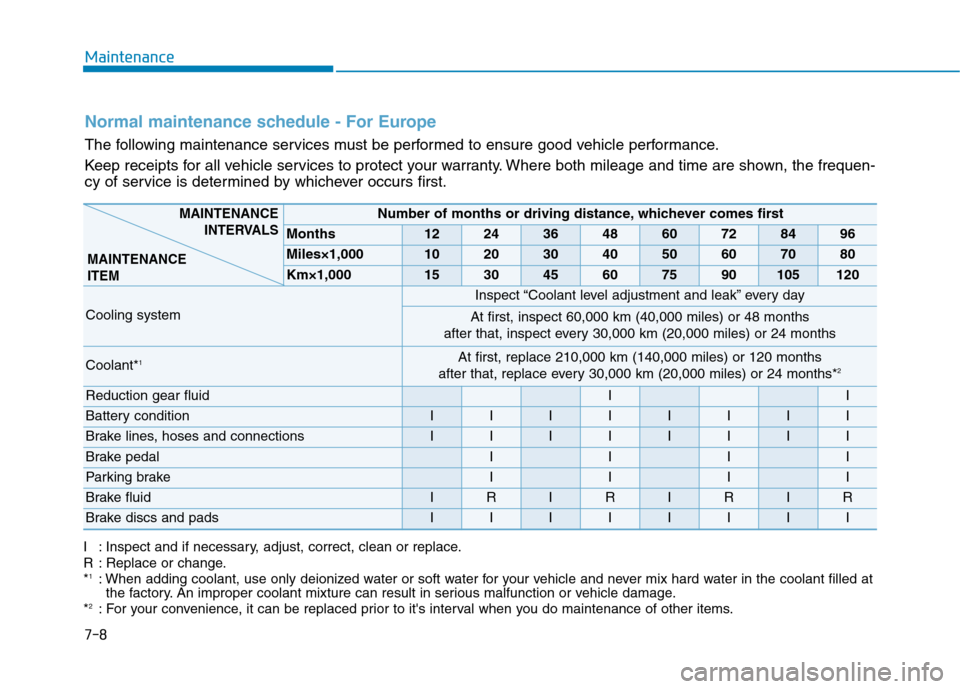

Normal maintenance schedule - For Europe
The following maintenance services must be performed to ensure good vehicle performance.
Keep receipts for all vehicle services to protect your warranty. Where both mileage and time are shown, the frequen-
cy of service is determined by whichever occurs first.
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.*1
: When adding coolant, use only deionized water or soft water for your vehicle and never mix hard water in the coolant filled at
the factory. An improper coolant mixture can result in serious malfunction or vehicle damage.
* 2
: For your convenience, it can be replaced prior to it's interval when you do maintenance of other items.
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles×1,0001020304050607080
Km×1,000153045607590105120
Cooling system
Inspect “Coolant level adjustment and leak” every day
At first, inspect 60,000 km (40,000 miles) or 48 months
after that, inspect every 30,000 km (20,000 miles) or 24 months
Coolant* 1At first, replace 210,000 km (140,000 miles) or 120 months
after that, replace every 30,000 km (20,000 miles) or 24 months* 2
Reduction gear fluidII
Battery conditionIIIIIIII
Brake lines, hoses and connectionsIIIIIIII
Brake pedalIIII
Parking brakeIIII
Brake fluidIRIRIRIR
Brake discs and padsIIIIIIII
MAINTENANCE
INTERVALS
MAINTENANCE ITEM

7-12
Maintenance

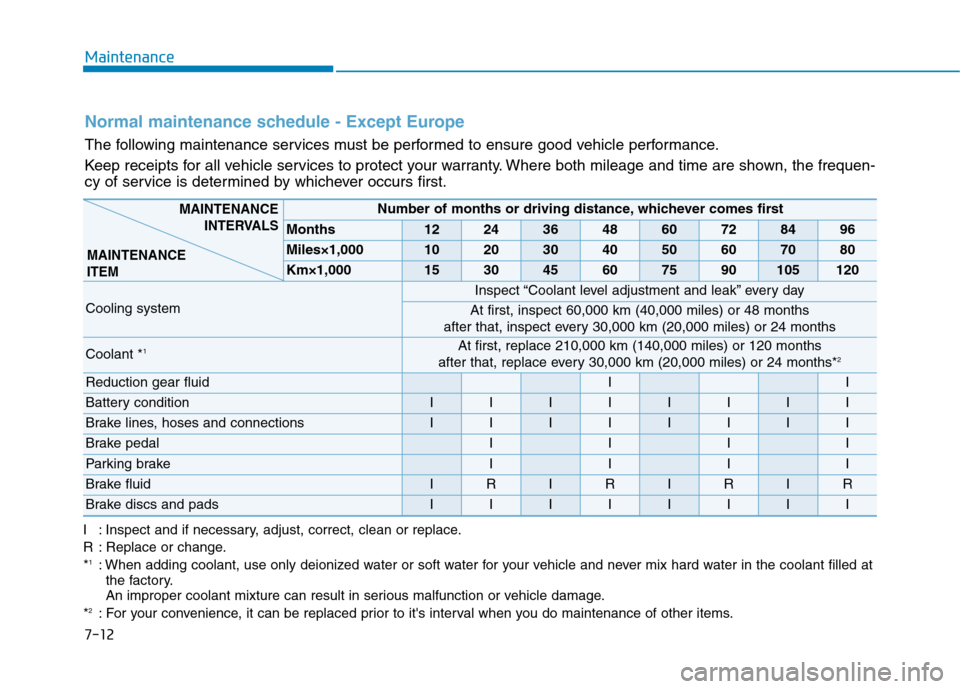

Normal maintenance schedule - Except Europe
The following maintenance services must be performed to ensure good vehicle performance.
Keep receipts for all vehicle services to protect your warranty. Where both mileage and time are shown, the frequen-
cy of service is determined by whichever occurs first.
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles×1,0001020304050607080
Km×1,000153045607590105120
Cooling system
Inspect “Coolant level adjustment and leak” every day
At first, inspect 60,000 km (40,000 miles) or 48 months
after that, inspect every 30,000 km (20,000 miles) or 24 months
Coolant * 1At first, replace 210,000 km (140,000 miles) or 120 months
after that, replace every 30,000 km (20,000 miles) or 24 months* 2
Reduction gear fluidII
Battery conditionIIIIIIII
Brake lines, hoses and connectionsIIIIIIII
Brake pedalIIII
Parking brakeIIII
Brake fluidIRIRIRIR
Brake discs and padsIIIIIIII
MAINTENANCE
INTERVALS
MAINTENANCE ITEM
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.* 1
: When adding coolant, use only deionized water or soft water for your vehicle and never mix hard water in the coolant filled at
the factory.
An improper coolant mixture can result in serious malfunction or vehicle damage.
* 2
: For your convenience, it can be replaced prior to it's interval when you do maintenance of other items.

I-9
Maintenance
Explanation of scheduled maintenance items............7-16
Maintenance services ...................................................7-4
Maintenance under severe usage conditions .......7-10, 14
Normal maintenance service .................................7-8, 12
Owner maintenance .....................................................7-5
Scheduled maintenance services .................................7-7
Tire maintenance........................................................7-36
Maintenance schedule Except Europe............................................................7-12
For Europe ...................................................................7-8
Maintenance services......................................................7-4
Mirrors ..........................................................................3-17 Adjusting the outside rearview mirrors .....................3-20
Day/night rearview mirror .........................................3-18
Electric chromic mirror (ECM) .................................3-18
Folding/Unfolding the outside rearview mirror ........3-21
Inside rearview mirror ...............................................3-17
Outside rearview mirror.............................................3-19
Moonroof, see sunroof..................................................3-28
Motor compartment...............................................1-10, 7-3
Motor compartment panel fuse replacement ................7-44
Motor number .................................................................8-7
Multi box ....................................................................3-118
Multi fuse......................................................................7-45 Multimedia system .........................................................4-2
Antenna ........................................................................4-2
Audio / Video / Navigation system .............................4-5
AUX, USB and iPod ®
port ..........................................4-2
Bluetooth ®
Wireless Technology hands-free ...............4-4
Steering wheel audio control .......................................4-3
Odometer ......................................................................3-39
Outside rearview mirror ...............................................3-19
Outside temperature gauge ...........................................3-39
Owner maintenance ........................................................7-5
Paddle shifter (Regenerative braking control) .............5-18
Parking assist system ....................................................3-94
Passenger's front air bag ON/OFF switch ....................2-54
Passenger's front air bag ...............................................2-53
Position lamp position ..................................................3-78
Power brakes.................................................................5-19
Power button ...................................................................5-4 Starting the vehicle ......................................................5-8
Turing off the vehicle ................................................5-10
Power outlet ................................................................3-121
Power steering ..............................................................3-15
Power window lock button ...........................................3-26
Pre-tensioner seat belt...................................................2-31
Puddle lamp ..................................................................3-86
I
Index
O
P
M

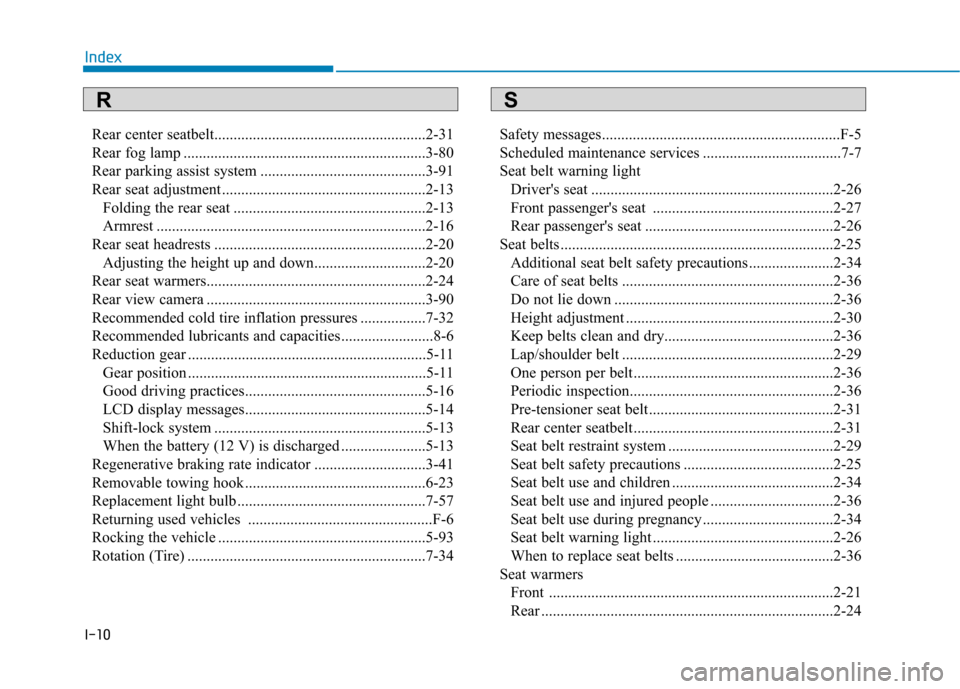

I-10Rear center seatbelt.......................................................2-31
Rear fog lamp ...............................................................3-80
Rear parking assist system ...........................................3-91
Rear seat adjustment .....................................................2-13
Folding the rear seat ..................................................2-13
Armrest ......................................................................2-16
Rear seat headrests .......................................................2-20 Adjusting the height up and down.............................2-20
Rear seat warmers.........................................................2-24
Rear view camera .........................................................3-90
Recommended cold tire inflation pressures .................7-32
Recommended lubricants and capacities........................8-6
Reduction gear ..............................................................5-11 Gear position ..............................................................5-11
Good driving practices...............................................5-16
LCD display messages...............................................5-14
Shift-lock system .......................................................5-13
When the battery (12 V) is discharged ......................5-13
Regenerative braking rate indicator .............................3-41
Removable towing hook ...............................................6-23
Replacement light bulb .................................................7-57
Returning used vehicles ................................................F-6
Rocking the vehicle ......................................................5-93
Rotation (Tire) ..............................................................7-34 Safety messages..............................................................F-5
Scheduled maintenance services ....................................7-7
Seat belt warning light
Driver's seat ...............................................................2-26
Front passenger's seat ...............................................2-27
Rear passenger's seat .................................................2-26
Seat belts .......................................................................2-25 Additional seat belt safety precautions ......................2-34
Care of seat belts .......................................................2-36
Do not lie down .........................................................2-36
Height adjustment ......................................................2-30
Keep belts clean and dry............................................2-36
Lap/shoulder belt .......................................................2-29
One person per belt ....................................................2-36
Periodic inspection.....................................................2-36
Pre-tensioner seat belt ................................................2-31
Rear center seatbelt ....................................................2-31
Seat belt restraint system ...........................................2-29
Seat belt safety precautions .......................................2-25
Seat belt use and children ..........................................2-34
Seat belt use and injured people ................................2-36
Seat belt use during pregnancy ..................................2-34
Seat belt warning light ...............................................2-26
When to replace seat belts .........................................2-36
Seat warmers Front ..........................................................................2-21
Rear ............................................................................2-24
Index
RS
