2017 Hyundai Ioniq Electric light

H65
Distance to Empty
The distance to empty is displayed
differently according to the selected
drive mode in the Drive Mode
Integrated Control System.
For more information, refer to “Drive
Mode Integrated Control System” inchapter 5.
When destination is not set
On average, a vehicle can driveabout 191 km (120 miles). Under
certain circumstances where theair conditioner/heater is ON, thedistance to empty is impacted,
resulting in a possible distance
range from 130~290 km (80~180
miles). When using the heater dur-
ing cold weather or driving at high
speed, the high voltage battery
consumes a lot more electricity.
This may reduce the distance to
empty significantly.
After “---” has been displayed, the vehicle can drive an additional 3~8
km (2~5 miles) depending on driv-
ing speed, heater/air conditioner,
weather, driving style, and other
factors.
OAEE046141/OAEE046142
■NORMAL/ ECO mode selected■ SPORT mode selected
The vehicle does not generate
a sound. Be aware of your
driving environment and drive
safely.
After you park the vehicle or
while you are waiting at a traf-
fic light, check whether there
are children or obstacles
around the vehicle.
Check if there is something
behind the vehicle when driv-
ing in reverse. Pedestrians
may not hear the sound of the
vehicle.
CAUTION

H68
DDRRIIVV IINN GG EE LLEE CCTT RR IICC VV EEHH IICC LLEE (( CC OO NNTT..))
When there are 2~3 gauge bars
(near the “L (Low) or 0" area) on the
SOC gauge, the warning lamp turns
ON to alert you of the battery level.
When the warning lamp turns ON,
the vehicle can drive an additional20~30 km (12~18 miles) depending
on the driving speed, heater/air con-
ditioner, weather, driving style, and
other factors. Charging is required.
When there are 1-2 gauge bars left
for the high voltage battery, the
vehicle speed is limited and then
eventually the vehicle will turn OFF.
Charge the vehicle immediately.
Warning and Indicator Lights
(related to electric vehicle)
Ready Indicator
This indicator illuminates :
When the vehicle is ready to be driven.
- ON : Normal driving is possible.
- OFF : Nor mal driving is not possible,
or a problem has occurred.
- Blinking : Emergency driving. When the ready indicator goes OFF
or blinks, there is a problem with the
system. In this case, we recommend
that you have your vehicle inspected
by an authorized HYUNDAI dealer.
Service Warning Light
This warning light illuminates :
When the POWER button is in the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a problem with relat- ed parts of the electric vehicle con-
trol system, such as sensors, etc.
When the warning light illuminates
while driving, or does not go OFF
after starting the vehicle, we recom-
mend that you have your vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE
OAEQ046008

H69
Power Down WarningLight
This warning light illuminates :
When the POWER button is in the ON position.
- It illuminates for approximately 3seconds and then goes off.
When the power is limited for the safety of the electric vehicle.
The power is limited for the follow-
ing reasons.
- The high voltage battery level isbelow a certain level or voltage is decreasing
- The temperature of the motor or high voltage battery is too high or
too low
- There is a problem with the cool- ing system, or a failure that may
interrupt normal driving Do not accelerate or start the vehi-
cle suddenly when the power
down warning light is ON.
Charge the battery immediately
when the high voltage battery
level is not enough.
Charging Indicator Light
This warning light illuminates :
[RED] When charging the high volt-
age battery.
[GREEN] When charging is com- pleted.
High Voltage Battery
Level Warning Light
This warning light illuminates :
When the high voltage battery level low.
When the warning light turns ON,
charge the battery immediately.
NOTICE

H70
DDRRIIVV IINN GG EE LLEE CCTT RR IICC VV EEHH IICC LLEE (( CC OO NNTT..))
Regenerative Brake
Warning Light
This warning light illuminates :
When the regenerative brake does
not operate and the brake does not
perform well. This causes the Brake
Warning light (red) and Regenerative
Brake Warning Light (yellow) to illu-
minate simultaneously.
In this case, drive safely and we rec-
ommend that you have your vehicle
inspected by an authorized HYUNDAI
dealer.
The operation of the brake pedal may
be more difficult than normal and the
braking distance can increase.
LCD Display Messages
Shift to P to charge
This message is displayed if you
connect the charging cable without
the gear in the P (Park) position.
Shift to P (Park) before connecting
the charging cable .
Remaining time
This message is displayed to notifythe remaining time to fully charge the
battery.OAEE046192L
OAEE046193L
(yellow)

H72
DDRRIIVV IINN GG EE LLEE CCTT RR IICC VV EEHH IICC LLEE (( CC OO NNTT..))
Check brakes
This warning message is displayed
when the brake performance is low
or the regenerative brake does not
work properly due to a failure in the
brake system.
In this case, it may take longer for the
brake pedal to operate and the brak-
ing distance may become longer.
Low Battery
When the high voltage battery level
reaches below 13%, this warning
message is displayed.
The warning light on the instrument
cluster ( ) will turn ON simultane-
ously.
Charge the high voltage battery
immediately.
Charge immediately.
Power limited
When the high voltage battery level
reaches below 5%, this warning
message is displayed.
The warning light on the instrument
cluster ( ) and the power down
warning light ( ) will turn on simul-
taneously.
The vehicle’s power will be reduced
to minimize the energy consumption
of the high voltage battery. Charge
the battery immediately.
OAEE046123L
OAEE046125L
OLFH044250L

H73
Low Battery. Charge immediately
When the high voltage battery level
reaches below 4%, this warning
message is displayed.
The warning light on the instrument
cluster ( ) and the power down
warning light ( ) will turn ON simul-taneously and the distance to empty
gauge will be displayed as “---”.
The vehicle’s power will be reduced
to minimize the energy consumption
of the high voltage battery. Charge
the battery immediately.
Low Battery Temp.Power limited
This warning message is displayed
to protect battery and electric vehicle
system when the high voltage bat-
tery temperature is too low.
If this warning message is still dis-
played even after the ambient tem-
perature has increased, we recom-
mend that you have the vehicle
inspected by an authorized
HYUNDAI dealer.
Battery Overheated! Stop vehicle
This warning message is displayed
to protect battery and electric vehicle
system when the high voltage bat-
tery temperature is too high.
Turn off the POWER button and stop
the vehicle so that the battery tem-
perature decreases.
NOTICE
OAEE046128LOAEE046129L
OAEE046124L

1-2
EXTERIOR OVERVIEW (FRONT VIEW)
Your vehicle at a glance

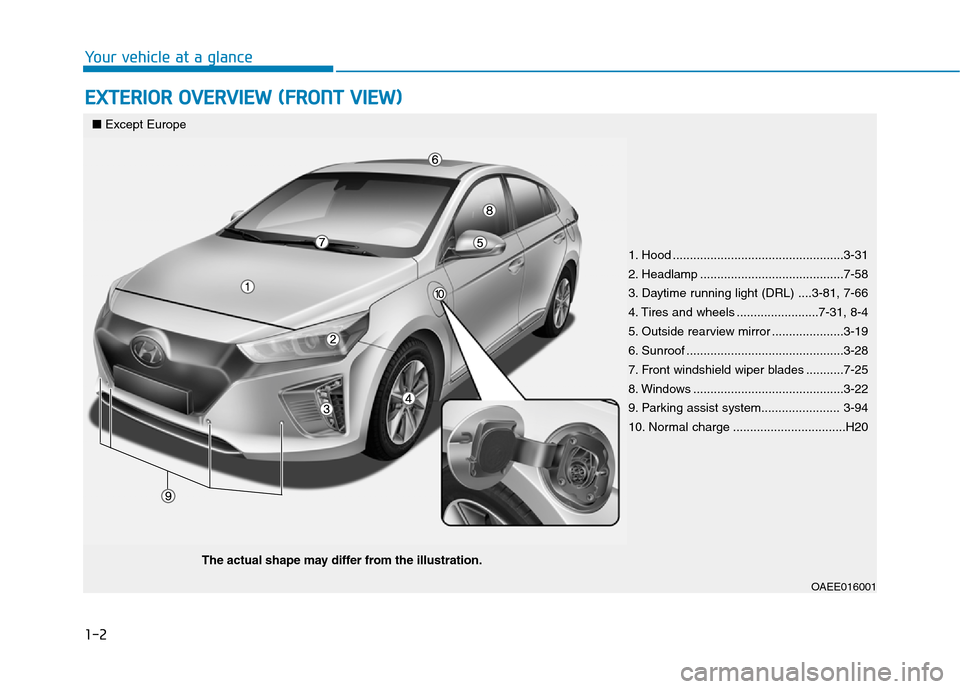

OAEE016001
■Except Europe
The actual shape may differ from the illustration.
1. Hood ..................................................3-31
2. Headlamp ..........................................7-58
3. Daytime running light (DRL) ....3-81, 7-66
4. Tires and wheels ........................7-31, 8-4
5. Outside rearview mirror .....................3-19
6. Sunroof ..............................................3-28
7. Front windshield wiper blades ...........7-25
8. Windows ............................................3-22
9. Parking assist system....................... 3-94
10. Normal charge .................................H20

1-3
Your vehicle at a glance
1
EXTERIOR OVERVIEW (FRONT VIEW)
OAEE016001L
■For Europe
The actual shape may differ from the illustration.
1. Hood ..................................................3-31
2. Headlamp ..........................................7-58
3. Daytime running light (DRL) ....3-81, 7-66
4. Tires and wheels ........................7-31, 8-4
5. Outside rearview mirror .....................3-19
6. Sunroof ..............................................3-28
7. Front windshield wiper blades ...........7-25
8. Windows ............................................3-22
9. Parking assist system....................... 3-94
