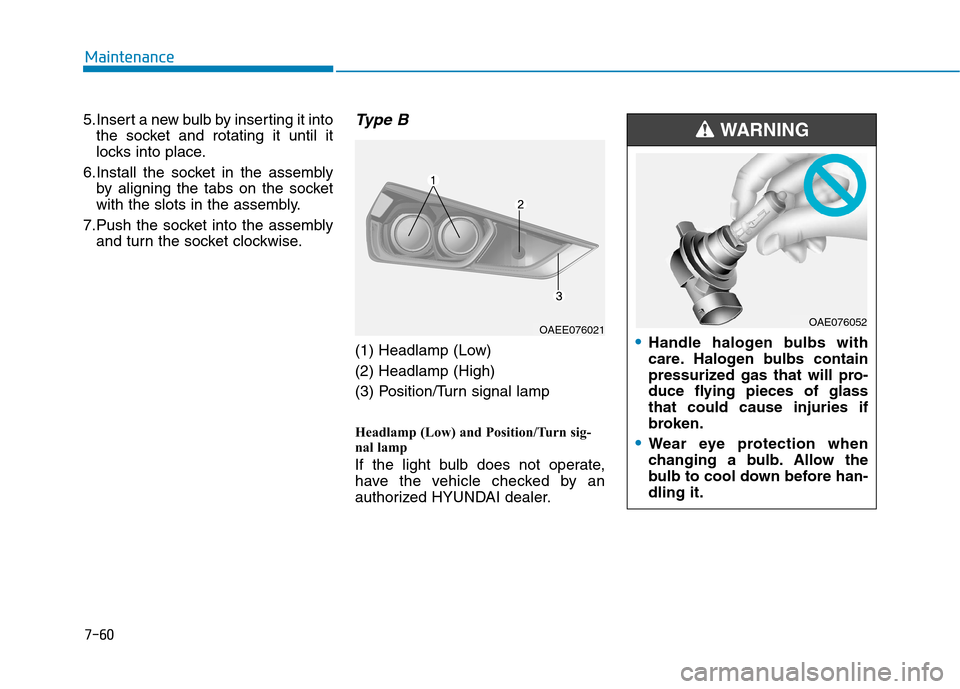

7-60
Maintenance
5.Insert a new bulb by inserting it intothe socket and rotating it until it
locks into place.
6.Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
7.Push the socket into the assembly and turn the socket clockwise.Type B
(1) Headlamp (Low) (2) Headlamp (High)
(3) Position/Turn signal lamp
Headlamp (Low) and Position/Turn sig-
nal lamp
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
OAEE076021•Handle halogen bulbs with
care. Halogen bulbs contain
pressurized gas that will pro-
duce flying pieces of glassthat could cause injuries if
broken.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-dling it.
WARNING
OAE076052

7-71
7
Maintenance
AAPPPPEEAA RRAA NN CCEE CC AA RREE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warningand caution statements that appearon the label.
High-pressure washing
When using high-pressure wash-
ers, make sure to maintain suffi-
cient distance from the vehicle.
Insufficient clearance or excessive pressure can lead to component
damage or water penetration.
Do not spray the camera, sensors or its surrounding area directly with
a high pressure washer. Shock
applied from high pressure water
may cause the device to not oper-
ate normally.
Do not bring the nozzle tip close to boots (rubber or plastic covers) or
connectors as they may be dam-
aged if they come into contact with
high pressure water.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash itthoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign
materials. Make sure the drain holes
in the lower edges of the doors and
rocker panels are kept clear andclean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain
water may not completely remove all
these deposits. A mild soap, safe for
use on painted surfaces, should beused.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
Do not use strong soap, chem-
ical detergents or hot water,
and do not wash the vehicle indirect sunlight or when the
body of the vehicle is warm.
Be careful when washing the
side windows of your vehicle.
Especially, with high-pressure
water, water may leak through
the windows and wet the inte-
rior.
To prevent damage to the
plastic parts, do not clean with
chemical solvents or strong
detergents.
CAUTION
After washing the vehicle, test
the brakes while driving slowly
to see if they have been affected
by water before getting on the
road. If braking performance is
impaired, dry the brakes by
applying them lightly while main-
taining a slow forward speed.
WARNING

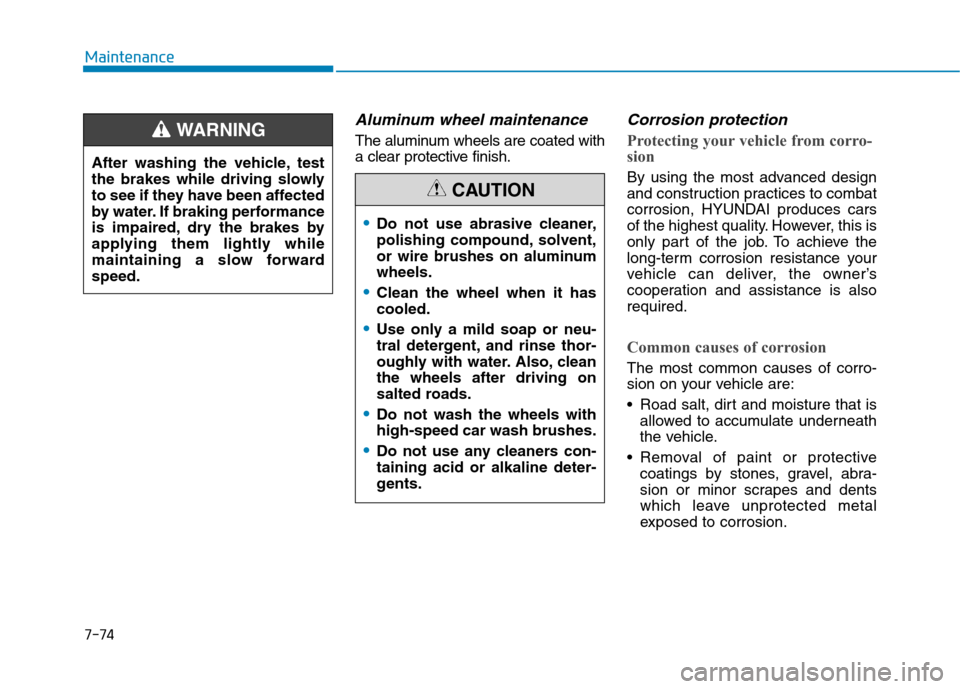

7-74
Maintenance
Aluminum wheel maintenance
The aluminum wheels are coated with
a clear protective finish.
Corrosion protection
Protecting your vehicle from corro-
sion
By using the most advanced design
and construction practices to combat
corrosion, HYUNDAI produces cars
of the highest quality. However, this is
only part of the job. To achieve the
long-term corrosion resistance your
vehicle can deliver, the owner’s
cooperation and assistance is alsorequired.
Common causes of corrosion
The most common causes of corro-
sion on your vehicle are:
Road salt, dirt and moisture that isallowed to accumulate underneath
the vehicle.
coatings by stones, gravel, abra-
sion or minor scrapes and dents
which leave unprotected metal
exposed to corrosion.
After washing the vehicle, test
the brakes while driving slowly
to see if they have been affected
by water. If braking performance
is impaired, dry the brakes by
applying them lightly while
maintaining a slow forwardspeed.
WARNING
Do not use abrasive cleaner,
polishing compound, solvent,
or wire brushes on aluminumwheels.
Clean the wheel when it has cooled.
Use only a mild soap or neu-
tral detergent, and rinse thor-
oughly with water. Also, cleanthe wheels after driving on
salted roads.
Do not wash the wheels with high-speed car wash brushes.
Do not use any cleaners con- taining acid or alkaline deter-
gents.
CAUTION

I-2Advanced smart cruise control system .........................5-76
Air bag warning labels .................................................2-71
Air bags.........................................................................2-50
Additional safety precautions ....................................2-70
Air bag collision sensors ...........................................2-64
Air bag inflation conditions .......................................2-66
Air bag non-inflation conditions ...............................2-67
Air bag warning labels...............................................2-71
Curtain air bags..........................................................2-57
Do not install a child restraint on the front passenger seat..........................................................2-63
Driver's air bag...........................................................2-53
Driver's knee air bag ..................................................2-53
How does the air bags system operate?.....................2-58
Passenger's front air bag ON/OFF switch .................2-54
Passenger's front air bag ............................................2-53
Side air bags...............................................................2-56
SRS Care....................................................................2-69
SRS components and functions .................................2-58
SRS warning light......................................................2-59
What to expect after an air bag inflates.....................2-62
Why didn't my air bag go off in a collision ..............2-64
Air conditioner compressor label ...................................8-8
Air conditioning refrigerant label ...............................3-110
Air conditioning system specification ............................8-5
Air ventilation seats ......................................................2-21
Airconditioning system.................................................3-98 Alarm system ................................................................3-12
Antenna ...........................................................................4-2
Anti-lock brake system (ABS) .....................................5-29
Appearance care ...........................................................7-71
Exterior care...............................................................7-71
Interior care................................................................7-76
Armrest .........................................................................2-16
Ashtray ........................................................................3-119
Audio / Video / Navigation system ................................4-5
Auto defogging system ...............................................3-114
Auto hold ......................................................................5-25
Auto light position ........................................................3-77
Automatic climate control system ................................3-98
Air conditioning .......................................................3-106
Air Conditioning refrigerant label ...........................3-110
Air intake control .....................................................3-104
Automatic heating and air conditioning ....................3-99
Driver only ...............................................................3-105
EV mode ..................................................................3-107
Fan speed control .....................................................3-105
HEAT button ............................................................3-106
Manual heating and air conditioning .......................3-100
Mode selection .........................................................3-101
OFF mode ................................................................3-107
System maintenance.................................................3-110
Temperature control .................................................3-103
Autonomous emergency braking (AEB) system ..........5-48
AUX, USB and iPod ®
port .............................................4-2
Index
A

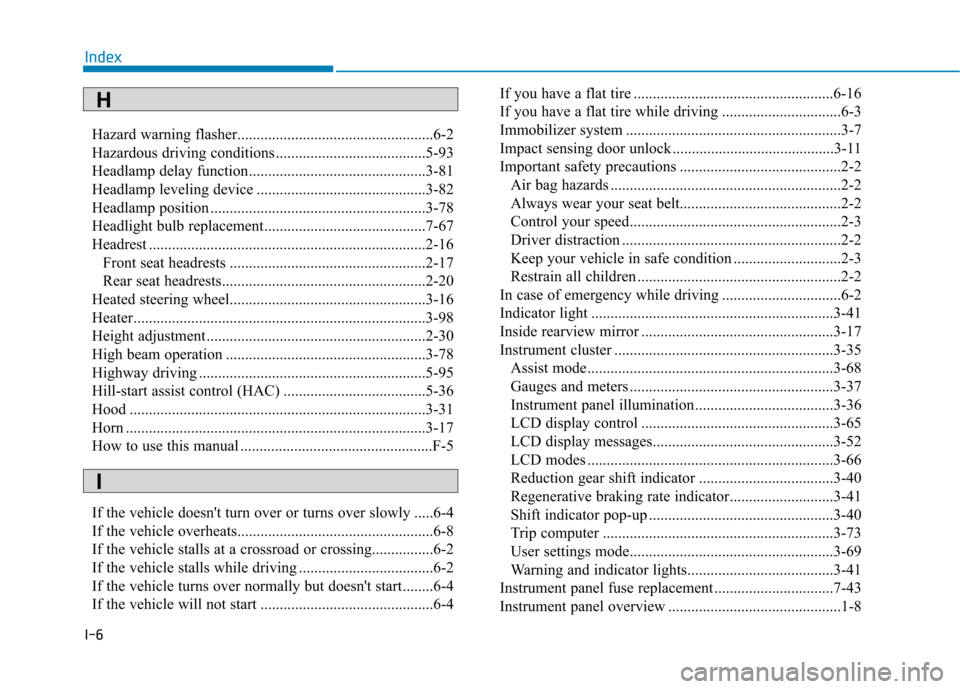

I-6Hazard warning flasher...................................................6-2
Hazardous driving conditions .......................................5-93
Headlamp delay function..............................................3-81
Headlamp leveling device ............................................3-82
Headlamp position ........................................................3-78
Headlight bulb replacement..........................................7-67
Headrest ........................................................................2-16
Front seat headrests ...................................................2-17
Rear seat headrests.....................................................2-20
Heated steering wheel...................................................3-16
Heater............................................................................3-98
Height adjustment .........................................................2-30
High beam operation ....................................................3-78
Highway driving ...........................................................5-95
Hill-start assist control (HAC) .....................................5-36
Hood .............................................................................3-31
Horn ..............................................................................3-17
How to use this manual ..................................................F-5
If the vehicle doesn't turn over or turns over slowly .....6-4
If the vehicle overheats...................................................6-8
If the vehicle stalls at a crossroad or crossing................6-2
If the vehicle stalls while driving ...................................6-2
If the vehicle turns over normally but doesn't start........6-4
If the vehicle will not start .............................................6-4 If you have a flat tire ....................................................6-16
If you have a flat tire while driving ...............................6-3
Immobilizer system ........................................................3-7
Impact sensing door unlock ..........................................3-11
Important safety precautions ..........................................2-2
Air bag hazards ............................................................2-2
Always wear your seat belt..........................................2-2
Control your speed.......................................................2-3
Driver distraction .........................................................2-2
Keep your vehicle in safe condition ............................2-3
Restrain all children .....................................................2-2
In case of emergency while driving ...............................6-2
Indicator light ...............................................................3-41
Inside rearview mirror ..................................................3-17
Instrument cluster .........................................................3-35 Assist mode................................................................3-68
Gauges and meters .....................................................3-37
Instrument panel illumination....................................3-36
LCD display control ..................................................3-65
LCD display messages...............................................3-52
LCD modes ................................................................3-66
Reduction gear shift indicator ...................................3-40
Regenerative braking rate indicator...........................3-41
Shift indicator pop-up ................................................3-40
Trip computer ............................................................3-73
User settings mode.....................................................3-69
Warning and indicator lights......................................3-41
Instrument panel fuse replacement ...............................7-43
Instrument panel overview .............................................1-8
Index
H
I

I-7
Interior care...................................................................7-76
Interior features...........................................................3-119
Bottle holder ............................................................3-119
Cargo security screen...............................................3-126
Cellular phone holder ..............................................3-122
Cigarette lighter .......................................................3-123
Clock ........................................................................3-123
Clothes hanger .........................................................3-123
Cup holder................................................................3-119
Floor mat anchor(s) .................................................3-123
Luggage net (holder) ...............................................3-125
Power outlet .............................................................3-121
Sunvisor ...................................................................3-120
Wireless cellular phone charging system ................3-122
Interior lamp AUTO cut ...............................................3-84
Interior lights ................................................................3-84 Front lamps ................................................................3-84
Interior lamp AUTO cut ............................................3-84
Puddle lamp ...............................................................3-86
Rear lamps .................................................................3-85
Tailgate room lamp ....................................................3-85
Vanity mirror lamp.....................................................3-86
Interior overview ............................................................1-6
Jump starting...................................................................6-4 Label
Air conditioner compressor label ................................8-8
Tire sidewall labeling.................................................7-36
Tire specification and pressure label ...........................8-8
Vehicle certification label ............................................8-8
Lane change signals......................................................3-79
Lane keeping assist system (LKAS) ............................5-60
Lap/shoulder belt ..........................................................2-29
LCD display Assist mode................................................................3-68
LCD modes ................................................................3-66
Quick guide help........................................................3-67
Trip computer mode...................................................3-67
Turn By Turn (TBT) mode ........................................3-68
User settings mode.....................................................3-69
Warning mode ............................................................3-68
LCD display messages Aux. Battery Saver+ used while parked ....................3-60
Battery Overheated! Stop vehicle ..............................3-62
Charge immediately. Power limited ..........................3-61
Charger Error! / Quick Charger Error! ......................3-60
Charging door open ...................................................3-59
Check active air flap system ......................................3-64
Check BRAKE SWITCH fuse ..................................3-54
Check brakes..............................................................3-61
Check electric vehicle system ...................................3-64
I
Index
J
L

I-8Check headlamp FAN ................................................3-58
Check headlamp LED................................................3-57
Check headlight .........................................................3-58
Check steering wheel lock system.............................3-53
Check virtual engine sound .......................................3-64
Door, Hood, Tailgate Open ........................................3-55
Icy road warning light ...............................................3-56
Key not detected ........................................................3-53
Key not in vehicle ......................................................3-53
Lights mode ...............................................................3-57
Low battery ................................................................3-61
Low Battery Temp. Power limited ............................3-62
Low Battery. Charge immediately .............................3-62
Low Key Battery .......................................................3-52
Low pressure..............................................................3-56
Low washer fluid .......................................................3-54
Parking assist system malfunction.............................3-58
Power limited .............................................................3-63
Press brake pedal to start vehicle ..............................3-53
Press POWER button again .......................................3-53
Press POWER button while turning wheel ...............3-53
Press POWER button with key .................................3-54
Remaining charge time ..............................................3-59
Shift to P ....................................................................3-52
Shift to P to charge ....................................................3-59
Shift to P to start vehicle ...........................................3-54
Stop vehicle and check brakes...................................3-60
Stop vehicle and check power supply .......................3-63
Sunroof open..............................................................3-55
Turn on "FUSE SWITCH" ........................................3-56
Unplug vehicle to start...............................................3-54
Wiper..........................................................................3-57
LCD modes ...................................................................3-66
Light..............................................................................3-77 Auto light position .....................................................3-77
Battery saver function ................................................3-81
Daytime running light (DRL) ....................................3-81
Headlamp delay function ...........................................3-81
Headlamp leveling device .........................................3-82
Headlamp position .....................................................3-78
High beam operation .................................................3-78
Lane change signals ...................................................3-79
Position lamp position ...............................................3-78
Rear fog lamp ............................................................3-80
Turn signals................................................................3-79
Light bulbs ....................................................................7-57
Lubricants and capacities ...............................................8-6
Luggage net (holder) ..................................................3-125
Luggage volume .............................................................8-5
Index

I-10Rear center seatbelt.......................................................2-31
Rear fog lamp ...............................................................3-80
Rear parking assist system ...........................................3-91
Rear seat adjustment .....................................................2-13
Folding the rear seat ..................................................2-13
Armrest ......................................................................2-16
Rear seat headrests .......................................................2-20 Adjusting the height up and down.............................2-20
Rear seat warmers.........................................................2-24
Rear view camera .........................................................3-90
Recommended cold tire inflation pressures .................7-32
Recommended lubricants and capacities........................8-6
Reduction gear ..............................................................5-11 Gear position ..............................................................5-11
Good driving practices...............................................5-16
LCD display messages...............................................5-14
Shift-lock system .......................................................5-13
When the battery (12 V) is discharged ......................5-13
Regenerative braking rate indicator .............................3-41
Removable towing hook ...............................................6-23
Replacement light bulb .................................................7-57
Returning used vehicles ................................................F-6
Rocking the vehicle ......................................................5-93
Rotation (Tire) ..............................................................7-34 Safety messages..............................................................F-5
Scheduled maintenance services ....................................7-7
Seat belt warning light
Driver's seat ...............................................................2-26
Front passenger's seat ...............................................2-27
Rear passenger's seat .................................................2-26
Seat belts .......................................................................2-25 Additional seat belt safety precautions ......................2-34
Care of seat belts .......................................................2-36
Do not lie down .........................................................2-36
Height adjustment ......................................................2-30
Keep belts clean and dry............................................2-36
Lap/shoulder belt .......................................................2-29
One person per belt ....................................................2-36
Periodic inspection.....................................................2-36
Pre-tensioner seat belt ................................................2-31
Rear center seatbelt ....................................................2-31
Seat belt restraint system ...........................................2-29
Seat belt safety precautions .......................................2-25
Seat belt use and children ..........................................2-34
Seat belt use and injured people ................................2-36
Seat belt use during pregnancy ..................................2-34
Seat belt warning light ...............................................2-26
When to replace seat belts .........................................2-36
Seat warmers Front ..........................................................................2-21
Rear ............................................................................2-24
Index
RS
