2017 HONDA PILOT check engine

641
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/T ire Pressure Monitoring
System (TPMS) Indicator Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire
* is installed, the indicator
blinks for about one minute, and then stays on.
■What to do when th e indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, ch ange the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
If the Transmission Indicator Blinks along with the
Warning Message*
■Reasons for the indicator to blink
There is a problem with the transmission.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by a dealer.
• Select
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The engine cannot be turned on unless the parking brake is set.
2 Starting the Engine P. 471
1If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS)
Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON, while y ou adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1 If the Transmission Indicator Blinks along with the Warning
Message*
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 647
* Not available on all models
17 PILOT-31TG76100.book 641 ページ ２０１６年９月２０日　火曜日　午後４時９分

642
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the passenger's side damper
house. Push the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(70 A)
RR BLOWER30 A
ABS/VSA MTR40 A
ABS/VSA FSR20 A
MAIN FAN30 A
MAIN FUSE150 A
2
SUB FAN30 A
WIP MTR30 A
WASHER20 A
SUNSHADE(20 A)
−(30 A)
FR BLOWER40 A
AC INVERTER(30 A)
AUDIO AMP(30 A)
RR DEF40 A
−(30 A)
−(20 A)
3
−−
−−
−−
−−
4 PARKING LIGHT 10 A
5−−
6 STOP LIGHT 10 A
7−−
8 L H/L LO 10 A
9−−
10 R H/L LO 10 A
11IGPS7.5 A
12 INJECTOR (20 A)
13H/L LO MAIN20 A
14 USB CHARGER (15 A)
15FR FOG(15 A)
16 HAZARD 15 A
17AS P/SEAT (REC)(20 A)
18 AS P/SEAT (SLIDE) (20 A)
19ACM20 A
20 MG CLUTCH 7.5 A
21MAIN RLY15 A
22 FI SUB 15 A
23IG COIL15 A
24 DBW 15 A
25SMALL/STOP MAIN(20 A)
26 BACK UP 10 A
27HTD STRG WHEEL(10 A)
28 HORN 10 A
29RADIO(20 A)
Circuit ProtectedAmps
17 PILOT-31TG76100.book 642 ページ ２０１６年９月２０日　火曜日　午後４時９分

646
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 642 to P. 645.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
17 PILOT-31TG76100.book 646 ページ ２０１６年９月２０日　火曜日　午後４時９分

657Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
17 PILOT-31TG76100.book 657 ページ ２０１６年９月２０日　火曜日　午後４時９分

666
Index
Driving....................................................... 451
Adaptive Cruise Control (ACC) ................ 502
Automatic Transmission ........................... 478
Braking .................................................... 539
Cruise Control ......................................... 497
Off-Highway Driving Guidelines ............... 469
Shifting Gear ........................................... 481
Starting the Engine .................................. 471
Driving Position Memory System ............. 169
Dust and Pollen Filter ............................... 612
E
ECON Button............................................. 494
ECON Mode Indicator ................................. 94
Electric Power Steering (EPS) System
Indicator ............................................ 86, 640
Electronic Stability Control (ESC) ............. 527
Emergency ................................................. 647
Emissions Testing (Readiness Codes) ....... 657
Engine ....................................................... 654
Coolant ................................................... 583
Jump Starting .......................................... 633
Oil ........................................................... 578
Remote Engine Start ................................ 473
Starting ................................................... 471
Engine Compartment Cover .................... 577
Engine Coolant ......................................... 583
Adding to the Radiator ............................ 584
Adding to the Reserve Tank ..................... 583
Overheating............................................. 636 Temperature Gauge ................................ 113
Engine Oil ................................................. 578
Adding .................................................... 580
Checking................................................. 579
Displaying Oil Life .................................... 571
Engine Oil Life ......................................... 117
Low Oil Pressure Indicator ................. 79, 638
Recommended Engine Oil ....................... 578
ENGINE START/STOP Button .................... 152
EPS (Electric Power Steering) System ............................................... 86, 640
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) ........................... 615
Exterior Mirrors ........................................ 173
F
Features.................................................... 217
Filters Dust and Pollen ....................................... 612
Oil ........................................................... 581
Flat Tire ..................................................... 621
Floor Mats ................................................. 614
Fluids
Automatic Transmission .......................... 585
Brake ...................................................... 586
Engine Coolant ....................................... 583
Windshield Washer ................................. 586
FM/AM Radio .................................... 231, 267
Fog Lights ................................................. 159
Indicator.................................................... 87 Folding Down the Second Row Seat
...... 184
Folding Down the Third Row Seat .......... 185
Foot Brake ................................................ 540
Front Airbags (SRS) .................................... 48
Front Seats ................................................ 174
Adjusting ................................................ 174
Front Sensor Camera ............................... 500
Fuel ..................................................... 24, 562
Economy................................................. 565
Gauge .................................................... 113
Instant Fuel Economy .............................. 117
Low Fuel Indicator..................................... 82
Range ..................................................... 117
Recommendation.................................... 562
Refueling ................................................ 562
Fuel Economy ........................................... 565
Fuel Fill Cap ........................................ 24, 564
Fuel Fill Door ...................................... 24, 563
Unable to Unlock .................................... 648
Fuses ......................................................... 642
Inspecting and Changing ........................ 646
Locations ........................ 642, 643, 644, 645
G
Gasoline (Fuel) Economy................................................. 565
Gauge .................................................... 113
Information............................................. 562
Low Fuel Indicator..................................... 82
Refueling ................................................ 562
17 PILOT-31TG76100.book 666 ページ ２０１６年９月２０日　火曜日　午後４時９分

669
Index
Radiator .................................................. 584
Remote Control ...................................... 609
Remote Transmitter ................................ 608
Replacing Light Bulbs .............................. 587
Safety ..................................................... 569
Service Items ........................................... 573
Tires........................................................ 597
Transmission Fluid ................................... 585
Under the Hood ...................................... 575
Wireless Headphone ............................... 610
Malfunction Indicator Lamp ............. 79, 639
Map Lights ................................................ 189
Maximum Load Limit ............................... 455
Meters, Gauges ........................................ 113
MID (Multi-information Display) ............ 114
Mirrors ...................................................... 172
Adjusting ................................................ 172
Door ....................................................... 173
Exterior ................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 618
Moonroof ................................................. 148
MP3 ........................................... 236, 278, 290
MP3/WMA/AAC ........................ 236, 278, 290
Multi-Information Display (MID) ............ 114
Multi-View Rear Camera ......................... 561
N
Numbers (Identification)......................... 654
O
Odometer.................................................. 115
Off-Highway Driving Guidelines ............. 469
Oil (Engine) ............................................... 578
Adding .................................................... 580
Checking ................................................. 579
Displaying Oil Life .................................... 571
Low Oil Pressure Indicator .................. 79, 638
Recommended Engine Oil ........................ 578
Viscosity .................................................. 578
Open Source Licences ............................... 320
Opening/Closing Hood ....................................................... 576
Moonroof................................................ 148
Power Windows ...................................... 146
Tailgate ................................................... 135
Operating the Switches Around the
Steering Wheel ....................................... 152
Outside Temperature Display .................. 116
Overheating .............................................. 636
P
Paddle Shifters (Sequential Mode) .......... 488
Pandora® ................................................... 288
Panic Mode ............................................... 145
Panoramic Roof ........................................ 149
Parking ...................................................... 552
Parking Brake ........................................... 539
Parking Brake and Brake System
Indicator ............................................ 78, 640 Parking Sensor System
............................. 553
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 156
Playing Bluetooth ® Audio ................ 239, 293
Power Tailgate ......................................... 138
Power Windows ....................................... 146
Precautions While Driving ....................... 477
Driving Guidelines for Your Utility
Vehicle .................................................. 477
Rain ........................................................ 477
Pregnant Women ....................................... 43
Puncture (Tire) .......................................... 621
R
Radiator.................................................... 584
Radio (FM/AM) ................................. 231, 267
Radio (SiriusXM ®) ..................................... 271
Radio Data System (RDS) ................. 232, 269
Range ........................................................ 117
RDS (Radio Data System) ................. 232, 269
Readiness Codes (Emissions Testing) ....... 657
Rear Climate Control System From the Rear Panel ................................ 215
Rear Defogger/Heated Door Mirror Button ..................................................... 168
Rear Entertainment System ..................... 322
Rear Seats ................................................. 183
Second Row Seat ............................ 183, 184
Third Row Seat ........................................ 185
Rearview Mirror ....................................... 172
17 PILOT-31TG76100.book 669 ページ ２０１６年９月２０日　火曜日　午後４時９分

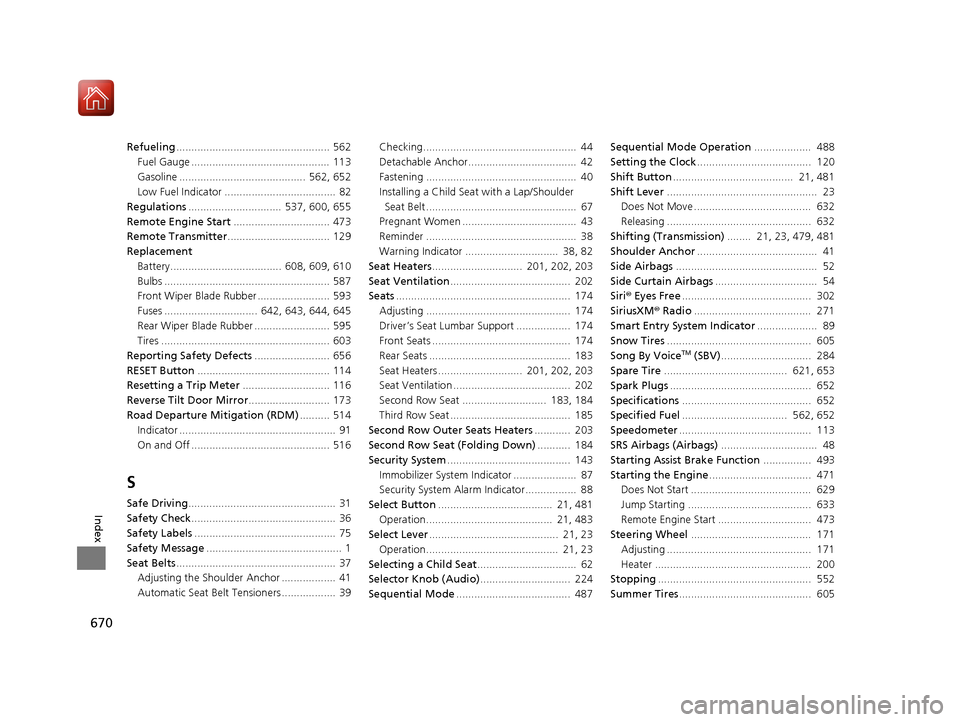

670
Index
Refueling................................................... 562
Fuel Gauge .............................................. 113
Gasoline .......................................... 562, 652
Low Fuel Indicator ..................................... 82
Regulations ............................... 537, 600, 655
Remote Engine Start ................................ 473
Remote Transmitter .................................. 129
Replacement
Battery..................................... 608, 609, 610
Bulbs ....................................................... 587
Front Wiper Blade Rubber ........................ 593
Fuses ............................... 642, 643, 644, 645
Rear Wiper Blade Rubber ......................... 595
Tires ........................................................ 603
Reporting Safety Defects ......................... 656
RESET Button ............................................ 114
Resetting a Trip Meter ............................. 116
Reverse Tilt Door Mirror ........................... 173
Road Departure Mitigation (RDM) .......... 514
Indicator .................................................... 91
On and Off .............................................. 516
S
Safe Driving ................................................. 31
Safety Check ................................................ 36
Safety Labels ............................................... 75
Safety Message ............................................. 1
Seat Belts ..................................................... 37
Adjusting the Shoulder Anchor .................. 41
Automatic Seat Belt Tensioners .................. 39 Checking................................................... 44
Detachable Anchor.................................... 42
Fastening .................................................. 40
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 67
Pregnant Women ...................................... 43
Reminder .................................................. 38
Warning Indicator ............................... 38, 82
Seat Heaters .............................. 201, 202, 203
Seat Ventilation ........................................ 202
Seats .......................................................... 174
Adjusting ................................................ 174
Driver’s Seat Lumbar Support .................. 174
Front Seats .............................................. 174
Rear Seats ............................................... 183
Seat Heaters ............................ 201, 202, 203
Seat Ventilation ....................................... 202
Second Row Seat ............................ 183, 184
Third Row Seat ........................................ 185
Second Row Outer Seats Heaters ............ 203
Second Row Seat (Folding Down) ........... 184
Security System ......................................... 143
Immobilizer System Indicator ..................... 87
Security System Alarm Indicator................. 88
Select Button ...................................... 21, 481
Operation.......................................... 21, 483
Select Lever ........................................... 21, 23
Operation............................................ 21, 23
Selecting a Child Seat ................................. 62
Selector Knob (Audio) .............................. 224
Sequential Mode ...................................... 487 Sequential Mode Operation
................... 488
Setting the Clock ...................................... 120
Shift Button ........................................ 21, 481
Shift Lever .................................................. 23
Does Not Move ....................................... 632
Releasing ................................................ 632
Shifting (Transmission) ........ 21, 23, 479, 481
Shoulder Anchor ........................................ 41
Side Airbags ............................................... 52
Side Curtain Airbags .................................. 54
Siri ® Eyes Free ........................................... 302
SiriusXM ® Radio ....................................... 271
Smart Entry System Indicator .................... 89
Snow Tires ................................................ 605
Song By Voice
TM (SBV) .............................. 284
Spare Tire ......................................... 621, 653
Spark Plugs ............................................... 652
Specifications ........................................... 652
Specified Fuel ................................... 562, 652
Speedometer ............................................ 113
SRS Airbags (Airbags) ................................ 48
Starting Assist Brake Function ................ 493
Starting the Engine .................................. 471
Does Not Start ........................................ 629
Jump Starting ......................................... 633
Remote Engine Start ............................... 473
Steering Wheel ........................................ 171
Adjusting ................................................ 171
Heater .................................................... 200
Stopping ................................................... 552
Summer Tires ............................................ 605
17 PILOT-31TG76100.book 670 ページ ２０１６年９月２０日　火曜日　午後４時９分

671
Index
Sunglasses Holder.................................... 199
Supplemental Restraint System (SRS) ....... 48
Indicator ................................................... 83
Switches (Around the Steering Wheel) ............................................ 4, 5, 152
SYNC Mode .............................................. 213
System Message Indicator ......................... 88
T
Tachometer.............................................. 113
Tailgate ..................................................... 135
Unable to Open ...................................... 650
Temperature Gauge .................................................... 113
Outside Temperature Display .................. 116
Temperature Gauge ................................ 113
Temperature Sensor ........................ 116, 216
Third Row Seat (Folding Down) .............. 185
Third Row Seat Access ............................. 183
Tie-down Anchors .................................... 198
Time (Setting) ........................................... 120
Tire Fill Assist ............................................ 641
Tires .......................................................... 597
Air Pressure..................................... 598, 653
Checking and Maintaining ...................... 597
Inspection ............................................... 597
Labeling .................................................. 598
Puncture (Flat Tire) .................................. 621
Regulations ............................................. 600
Rotation.................................................. 604 Spare Tire ........................................ 621, 653
Summer .................................................. 605
Tire Chains .............................................. 605
Wear Indicators ....................................... 602
Winter ..................................................... 605
Tools .......................................................... 620
Towing a Trailer ....................................... 458
Equipment and Accessories ..................... 462
Load Limits .............................................. 458
Towing Your Vehicle ................................ 468
Emergency .............................................. 647
TPMS with Tire Fill Assist .......................... 535
Indicator ............................................ 86, 641
Tire Fill Assist ........................................... 641
Trailer Stability Assist ............................... 466
Transmission ......................... 21, 23, 479, 481
Automatic ........................... 21, 23, 479, 481
Fluid ........................................................ 585
Gear Position Indicator ...................... 80, 483
Number ................................................... 654
Operating the Shift Lever ........................... 23
Sequential Mode ..................................... 487
Transmission Indicator ............................... 80
Trip Meter ................................................. 116
Troubleshooting ....................................... 619
Blown Fuse ...................... 642, 643, 644, 645
Brake Pedal Vibrates .................................. 28
Buzzer Sounds When Opening Door .......... 29
Emergency Towing .................................. 647
Engine Won’t Start .................................. 629
Noise When Braking .................................. 30 Overheating ............................................ 636
Puncture/Flat Tire .................................... 621
Rear Door Won’t Open...................... 29, 133
Shift Lever Does Not Move ...................... 632
Warning Indicators .................................... 78
Turn Signals .............................................. 155
Indicators (Instrument Panel) ..................... 86
Turn-by-Turn Directions ........................... 117U
Under-floor Storage Area ........................ 192
Unlocking the Doors ................................ 124
Unlocking the Fron t Doors from the
Inside ................................................. 15, 131
USB Flash Drives ....................... 236, 290, 317
USB Port ............................................ 219, 324
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 654
Vehicle Stability Assist (VSA ®).................. 527
Off Button............................................... 528
System Indicator ................................ 84, 527
Ventilation .............................................. 211
Ventilation ................................................ 205
Viscosity (Oil) .................................... 578, 653
Voice Control Operation .......................... 263
Audio Commands ................................... 265
Climate Control Commands .................... 266
17 PILOT-31TG76100.book 671 ページ ２０１６年９月２０日　火曜日　午後４時９分
